Losmandy DVA Dovetail Plate Adapter

Product Overview

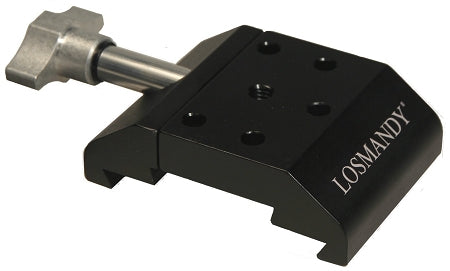

The DVA is a dovetail clamp that bolts to your existing tube rings or telescope and accepts either a Losmandy D-series or a Vixen-style V-series plate. Once it is mounted, equipment can be interchanged without tools. It is machined aluminium and weighs 7.25 oz. Height from the top of the dovetail plate to the top of the DVA is 0.800" on D plates and 0.550" on V plates. The centre hole is threaded 5/16"-18 and the remaining mounting holes are 1/4" pass-through.

Who It's For

This is the piece that makes something dovetail-mountable when it wasn't. Rings drilled for bolts, a camera bracket, a solar finder platform, a small tube with tapped holes in its foot — bolt the DVA on once and the item clamps onto any D or V plate from then on, which is the difference between a five-minute setup and a spanner hunt in the dark.

Key Features & Design

• Accepts both Losmandy D-series and Vixen-style V-series plates.
• Bolts to existing rings or telescopes, then clamps to a plate with no tools.
• Machined aluminium for strength and low weight, at 7.25 oz.
• Stack height: 0.800" above a D plate, 0.550" above a V plate.
• Centre hole threaded 5/16"-18; remaining mounting holes 1/4" pass-through, unthreaded.

Recommended Uses

Giving tube rings or a telescope foot a dovetail clamp. Mounting a guide scope, camera bracket or finder platform onto a D or V plate. Making a piece of equipment swappable between telescopes that share a plate standard. Adapting third-party hardware to a Losmandy or Vixen dovetail without drilling the plate.

Compatibility and Accessory Notes

• Plates: Losmandy D-series — the 14", 19" and 24" plates — and Vixen-style V-series, including the 7" and 11" plates.
• Mounting hardware: the centre hole is 5/16"-18 threaded; the others pass 1/4" bolts straight through. Screws to suit your rings are not included — tell us what you are bolting it to and we will confirm what you need.
• The reverse problem: the D to V adapter plate provides a saddle above a dovetail, for when you need to add a saddle rather than a clamp.
• Guide scopes: the DVR108 rings already clamp directly to a dovetail, so a guide scope in those rings does not need a DVA.

Good to Know Before You Order

• You supply the bolts that attach it to your rings or tube. The hole pattern is 5/16"-18 in the centre with 1/4" pass-through holes around it.
• It adds a little over half an inch of height — 0.800" on a D plate, 0.550" on a V plate. That raises whatever sits on it, which matters for clearance on a short tube near the mount.
• Check the hole spacing on your rings against the DVA's pattern before ordering. Send us the ring model and we will confirm it.
• Specifications are Losmandy's published figures.

Frequently Asked Questions

Is it difficult to set up?

Bolting it on is a one-time job with an Allen key. After that it clamps onto a plate by hand, with no tools.

What does it attach to?

Existing tube rings or a telescope with suitable tapped or through holes. The centre hole is 5/16"-18; the rest take 1/4" bolts.

Does it take Vixen plates?

Yes — both Losmandy D-series and Vixen-style V-series.

How much height does it add?

0.800" measured from the top of a D plate, or 0.550" from the top of a V plate.

Are the mounting screws included?

Losmandy does not list screws with it, because the right ones depend on what you are bolting it to. Tell us and we will sort it out with you.

Bottom Line

In short: a 7.25 oz machined clamp that bolts to rings or a tube and then mounts to any Losmandy D or Vixen-style V plate without tools — the part that makes an odd piece of equipment dovetail-ready.
