ZWO ASI2600MC Air

Product Overview

The ZWO ASI2600MC Air combines an APS-C colour cooled imaging camera, integrated guiding, and ASIAIR-style smart control into one device. The main sensor is Sony’s IMX571 APS-C sensor with 26 MP resolution, 3.76 µm pixels, and extended full-well mode up to 73ke.

The ASI2600MC Air is built for simplified deep-sky imaging with fewer separate components. It includes the main imaging sensor, SC2210 guide sensor, smart control, 256 GB eMMC storage, dual-band Wi-Fi, USB accessory ports, and DC power outputs.

Who It’s For

This is a good match if you want a cleaner portable imaging setup with camera, guiding, storage, wireless control, and device connectivity handled from one integrated ZWO unit.

Key Features & Design

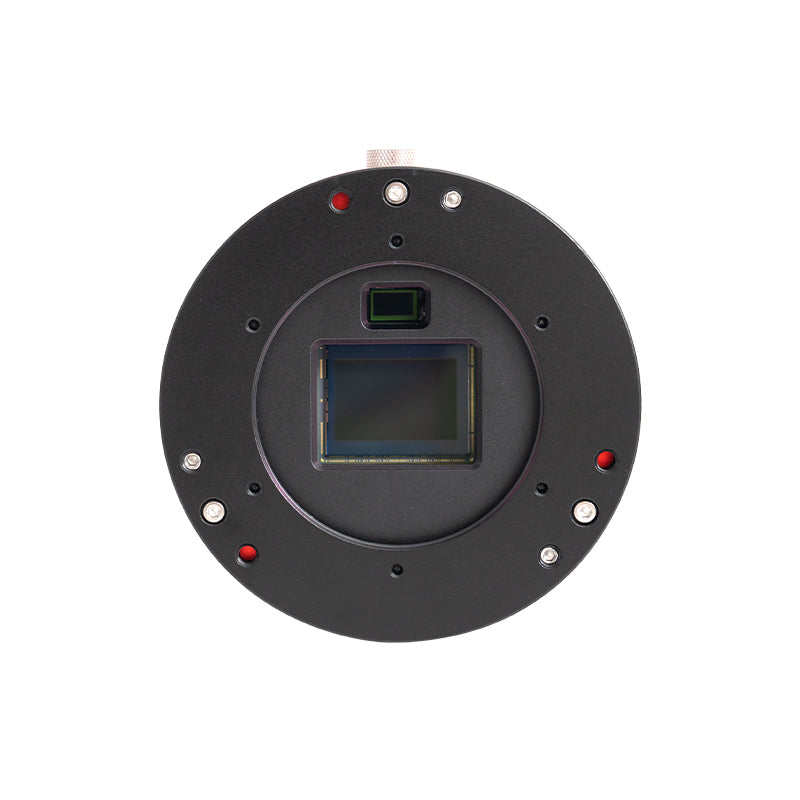

• APS-C IMX571 main sensor: 23.5 mm × 15.7 mm sensor with a 28.3 mm diagonal.
• Integrated guide sensor: SC2210 guide sensor with 1920 × 1080 resolution and strong NIR sensitivity.
• Smart control built in: Imaging, guiding, and device control are integrated into the camera body.

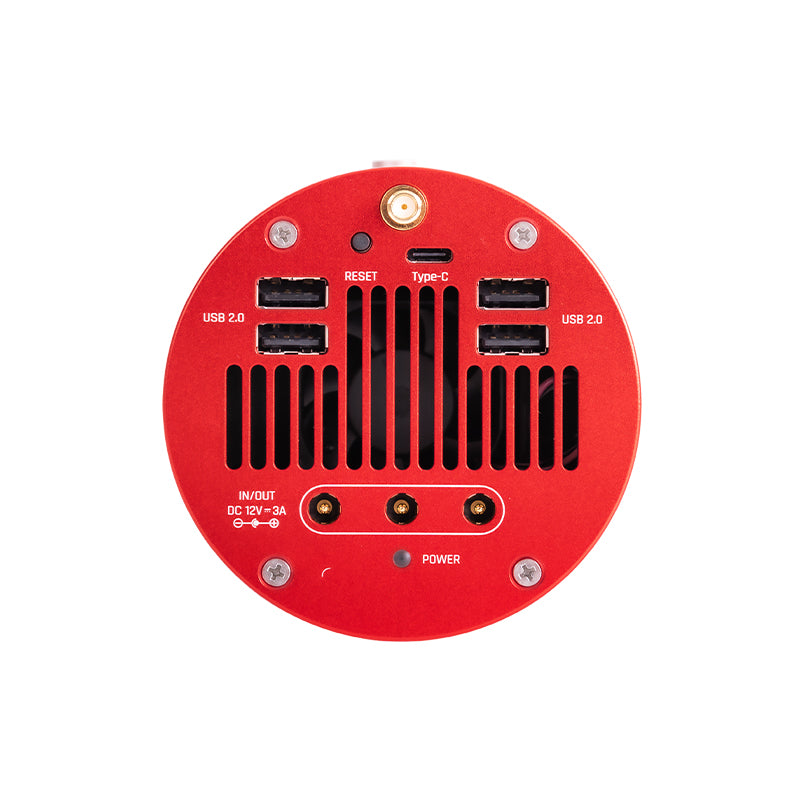

• Connectivity hub: 4 × USB 2.0, 3 × DC 12 V ports, and 1 × USB Type-C port.
• 256 GB eMMC storage: Built-in storage for capture sessions, with USB 2.0 ports supporting external storage up to 1 TB.

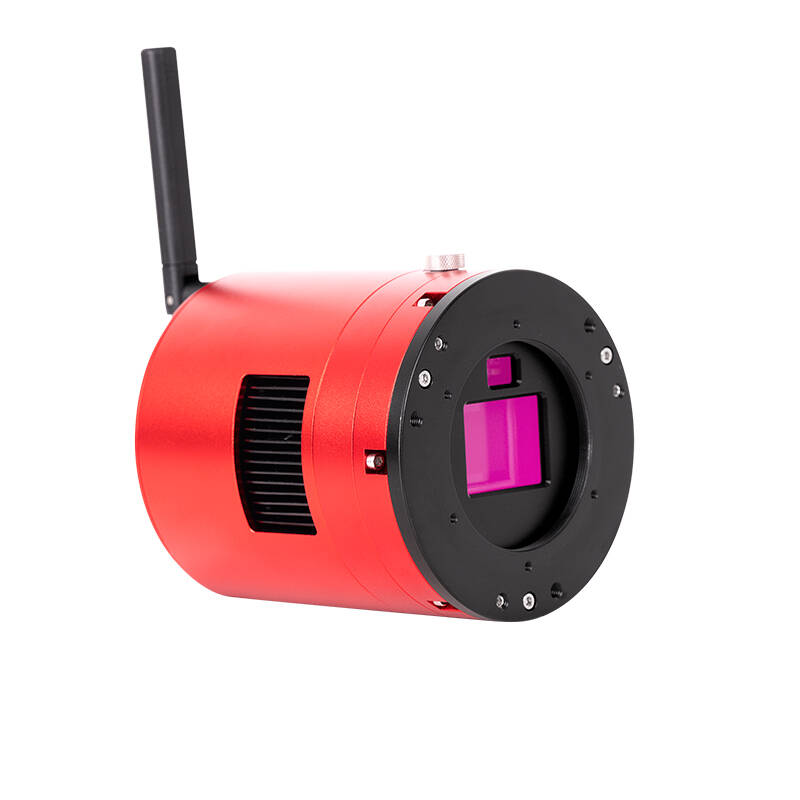

• Dual-band Wi-Fi: 2.4 GHz and 5 GHz wireless control with an external antenna.

Optical / Mechanical Design

The ASI2600MC Air uses the same APS-C IMX571 imaging format found across the ASI2600 family, combined with an integrated guide sensor and onboard control system. The design reduces the number of separate devices normally needed for a complete imaging rig.

Camera Performance

The ASI2600MC Air uses the same core IMX571 APS-C colour imaging platform as the ASI2600 Pro family, giving it strong full-well capacity, low read noise, and high dynamic range for deep-sky imaging.

QE / Relative Response

The ASI2600MC Air uses the colour version of the IMX571 imaging sensor. The relative-response graph below shows the colour-channel response across wavelength.

Recommended Uses

• Portable deep-sky imaging: Reduce separate boxes, cables, and control hardware.
• Wireless imaging sessions: Use dual-band Wi-Fi and onboard storage for cleaner field operation.
• ZWO ecosystem setups: Control focusers, filter wheels, mounts, and accessories through the integrated ports.

Compatibility and Accessory Notes

The ASI2600MC Air supports ASIAIR App control, ASIStudio, and third-party PC software through ASCOM Alpaca where supported. ZWO lists 4 × USB 2.0, 3 × DC 12 V 10 A, and 1 × USB Type-C connection options.

Important Limitations

• Colour-only workflow: This product is the MC colour version; choose the MM version if a monochrome Air model is required.
• Integrated ecosystem: Best results come when the connected devices are compatible with the supported control workflow.
• Power planning required: The DC outputs and cooled camera require suitable 12 V power capacity.

Frequently Asked Questions

Is the ASI2600MC Air a colour camera?

Yes. This is the colour version of the ASI2600 Air family.

Does it include guiding?

Yes. It includes an integrated SC2210 guide sensor.

Does it replace an ASIAIR?

It includes smart control functions in the camera body, reducing the need for a separate control box in supported ZWO workflows.

Bottom Line

In short: the ASI2600MC Air is a 26 MP APS-C colour cooled smart camera with integrated guiding, onboard storage, Wi-Fi, USB/DC connectivity, and ZWO control built into one compact imaging device.
