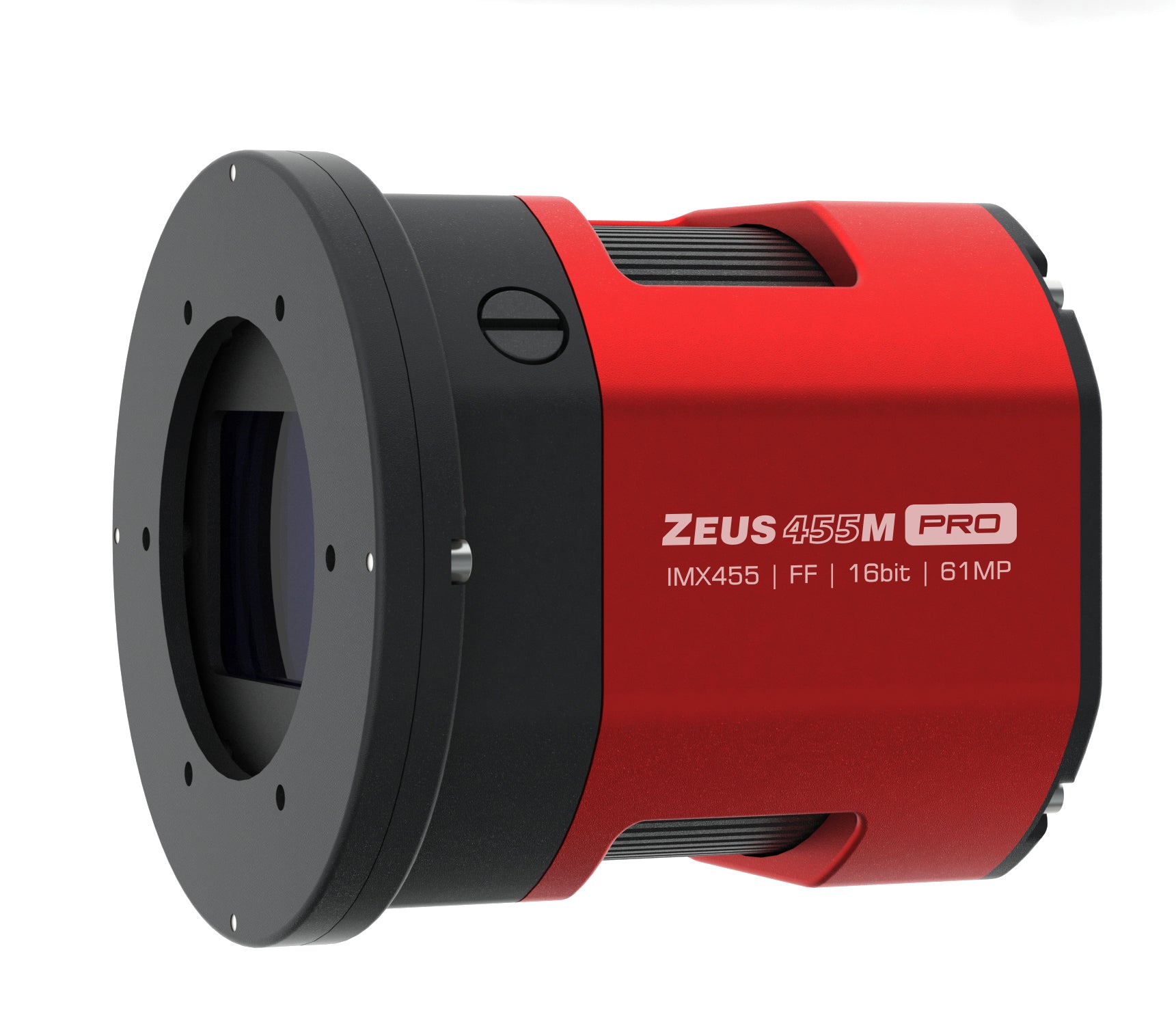

ZEUS 455M PRO (IMX455) USB3.0 Mono Cooled Camera

Product Overview

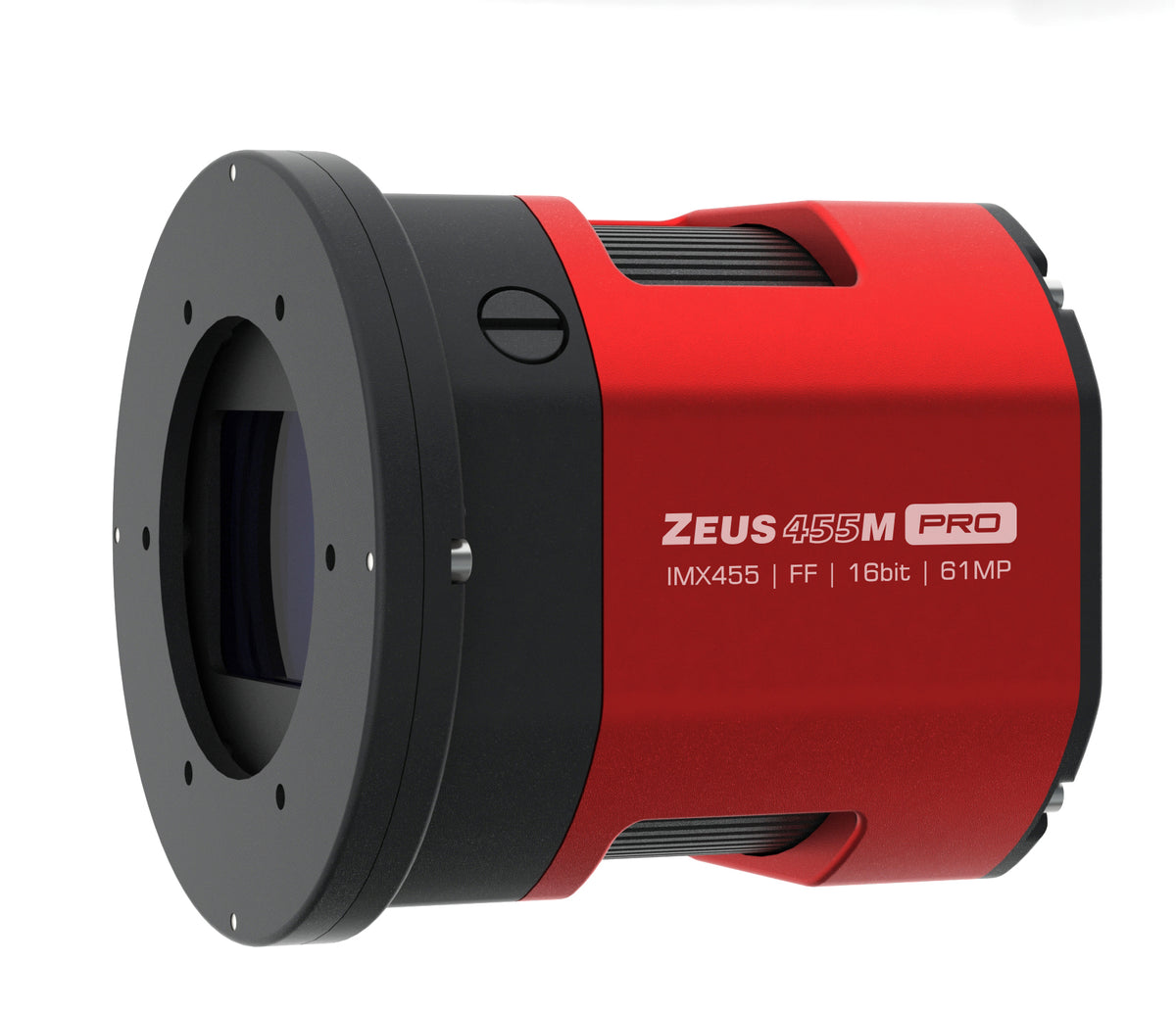

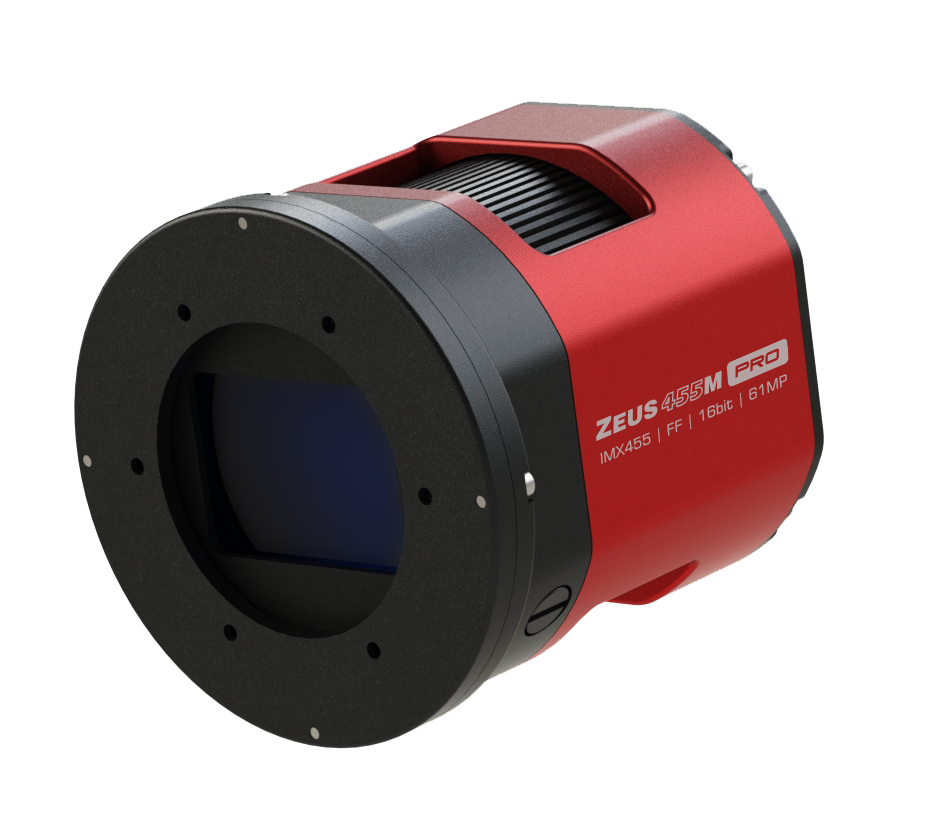

The Player One Astronomy ZEUS 455M Pro is a cooled full-frame monochrome USB3.0 camera built on the 61-megapixel Sony IMX455 CMOS sensor. It shares the full-frame IMX455 format (43.3 mm diagonal, 36 mm × 24 mm, 9576 × 6388 pixels) and 3.76 µm pixels with the color ZEUS 455C Pro, but as a monochrome sensor it removes the Bayer filter to reach a peak quantum efficiency of about 91% and full per-pixel resolution. A two-stage TEC cools it 35°C ± 2°C below ambient, and an integrated adjustable anti-dew heater keeps the window clear.

Who It's For

This is a good match if you want the highest-resolution monochrome detail across a full-frame field for narrowband and LRGB imaging. Run with a filter wheel, it captures wide, deeply resolved nebulae and large galaxies — a flagship deep-sky imager for well-corrected full-frame optics.

Key Features & Design

• Sony IMX455 full-frame mono sensor: 61 MP at 9576 × 6388, 3.76 µm pixels, no debayering.

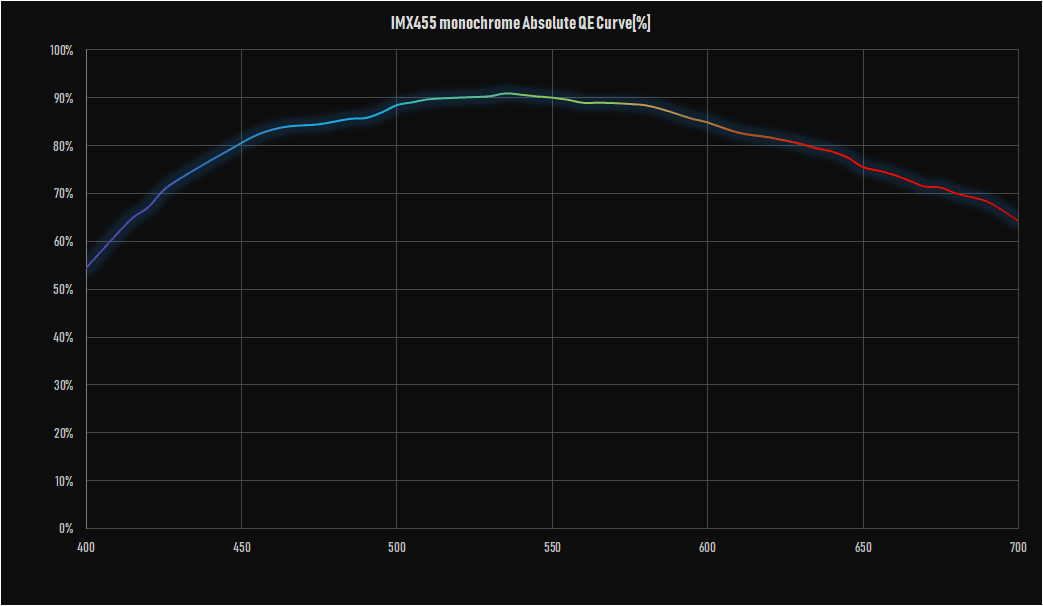

• Peak QE about 91%: high mono sensitivity for efficient narrowband capture.
• 16-bit ADC, 71.6 ke- full well: wide dynamic range and smooth tonal gradation.
• Read noise down to 1.27e-: a low floor for faint narrowband signal.
• Two-stage TEC, 35°C ± 2°C below ambient, with anti-dew heater: low noise and condensation control across the large sensor.
• M54 and 2″ interfaces: larger thread to illuminate the full-frame circle.

Optical / Mechanical Design

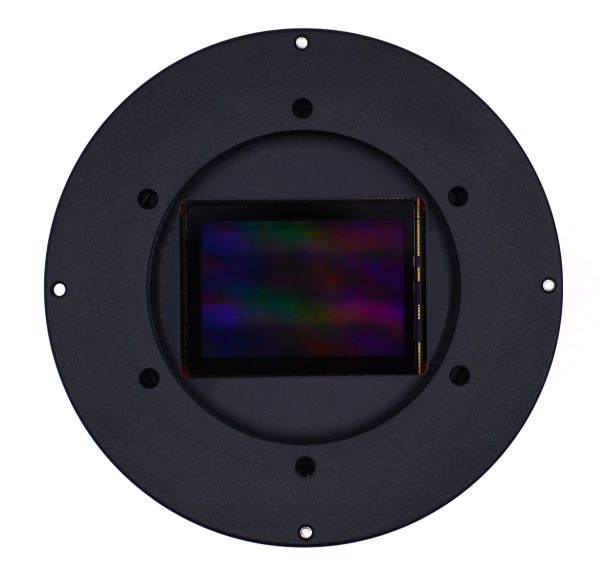

Removing the color filter array lifts peak QE to about 91% and gives every one of the 3.76 µm pixels full spatial resolution across the 43.3 mm diagonal — the configuration serious narrowband and LRGB imagers prefer. The 16-bit ADC finely samples the 71.6 ke- full well for wide dynamic range, and cooling to 35°C ± 2°C below ambient plus the anti-dew heater keep thermal noise and condensation in check. A D55 × 2 mm AR Plus multi-layer coated window covers the sensor.

Recommended Uses

• Full-frame narrowband: wide, high-resolution H-alpha, OIII, and SII nebula imaging.
• LRGB deep-sky work: large galaxies and clusters with oversampled luminance.
• Cooled long-exposure projects: faint targets that reward low read noise and deep wells.

Compatibility & Accessory Notes

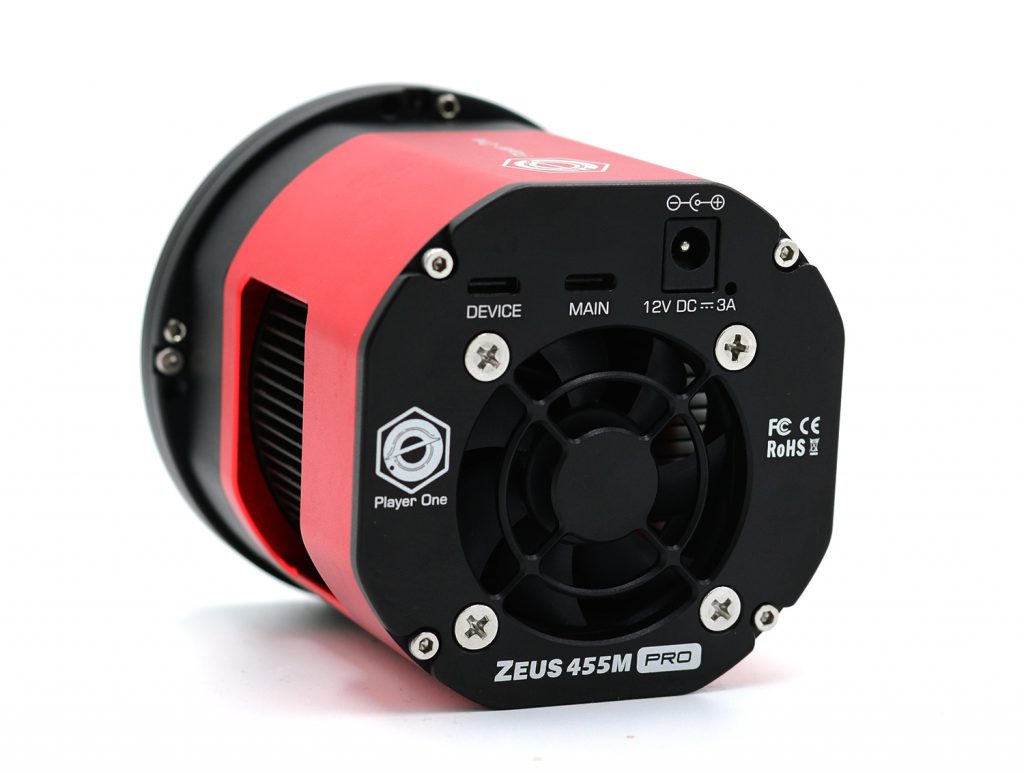

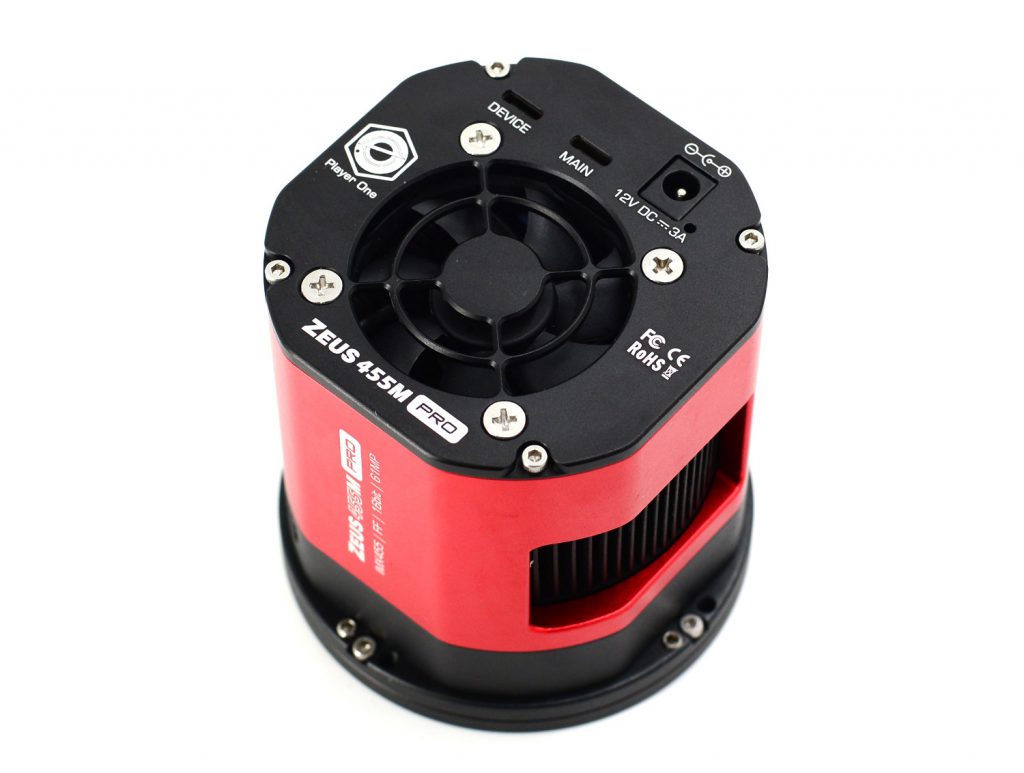

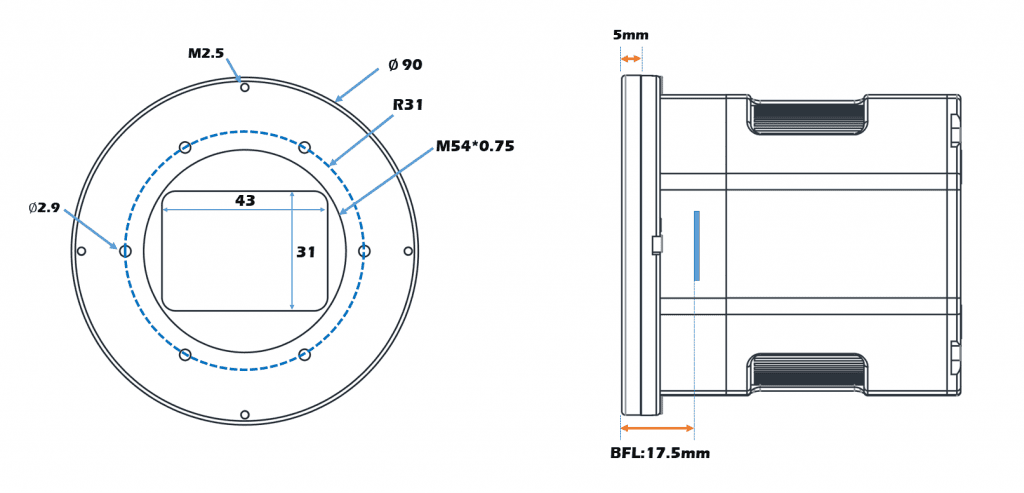

The ZEUS 455M Pro connects over USB3.0/USB2.0 (Type-C) and powers its cooler from a 12 V DC input. It uses M54 × 0.75 and 2″ interfaces — use the M54 thread so the imaging train fully illuminates the full-frame sensor. Back focal distance is 17.5 mm with the sensor tilt plate fitted, or 12.5 mm without. As a mono camera it is designed to run with a filter wheel; full-frame filters avoid vignetting the corners.

Good to Know Before You Order

• Full-frame needs full-frame optics and filters: use a corrector and filters rated for a 43.3 mm image circle to avoid vignetting and corner aberration.
• Color needs filters: a monochrome camera builds color from separate filtered exposures with a filter wheel.
• Use the M54 thread: smaller threads can vignette the large sensor.

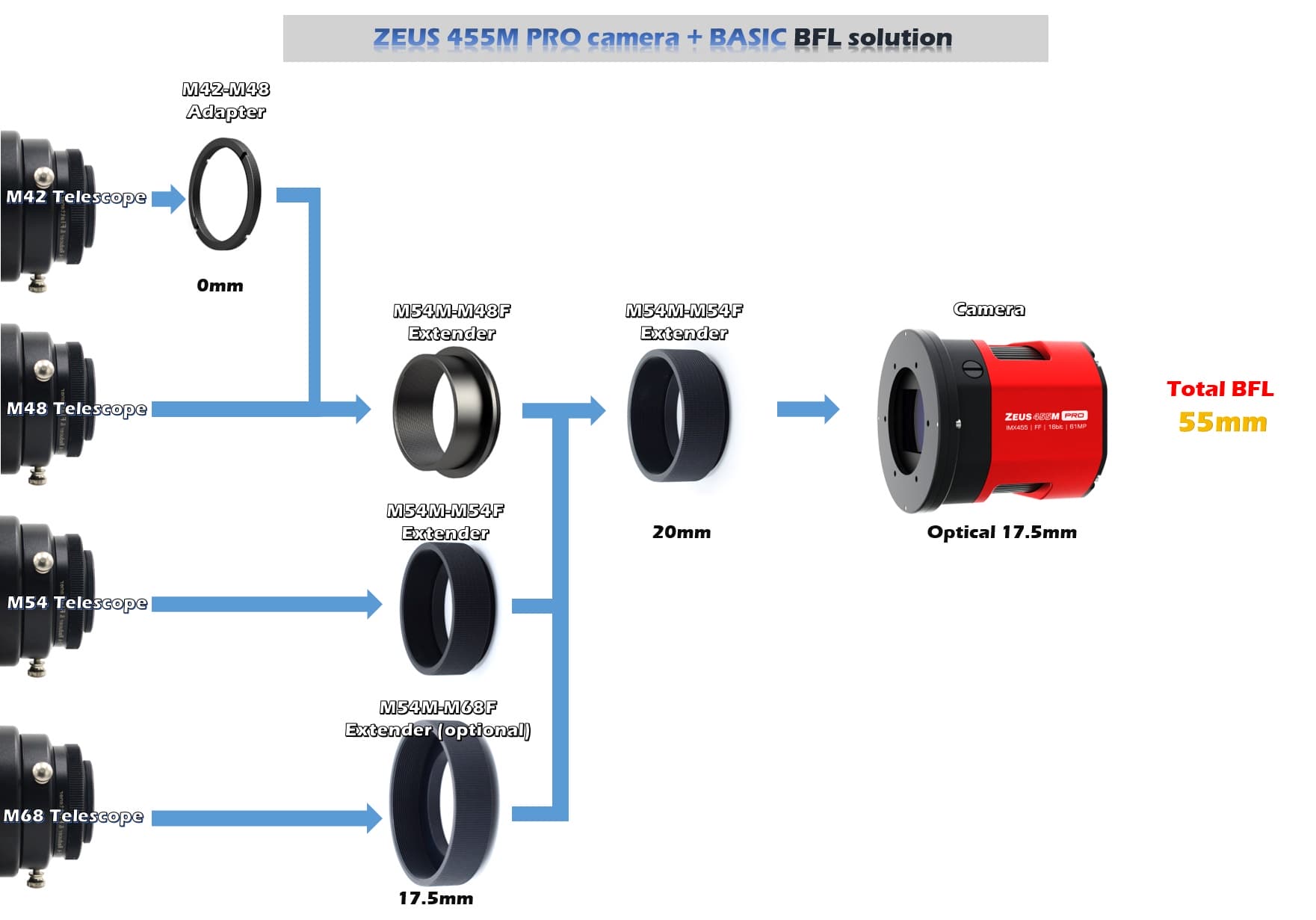

• Spacing help: back focus is 17.5 mm with the tilt plate (12.5 mm without) — send us your optics and filters and we will confirm the train with you.

Frequently Asked Questions

Is it difficult to set up?

No, though it rewards planning. It threads onto M54 or 2″, connects with one USB3.0 Type-C cable, and takes 12 V DC for cooling. Matching full-frame optics, filters, and the 17.5 mm (or 12.5 mm) back focus is the main work; the camera is controlled in software.

What is it best used for?

High-resolution monochrome full-frame deep-sky imaging — wide narrowband nebulae and LRGB galaxies and clusters.

How is it different from the ZEUS 455C Pro?

Same IMX455 full-frame sensor and body, but monochrome: higher peak QE (about 91%) and full-resolution detail, at the cost of needing filters for color.

Do I need a filter wheel?

For color, yes — mono cameras record one filter at a time and combine channels in processing. Use full-frame filters to cover the sensor.

Bottom Line

In short: a cooled monochrome camera on the 61 MP full-frame Sony IMX455, with 3.76 µm pixels, about 91% peak QE, a 71.6 ke- full well, 16-bit output, an anti-dew heater, and 35°C of cooling below ambient. Run it with filters and full-frame optics through the M54 thread and it is a flagship narrowband and LRGB imager, set 17.5 mm (or 12.5 mm) behind its front face.
