Name: Z-axis Balancing Kit
Brand: iOptron
SKU: 8439
Price: 127.99 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Description
Specifications

Special designed counterweight kit for Z-axis balance.

It fits on following iOptron mounts (has a M8 threaded holes on dovetail saddle):

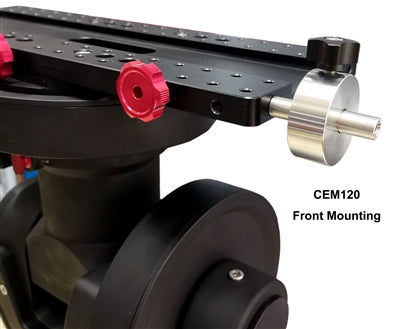

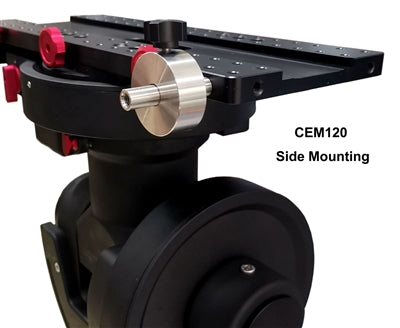

CEM120

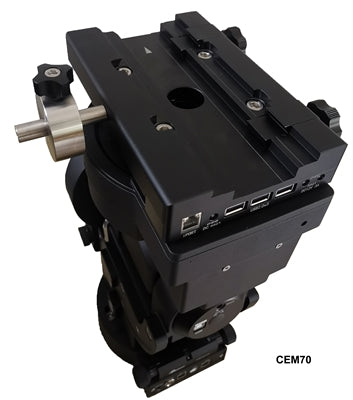

CEM70
CEM40 (version with THICK 6" V/D dual saddle, except CEM40G)
GEM45 (version with THICK 6" V/D dual saddle, except GEM45G)

It can also be used for other mounts with a M8 threaded hole, on dovetail saddle or counterweight.

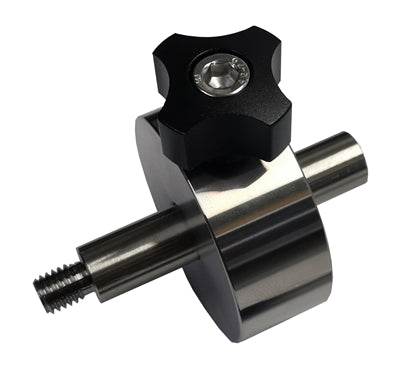

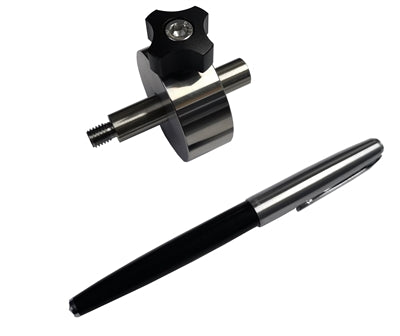

Counterweight

OD: 49mm
ID: 12mm
Thickness: 20mm
Weight: 292g
Material: Stainless Steel

CW shaft

Diameter: 12mm
Length: 60mm
Thread: M8X1.25mm (both ends)
Weight: 48g
CW shaft end screw: No
Material: Stainless Steel
