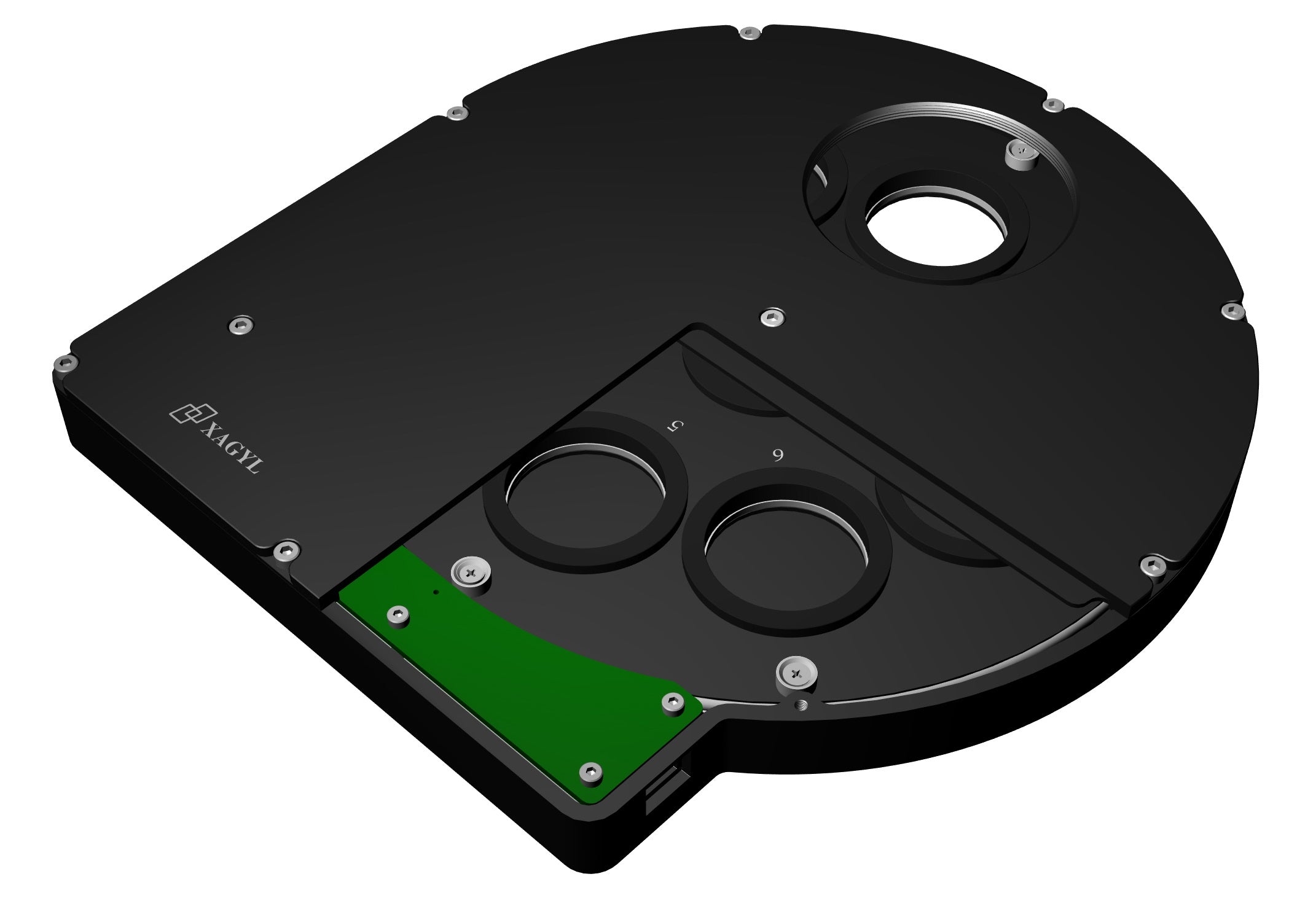

Xagyl Ultra Thin Motorized Filter Wheel - 8 x 31mm Unmounted Filters
Xagyl Ultra Thin Motorized Filter Wheel - 8 x 31mm Unmounted Filters
Roll over image to zoom in Click on image to zoom
Xagyl Ultra Thin Motorized Filter Wheel - 8 x 31mm Unmounted FiltersXagyl Ultra Thin Motorized Filter Wheel - 8 x 31mm Unmounted Filters

Xagyl Ultra Thin Motorized Filter Wheel - 8 x 31mm Unmounted Filters

Xagyl AstronomySKU: FW831V1
Price:
$549.99 CAD
Stock:
In stock Qty: 2
  • Description
  • Specifications
Ultra slim motorized filter wheel - only 0.7" thick! Holds 8 x 31mm unmounted filters up to 4mm thick using our proprietary zero-stress retainers. USB controlled and powered (no additional power supply required). No motors protruding from the filter wheel to get in the way. Measuring only 7.6" x 8" x 0.7", this is one of the smallest, thinnest motorized filter wheels on the market. Only adds 19mm of back focus to the optical path when used with our adapters. Perfect solution for Basler Ace, ZWO ASI, QHY ATIK, Moravian,SBIG cameras, and More8 x 31mm Motorised Filter Wheel (ASCOM)
Includes:
– T thread male and female adapters
– 2" barrel adapter
– 3M USB interface cable

Optional Accessories:
– M48 thread male and female adapters
– C thread adapter

Ultra slim motorized filter wheel - only 0.7" thick!
Holds 8 x 31mm unmounted filters from 1mm to 4mm thick.
Proprietary holder design prevents stress on the filters from poor mounting configurations.
Full CNC manufacturing for high quality finish.
Manufactured from solid aircraft grade aluminum.
USB controlled and powered - no additional power supply required.
No motors protruding from the filter wheel to get in the way.
Measuring only 7.6" x 8" x 0.7", this is one of the smallest, thinnest motorized filter wheels on the market.
Only adds 19mm of back focus to the optical path when used with our adapters.

Includes:

  • T2 Mount Male adapter with locking ring
  • T2 Mount Female adapter
  • 2" barrel adapter
  • 10' USB interface cable

Optional accessories:

  • C Mount Male adapter with locking ring
  • M48 Male thread adapter with locking ring
  • M48 Female thread adapter

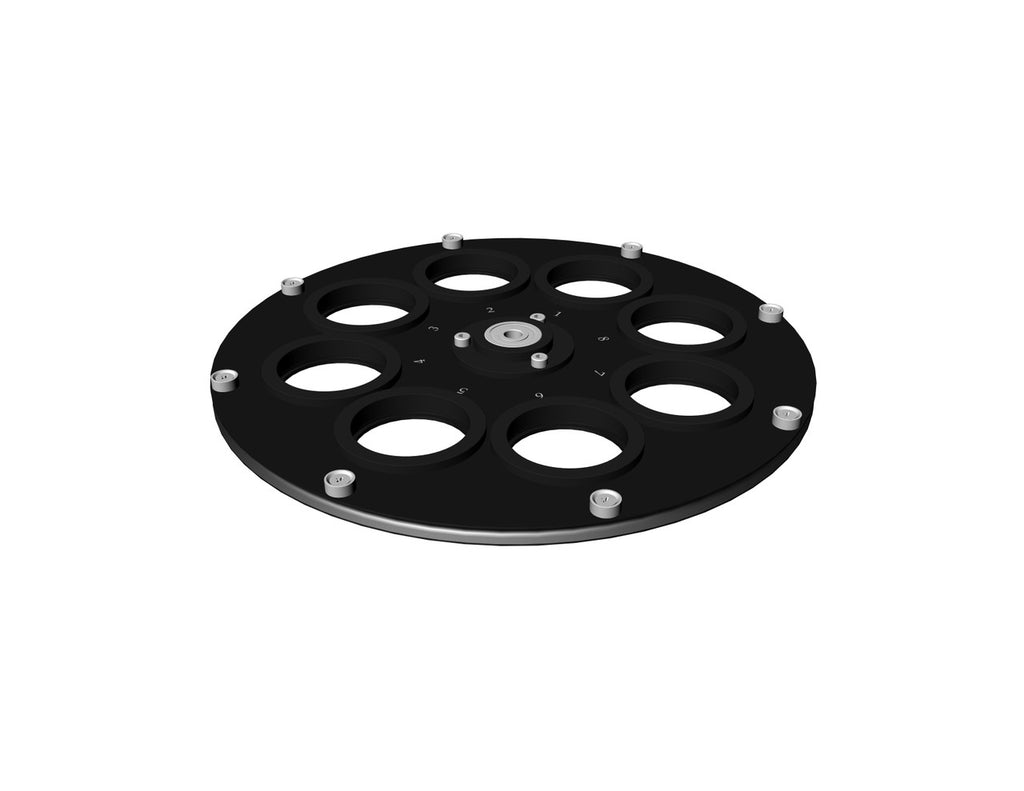

The filter carousel holds 8 x 31mm round unmounted filters. The maximum glass thickness which can be accommodated is 4mm.

All downloads are now available in the DOWNLOAD section of the XAGYL Astro website.
