Name: Xagyl - 7 x 36mm Unmounted Filters
Brand: Xagyl Astronomy
SKU: FW736V1
Price: 549.99 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Description
Specifications

Product description

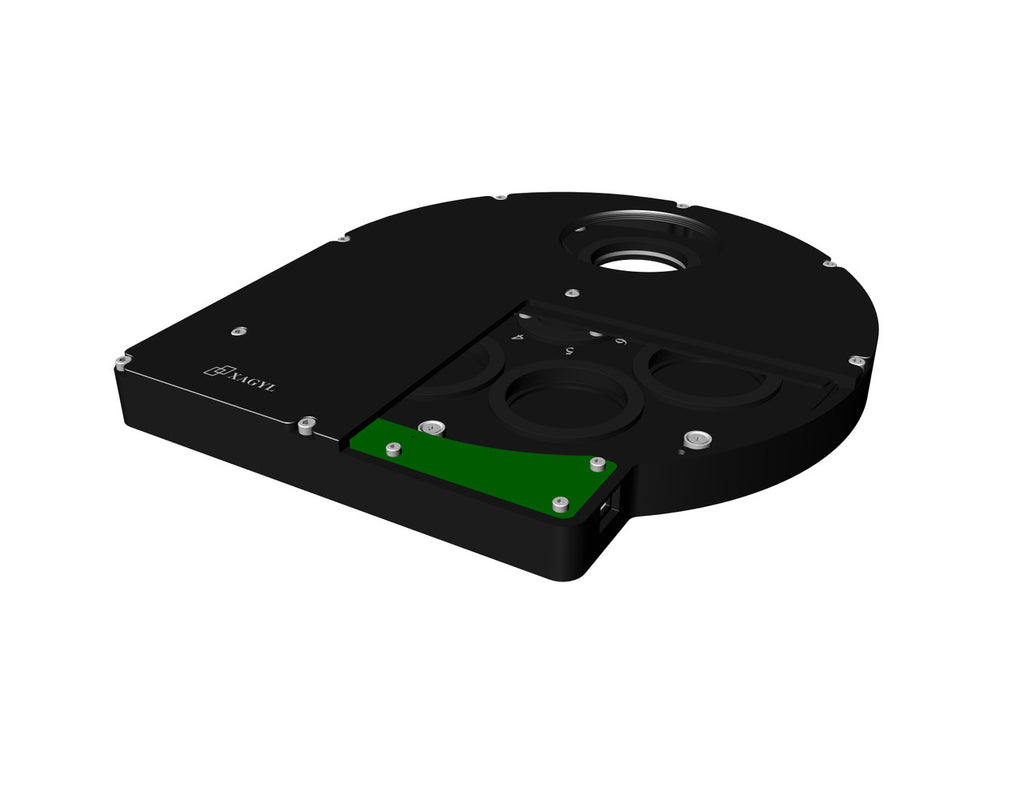

Ultra slim motorized filter wheel - only 0.7" thick! Holds 7 x 36mm unmounted filters up to 4mm thick using our proprietary zero-stress retainers. USB controlled and powered (no additional power supply required). No motors protruding from the filter wheel to get in the way. Measuring only 7.6" x 8" x 0.7", this is one of the smallest, thinnest motorized filter wheels on the market. Only adds 19mm of back focus to the optical path when used with our adapters. Perfect solution for Basler Ace, ZWO ASI, QHY, ATIK, Moravian, SBIG cameras, and More! 7 x 36mm Motorised Filter Wheel (ASCOM)
Includes:
– T thread male and female adapters
– 2" barrel adapter
– 3M USB interface cable

Optional Accessories:
– M48 thread male and female adapters
– C thread adapter

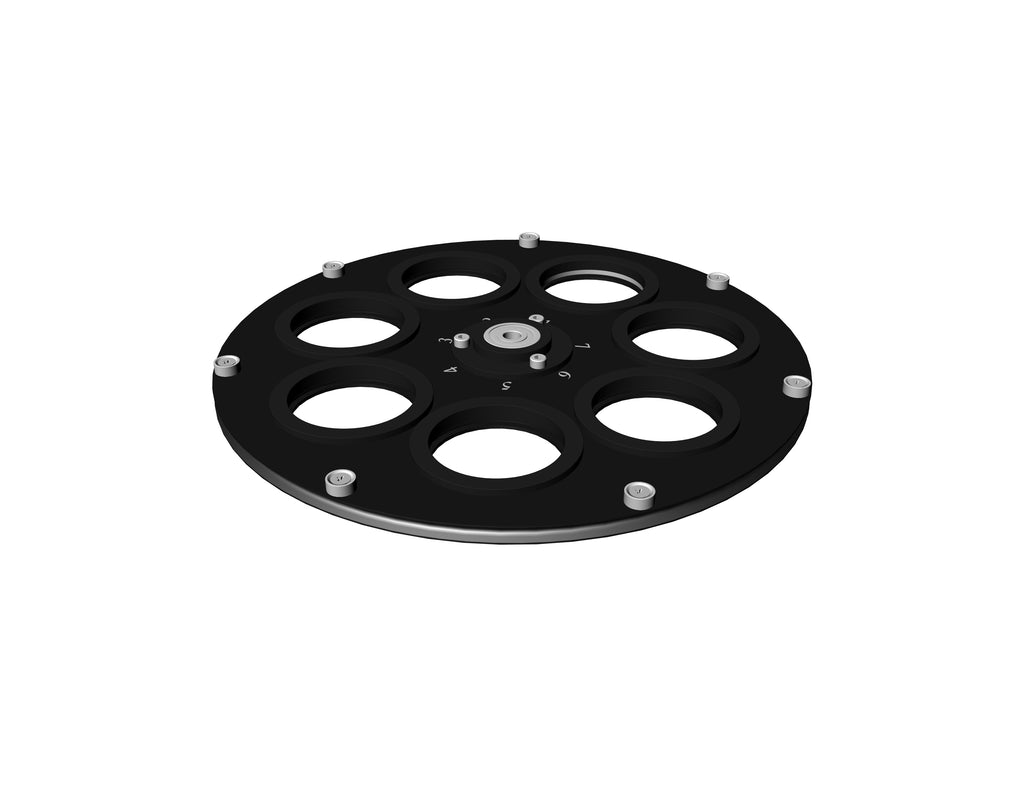

The filter carousel is made for standard 36mm unmounted filters. The maximum filter glass thickness which can be accommodated is 4mm.

Ultra slim motorized filter wheel - only 0.7" thick!
Holds 7 x 36mm unmounted filters from 1mm to 4mm thick.
Proprietary holder design prevents stress on the filters from poor mounting configurations.
Full CNC manufacturing for high quality finish.
Manufactured from solid aircraft grade aluminum.
USB controlled and powered - no additional power supply required.
No motors protruding from the filter wheel to get in the way.
Measuring only 7.6" x 8" x 0.7", this is one of the smallest, thinnest motorized filter wheels on the market.
Only adds 19mm of back focus to the optical path when used with our adapters.

Includes:

T2 Mount Male adapter with locking ring
T2 Mount Female adapter
2" barrel adapter
10' USB interface cable

Optional accessories:

C Mount Male adapter with locking ring
M48 Male thread adapter with locking ring
M48 Female thread adapter

The filter carousel holds 36mm round unmounted filters. The maximum glass thickness which can be accommodated is 4mm.

All downloads are now available in the DOWNLOAD section of the XAGYL Astro website.

What Is Back Focus in Astrophotography? Telescope Reducers, Flatteners, and Spacing Explained

Xagyl - 7 x 36mm Unmounted Filters
