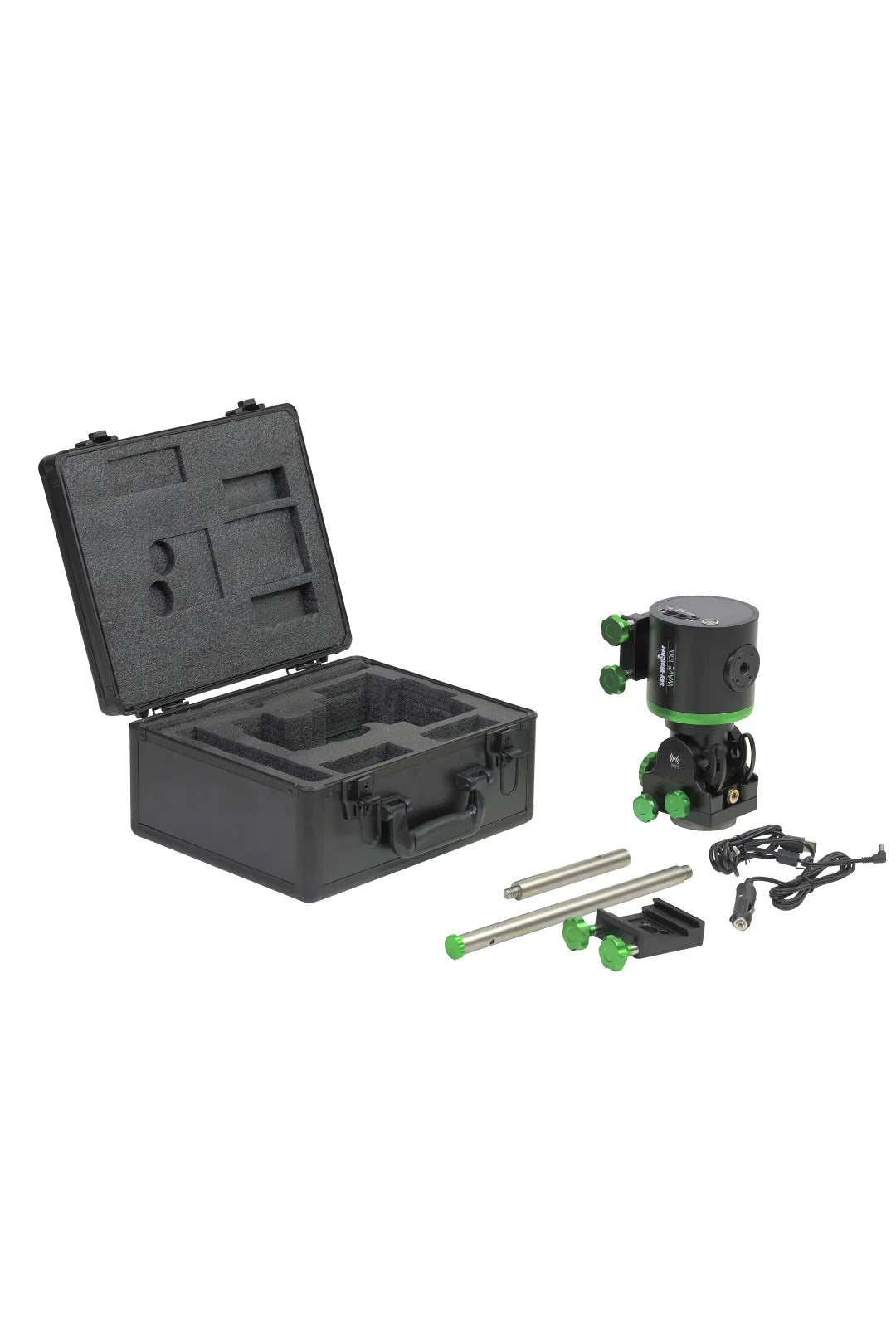

Wave 100i with Carbon Fiber Tripod & Extension Tube Kit

HIGH TORQUE. HIGH PRECISION. HIGH PORTABILITY.

Taking advantage of the strain wave design with its high torque and compact construction, these mounts deliver high precision and power in an affordable and portable package. With exclusive features found on no other strain wave mounts, the Wave series is a serious update and upgrade to Sky-Watcher’s already immensely popular family of astronomy mount platforms.

Boasting 22 and 33 pounds of payload capacity respectively (33 and 55 pounds with optional counterweight kits), the Wave 100i and 150i are incredibly compact and lightweight (9.5 and 12.8 pounds) and stow in durable carry cases with dense, machine-cut foam perfectly suited for travel.  Sky-Watcher’s Wave mounts also feature both EQ and AZ tracking modes with RA and Dec home positions, D/V hybrid saddles, 0–90-degree latitude range, Wi-Fi and Bluetooth capability, RA power-off braking, 12v 2a power (not included), and a red backlit latitude display and bubble level to make your setup routine that much easier.

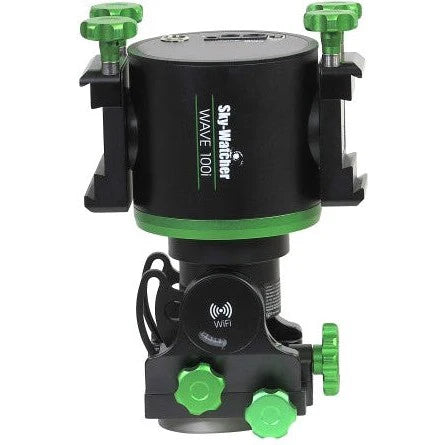

• Wave 100i GoTo strainwave head
• Works seamlessly with ASI Air (USB-B cable included)
• EQ and AZ modes
• Weighs 9.5 pounds (4.3kg)
• 22-pound (10kg) payload capacity without optional counterweight
• 33-pound (15kg) payload capacity with optional counterweight
• Dual D/V hybrid saddles Included secondary saddle
• Latitude range from 0° to 90°
• Red LED for latitude scale and bubble level
• Wi-Fi and Bluetooth
• RA power off braking function
• RA and DEC home position functions
• Requires 12V 2A power (not included)
• Carbon Fiber Tripod and Wave Extension Tube included
• Counterweight kit and Optical Tube not included
• High-strength carbon fiber tripod for Wave mounts
• 29-inch (747mm) maximum extended length
• 19.7-inch (500mm) minimum retracted length
• 44-pound (20kg) payload
• Weighs 5.3 pounds (2.4kg)
• Extension tube for Wave carbon fiber tripod
• 7-inch (180mm) length
• 3.9-inch (100mm) radius
• Weighs 2.4 pounds (1.1kg)
