Normally open DC output*1 5-13.2V regulator output*1
PWM (dew heater) output*1 (can also be used as an ordinary switch) 3 parallel DC switch output*1
DC5525 input supports up to 12V 10A
2*USB3.1+3*USB2.0
Built-in 12V-5V step-down module Maximum 5A continuous current USB ports can be switched on/off together
The 5-13.2V regulator (can be turned off) easily copes with input voltage changes and ensures stable power supply to the camera
Adjustable voltage meets the requirements of different devices
1*DHT22 temperature & humidity sensor 1*temperature probe
（Standard accessories, no additional purchases required）
Intelligent and efficient dew heater control：
Manual mode
Constant temperature mode
Dew point temperature difference mode
Electrophoresis protection
Short circuit protection
Overcurrent protection
Electrostatic protection
Maximize the security of WandererBox itself and connected devices
Input voltage and current monitoring Supports automatic reading calibration

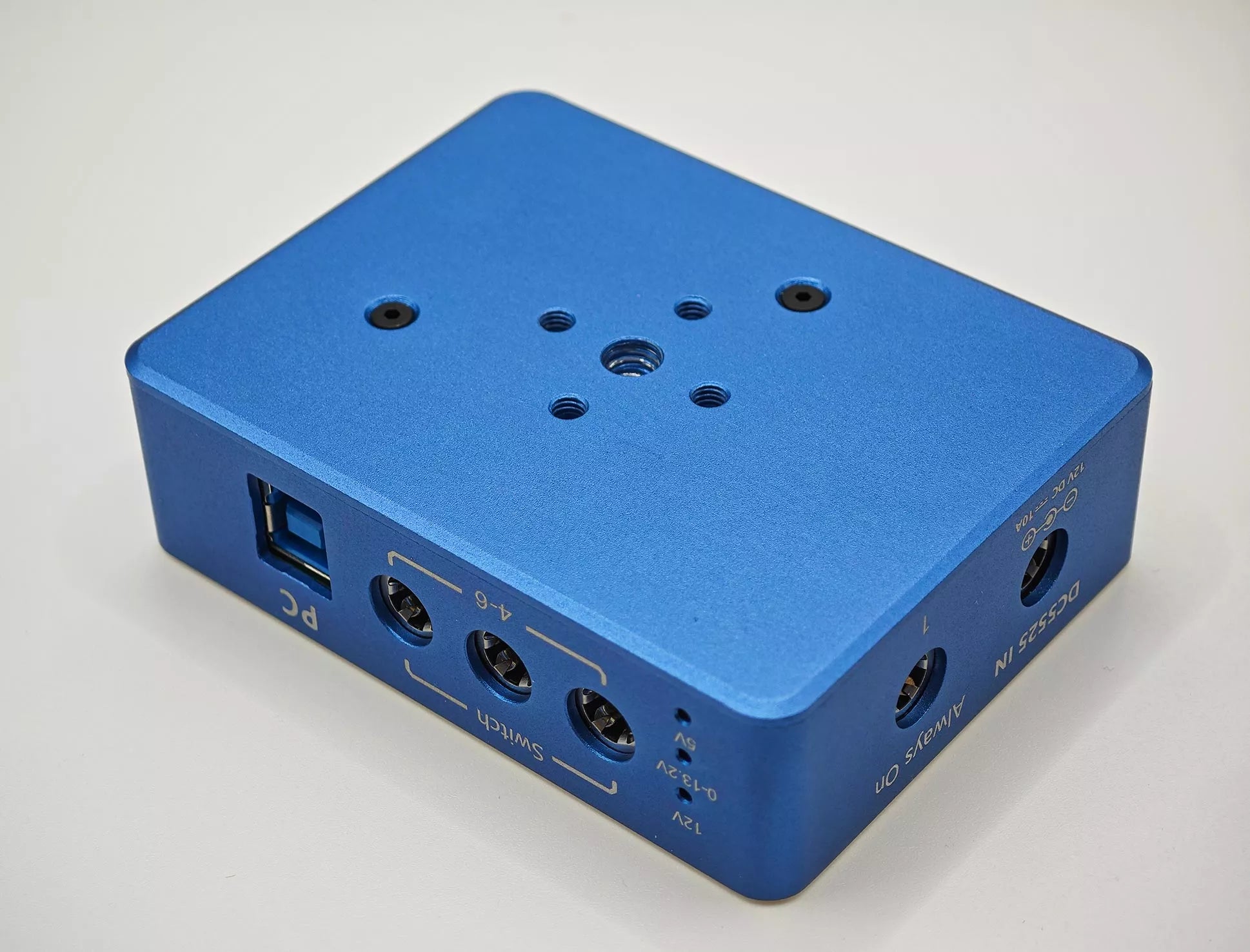

Size 8.6×6.5×2.6cm Weighs only 150g One M6 and four M4 threaded holes on the bottom
With power indicator lights
The working status is clear at a glance
With power indicator lights
The working status is clear at a glance
Specifications
- Power Input - 12V DC5.5*2.1mm 8A Max
- DC Output – DC1 (5525) Always On 12V output 10A
- DC1 (5525) Always On 12V output 10A
- DC2 (5521) 0-13.2V Adjustable regulated Output can be switched on/off 3A max
- DC3 12V PWM/Switch\Output 8Amp
- DC4-6 12V PWM/Switch\Output 8Amp
- USB Hub – 2x USB3.1, 3x USB2.0 (Can be switched on/off together)
- USB Power Supply – 5V 5A
- Input current/ Voltage monitor
- Size – 8.6x 5.2x 2.6 cm
- Weight 105g
- 1 x DHT22 temperature & Humidity sensor
- 1x DS18B20 temperature
- 1 dew heater:
- Dewpoint temperature difference control
- Constant tempo control
- Manual Control
- ASCOM - Yes
- Screw Holes M6 and M4 screw holes, 4mm Deep
