- Description

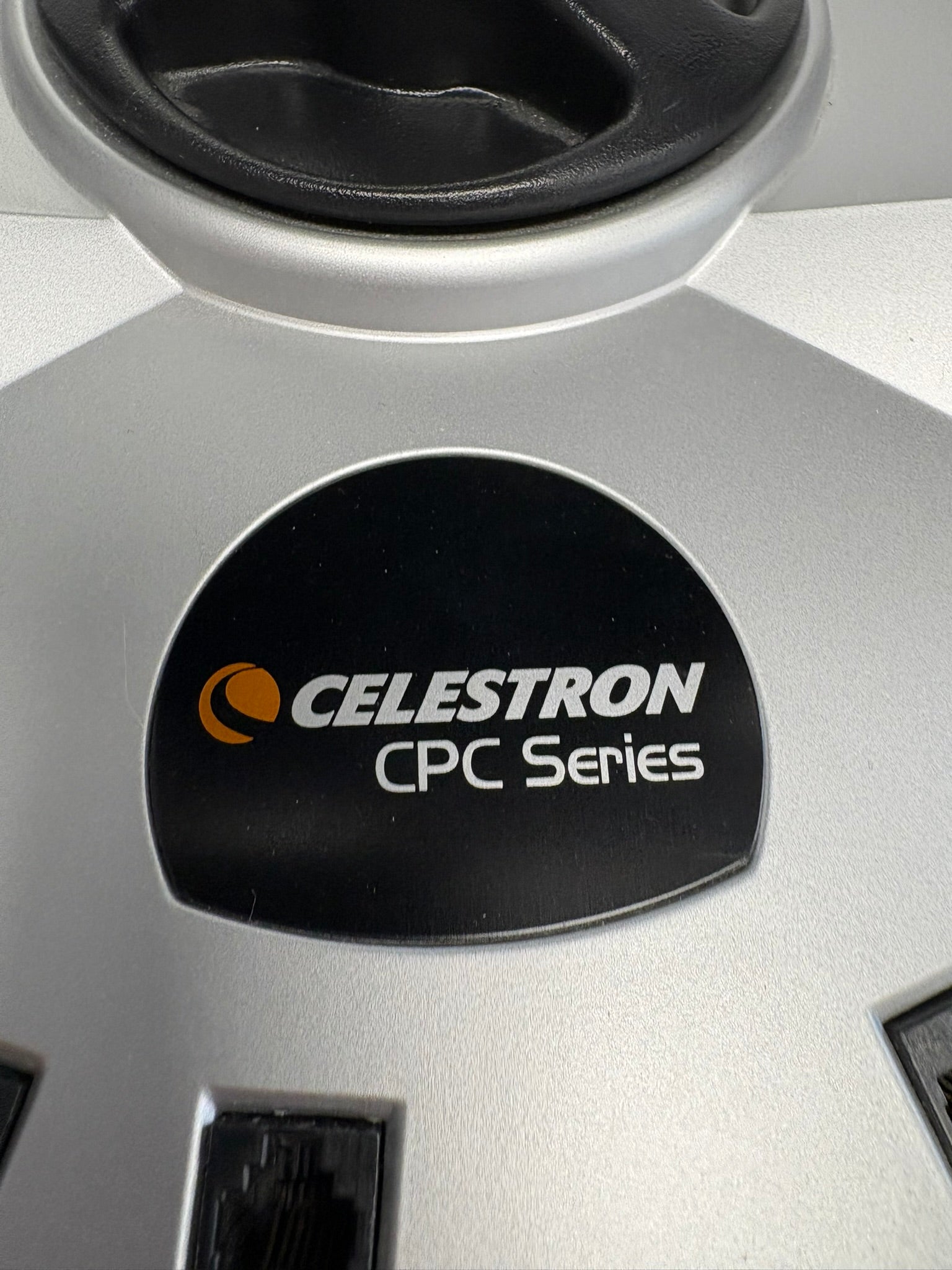

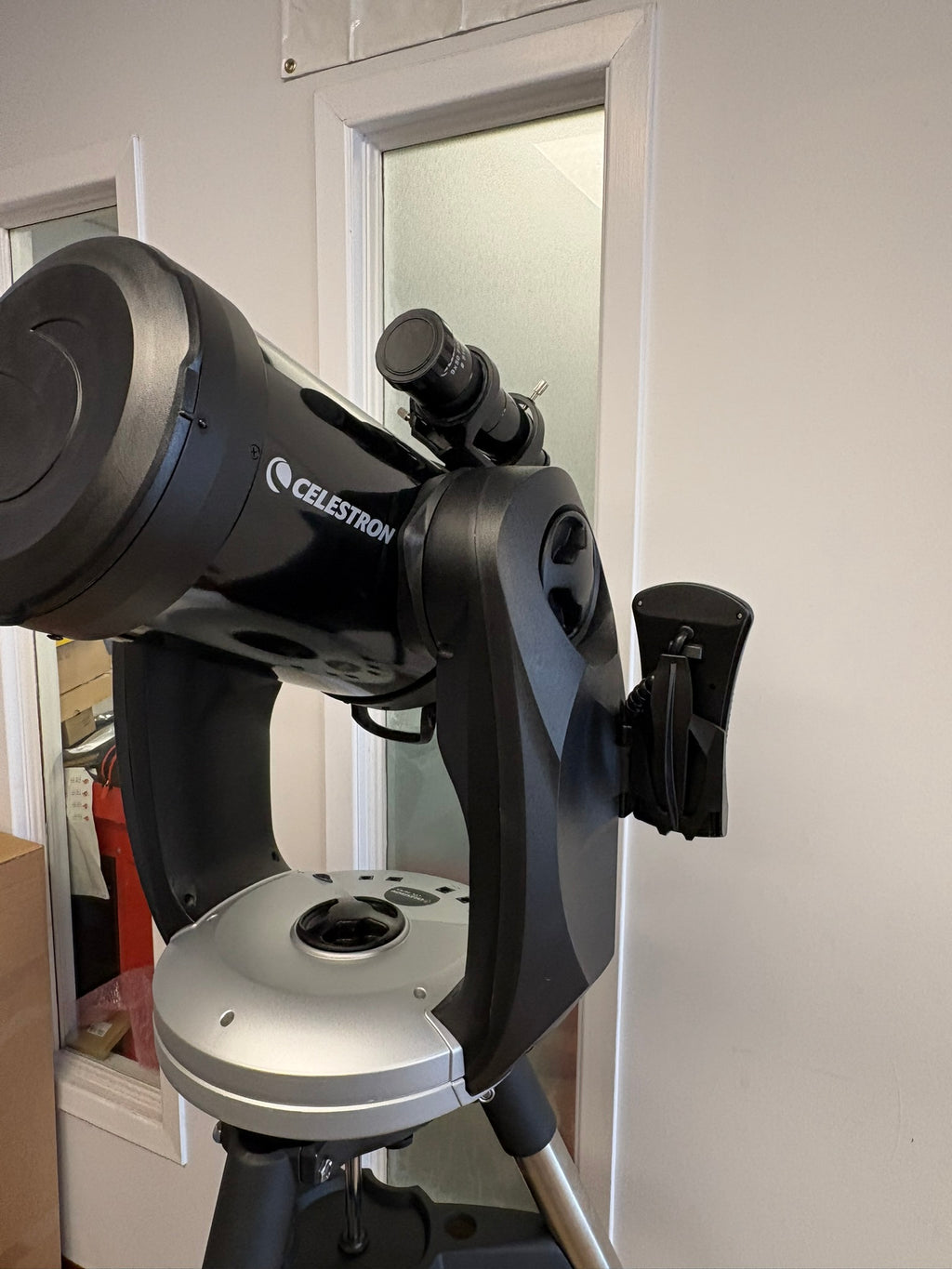

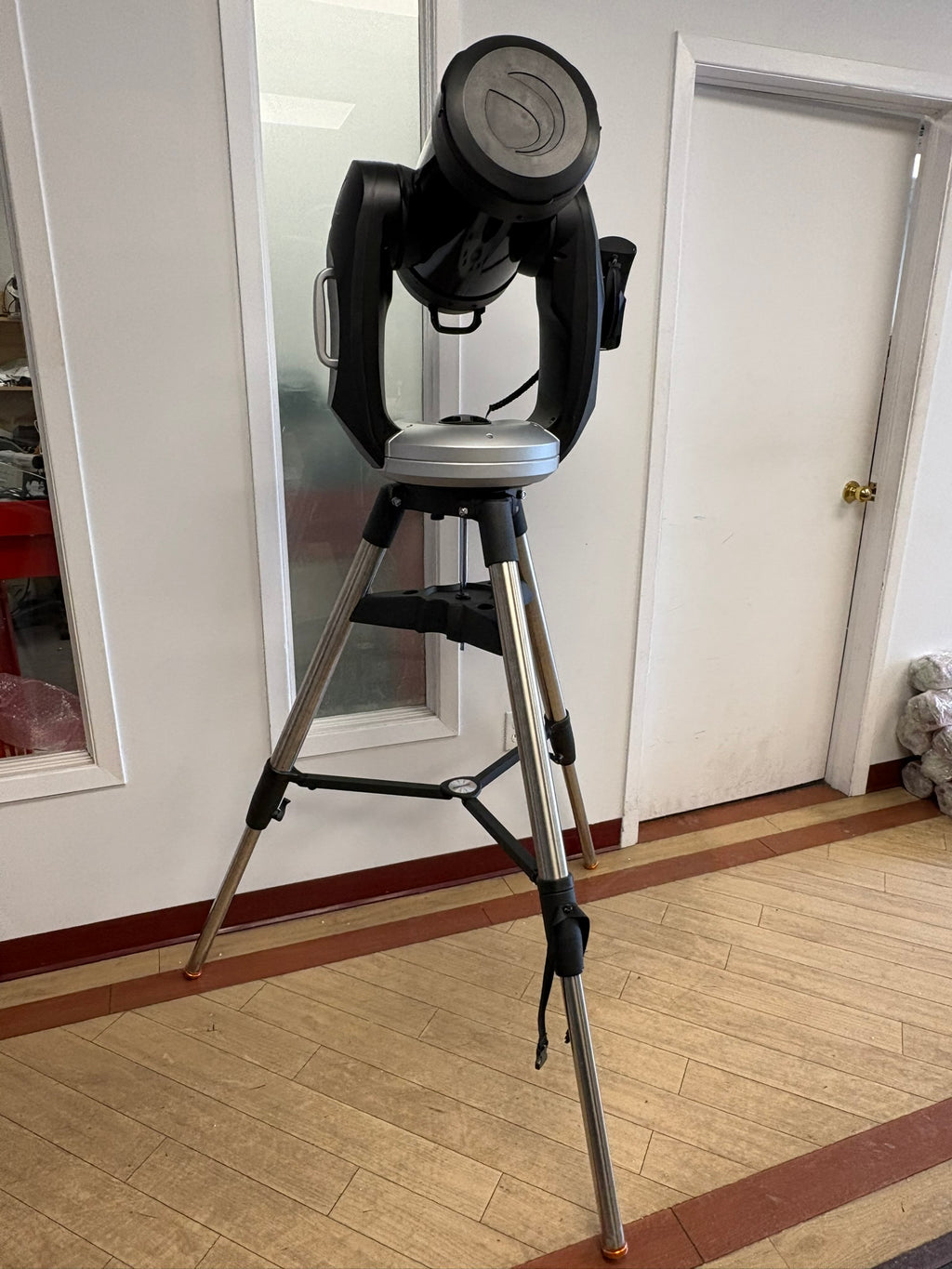

USED CPC800 SCT System
Taken on Consignment, this CPC 800 is in excellent condition. Tested and cleaned. Ready for the night sky. Updated to the latest firmware. Compatible with Celestron CPWI control software.
Pickup is preferred as we do not have the original shipping box.
Overview
- The telescope design that put Celestron on the map is fully computerized with internal GPS
- SkyAlign technology, which simplifies setup and use of computerized telescopes
- Telescope automatically tracks each object as it moves through the night sky
- Easy operation for beginners as well as advanced features experienced amateur astronomers demand
- Fastar compatible optical tube for f/2 imaging
- Best warranty in the business (2 year)
Specifications
|

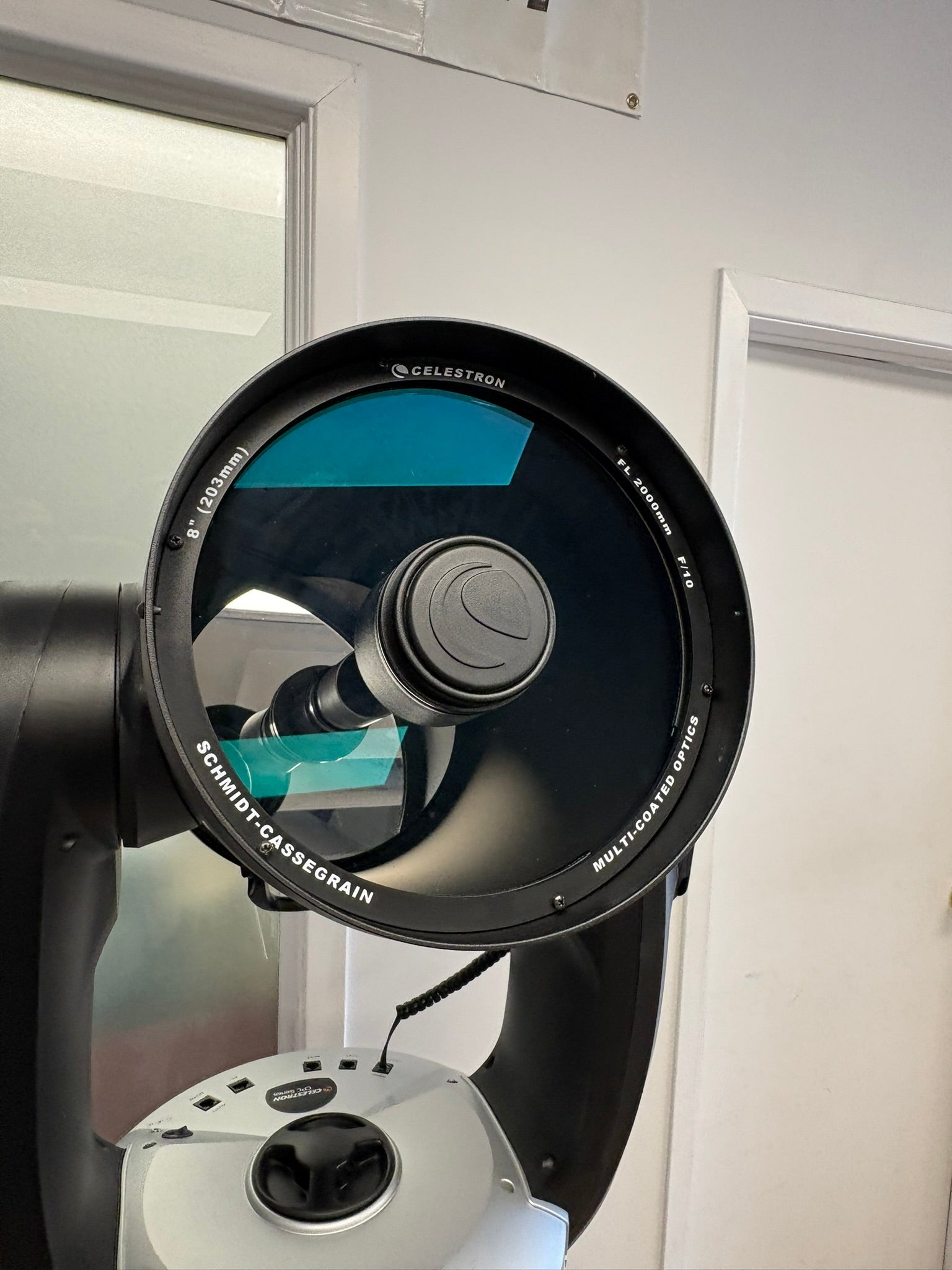

Optical Design |
Schmidt-Cassegrain |
|
Aperture (mm) |
203.2 mm (8 in) |
|
Focal Length |
2032 mm (80 in) |
|
Formula:Focal Ratio |
10 |
|
Focal Length of Eyepiece 1 (mm) |
32 mm (1.26 in) |
|
Formula:Magnification of Eyepiece 1 |
64 x |
|
Focal Length of Eyepiece 2 (mm) |
4 mm (0.16 in) |
|
Formula:Magnification of Eyepiece 2 |
508 x |
|

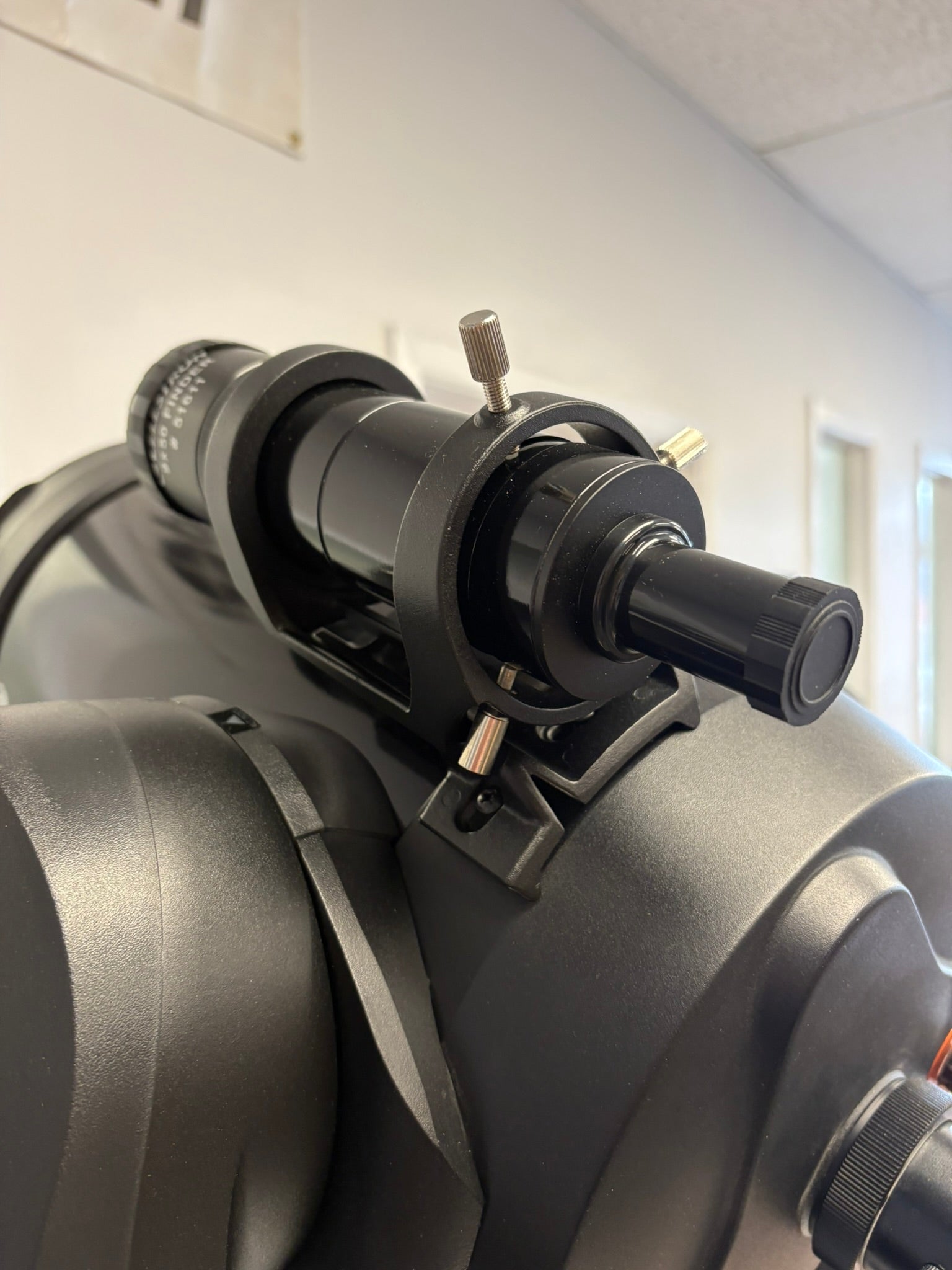

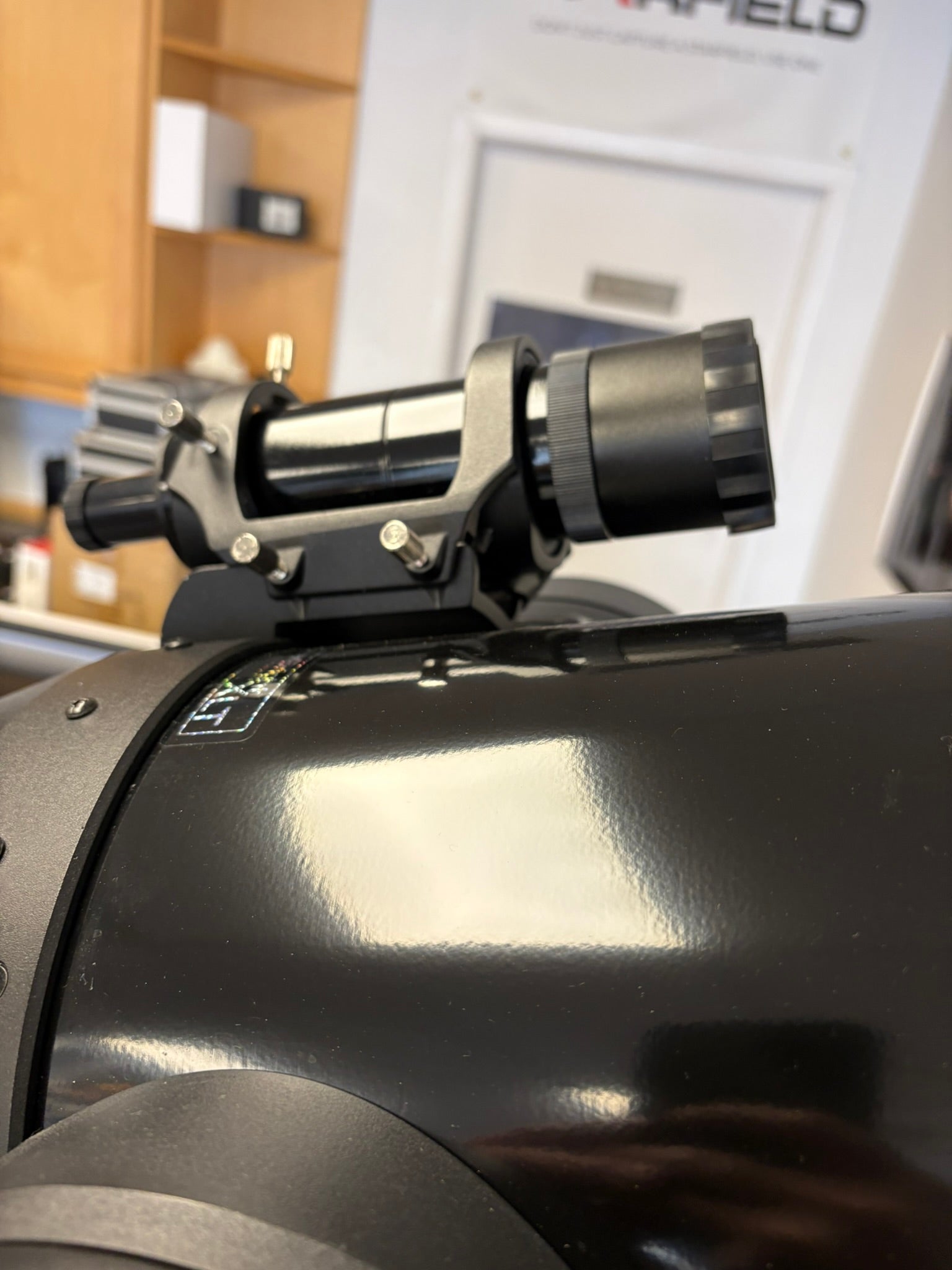

Finderscope |
9x50 Finderscope with quick release bracket |
|
Star Diagonal |
1.25 |
|
Mount Type |
Dual Fork Arm |
|
Optical Tube |
Carbon Fiber |
|
Accessory Tray |
Leg Brace / Eyepiece holder |
|
Tripod |
Heavy Duty Steel Adjustable |
|
Power Requirements |
Car battery adapter |
|
Formula:Highest Useful Magnification |
480 x |
|
Formula:Lowest Useful Magnification |
29 x |
|
Formula:Limiting Stellar Magnitude |
14 |
|
Formula:Resolution (Rayleigh) |
0.69 arc seconds |
|
Formula:Resolution (Dawes) |
0.57 arc seconds |
|
Photographic Resolution |
200 line/mm |
|
Formula:Light Gathering Power (Compared to human eye) |
843 x |
|
Apparent Field of View |
0.8 ° |
|
Linear Field of View (@1000 yds) |
42 ft (13 m) |
|
Secondary Mirror Obstruction |
2.5 in (64 mm) |
|
Formula:Secondary Mirror Obstruction by Diameter |
31% |
|
Formula:Secondary Mirror Obstruction by Area |
9.77% |
|
Optical Coatings |
Starbright XLT Coating |
|
Total Telescope Kit Weight |
42 lbs (19 kg) |
|
Tripod and Mount Weight |
27 lbs (12 kg) |
|
Motor Drive |
DC Servo motors with encoders, both axes |
|
Motor Resolution |
0.1406 |
|
Tracking Rates |
Sidereal, Solar and Lunar |
|
Tracking Modes |
Altazimuth, EQ North and EQ South |
|

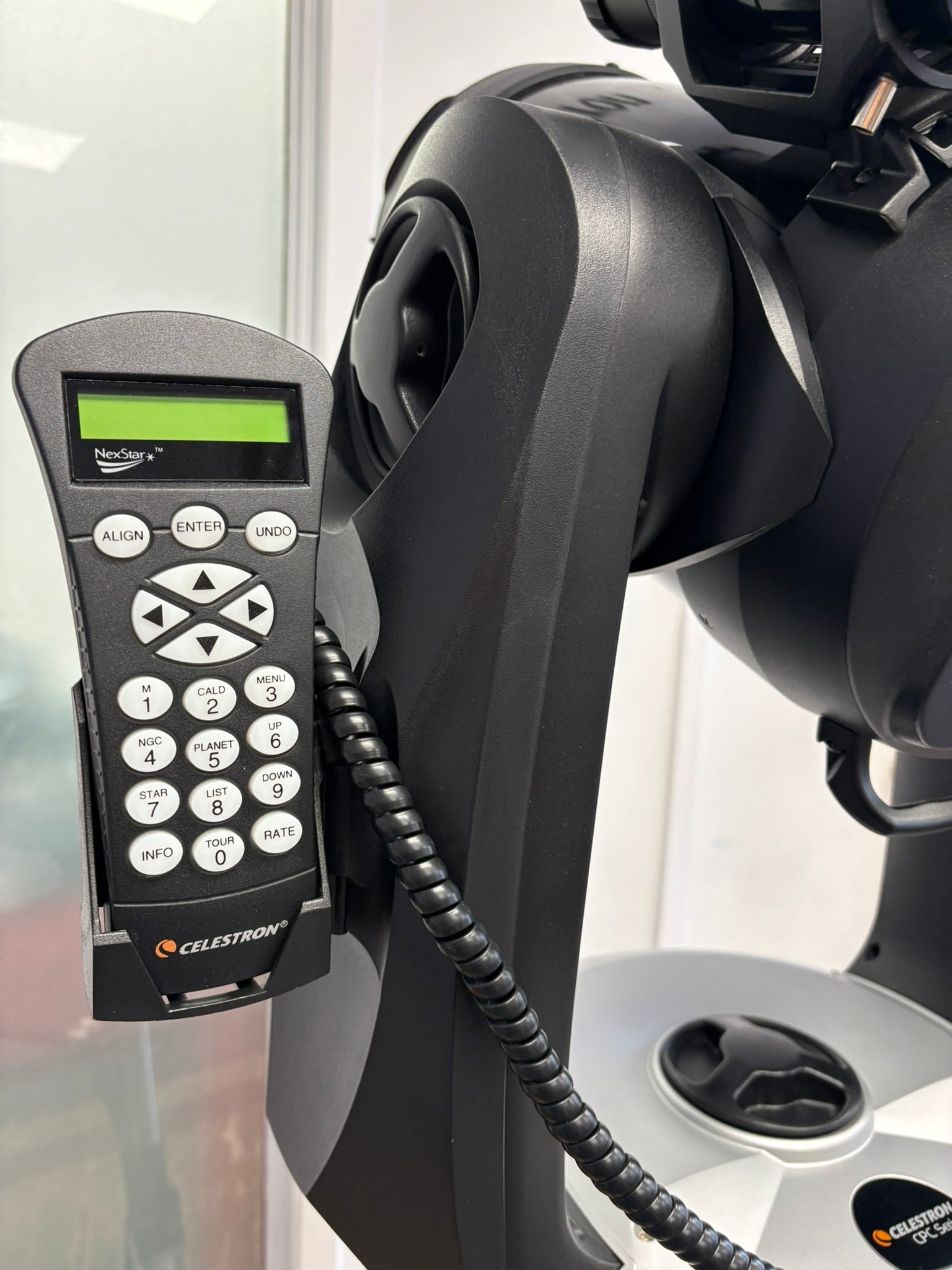

Alignment Procedures |
SkyAlign, Auto Two-Star Alignment, Two-star Align, SolarSystem Align, EQ North Align, EQ South Align, One-Star Align |
|
Software Precision |
24 bit, 0.08 calculations |
|
Periodic Error Correction |
Permanently Programmable |
|
Fork Arm |
Dual fork arm, cast Aluminum with detachable HC cradle |
|
Gear |
5.625 hard anodized gear in both axes, 180 tooth, brass worm |
|
Bearings |
9.8 azimuth bearing |
|

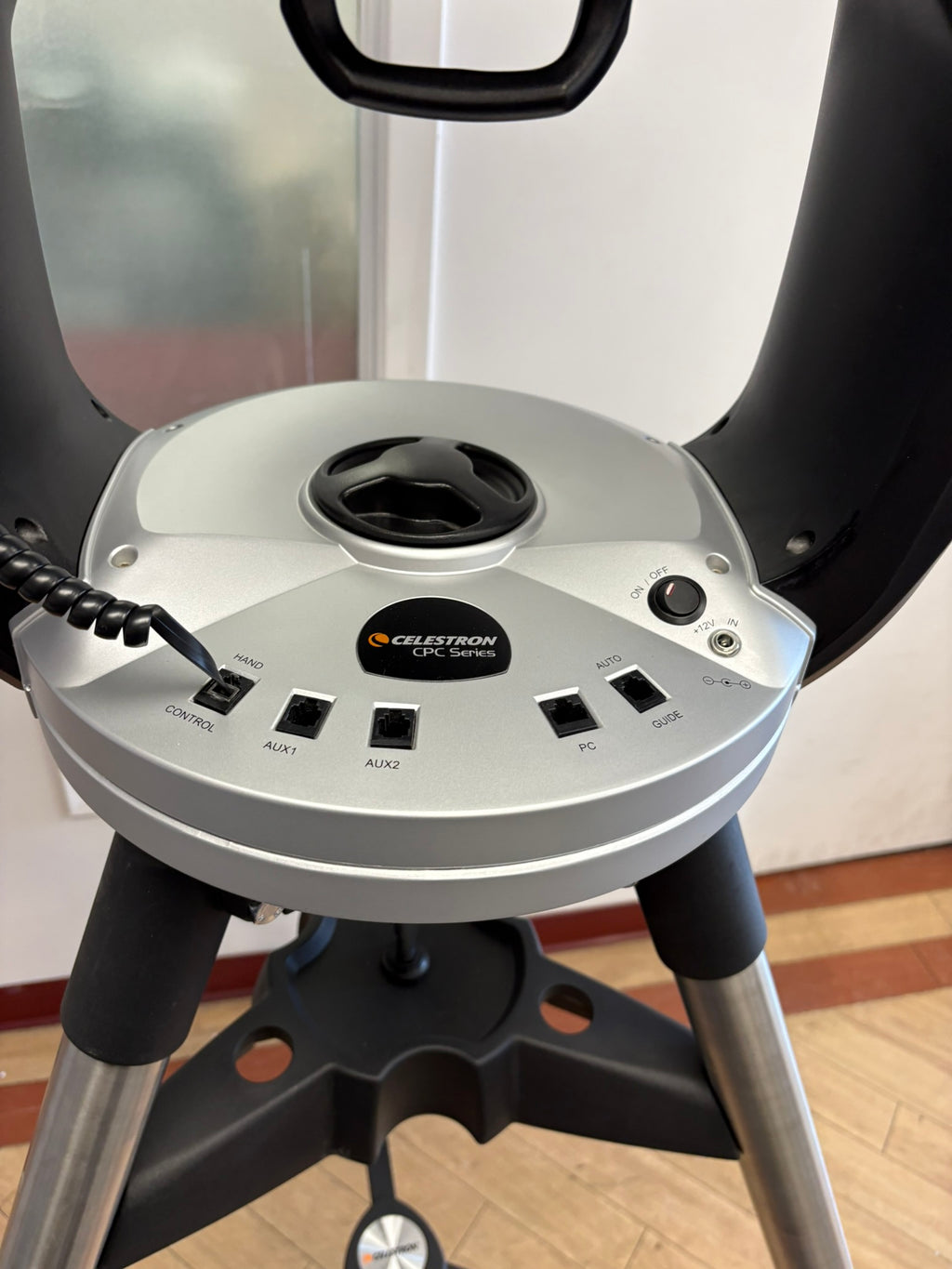

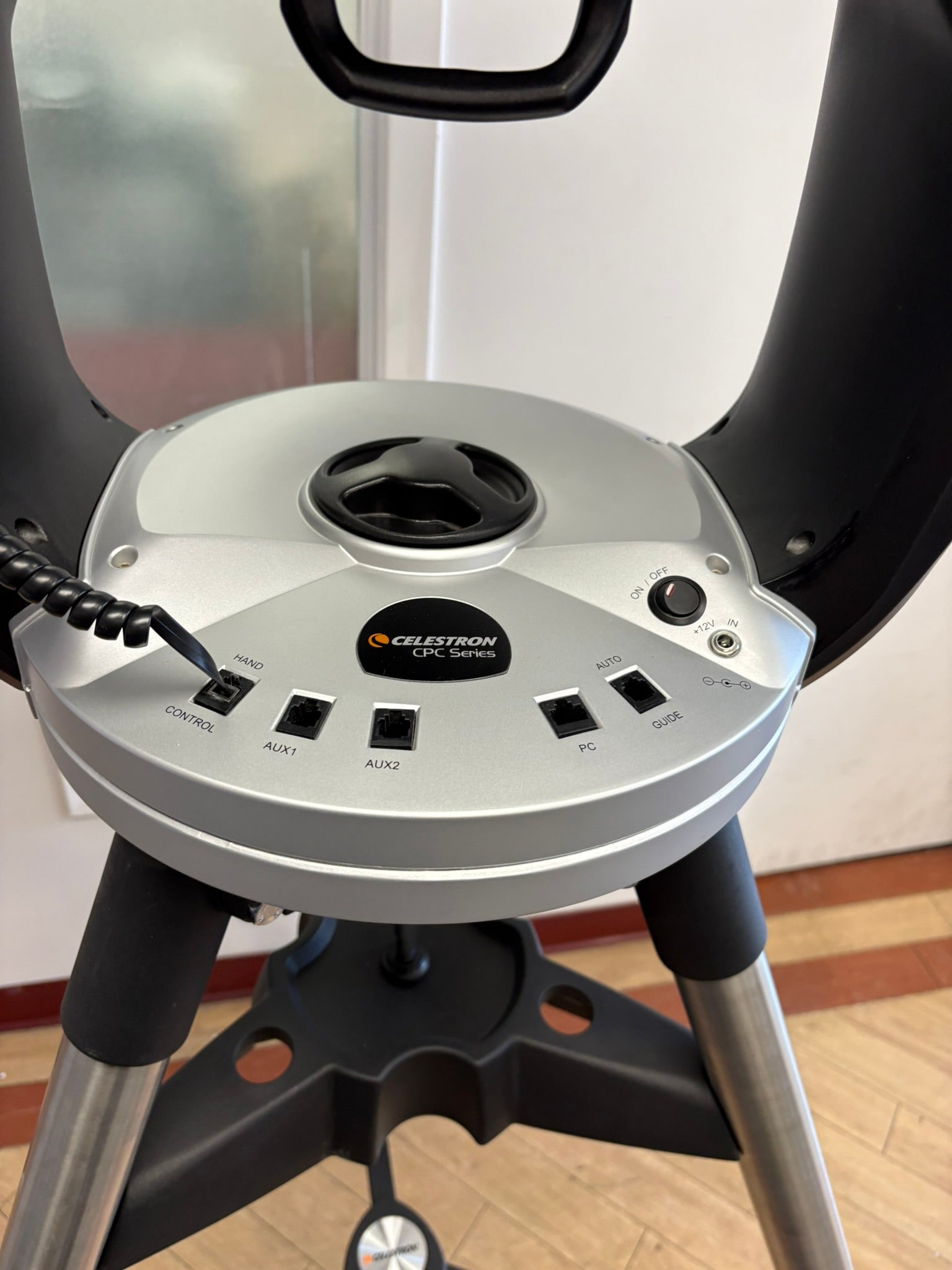

Motor Ports |
Aux Port, Autoguide Ports |
|
|
