- Description
- Specifications

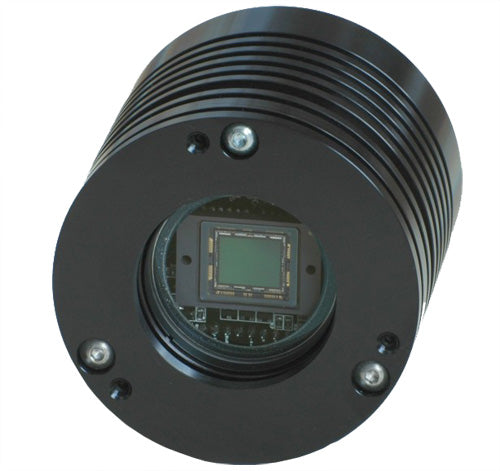

- Medium format, high resolution 'Exview' CCD chip, with 6,050,000 x 4.54uM square pixels in a 15.98mm diagonal array.
- Exceptionally low dark signal - No dark frames necessary for most deep sky objects.
- Excellent QE of 77% peak in yellow light, 65% at Hydrogen alpha (656 nm).
- Three port powered USB hub built-in. Can drive a Lodestar or Superstar guider + SX filter wheel.
- High performance two stage cooling for better than -40C delta T
- Dry Argon CCD chamber fill for improved cooling performance.
- Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area.
- Back focal length 16mm +/-1mm.
- High speed USB 2.0 interface for approx. 2.5 second downloads.

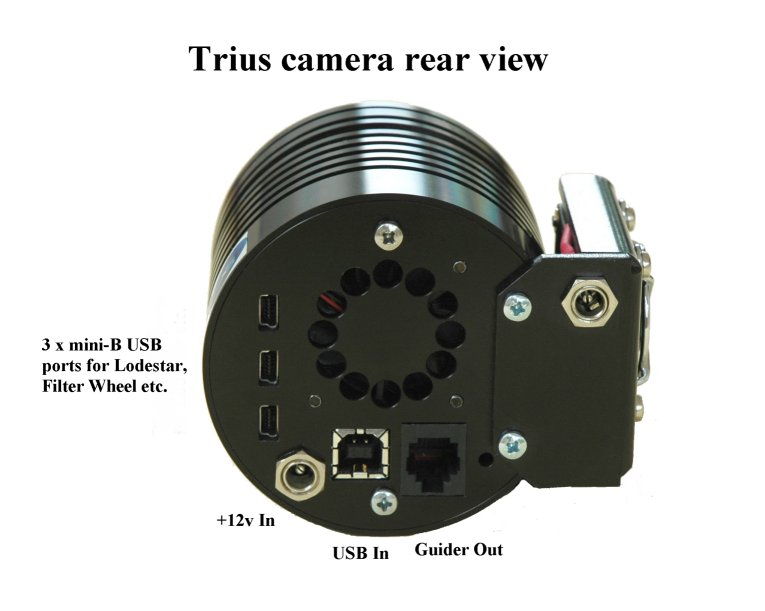

- Built-in triple powered USB hub for guider and filter wheel control.
- Single USB cable control for all features - get rid of that dangerous cable tangle!
- Very low power consumption. Less than 1.5 amps at 12v DC.
- Compact and lightweight - only 75mm in diameter x 70mm long - less than 500 grams load on the telescope.
- CCD type: ICX694AL Exview CCD with ultra low dark current and vertical anti-blooming.
- CCD Full resolution pixel data: Pixel size: 4.54uM x 4.54uM, Image format: 2750 x 2200 pixels
- CCD Image area: 12.49mm (Horizontal) x 9.99mm (Vertical).
- CCD quality: Grade 1 or better - No bad columns, no dead pixels, no more than 50 'hot' pixels (saturated in <10 seconds).

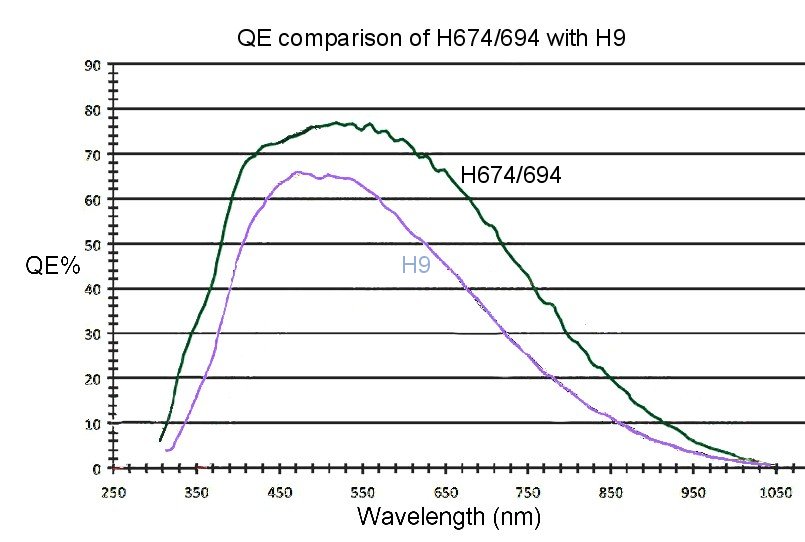

- Spectral Response: QE max at 580nM (~77%), 50% roll-off at 360nM and 770nM.
- Readout Noise: Less than 5 electrons RMS - typically ONLY 3.5 electrons.
- Full-well capacity: Greater than 17,000 e- (unbinned)
- Anti-blooming: Overload margin greater than 800x.
- Dark current: Less than 0.003 electrons/second @ - 10C CCD temperature.
- Data format: 16 bits.
- System gain: 0.27 electrons per ADU
- Computer Interface: Built-in USB 2.0 compatible interface.
- Image download time: Typically 2.5 seconds at full resolution.
- Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 900mA max.
- Cooling system: Regulated set-point cooling supply with thermoelectric cooler to give a minimum CCD temperature of approximately -40C below ambient.

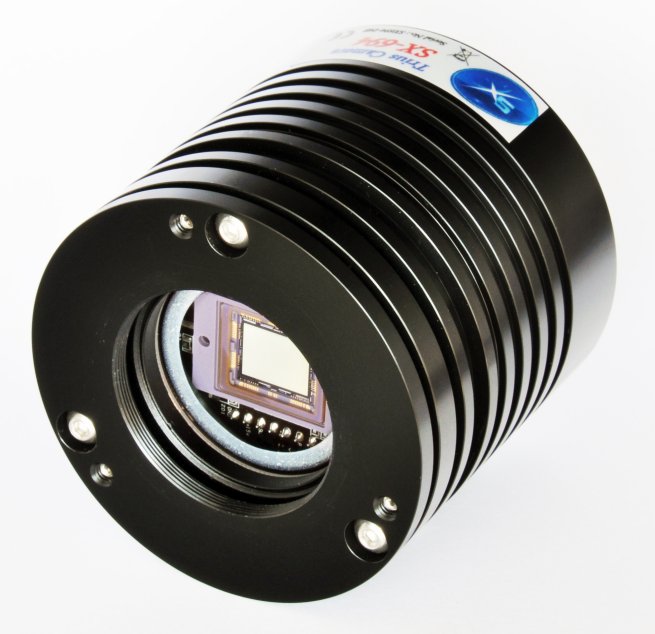

- Size: 75 x 70mm black anodised aluminium barrel with 42mm 'T2' thread at the CCD window end & input/output plugs at rear. CCD alignment screws are provided for setting the chip parallel to the focal plane.
- Weight: approx. 400g.
