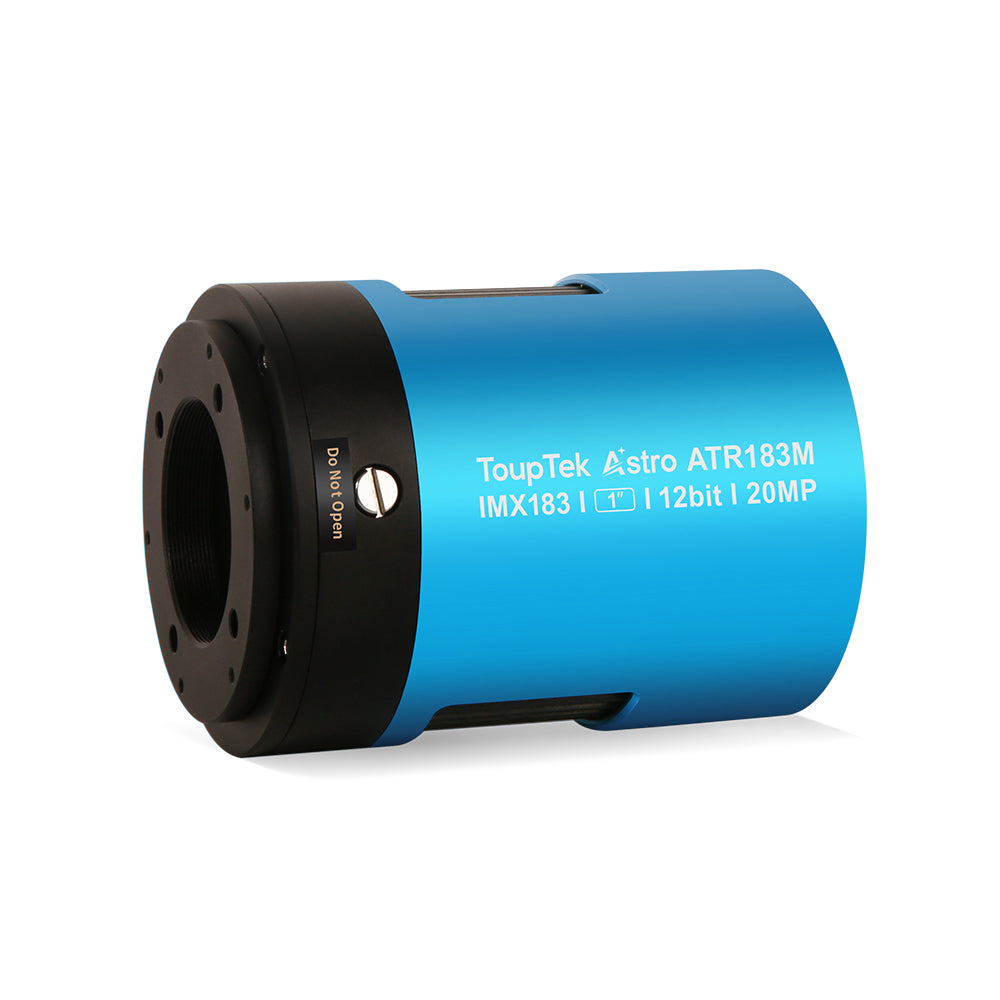

ToupTek ATR183M Deep Sky Cooled Camera – Sony IMX183 Monochrome 20MP

The ToupTek ATR183M is a professional monochrome deep sky cooled camera built around the Sony IMX183 high-resolution sensor. Delivering 20.3 megapixels of monochrome imaging capability, the ATR183M is designed for high-resolution narrowband and LRGB deep sky photography, multi-panel mosaics, and demanding long-exposure imaging projects.

Who Is This Product Best For?

The ATR183M is best suited for advanced astrophotographers who use LRGB and narrowband filter sets and require high resolution for detailed widefield imaging and mosaic work. It excels for imaging extended emission nebulae, galaxy groups, and large star-forming regions with exceptional pixel-level detail.

Why Choose This Product?

• Sony IMX183 20.3 MP Monochrome Sensor: High resolution for detailed widefield and mosaic narrowband imaging.
• Dual-Stage TEC Cooling: Up to 45°C below ambient with ±0.1°C precision temperature control.
• Anti-Dew Window Heater: Four-level adjustable heating for reliable all-weather operation.
• 512 MB DDR3 Buffer + USB 3.0 5 Gbps: Stable, high-speed transmission for large monochrome image files.
• Up to 1-Hour Exposures: Essential for narrowband imaging of faint extended targets.
• HCG/LCG/HDR Multi-Mode Support: Adaptive gain modes for different imaging scenarios.

Recommended Uses

• High-resolution narrowband (Ha, SII, OIII) imaging of extended nebulae
• LRGB monochrome widefield and mosaic astrophotography
• Long-exposure scientific and photometric imaging

Compatibility and Accessory Notes

• Requires external 12V 3A DC power supply or stable 11–14V lithium battery
• Compatible with ToupTek OAG-L, OAG-X, AFW-L filter wheel, and StellaVita controller
• M42 thread connection standard; 2" filters recommended
• Compatible with INDI, ASCOM, SharpCap, NINA, and APT

Important Limitations

• External power supply required — not USB-powered
• Monochrome sensor — requires filter sets for colour imaging
• High resolution requires fast telescope focal ratios and a flattener/reducer for edge-to-edge sharpness

Frequently Asked Questions

What filter size is recommended for the ATR183M?
2" filters or larger are recommended to cover the full sensor without vignetting at this resolution.

Is this camera suited for full mosaic imaging?
Yes — the 20MP resolution and widefield coverage make the ATR183M an outstanding choice for ambitious multi-panel mosaic projects of large nebulae.

Our Recommendation

The ToupTek ATR183M is an exceptional high-resolution monochrome cooled camera for advanced astrophotographers who image with full filter sets. It delivers outstanding narrowband performance at wide fields and is an excellent choice for large-scale mosaic projects where pixel count and sensitivity both matter.
