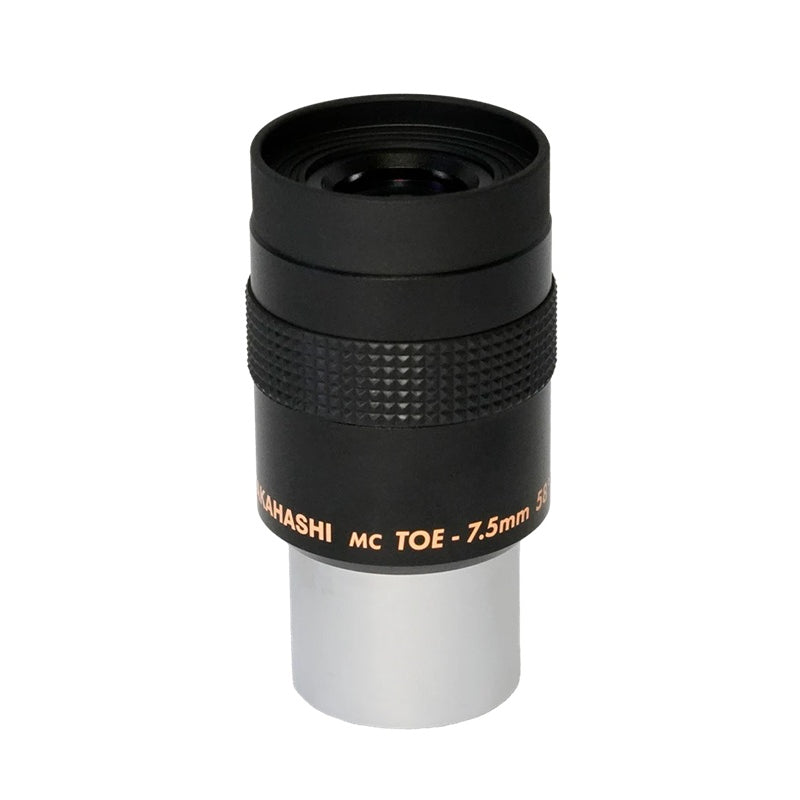

Takahashi TOE 7.5mm Eyepiece

Product Overview

The TOE 7.5 mm is a planetary eyepiece from Takahashi's TOE line, built for lunar, planetary and double-star observing. It gives a 58° apparent field with 15 mm of eye relief — wider and with more eye relief than a classic orthoscopic offers at this focal length. The TOE line uses a multi-element design built to hold orthoscopic-class contrast across a wider field and a longer eye point than a classic ortho manages.

At 7.5 mm it sits between the TOE 5.5 mm and TOE 10 mm — high power with a bit more eye relief and a slightly wider true field than the shortest focal length in the range.

Who It's For

This is a good match if you observe planets, the Moon and double stars and want high-to-medium magnification without losing contrast. The 58° field is moderate by wide-field standards — wide enough that a planet does not drift out of view quickly on an undriven mount, narrow enough that the design can stay well corrected at high power.

It is a visual eyepiece. Imaging trains connect a camera directly and do not use one.

Key Features & Design

• 7.5 mm focal length: high-to-medium power on most telescopes — see Compatibility for real figures.
• 58° apparent field: wider than a classic orthoscopic, with enough margin that a target stays in view for a usable interval on an undriven mount.
• 15 mm eye relief: a comfortable eye position rather than the pressed-in view short-focal-length orthos demand.
• Parfocal within the TOE range: swap focal lengths mid-session with only a touch of refocusing.
• Multi-element TOE design: built for orthoscopic-class contrast at a wider field than a classic ortho.

Optical Design

Planetary observing is a contrast problem before it is a resolution problem. The detail that matters — belt structure on Jupiter, the Cassini division, subtle shading on Mars — is low-contrast detail sitting on a bright disc, and scattered light inside the eyepiece raises the background and buries it. That is why the classic four-element orthoscopic held on for decades: fewer air-glass surfaces means less scatter.

Across the TOE line, Takahashi controls scatter with multi-layer coatings and blackened element edges rather than relying on a minimal element count, which is how the series holds orthoscopic-class contrast at a 58° field and 15 mm of eye relief — both wider than a classic four-element ortho manages at comparable focal lengths.

Recommended Uses

• Planetary detail — Jupiter's belts and festoons, Saturn's rings and division, Martian surface shading.
• Lunar observing — crater walls, rilles and terminator detail at high-to-medium power.
• Double star splitting where contrast and clean star images matter more than field width.
• Brighter open clusters and planetary nebulae at higher power.

Compatibility and Accessory Notes

• Magnification: divide your telescope's focal length by 7.5. An FS-60CB at 355 mm gives about 47x; an FC-100DZ at 800 mm gives about 107x; a Mewlon 210 at 2415 mm gives about 322x.
• Diagonal: in a refractor you will normally use it behind a star diagonal. The Takahashi 1.25-inch prism diagonal is a direct pairing.
• Parfocal range: parfocal with the other TOE eyepieces, so changing focal length needs only a touch of refocusing.
• Back focus: for adapter and spacing questions across your visual train, see the Takahashi Back Focus Guide.

Good to Know Before You Order

• This is a visual eyepiece. Camera trains connect directly to the telescope or its corrector.

Frequently Asked Questions

Is it difficult to set up?

No — it drops into a 1.25-inch diagonal or focuser and you focus. Nothing to assemble or adjust.

What magnification will I get?

Your telescope's focal length divided by 7.5. Send us your telescope model and we will work out where it fits alongside the eyepieces you already own.

How does it compare to a classic orthoscopic?

A four-element ortho at 7.5 mm gives roughly a 42° to 45° field and short eye relief. The TOE gives 58° and 15 mm of eye relief, with coatings and blackened edges doing the contrast work a simpler design got from having fewer surfaces.

Is it good for deep-sky observing?

It works well on brighter open clusters and planetary nebulae. For large faint objects a longer-focal-length, wider-field eyepiece suits better.

Can I use it with glasses?

15 mm of eye relief is workable for many glasses wearers, though it depends on your frames and how far they hold the lens from your eye.

Is it parfocal with my other Takahashi eyepieces?

It is parfocal with the rest of the TOE range. Across other Takahashi families, expect to refocus.

How does it compare to the TOE 5.5mm and TOE 10mm?

It sits between them in power — higher magnification than the 10 mm, more eye relief and a slightly wider true field than the 5.5 mm.

Bottom Line

In short: a 7.5 mm planetary eyepiece with a 58° field and 15 mm of eye relief, built for orthoscopic-class contrast at high-to-medium power. It sits between the shorter and longer focal lengths in the TOE range.
