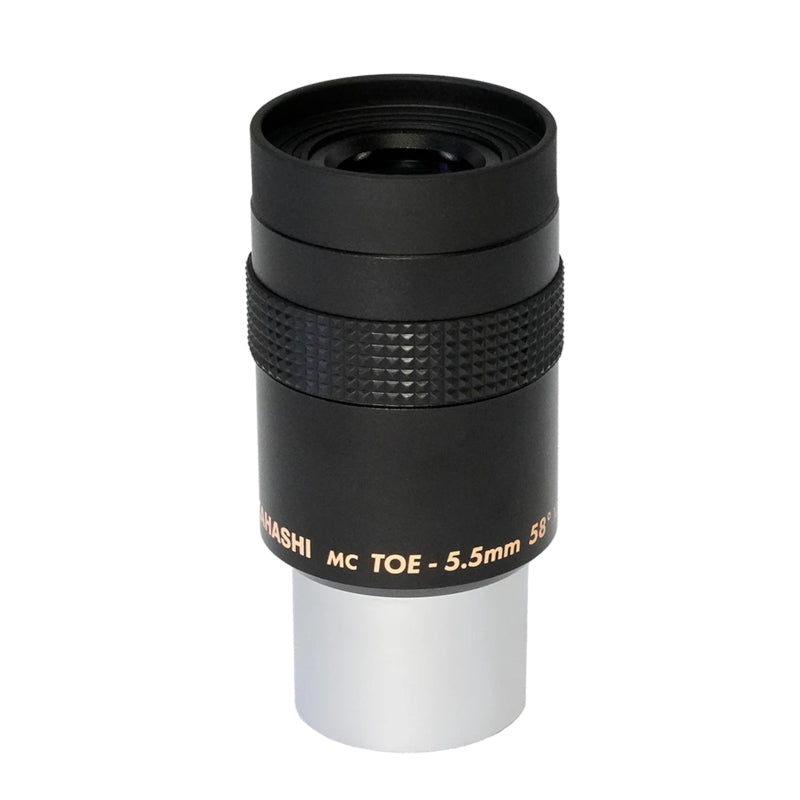

Takahashi TOE 5.5mm Eyepiece

Product Overview

The TOE 5.5 mm is a high-power planetary eyepiece from Takahashi's TOE line, built for lunar, planetary and double-star observing. It gives a 58° apparent field with 15 mm of eye relief, from six elements in four groups — more glass than a classic orthoscopic, arranged to widen the field and push the eye point back without giving up the contrast an ortho is chosen for.

At 5.5 mm it is a high-power eyepiece: the number you reach for on a night of good seeing, when a telescope's aperture and the atmosphere both support pushing magnification.

Who It's For

This is a good match if you observe planets, the Moon and double stars and want high magnification without losing the contrast that separates orthoscopic-class eyepieces from wider, more complex designs. The 58° field is moderate by wide-field standards — wide enough that a planet does not drift out of view quickly on an undriven mount, narrow enough that the design can stay well corrected at high power.

It is a visual eyepiece. Imaging trains connect a camera directly and do not use one.

Key Features & Design

• 5.5 mm focal length: high power on most telescopes — see Compatibility for real figures and the practical limits at this focal length.
• 58° apparent field: wider than a classic orthoscopic, with enough margin that a target stays in view for a usable interval on an undriven mount.
• 15 mm eye relief: a comfortable eye position rather than the pressed-in view short-focal-length orthos demand.
• Six elements in four groups: the extra elements buy field width and eye relief while holding correction across the field.
• Parfocal within the TOE range: swap focal lengths mid-session with only a touch of refocusing.

Optical Design

Planetary observing is a contrast problem before it is a resolution problem. The detail that matters — belt structure on Jupiter, the Cassini division, subtle shading on Mars — is low-contrast detail sitting on a bright disc, and scattered light inside the eyepiece raises the background and buries it. That is why the classic four-element orthoscopic held on for decades: fewer air-glass surfaces means less scatter.

The TOE design uses six elements in four groups and controls scatter directly, with multi-layer coatings and blackened element edges rather than relying on a minimal element count. The result keeps orthoscopic-class contrast while delivering a 58° field and 15 mm of eye relief — both wider than a four-element design produces at this focal length. Parfocality across the TOE range is a working convenience: changing power on a planet mid-session without hunting for focus keeps you on the target while the seeing holds.

Recommended Uses

• High-power planetary detail on nights of good seeing — Jupiter's belts and festoons, Saturn's rings and division, Martian surface shading.
• Lunar observing at close-up, crater-wall and rille detail.
• Double star splitting at the close end, where high power and clean star images matter most.
• Testing a telescope's resolution on a steady night, since 5.5 mm pushes most apertures toward their practical ceiling.

Compatibility and Accessory Notes

• Magnification: divide your telescope's focal length by 5.5. An FS-60CB at 355 mm gives about 65x; an FC-100DZ at 800 mm gives about 145x; a Mewlon 210 at 2415 mm gives about 439x — above the roughly 420x practical ceiling usually quoted for a 210 mm aperture, so that combination is a seeing-limited, best-nights eyepiece rather than an everyday one.
• Diagonal: in a refractor you will normally use it behind a star diagonal. The Takahashi 1.25-inch prism diagonal is a direct pairing.
• Parfocal range: parfocal with the other TOE eyepieces, so changing focal length needs only a touch of refocusing.
• Back focus: for adapter and spacing questions across your visual train, see the Takahashi Back Focus Guide.

Good to Know Before You Order

• 5.5 mm is a high-power eyepiece, and results depend on the sky. On a smaller aperture like an FS-60CB it stays well within useful range; on a larger telescope like a Mewlon 210 it can exceed the aperture's practical magnification ceiling, and results will depend on seeing more than on the eyepiece.
• This is a visual eyepiece. Camera trains connect directly to the telescope or its corrector.

Frequently Asked Questions

Is it difficult to set up?

No — it drops into a 1.25-inch diagonal or focuser and you focus. Nothing to assemble or adjust.

What magnification will I get?

Your telescope's focal length divided by 5.5. Send us your telescope model and we will work out where it fits alongside the eyepieces you already own — and whether it is within your aperture's useful range.

How does it compare to a classic orthoscopic?

A four-element ortho at 5.5 mm gives roughly a 42° to 45° field and short eye relief. The TOE gives 58° and 15 mm of eye relief from six elements, with coatings and blackened edges doing the contrast work the simpler design got from having fewer surfaces.

Is it good for deep-sky observing?

It is built for high-power planetary and lunar detail rather than deep-sky work — for clusters and nebulae, a longer-focal-length, wider-field eyepiece suits better.

Can I use it with glasses?

15 mm of eye relief is workable for many glasses wearers, though it depends on your frames and how far they hold the lens from your eye.

Is it parfocal with my other Takahashi eyepieces?

It is parfocal with the rest of the TOE range. Across other Takahashi families, expect to refocus.

Will it work on a small telescope, or is it too much power?

On an FS-60CB it gives about 65x, which is a normal high-power step, not an extreme one. It is on larger apertures, closer to their magnification ceiling, that seeing becomes the limiting factor.

Bottom Line

In short: a 5.5 mm planetary eyepiece with a 58° field and 15 mm of eye relief, built from six elements with the coatings and blackened edges that keep low-contrast detail visible at high power. It is the high-power step in a planetary set, most rewarding on nights when the seeing can support it.
