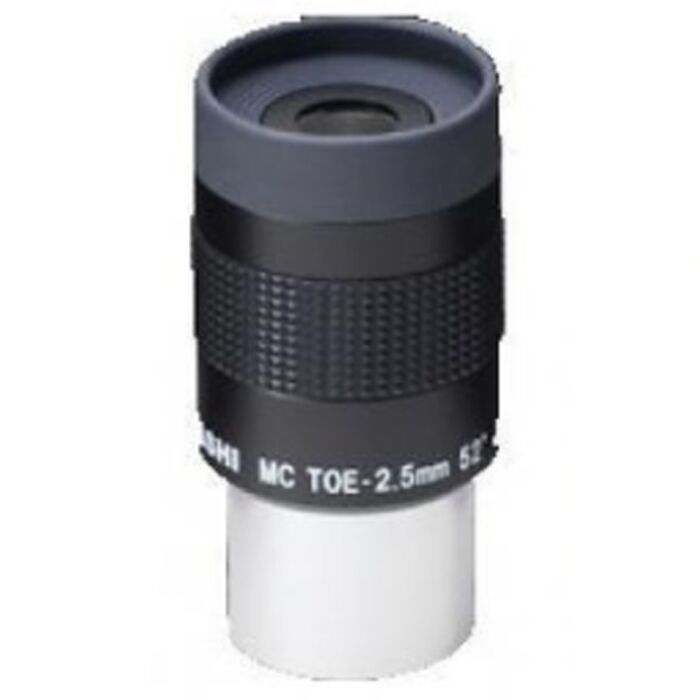

Takahashi TOE 2.5mm Eyepiece - 1.25"

Product Overview

The TOE 2.5 mm is the shortest eyepiece in Takahashi's TOE planetary line — the one that asks the most of the telescope, the mount and the night. It gives a 52° apparent field with 10 mm of eye relief from six elements in four groups, in a 31.7 mm (1.25-inch) barrel, and weighs 145 g.

Takahashi describes the TOE range as delivering performance close to the diffraction limit over the entire field of view when paired with a premium telescope. At 2.5 mm that lands at the top of almost any power range: 142x on an FS-60CB, 228x on an FC-76DCU, 320x on an FC-100DZ.

Who It's For

This is a good match if you observe planets, the Moon and close double stars, and want the high end of your eyepiece set covered by a design built around contrast rather than field width. It earns its keep on the nights when the seeing settles and a shorter focal length telescope can be pushed further than usual.

The 52° field is moderate by design. At this magnification the trade is deliberate — a simpler, better-corrected field rather than an immersive one, because what limits planetary detail is scatter and contrast, not how much sky is in view.

It is a visual eyepiece. Imaging trains connect a camera directly to the telescope or its corrector and do not use one.

Key Features & Design

• 2.5 mm focal length: the shortest in the TOE line, for the top of your power range on short and medium focal length telescopes.
• 52° apparent field: moderate by intent, keeping the design simple and well corrected across the field.
• 10 mm eye relief: four times the focal length, which is generous at this end of the range and makes a long session at high power comfortable.
• Six elements in four groups: more glass than a classic orthoscopic, used to hold the field and the eye point without giving up correction.
• 31.7 mm (1.25-inch) barrel: drops into any 1.25-inch diagonal or focuser.
• 145 g: light enough that it changes nothing about focuser balance.

Optical Design

Planetary observing is a contrast problem before it is a resolution problem. Belt structure on Jupiter, the Cassini division, shading on Mars — these are low-contrast features sitting on a bright disc, and light scattered inside the eyepiece raises the background and buries them. That is why the four-element orthoscopic held its place for so long: fewer air-glass surfaces, less scatter.

The TOE design takes six elements in four groups and spends the extra surfaces on field correction and eye relief. At 2.5 mm those are the two things a simple design struggles with most — a short orthoscopic puts the eye point almost on the glass, and its field edge softens. Ten millimetres of eye relief and a corrected 52° field are what the additional elements buy back.

Takahashi lists the 2.5 mm as not parfocal, so expect to refocus when you swap it for another eyepiece rather than picking up where you left off.

Recommended Uses

• Planetary detail — Jupiter's belts and festoons, Saturn's rings and division, surface shading on Mars, on nights when the seeing supports the magnification.
• Lunar observing — crater floors, rilles and terminator detail at high power.
• Close double stars where separation, not field width, is the whole job.
• Testing and collimation checks where a high-power star image is what you are looking at.

Compatibility and Accessory Notes

• Magnification: divide your telescope's focal length by 2.5. An FS-60CB at 355 mm gives 142x; an FC-76DCU at 570 mm gives 228x; an FC-100DZ at 800 mm gives 320x; a TOA-130 at 1000 mm gives 400x.
• Barrel size: 31.7 mm (1.25-inch) — fits any 1.25-inch focuser or diagonal. The Takahashi 1.25-inch multicoated prism star diagonal is a direct pairing.
• Filters: standard 1.25-inch filters thread into the barrel.
• Parfocality: Takahashi lists this eyepiece as not parfocal, so a focal length change means a focus change.
• Barlows and extenders: at 2.5 mm you are already at the short end, so this is usually the eyepiece a Barlow is not used with. If you are unsure where it sits alongside what you already own, send us your telescope and eyepiece set and we will map it out with you.

Good to Know Before You Order

• Magnification depends entirely on your telescope. The same 2.5 mm gives 142x on a 355 mm FS-60CB and 400x on a 1000 mm TOA-130. Tell us what you are observing with and we will tell you where this lands in your set.
• The sky sets the ceiling, not the eyepiece. Very high power rewards steady seeing and a well-cooled telescope. On an average night a longer TOE will show more; on a good one this is the eyepiece that pays off.
• It is not parfocal. Refocus after swapping — Takahashi publishes this for the 2.5 mm specifically.
• 52° is a moderate field. At this power a target crosses it quickly on an undriven mount, so a tracking mount makes the eyepiece much easier to live with.
• This is a visual eyepiece. Camera trains connect directly to the telescope or its corrector.

Frequently Asked Questions

Is it difficult to set up?

No — it drops into a 1.25-inch diagonal or focuser and you focus. There is nothing to assemble, thread or space.

What magnification will I get?

Your telescope's focal length divided by 2.5. Send us your telescope model and we will work out where it fits alongside the eyepieces you already own.

Is 2.5 mm too short for my telescope?

It depends on focal length and on your sky. On short refractors it produces a sensible high power; on long focal length telescopes it goes well past what most nights support. That is a conversation worth having before you order — send us your setup.

How does it compare to a classic orthoscopic at this focal length?

A four-element ortho at 2.5 mm gives a narrower field and an eye point almost against the glass. The TOE uses six elements in four groups to hold a corrected 52° field with 10 mm of eye relief.

Is it parfocal with my other TOE eyepieces?

Takahashi lists the 2.5 mm as not parfocal, so plan on refocusing when you change eyepieces.

Can I use it with glasses?

Ten millimetres of eye relief is workable for some frames and tight for others. If you observe with glasses on, a longer TOE will be more comfortable.

Can I use it for astrophotography?

No — it is a visual eyepiece. Imaging trains connect the camera to the telescope or its corrector directly.

Bottom Line

In short: a 2.5 mm planetary eyepiece with a 52° field, 10 mm of eye relief and six elements in four groups, in a 1.25-inch barrel. It is the top-of-the-range power in a planetary set, and it does its best work on a steady night behind a well-cooled telescope.
