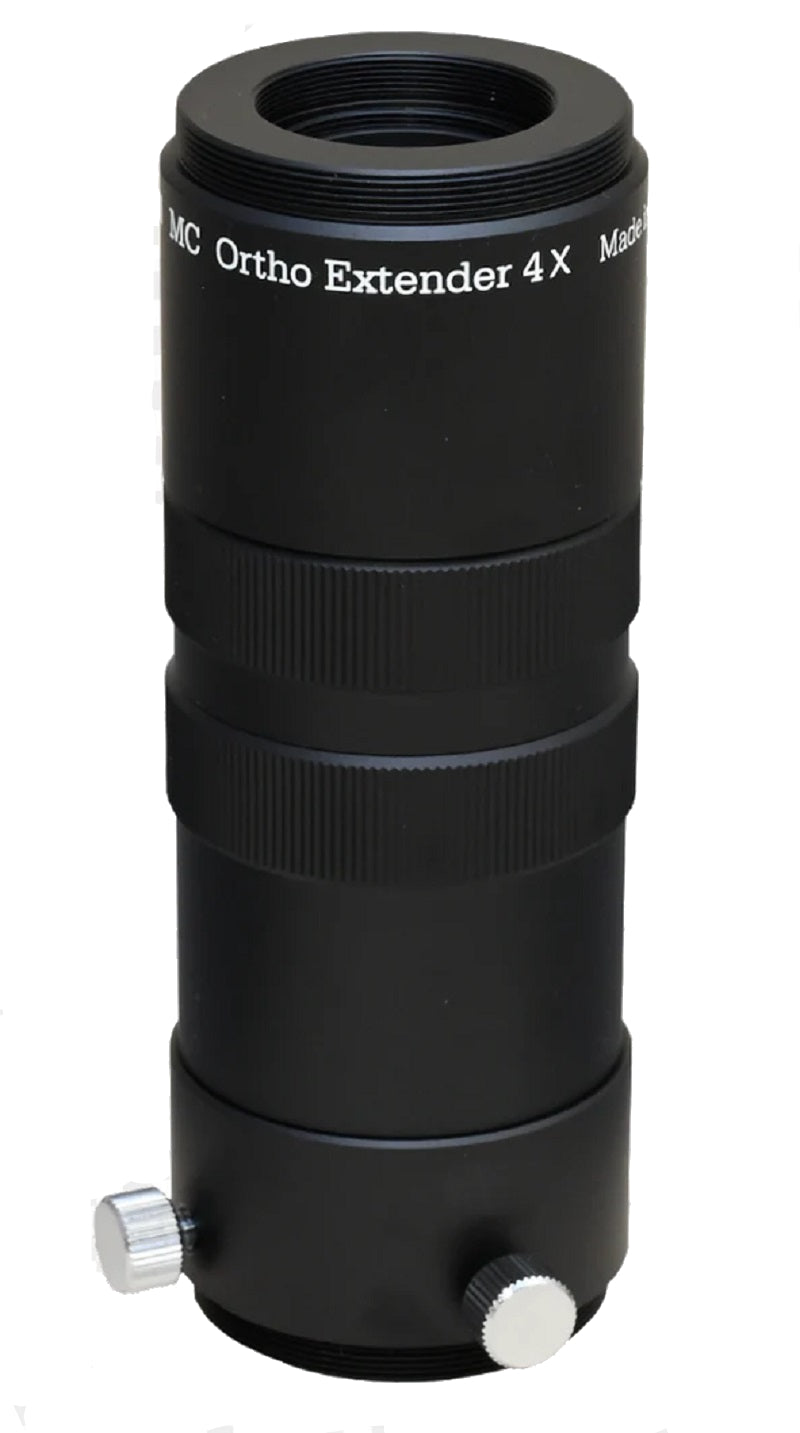

Takahashi Ortho Extender 4X Barlow-Type Extender

Product Overview

The Ortho Extender 4X is Takahashi's high-power extender for lunar, planetary, and small-target imaging. It follows the same design goal as the 2x Ortho Extender — expanding focal length without adding aberration to an already well-corrected telescope. The unit threads onto the focuser drawtube with an M43 x 0.75 male fitting, measures 46 mm in diameter by 125 mm long, and has a published weight of 240 g.

Who It's For

This is a good match if you image the Moon, the solar corona during an eclipse, or small planetary nebulae and galaxies with a small-sensor camera, and want more reach from a telescope you already own. It also serves visual observers chasing high magnification with contrast intact.

Key Features & Design

• Nominal 4x magnification: extends focal length roughly fourfold, with the realized factor set by the backfocus in the imaging or visual train.
• M43 x 0.75 male mount: threads directly to a Takahashi drawtube or accessory with the matching female thread.
• Two extension tubes included: the Vari-tube S (20 mm) and Vari-tube L (40 mm), plus an M42-31.7AD adapter, to bring the achieved magnification toward 4x with a diagonal or ADC in the train.
• Compact aluminum barrel: 46 mm diameter, 125 mm length, 240 g.

Optical / Mechanical Design

Like the 2x Ortho Extender, the 4x unit is built so an aberration-free telescope stays that way with the extender in place — it adds magnification rather than correcting anything. As a Barlow-type element, the realized magnification is a function of the spacing behind it: Takahashi's published diagram for the 2x model plots magnification against backfocus, and the same relationship governs the 4x unit, moving above or below the nominal 4x figure depending on whether a diagonal prism, T-mount, or direct eyepiece follows it. The two included Vari-tubes exist to bring that spacing back toward the point where the 4x figure holds.

Recommended Uses

Lunar close-ups, solar eclipse corona photography, and planetary imaging with small-format CMOS cameras are the stated use cases. For visual work it holds contrast at high power, useful for double-star splitting and fine lunar detail.

Compatibility and Accessory Notes

The Ortho Extender 4X mounts to any Takahashi focuser or accessory presenting an M43 x 0.75 female thread — it is not built around one telescope model the way a matched flattener is. Because the achieved magnification depends on backfocus, a diagonal, T-mount, or ADC behind it shifts the effective factor slightly; the included Vari-tube S/L extensions and M42-31.7AD adapter let you dial the spacing in. For how backfocus interacts with the rest of your imaging train, see the Takahashi Back Focus Guide.

Good to Know Before You Order

Magnification varies with spacing: the published 4x figure assumes a specific backfocus, and a diagonal or camera adapter behind it shifts the realized power — the included extension tubes are there to compensate.

Framing narrows at 4x: the field of view is well suited to high-power lunar and planetary targets rather than wide-field deep-sky framing.

Frequently Asked Questions

Is it difficult to set up?

No — it threads directly onto the drawtube's M43 x 0.75 thread. Getting the magnification close to the nominal 4x is a matter of choosing between the included Vari-tube S and L depending on what follows it in the train.

What is it best used for?

High-power lunar, planetary, and solar-eclipse imaging, and high-magnification visual observing.

Does it suit wide-field deep-sky imaging?

No — at 4x the field narrows well past what wide-field framing needs; the 2x Ortho Extender or a dedicated reducer suits that work better.

What accessories come with it?

The Vari-tube S (20 mm) and Vari-tube L (40 mm) extension tubes and an M42-31.7AD adapter ship with the unit.

Bottom Line

The Ortho Extender 4X is a compact, aberration-neutral way to add roughly four times the focal length for lunar, planetary, and solar-eclipse work, mounting on the standard M43 x 0.75 thread and shipping with the extension tubes needed to fine-tune the magnification for your train.
