Takahashi Camera Angle Adjuster CAA for FS-78, FS-60C, FC-60E and Sky 90 II

Product Overview

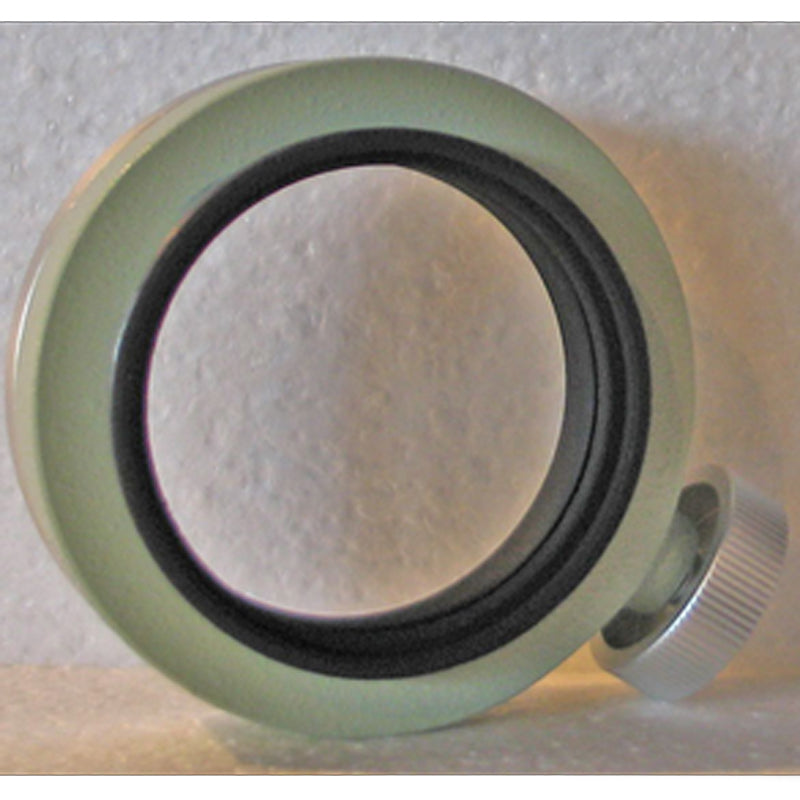

The Takahashi Camera Angle Adjuster (CAA) is a mechanical camera rotator that sits between the focuser drawtube of an FS-78, FS-60C, FC-60E or Sky 90 II and the camera behind it. It turns to put the framing where you want it, then locks so the angle holds through a run of exposures.

There are no optics inside it. It is a rotating mechanical coupling, and it takes Takahashi wide-mount T-rings on the camera side.

Who It's For

This is a good match if you image with an FS-78, FS-60C, FC-60E or Sky 90 II and want to set composition at the telescope. Rotating the camera at the focuser is quicker than unclamping the tube in its rings and rebalancing, and it lets you repeat a framing between sessions instead of guessing at it.

It suits anyone shooting elongated targets — edge-on galaxies, long nebulae, comet tails — where the angle of a rectangular sensor decides how much of the object lands on the chip.

Key Features & Design

• Rotates and locks: set the camera angle, lock it, and the framing stays put for the sequence.
• Mechanical only: no optical elements, so it does not change focal length, focal ratio or correction.
• Wide-mount T-ring interface: accepts Takahashi wide-mount T-rings on the camera side.
• Matched to a specific set of tubes: built for the FS-78, FS-60C, FC-60E and Sky 90 II drawtube rather than as a universal fitting.
• Takahashi system part: appears on Takahashi's own FS-60CB system chart as CAA (SKY90), reference TKA21200.

Recommended Uses

Framing deep-sky targets on a DSLR, mirrorless or dedicated astronomy camera. Aligning a rectangular sensor to the long axis of a galaxy or nebula. Reproducing a previous session's framing when adding integration to an existing dataset. Squaring up a mosaic panel so the tiles line up.

Compatibility and Accessory Notes

Telescopes: FS-78, FS-60C, FC-60E and Sky 90 II. It connects to the focuser drawtube on those tubes.

Camera side: Takahashi wide-mount T-rings are accepted. The T-ring itself is a separate item and is chosen to match your camera's lens mount.

Not the same part as the CAA-S. Takahashi also makes the Camera Angle Adjuster CAA-S (TKA21200N), which is a different part with its own fitting. The two are close in name and one digit apart in reference number, so it is worth checking which one your telescope and imaging train call for — send us your setup and we will confirm which of the two fits.

Good to Know Before You Order

Mechanical adapter only: there are no optics and no electronic communication with the camera. It changes the angle of the camera and nothing else about the image.

A T-ring is needed as well: the CAA presents the Takahashi wide-mount interface, and the T-ring that matches your camera body is bought separately. We stock Takahashi's wide-mount rings and can pair the right one to your camera.

Takahashi does not publish dimensional figures for this part: no thread specification, optical length or weight appears in their own material for TKA21200. If you are working out a backfocus total, send us the rest of your train and we will measure the part and work the numbers through with you.

Fits a defined list of tubes: it is made for the FS-78, FS-60C, FC-60E and Sky 90 II. Other Takahashi refractors take their own camera angle adjuster, and we can point you to the matching one.

Frequently Asked Questions

Is it difficult to set up?

No. It threads into the imaging train once, and after that setting the angle is a matter of loosening the lock, turning the camera to the framing you want, and tightening it again.

What does it actually do?

It rotates the camera relative to the telescope so you can choose how the target sits on the sensor, then locks that angle so it does not drift during a sequence.

Which telescopes does it fit?

The FS-78, FS-60C, FC-60E and Sky 90 II.

Do I need anything else to use it?

A Takahashi wide-mount T-ring to match your camera. Nothing else.

Is this the same as the CAA-S?

No. The CAA-S is TKA21200N and is a separate part. This one is TKA21200. If you are unsure which your setup takes, tell us the telescope and camera and we will work it out with you.

Does it affect the image?

Only the framing. There is no glass in it, so focal length, focal ratio and correction are unchanged.

Bottom Line

A mechanical camera rotator for the FS-78, FS-60C, FC-60E and Sky 90 II that sets the framing angle and locks it, taking Takahashi wide-mount T-rings on the camera side.
