SVBONY SV239 185mm Double-Sided Vixen/Arca-Swiss Dovetail Plate

Product Overview

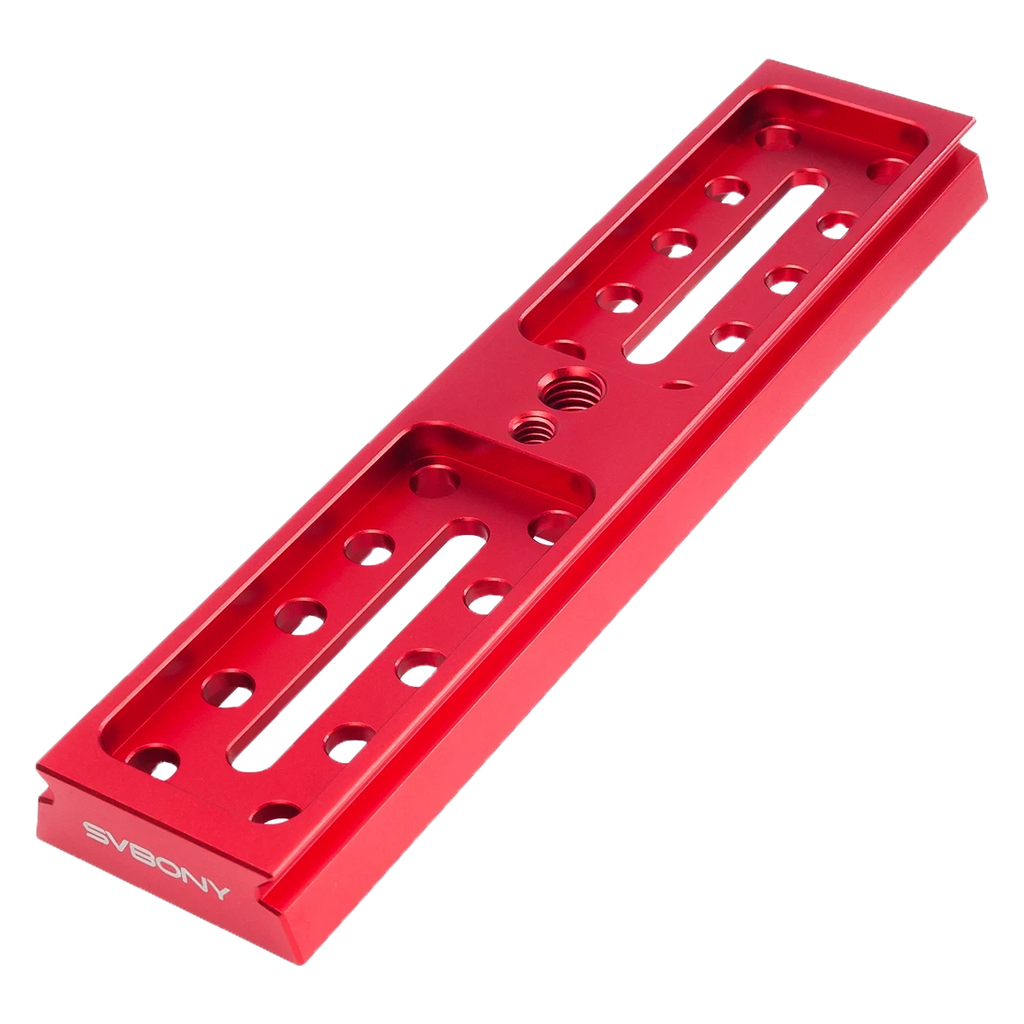

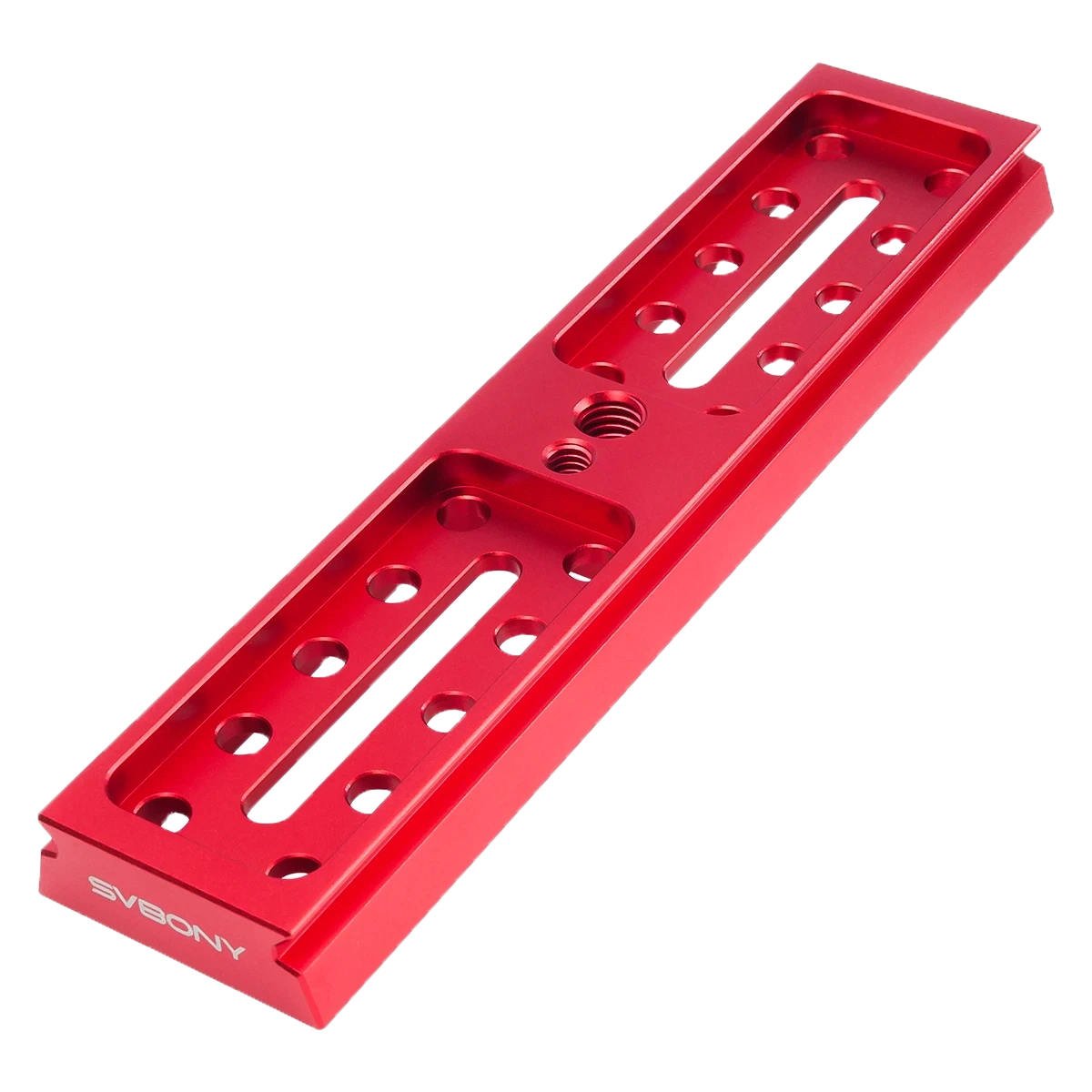

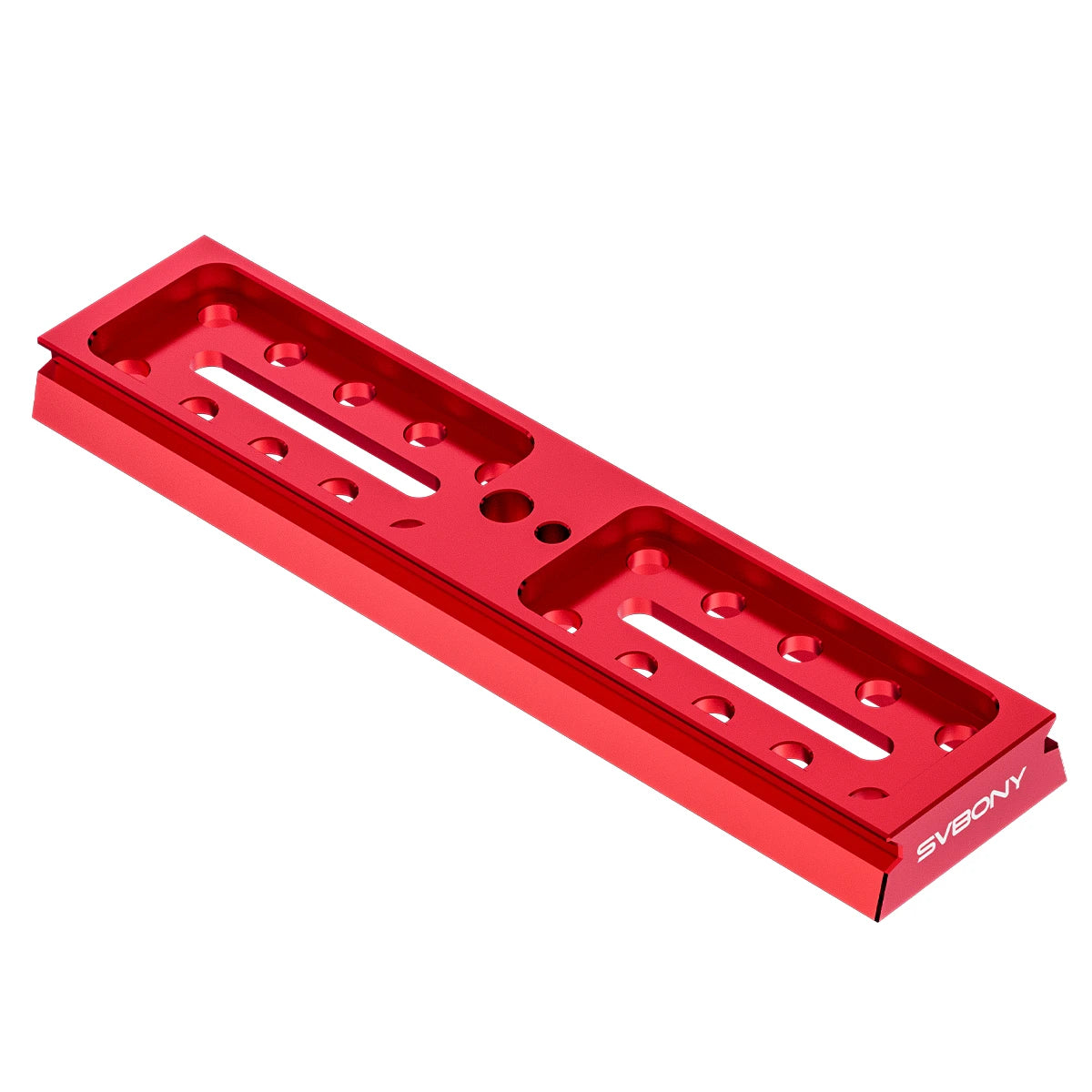

The SVBONY SV239 is a double-sided dovetail plate made from extruded, anodized aluminium alloy. Its profile fits both Vixen-style and Arca-Swiss clamps, and it carries UNC 1/4-20 and UNC 3/8-16 threads plus 6.5 mm through-slots for tube rings and accessories. This listing is the 185 mm length, which weighs 130 g.

Who It's For

This is a good match if you mount a telescope in tube rings and need a plate to join them to a Vixen or Arca-Swiss saddle, move a small scope or camera between a tripod head and a telescope mount, or want a second dovetail on top of your rings for a guide scope or finder.

Key Features & Design

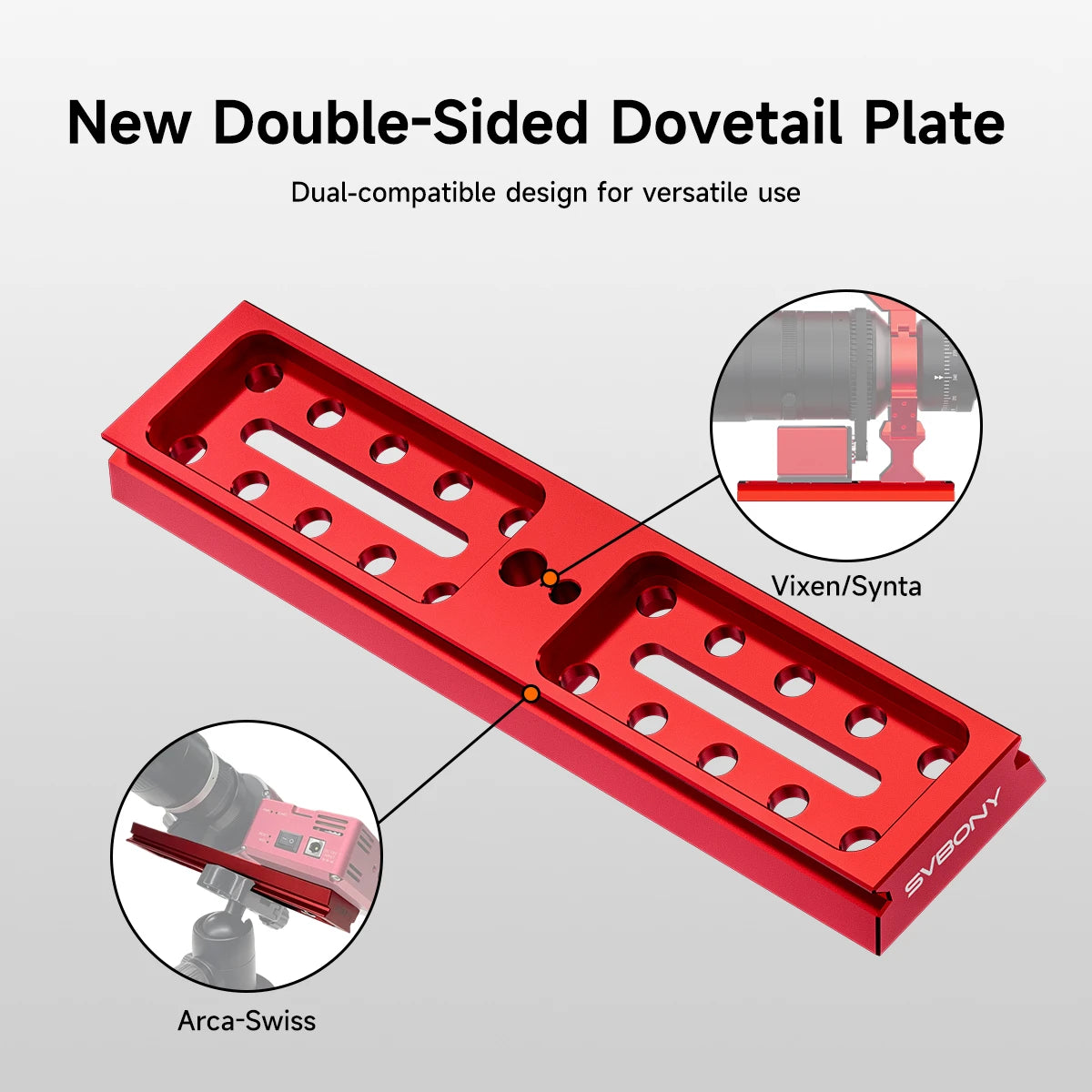

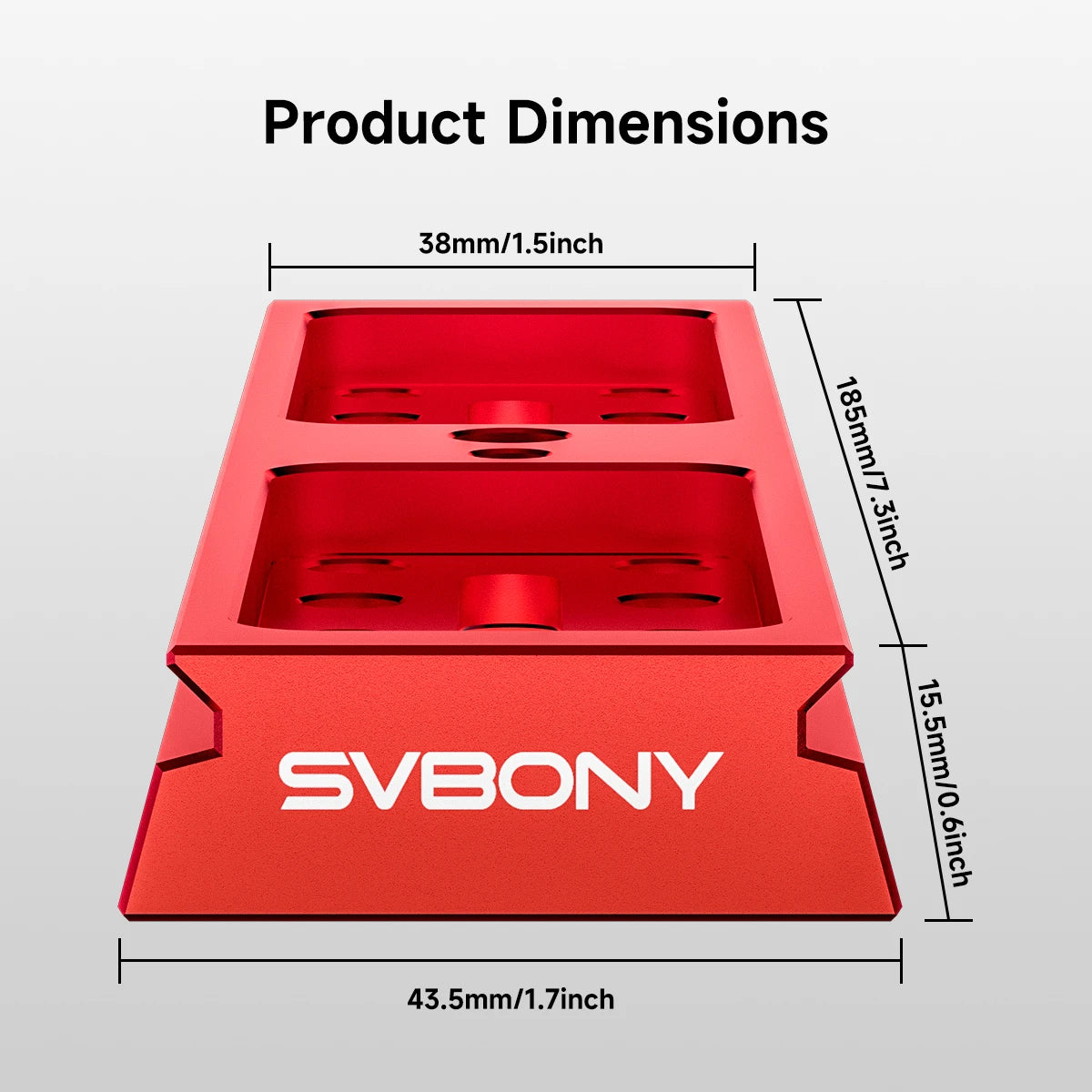

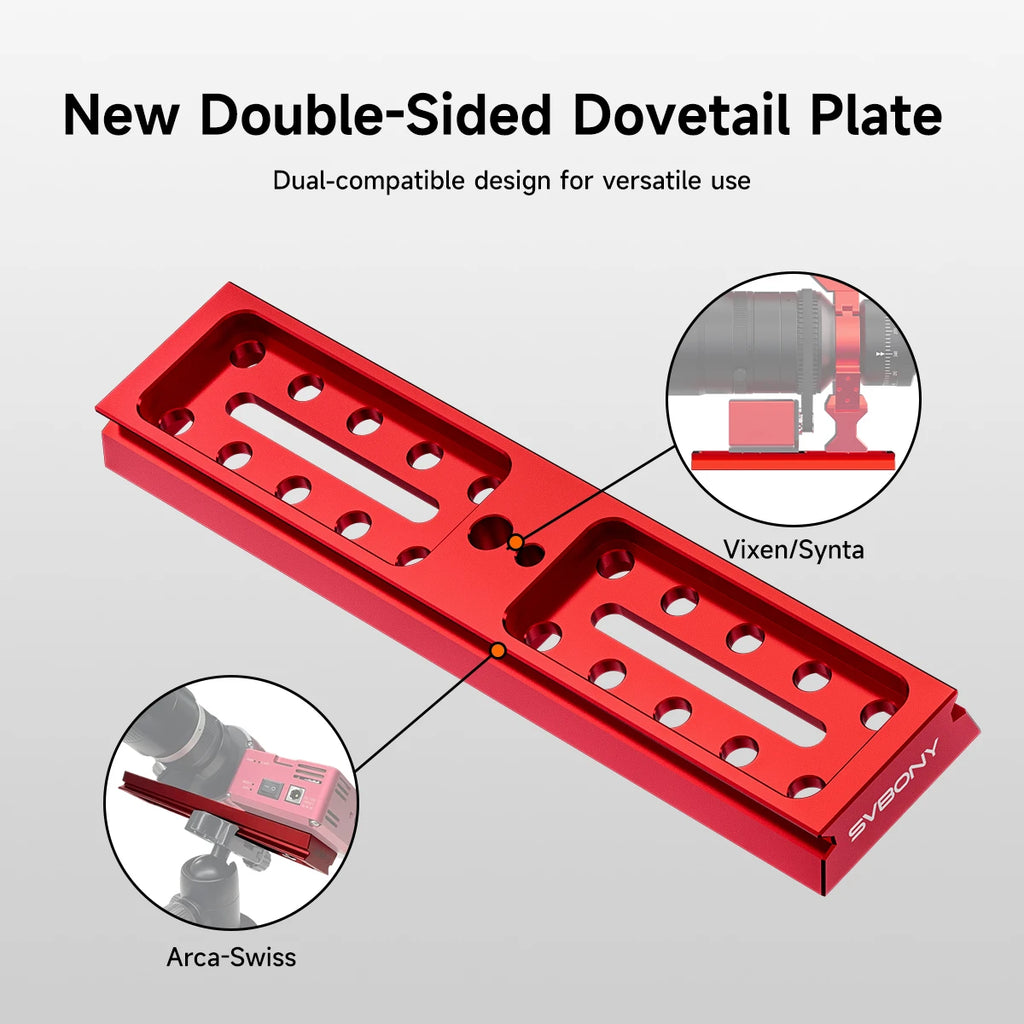

• Vixen and Arca-Swiss compatible: 38 mm upper width and 43.5 mm lower width, 15.5 mm high.

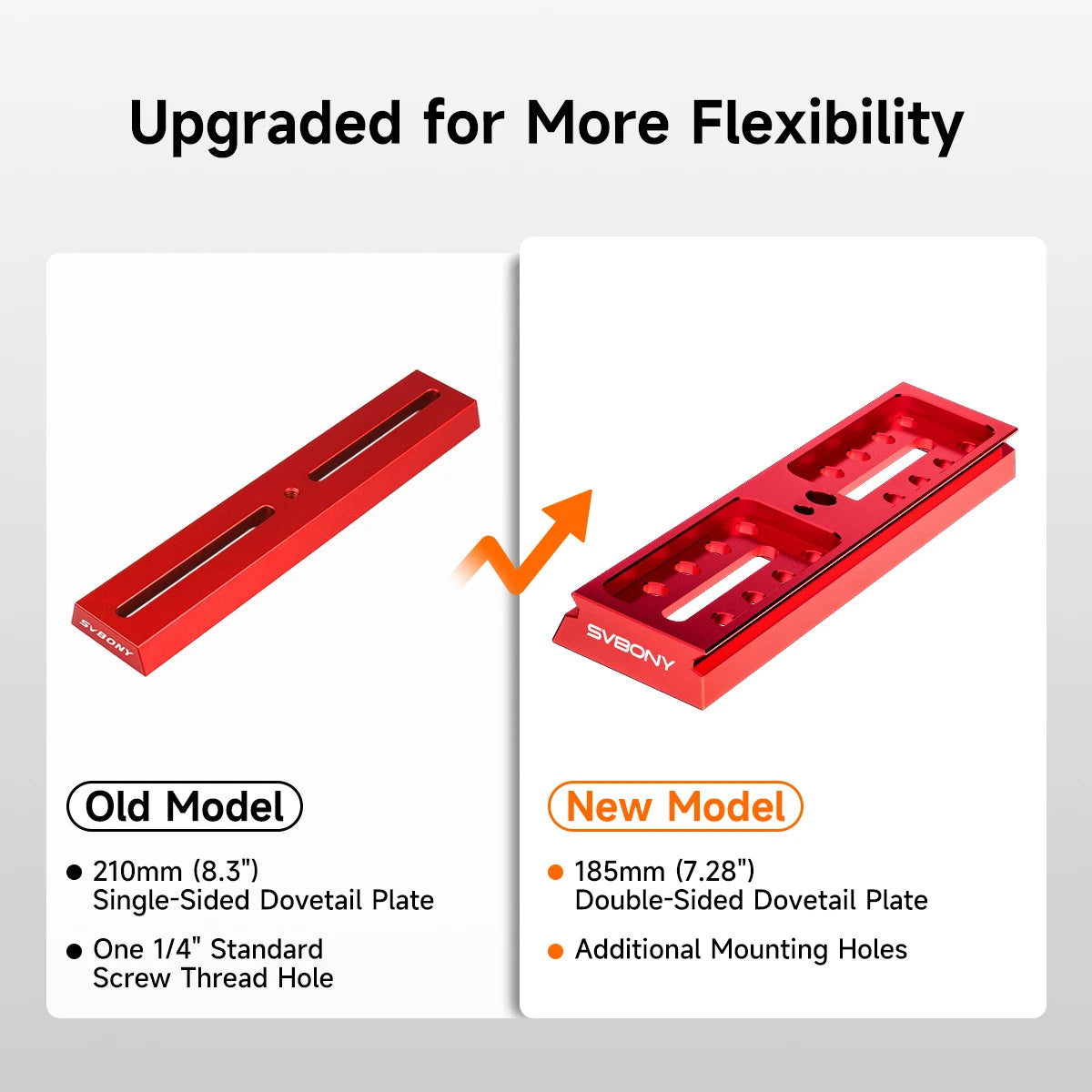

• Double-sided: 6 mm grooves top and bottom, so the plate can be fitted either way up or used to carry accessories on top.

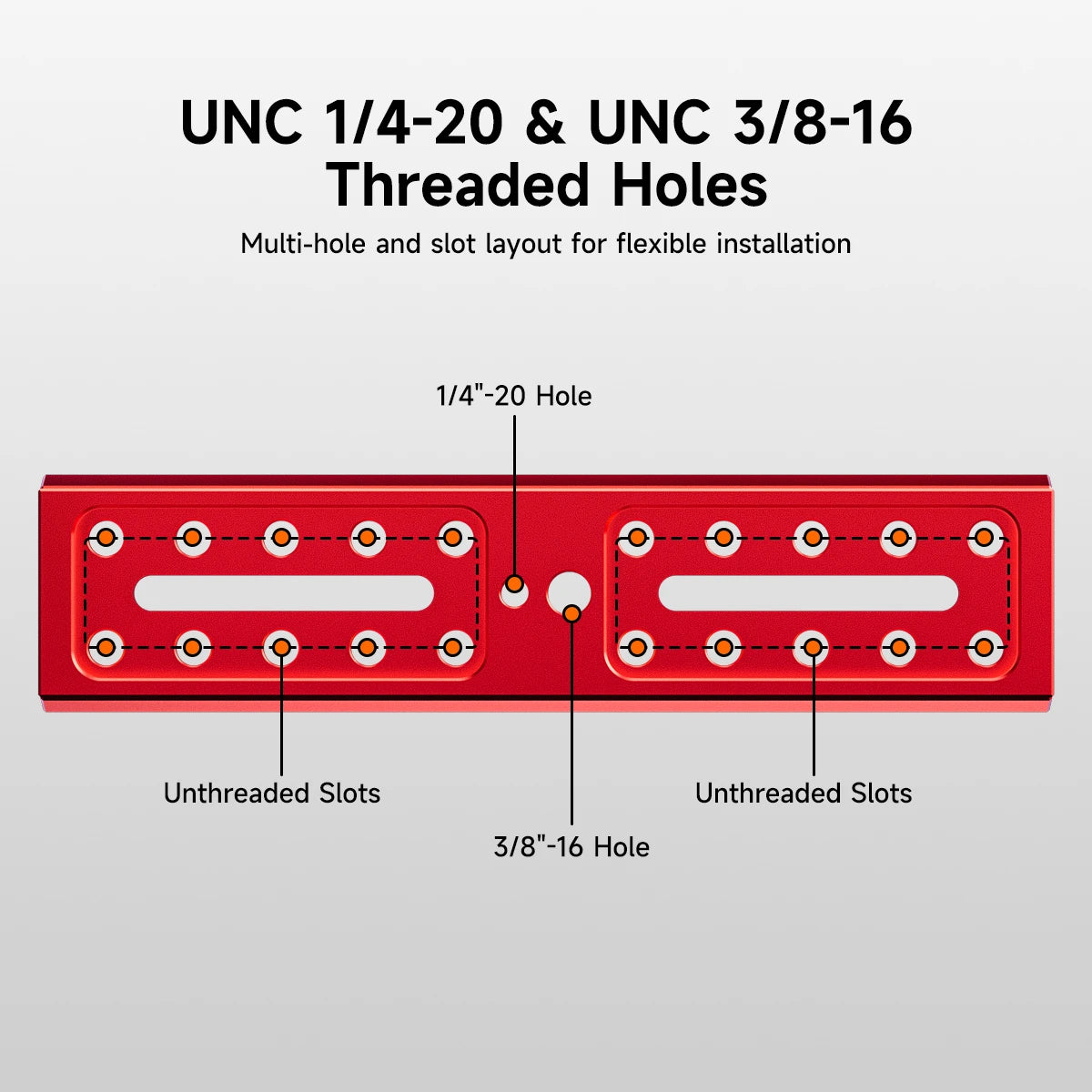

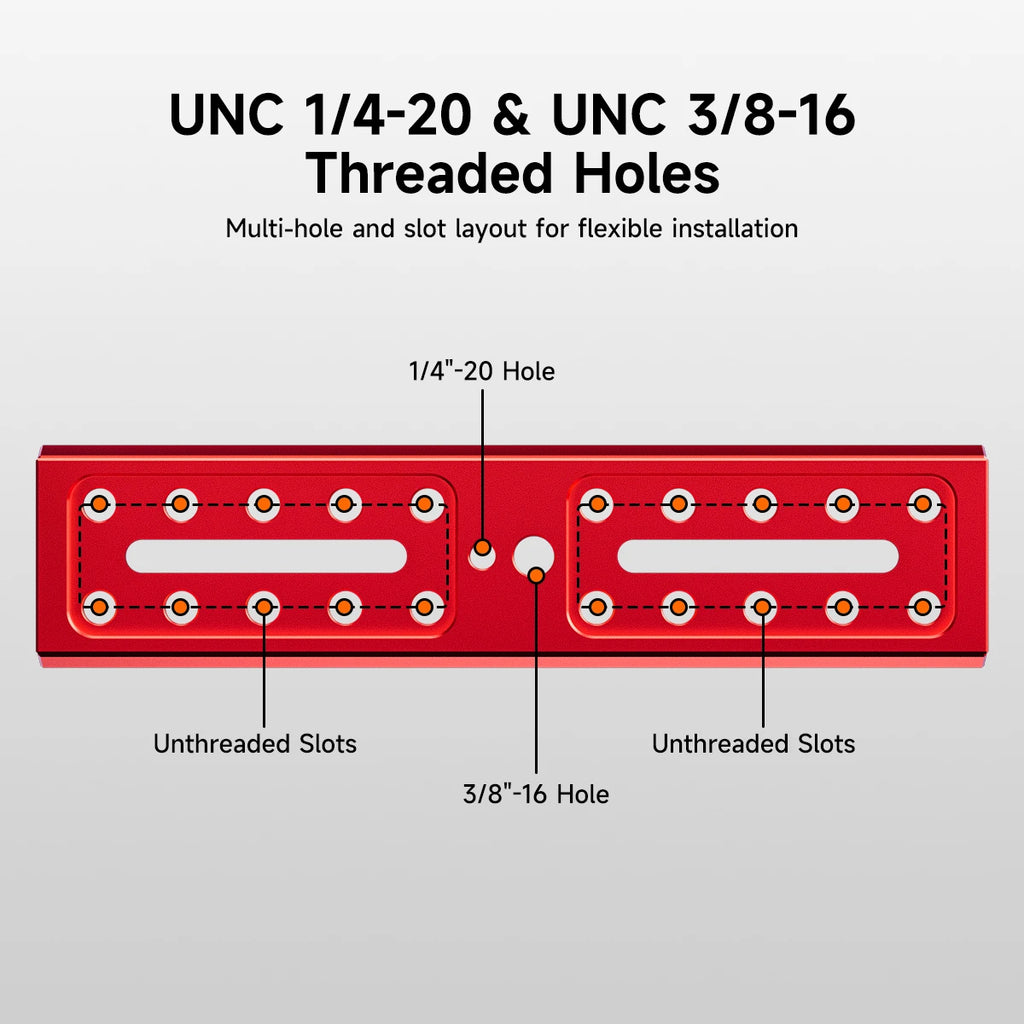

• Threaded holes: UNC 1/4-20 for cameras and accessories, UNC 3/8-16 for larger hardware.

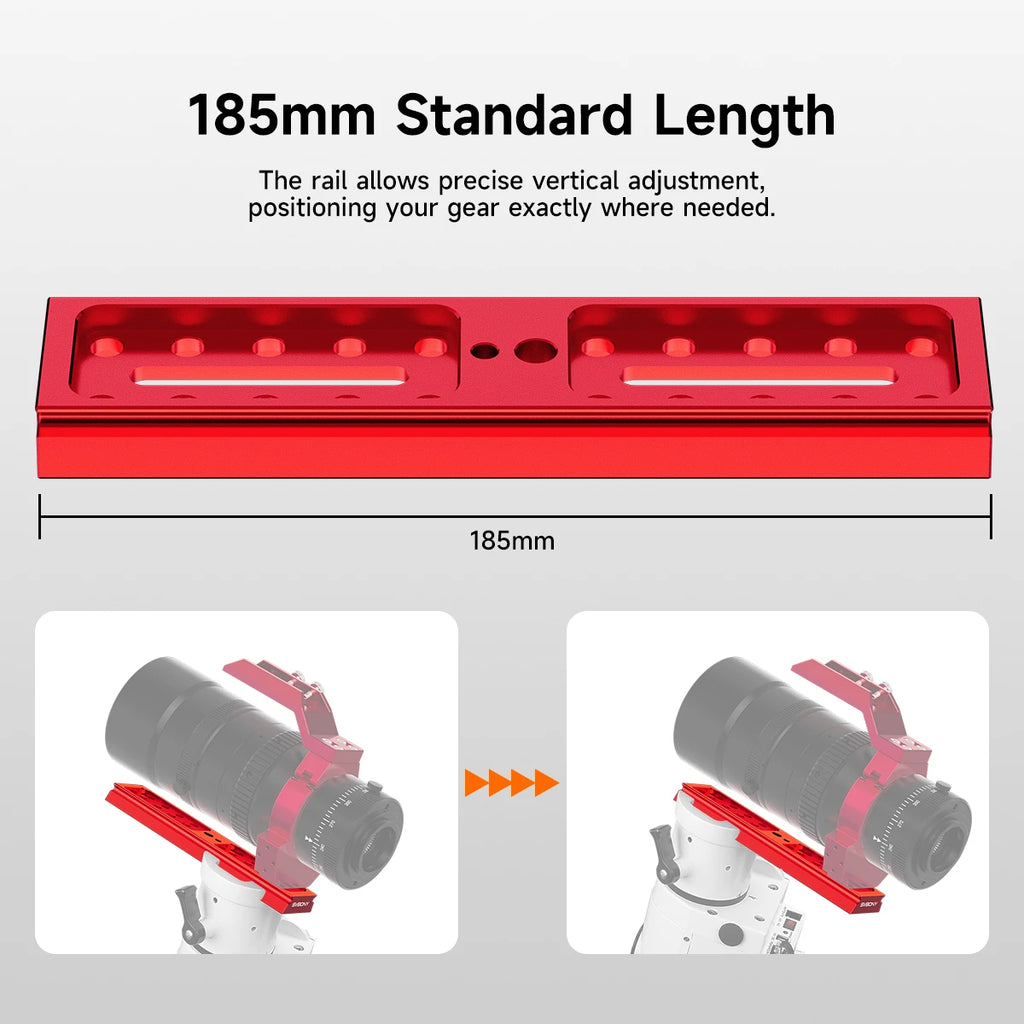

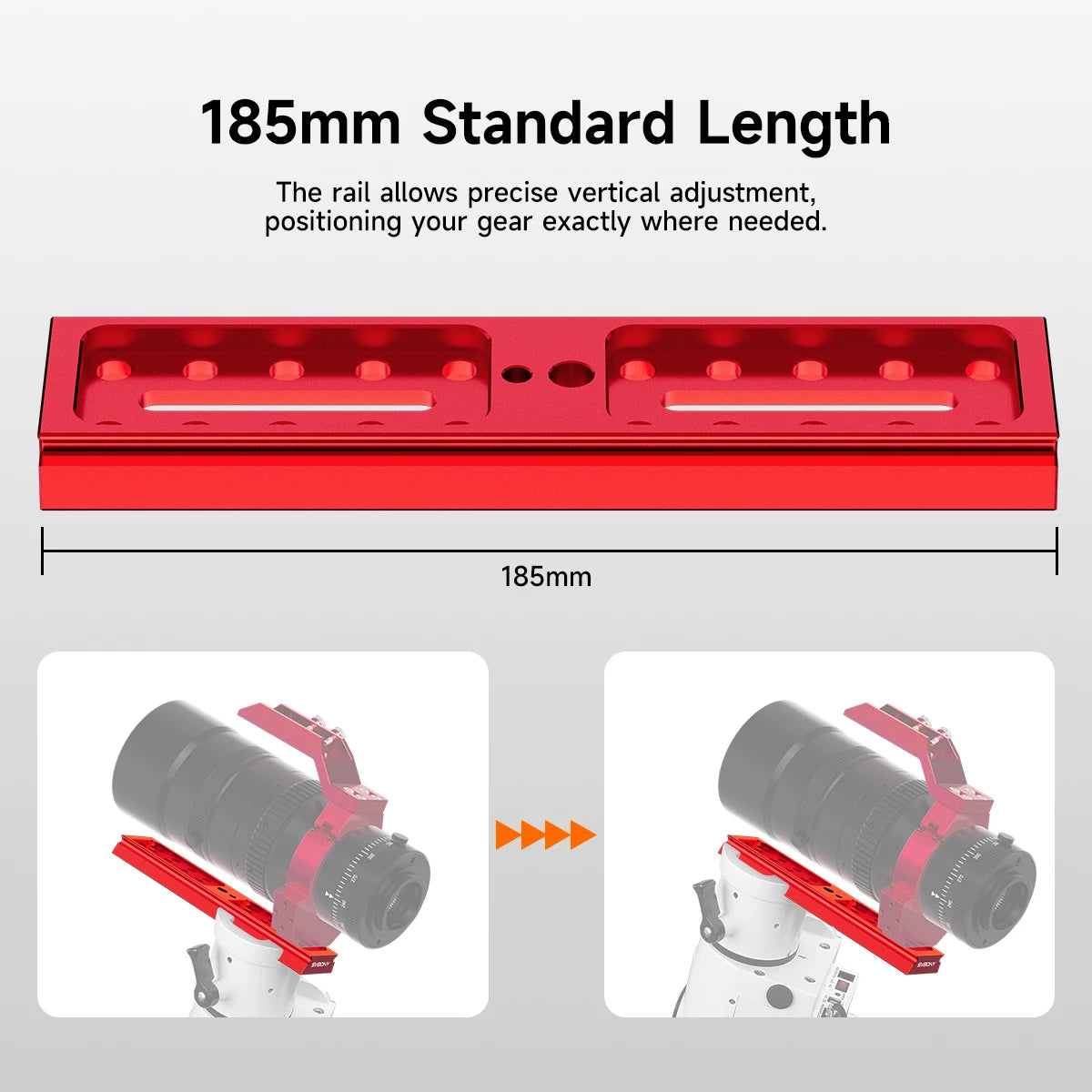

• 55 mm slot (6.5 mm wide): lets you slide tube rings along the plate to balance the telescope.

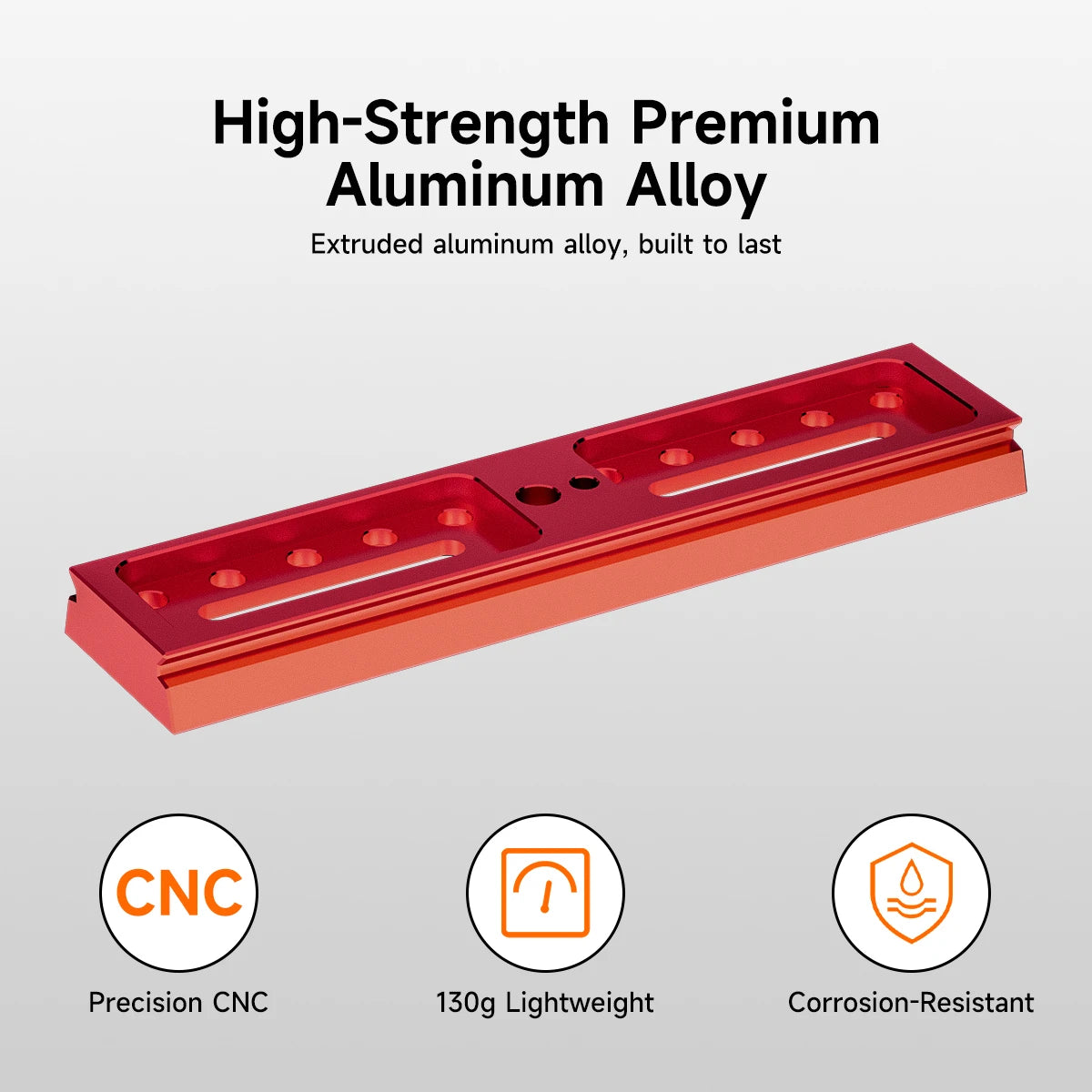

• Extruded anodized aluminium: red finish, 130 g.

Recommended Uses

• Attaching tube rings to an equatorial or alt-az mount with a Vixen or Arca-Swiss saddle.
• Balancing a telescope by sliding the rings along the slot.

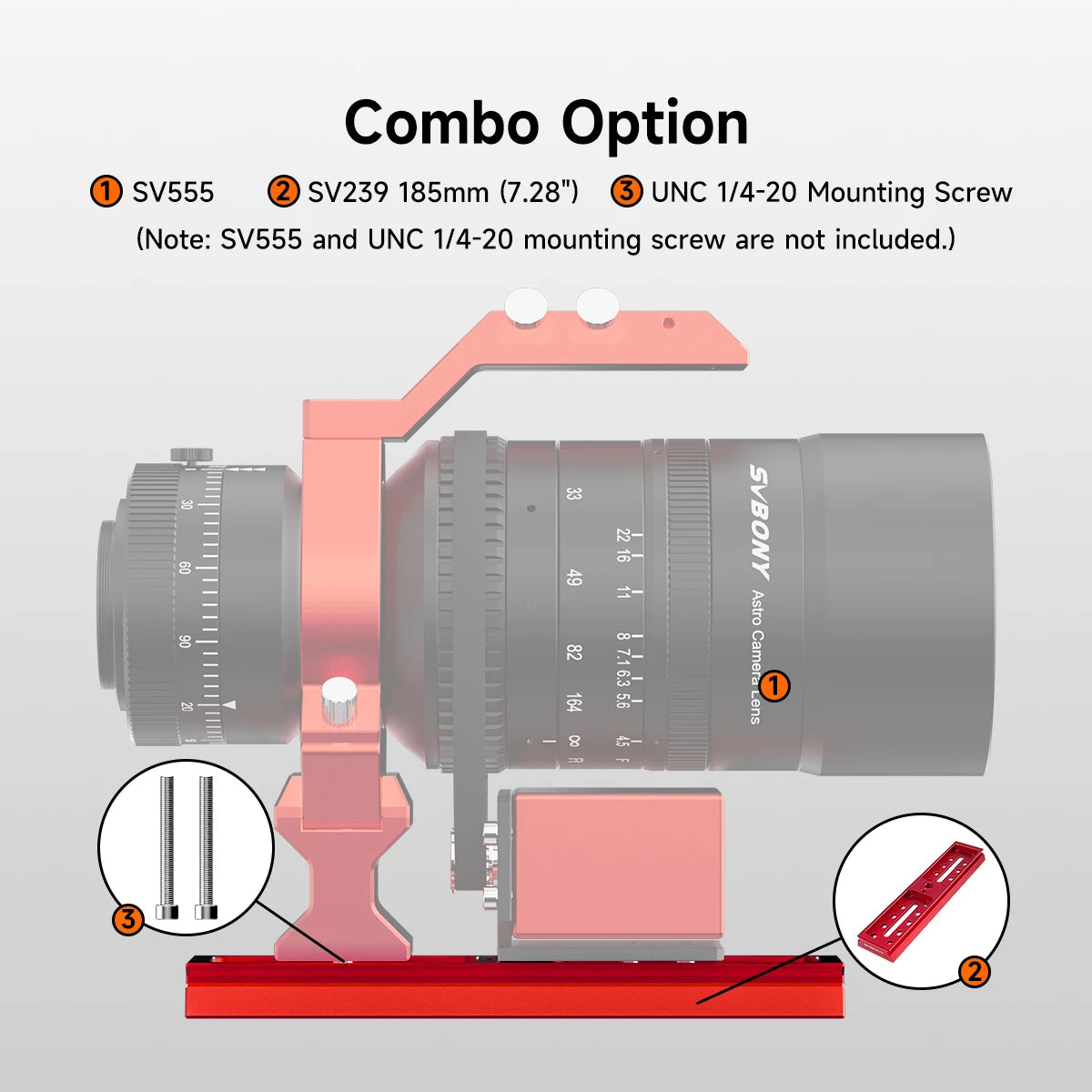

• Carrying a camera or guide scope on the 1/4-20 threads.

Compatibility and Accessory Notes

• Saddles: Vixen-style and Arca-Swiss clamps.
• Threads: UNC 1/4-20 and UNC 3/8-16; 6.5 mm through-holes for M6 screws.
• Accessories: SVBONY notes compatibility with finder scopes, finder bases and other mounting accessories.
• 254 mm version: SVBONY also makes a 254 mm length with an 87 mm slot. Get in touch if you need it.

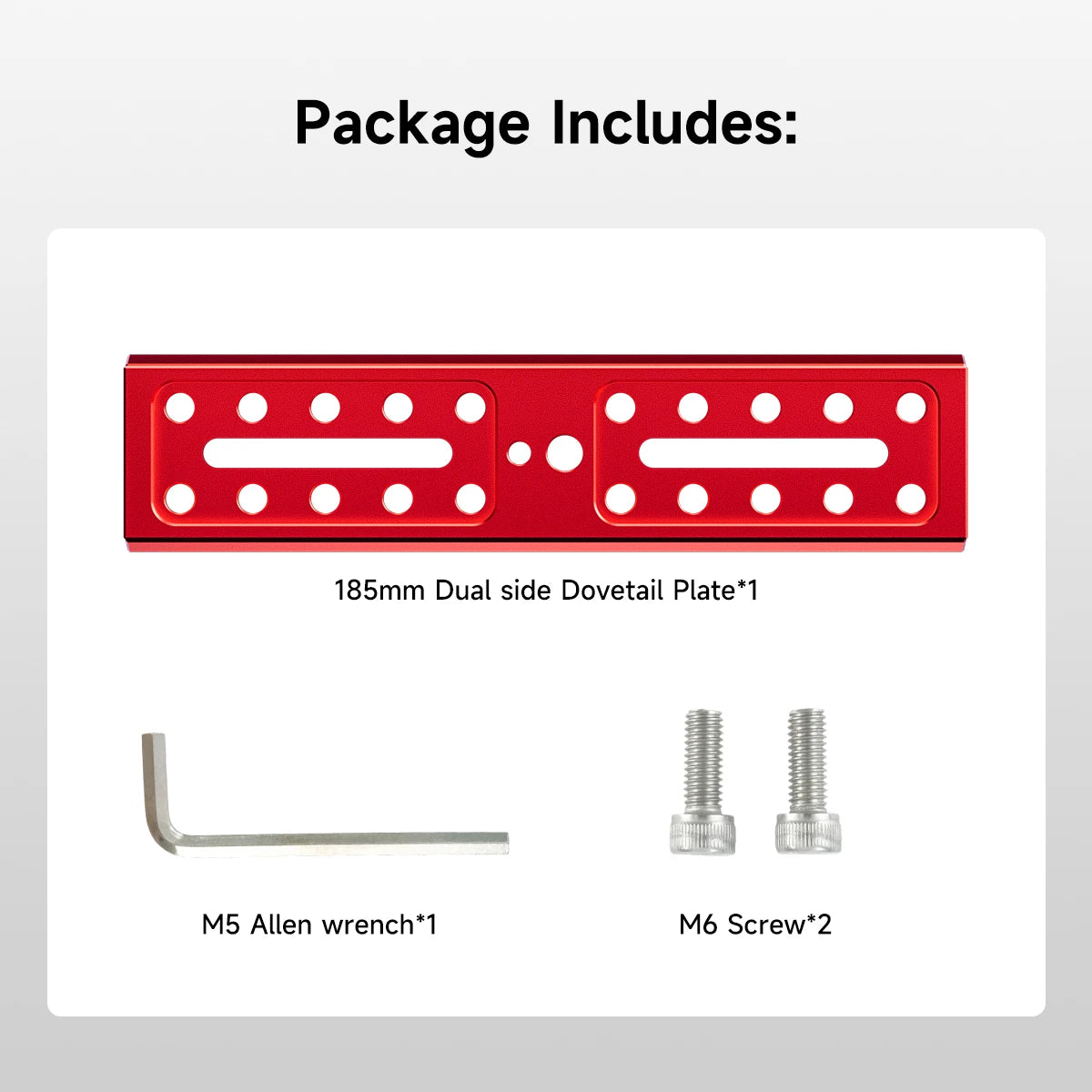

What's in the Box

• SV239 dovetail plate
• M5 L-type hex wrench
• Two M6 x 16 mm hex socket screws

Good to Know Before You Order

• Plate only: tube rings and the mount are sold separately.
• Length: the 185 mm plate suits shorter tubes and lighter setups; the 55 mm slot sets how far the rings can slide.

Frequently Asked Questions

Is it difficult to set up?

No. Bolt your tube rings to the plate with the supplied M6 screws, slide the plate into your mount's saddle, and tighten the clamp.

Does it fit Vixen or Arca-Swiss?

Both. The profile is made to fit either standard.

Can I mount a camera on it?

Yes, through the 1/4-20 threaded holes.

Bottom Line

In short: a 185 mm, 130 g double-sided dovetail plate that fits Vixen and Arca-Swiss saddles, with 1/4-20 and 3/8-16 threads and a 55 mm slot for tube rings.
