SVBONY SV149 Nikon AF Lens to 1.25″ Camera & Eyepiece Adapter

Product Overview

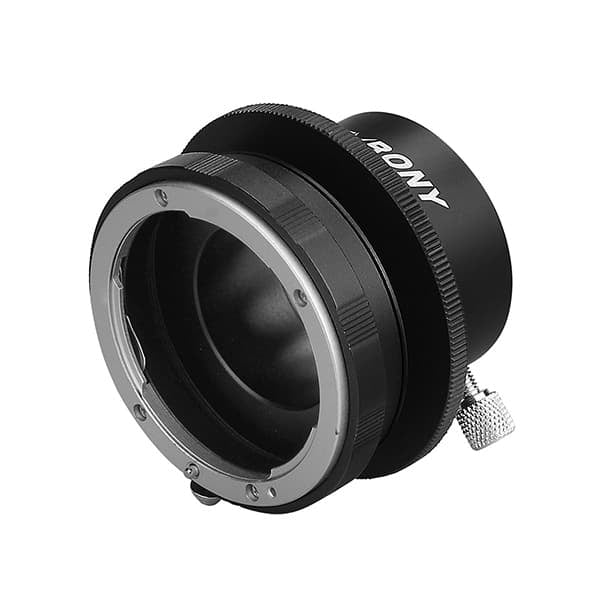

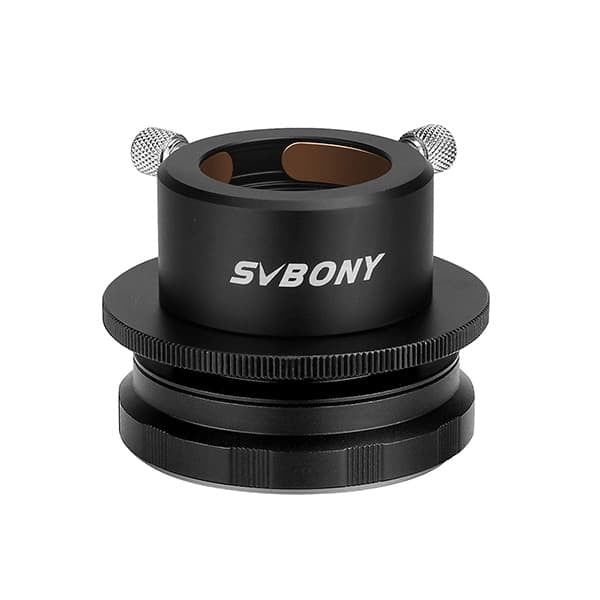

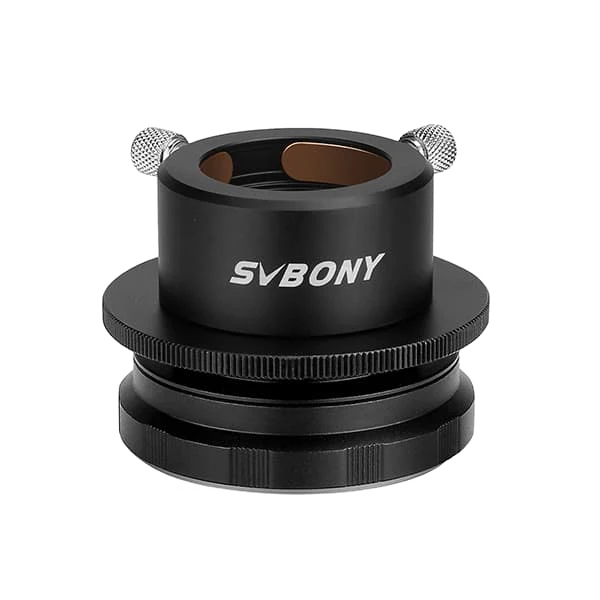

The SVBONY SV149 is a mechanical adapter that puts a Nikon AF (F-mount) camera lens in front of a 1.25″ eyepiece or 1.25″-nosepiece astronomy camera. One side takes the Nikon bayonet; the other is a 1.25″ holder with a brass ring that grips the barrel. The CNC-machined aluminium body uses an M52 x 0.75 adapter thread, measures 78 x 58 x 60 mm and weighs 137 g.

Who It's For

This is a good match if you own Nikon AF lenses and want to use one as a short-focal-length imaging optic for an astronomy camera, for wide-field Milky Way, constellation and large-nebula framing, or as a simple lens-plus-eyepiece viewer.

Key Features & Design

• Nikon AF bayonet: accepts most Nikon F-mount DSLR lenses.
• 1.25″ holder with brass ring: holds an eyepiece or camera nosepiece securely without scratching the barrel and keeps it from slipping out.
• M52 x 0.75 adapter thread.
• CNC-machined aluminium alloy: all-metal construction, black finish.

Recommended Uses

• Wide-field astrophotography with a Nikon lens and a 1.25″ astronomy camera.
• Lens-based guiding or finder setups using a camera lens as the optic.
• Visual use of a camera lens with a 1.25″ eyepiece.

Compatibility and Accessory Notes

• Lens side: Nikon AF-Mount (F-mount) lenses.
• Output: any 1.25″ eyepiece or 1.25″ camera nosepiece.
• Mechanical only: there are no electronic contacts between lens and camera.
• Canon version: SVBONY also makes the SV149 for Canon EF/EF-S lenses as a separate model.

If you are pairing a particular lens and camera and want to confirm the fit, send us both and we will check it with you.

Good to Know Before You Order

• No electronic control: it is a mechanical adapter, so autofocus and electronic aperture control are not available.
• Lens and camera sold separately.
• Bundle style: SVBONY also lists an SV149-SV405CC camera bundle; this listing is the adapter on its own.

Frequently Asked Questions

Is it difficult to set up?

No. Mount the lens on the bayonet, slide the eyepiece or camera nosepiece into the 1.25″ holder and tighten the screw against the brass ring.

Does it work with Canon lenses?

No. This version is for Nikon AF lenses. SVBONY's Canon EF/EF-S SV149 is a separate adapter.

Does it pass any electronic signals?

No. It is a purely mechanical connection.

Bottom Line

In short: a 137 g all-metal adapter that turns a Nikon AF lens into a wide-field optic for a 1.25″ astronomy camera or eyepiece.
