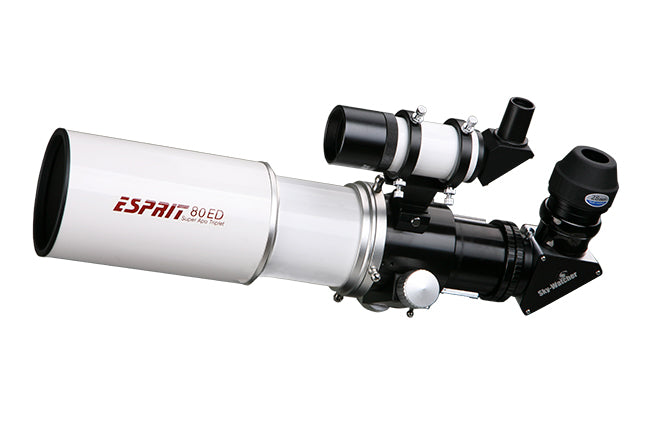

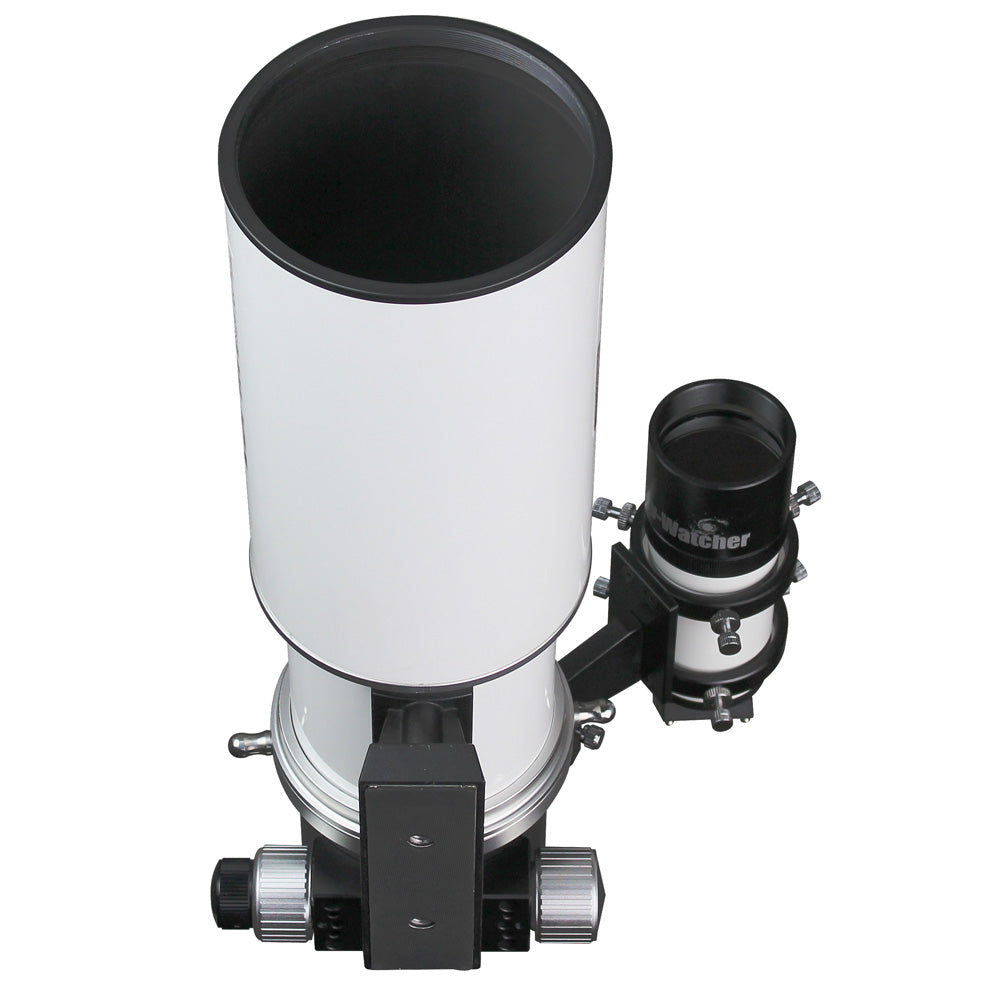

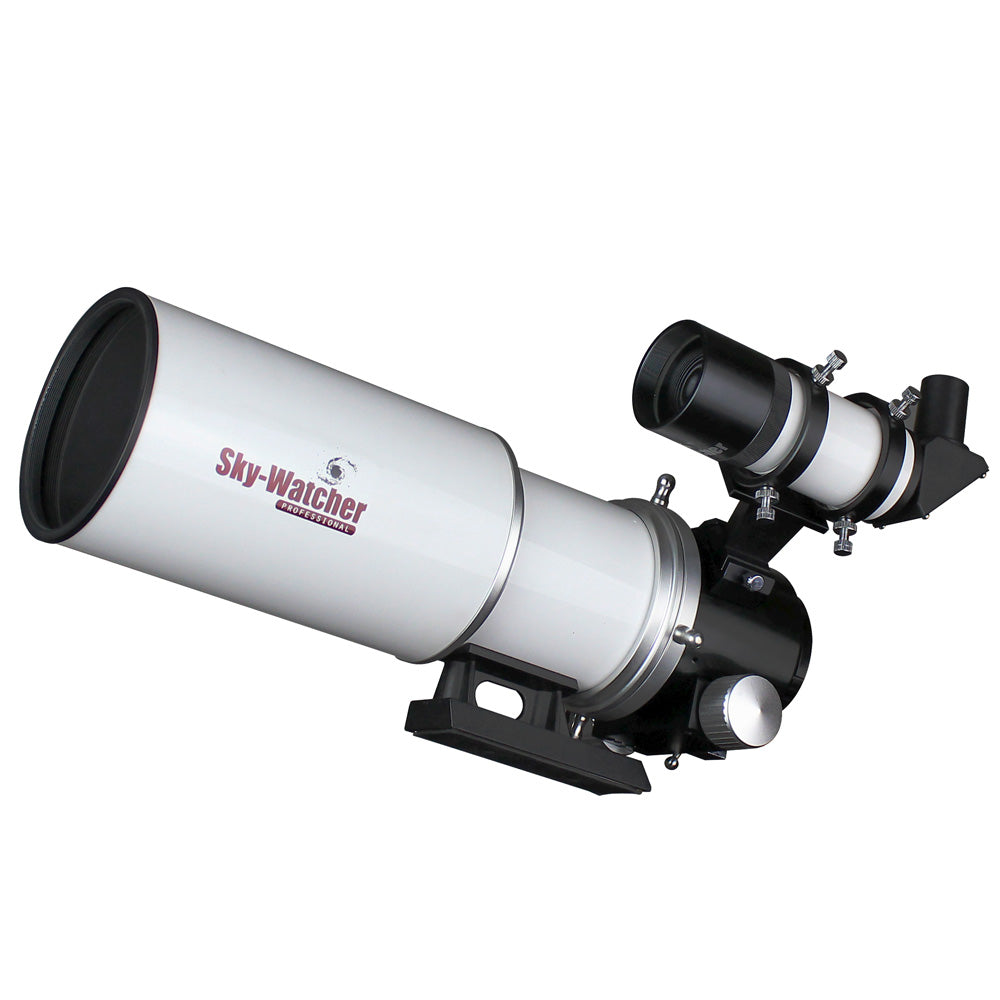

Skywatcher Esprit 80ED APO Triplet

SkywatcherSKU: S11400

Price:
Sale price$3,200.00 CAD
Stock:
On Backorder — ships when available
  • Description
  • Specifications
Skywatcher Esprit 80ED, 100ED, 120ED and 150ED Super APO refractors have a doublet field flattener to get a flat field and minimize aberration and distortion. Their wide 48mm opener ensures a larger and clearer aperture and also extremely minimized halation. Connect the triplet and doublet field flattener with a high precision thin thread to keep the optical axis perpendicular to the image.


Designed with the discerning astrophotographer in mind, Sky-Watcher USA’s top-of-the-line Esprit refractors deliver the kind of imaging performance one would expect from telescopes costing thousands of dollars more.

With their three-element air spaced objective lens design, false color is completely eliminated, yielding exceptional contrast and sharpness. The included 2-element field corrector guarantees a flat field across the entire imaging plane. The Sky-Watcher exclusive Helinear Track focusing system provides a smooth, rock-solid focuser with zero image shift.

All Sky-Watcher USA Esprit refractors come with a 8 x 50 right angle finderscope, 2-inch Star diagonal, 2-element field flattener*, camera adapter, D-style dovetail and padded case. Everything you need to get out under the stars.


Main Features:
- Premium optical materials
- Short focal length and full frame corrected focal plane
- Excellent field flatness
- Precision linear power focuser is standard
- Metallic high-transmission lens coatings
- Light-baffled optical systems
- Telescope tube attachment hardware
- Zero detectable Colour Fringing even on Bright Objects
- Knife-edge Baffled Optical System

This is a final sale item.  Brand new with full manufacture warranty.
Optical Design

ED Triplet

Primary Aperture (mm)

80mm (3?)

Focal Ratio

5

Focal Length (mm)

400mm

Glass Type

Schott/Ohara ED

Lens Coatings

Fully Multi-Coated

OTA Length

17.4?

OTA Outer Diameter

4.875?

OTA Weight (with accessories)

8.8 lbs.

Focuser

2.7? Dual Speed R&P

Included Eyepieces

None

Included Diagonal

2? Dielectric

Included Finder

8×50 Right Angle Correct Image

Includes Case

Yes

Mounting Accessories

V-Rail Foot

Corrector

Yes, included flattener.

Image Circle (w/ Flattener)

33mm

Other Included Items

Canon 48mm camera adapter with spacers

Dawes Limit

1.45

Rayleigh Limit

1.75

Limiting Magnitude

12
