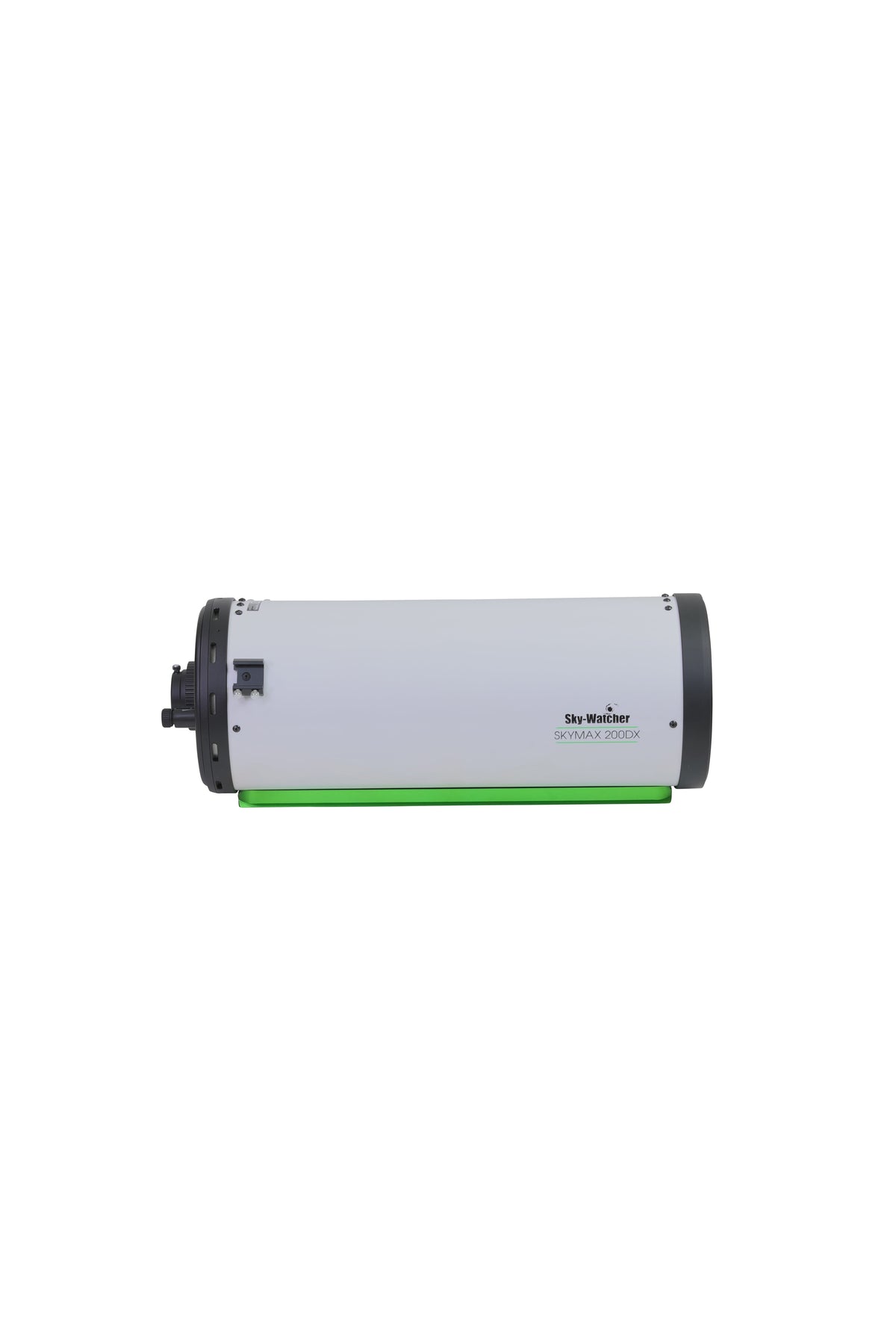

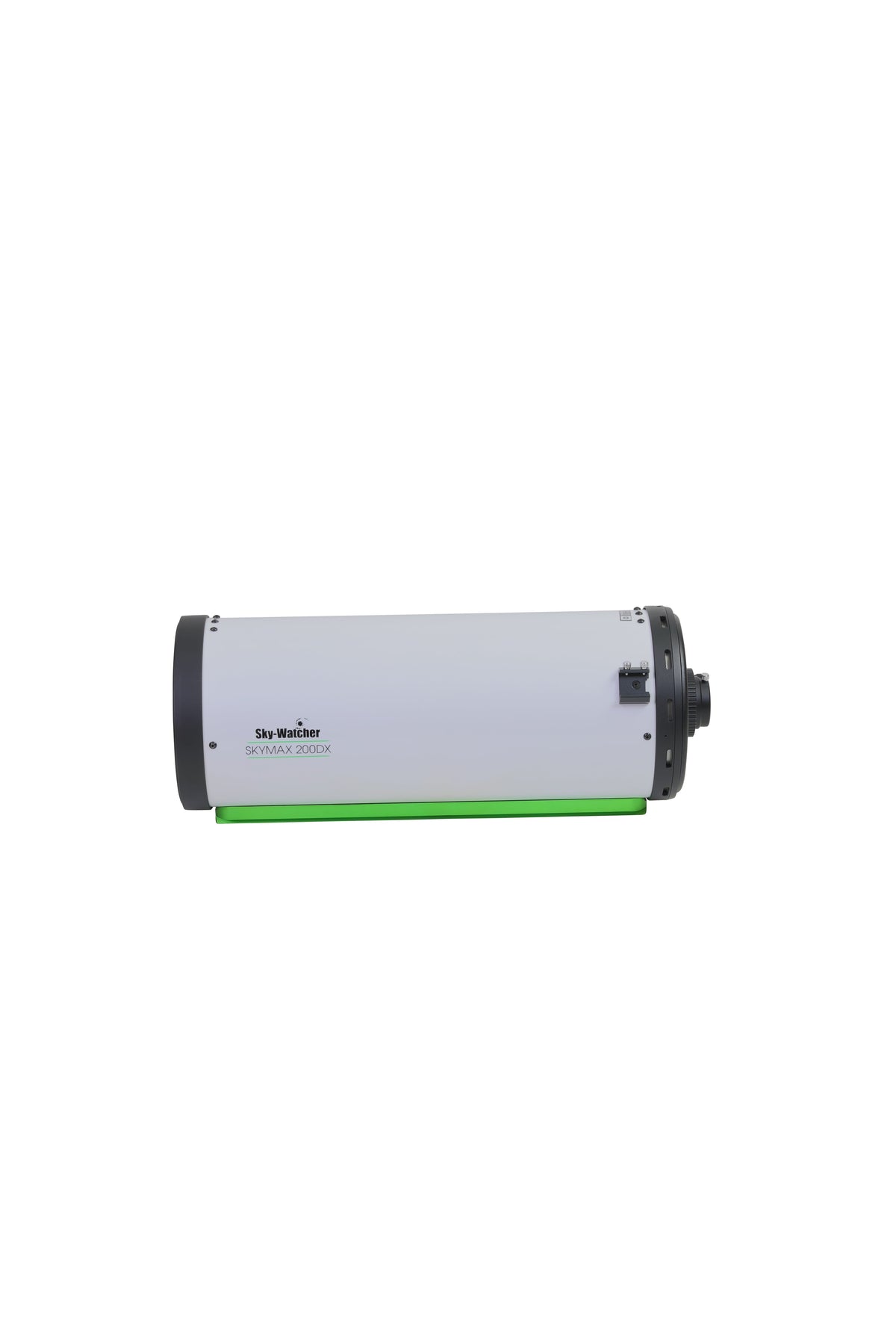

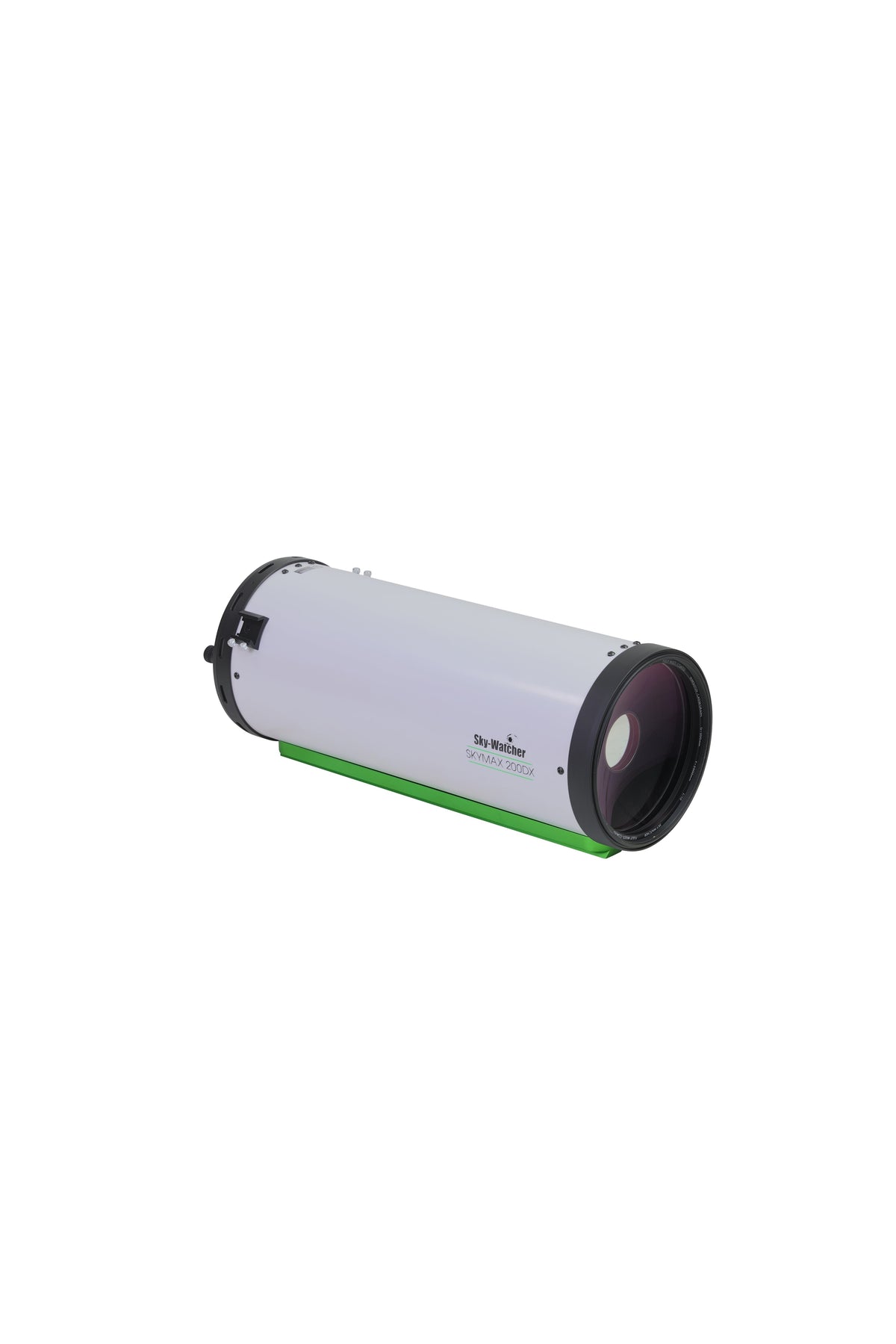

Sky-Watcher Skymax 200DX Maksutov-Cassegrain OTA

Product Overview

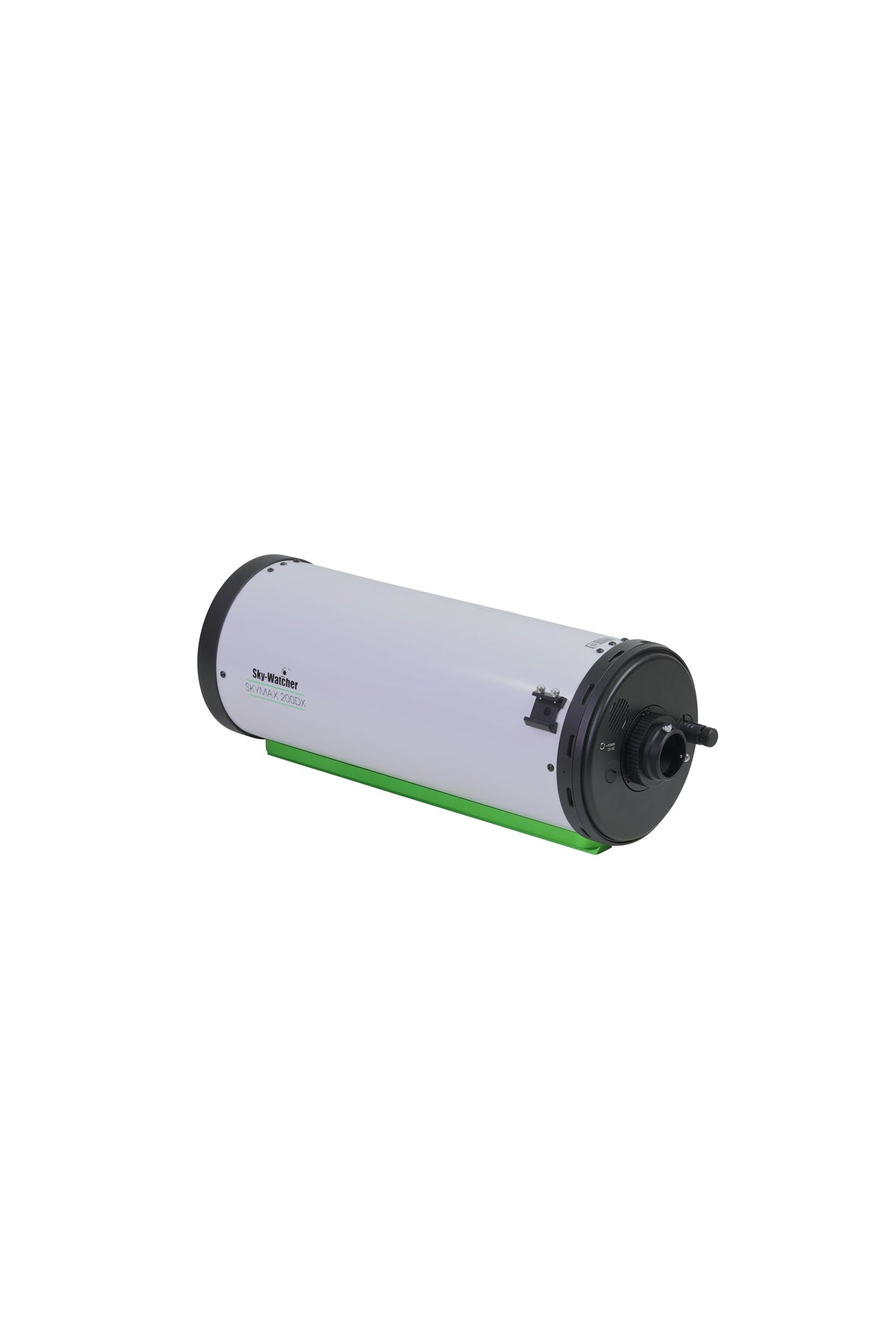

The Skymax 200DX is a 200 mm Maksutov-Cassegrain optical tube with a 2000 mm focal length at f/10. It is the 200 mm member of Sky-Watcher's Skymax line of Maksutovs, and it is built as a working instrument rather than a bare tube: Sky-Watcher fits a Zero Shift belt-drive focuser, a 2-inch visual back and a D-style dovetail plate, and supplies a cooling fan with its own battery pack and a camera adapter in the box.

This listing is the optical tube assembly. No mount or tripod is included, which suits you if you already run an equatorial or alt-azimuth mount with a D-style (Losmandy-format) saddle.

Who It's For

This is a good match if the Moon, the planets and double stars are your main targets and you want more aperture than a small Maksutov offers. 200 mm of aperture is what resolves finer belt structure on Jupiter, Cassini-division detail on Saturn and surface markings on Mars at a good opposition.

It also suits planetary and lunar imagers. A 2000 mm native focal length gives a large image scale before any Barlow, and the 2-inch visual back and supplied camera adapter give the imaging train a direct starting point. With the matched Skymax 200DX 0.7x Reducer/Corrector, the same tube works at f/7 and 1400 mm for smaller deep-sky targets.

If you already observe with a smaller Maksutov and like the sealed design, the 200DX is the step up in aperture within the same optical family. If this is your first telescope, it works well as a long-term planetary instrument once it is paired with a mount sized for it - tell us what you have in mind and we will help match one.

Key Features & Design

• 200 mm Maksutov-Cassegrain at 2000 mm f/10: long focal length in a folded, compact tube, which is where the image scale for planetary detail comes from.
• Borosilicate mirrors with Radiant Aluminum Quartz (RAQ) coatings: Sky-Watcher publishes 94% reflectivity for the coating on the primary and secondary mirrors.

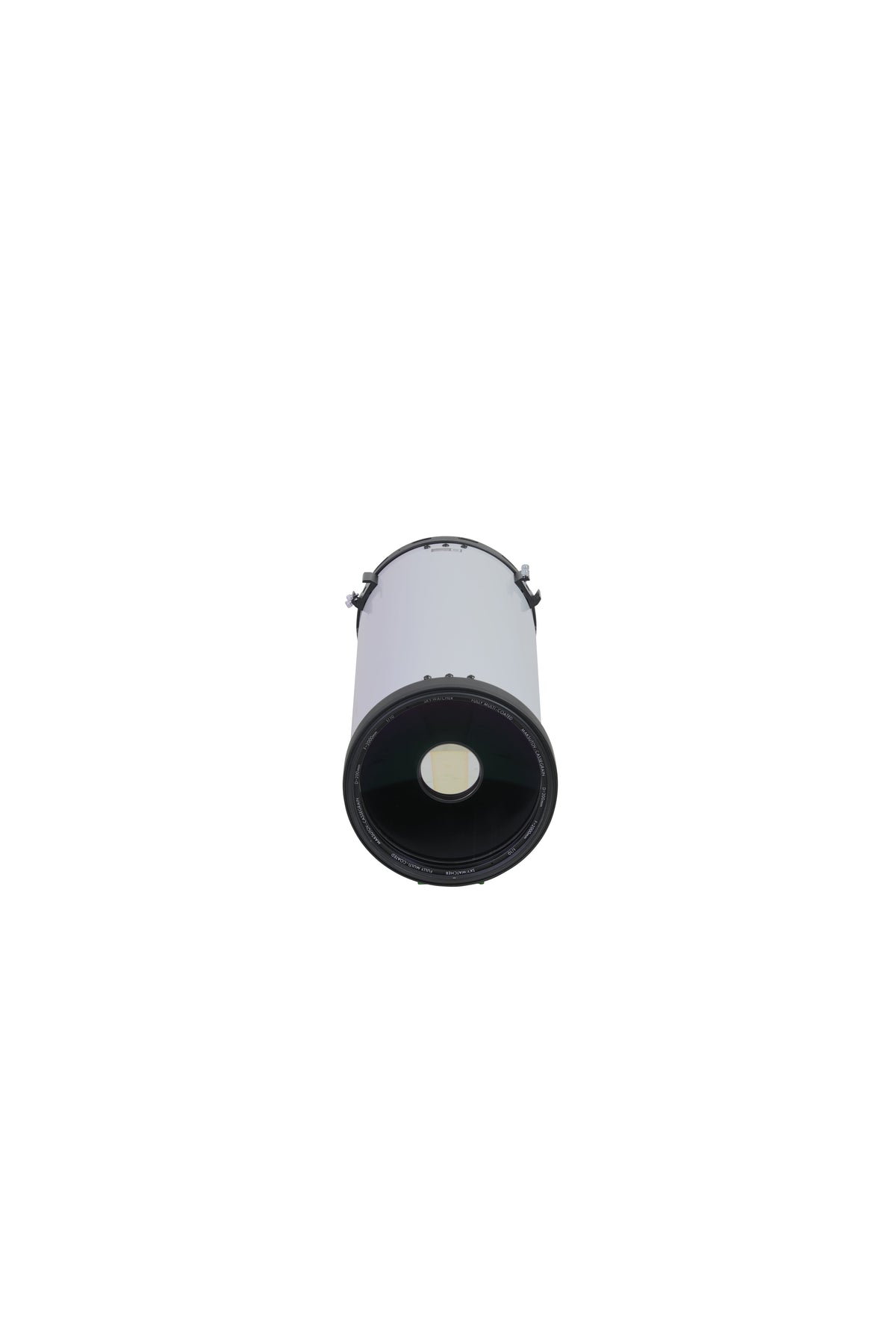

• Meniscus corrector with Metallic High-Transmission Coatings (MHTC): the full-aperture corrector controls chromatic aberration and seals the front of the tube.
• Fully multi-coated optics per Sky-Watcher's product listing.
• Zero Shift belt-drive focuser: a belt-driven focus mechanism, as listed by Sky-Watcher.

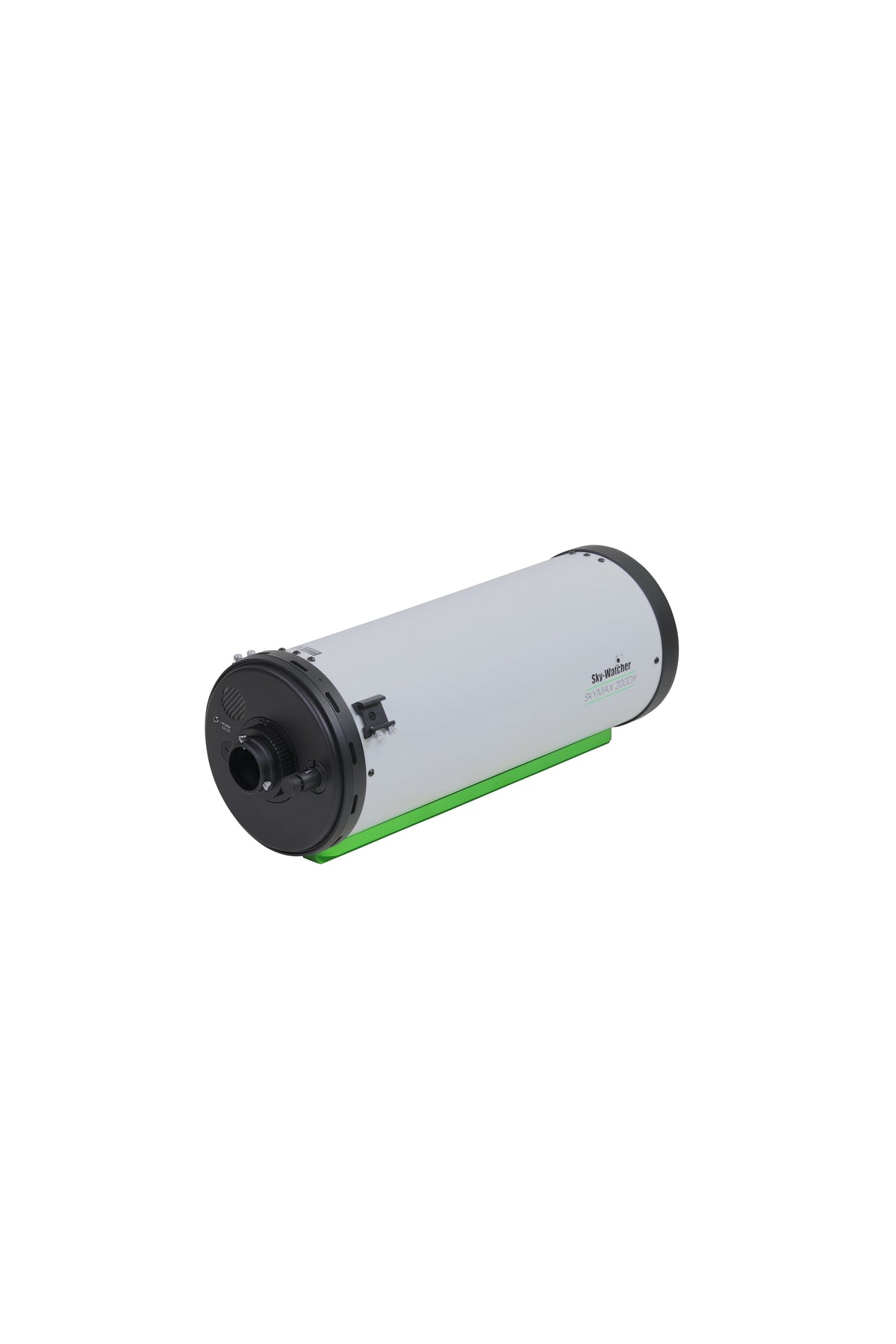

• 2-inch visual back: accepts 2-inch diagonals and accessories directly.
• Camera adapter included: Sky-Watcher lists a camera extender adapter in the box.
• D-style dovetail plate: the wide Losmandy-format plate used on medium and larger mounts.

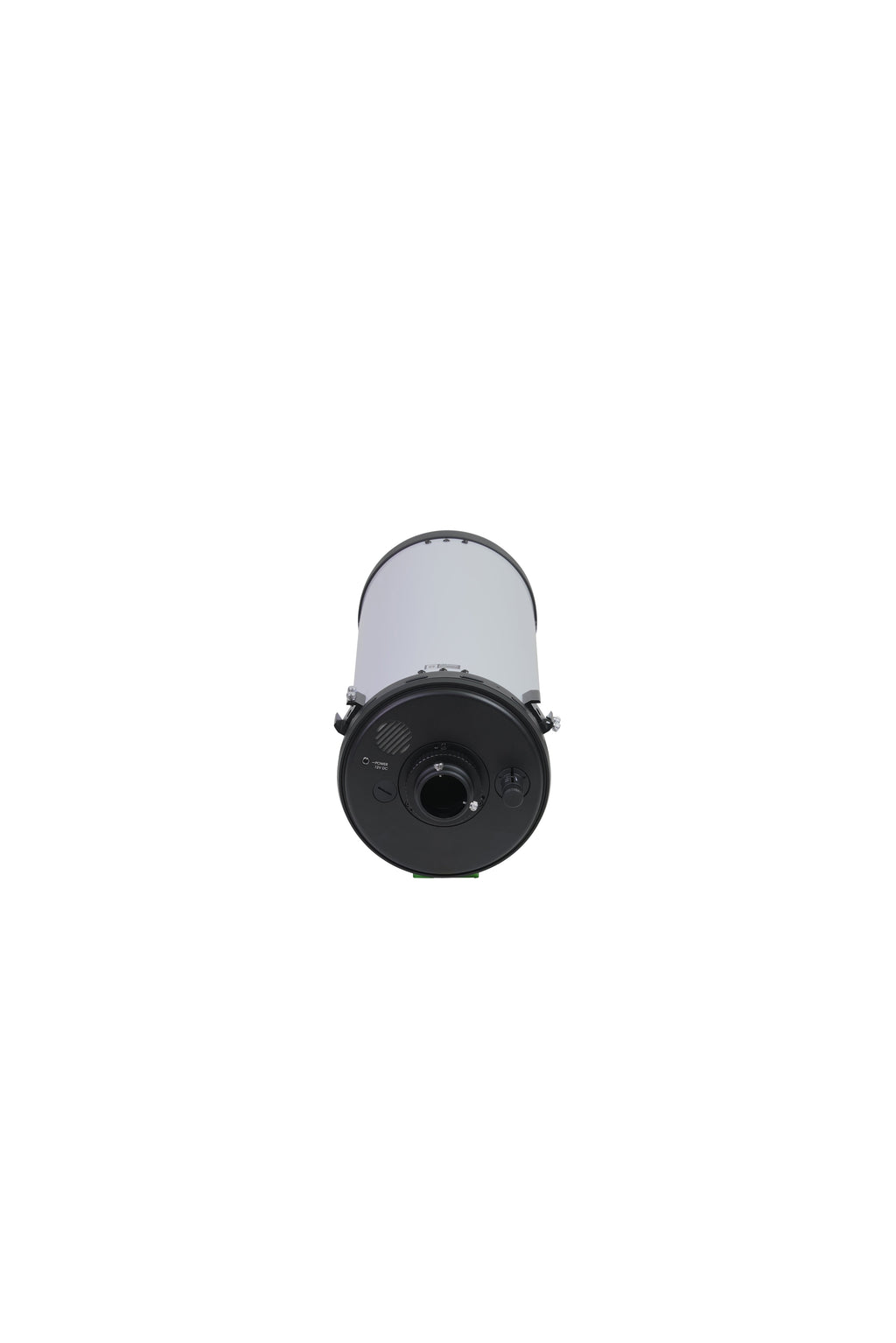

• Cooling fan with battery pack: a rear fan to bring the optics to ambient temperature, powered by an included battery pack.
• Aluminium tube with a glossy white diamond metal-flake finish.

Optical / Mechanical Design

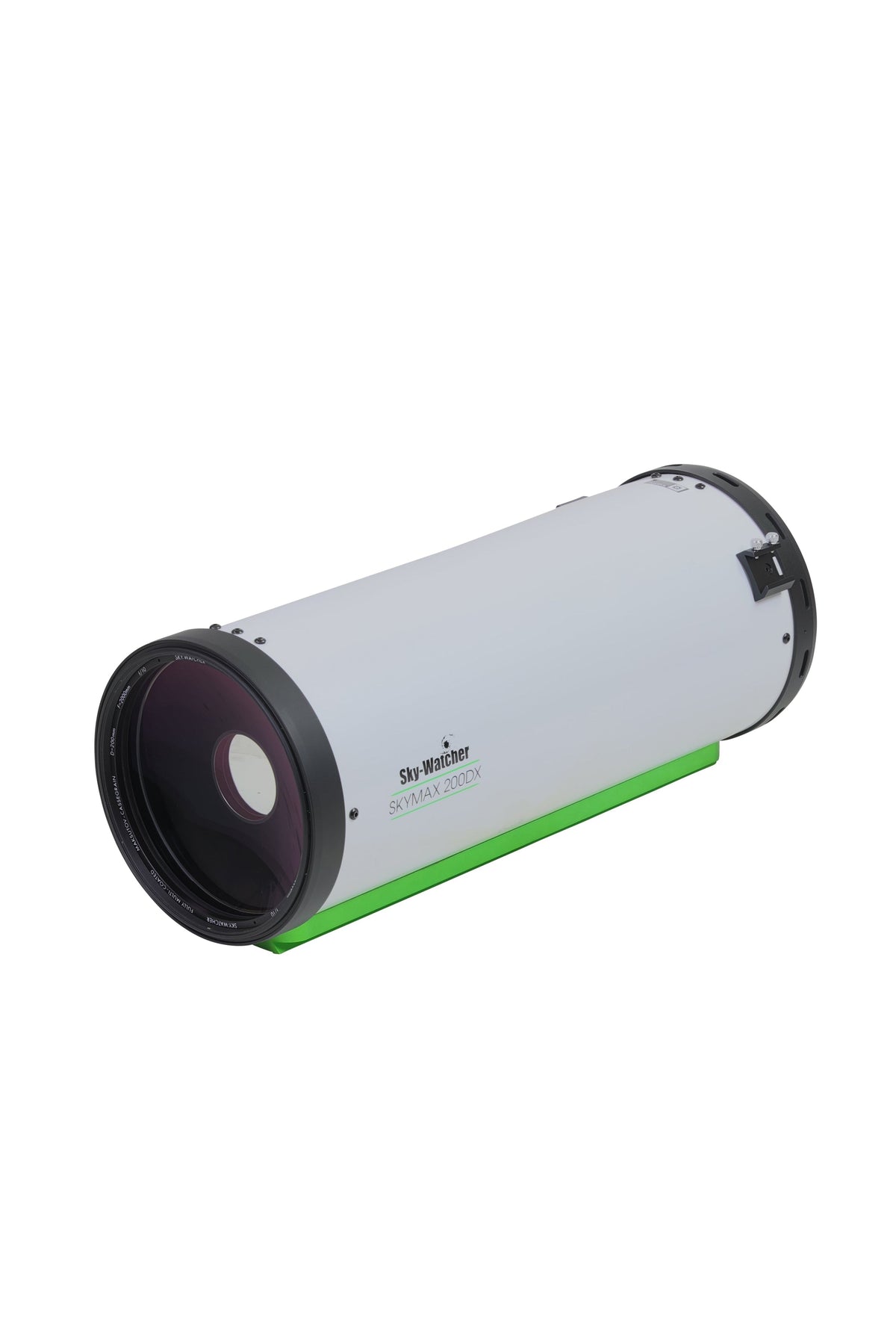

A Maksutov-Cassegrain places a thick, full-aperture meniscus lens - the corrector plate - at the front of the tube. Light passes through it to a borosilicate primary mirror at the rear, reflects forward to the secondary, and returns through a central hole in the primary to the visual back. Folding the light path this way is how 2000 mm of focal length fits in a compact tube, and the meniscus both corrects the spherical primary and seals the optics against dust.

Sky-Watcher's position is that Maksutovs generally deliver a sharper image than Schmidt-Cassegrains, and the design reasons are the meniscus itself and the absence of a spider vane: there are no diffraction spikes, and contrast on fine planetary detail holds up at high power. Sky-Watcher also notes that Maksutov focal lengths run five to seven times longer than a typical Newtonian or refractor, which is where the high image scale comes from.

The f/10 focal ratio keeps the long-focal-length advantage for the Moon and planets, and the matched 0.7x reducer/corrector takes it to f/7 for imaging.

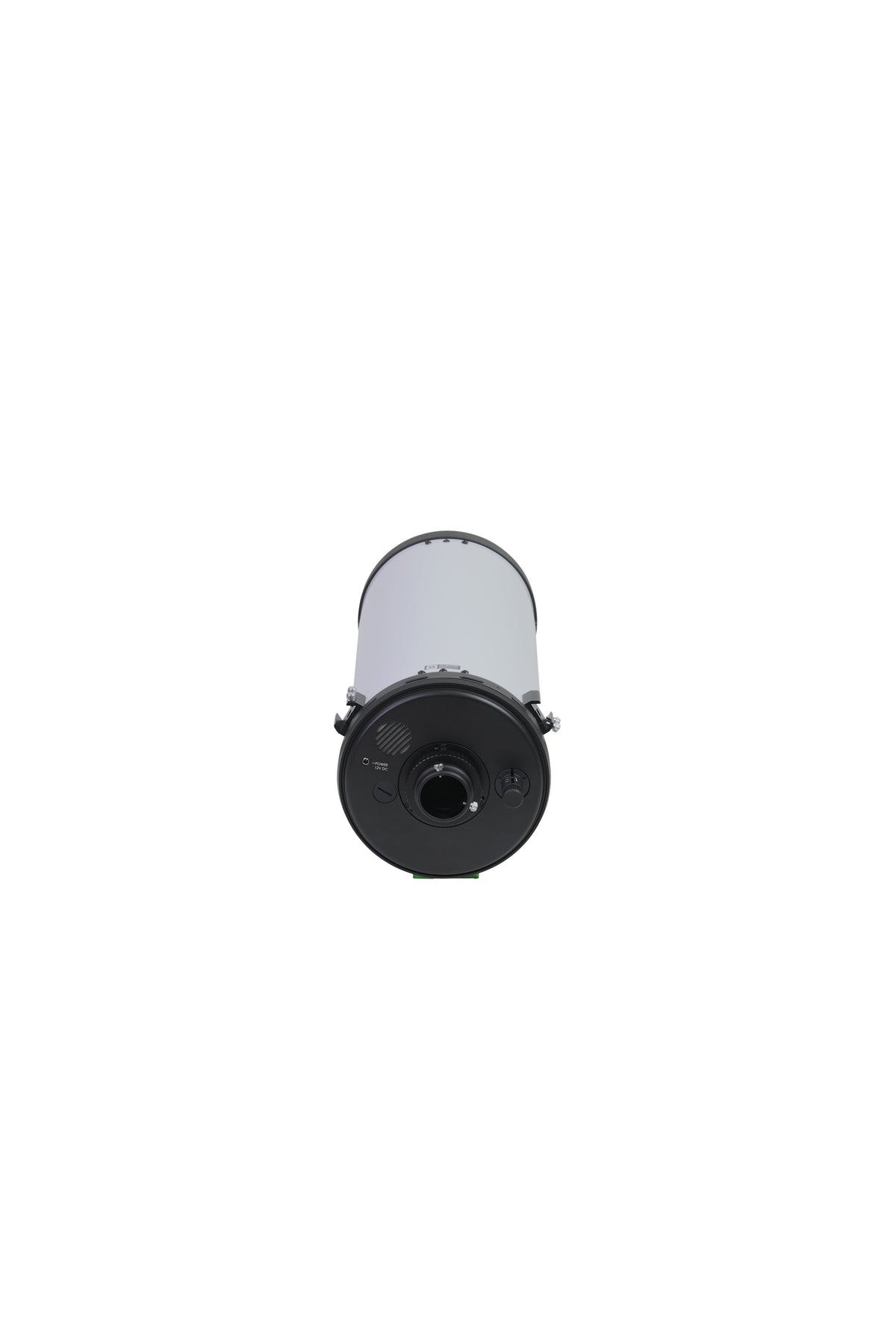

The trade with a thick corrector and 200 mm of glass is thermal mass - which is why Sky-Watcher builds a cooling fan into the 200DX rather than leaving cooldown to time alone. Running the fan while you set up shortens the wait before the optics settle to ambient temperature and the image steadies at high magnification.

Recommended Uses

• Planetary observing: 200 mm of aperture at 2000 mm for detail on Jupiter, Saturn and Mars.
• Lunar observing: crater floors, rilles and terminator detail at high scale with ordinary eyepieces.
• Double stars: the resolving power of 200 mm on close, unequal pairs.
• Lunar and planetary imaging: a planetary camera at native focal length through the 2-inch visual back and supplied camera adapter.
• Small deep-sky targets with the 0.7x reducer/corrector: galaxies, planetary nebulae and globular clusters at f/7 and 1400 mm.
• Observatory or backyard planetary station: a sealed tube with its own cooling fan, ready once it has reached ambient temperature.

Compatibility and Accessory Notes

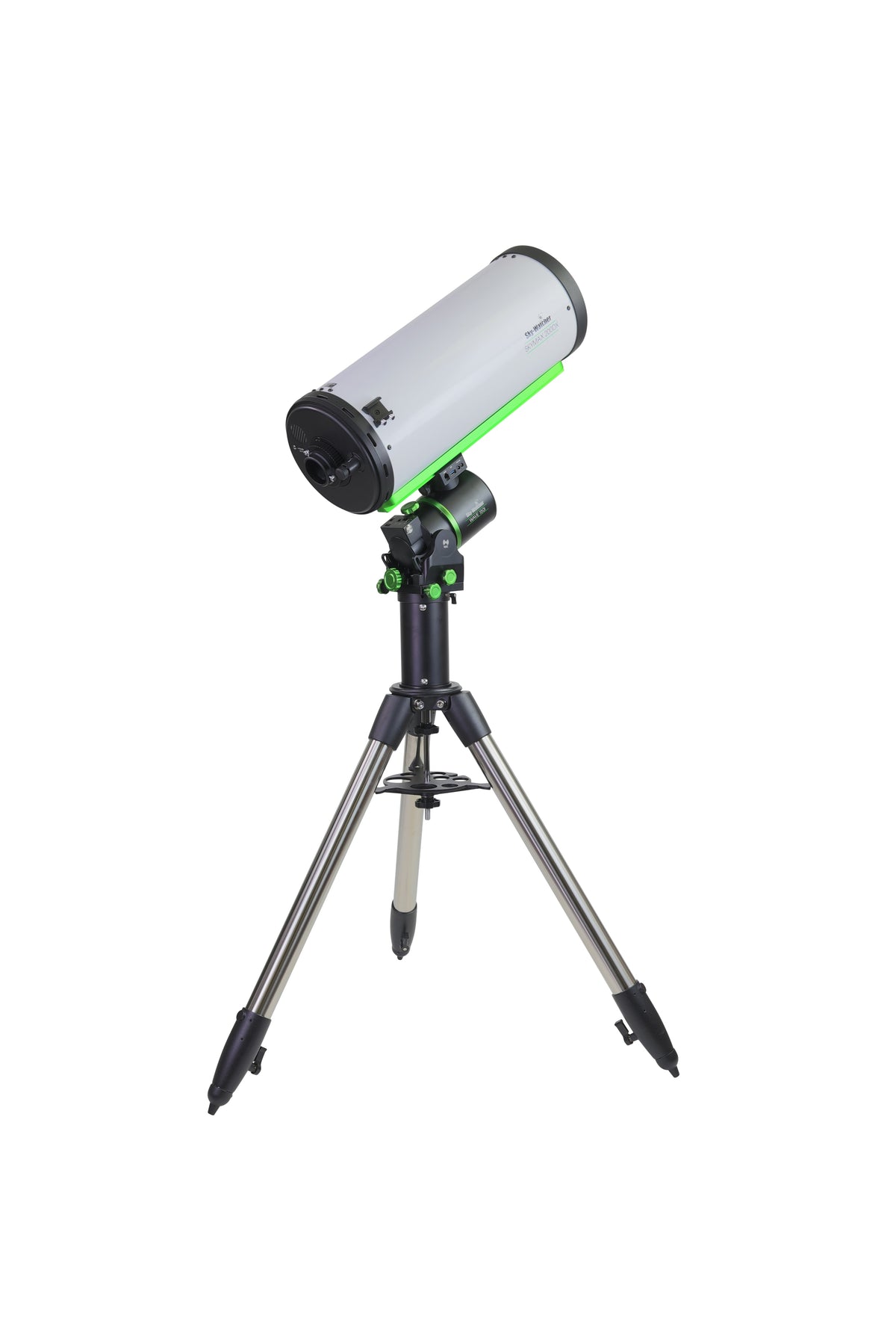

Mounting. The 200DX ships on a D-style dovetail plate - the wide Losmandy-format standard. It mounts directly to D-style saddles and to dual-format saddles that accept both V and D plates, which covers most medium equatorial mounts in the Sky-Watcher range and beyond. A mount with a V-style (Vixen-only) saddle needs a dual saddle or a different plate. Send us your mount model and we will confirm the fit.

Visual train. The 2-inch visual back accepts a 2-inch diagonal directly, and a 2-inch to 1.25-inch adapter in the diagonal takes standard 1.25-inch eyepieces. Sky-Watcher's inclusions list does not name an eyepiece, diagonal or finder for this tube, so plan on supplying those - we can put together a matched set if you tell us what you already own.

Imaging. The camera adapter included with the tube is the starting point for connecting a camera. For lunar and planetary work, a planetary camera at the visual back gives the native 2000 mm image scale. For deep-sky imaging, the Skymax 200DX 0.7x Reducer/Corrector (sold separately) brings the system to f/7 and 1400 mm and is specified for 55 mm of back focus. If you are planning a specific camera, send us the model and we will work out the adapters and spacing with you.

Power. The cooling fan runs from its included battery pack, so no external supply is needed for the fan.

Good to Know Before You Order

• This is the optical tube assembly. No mount and no tripod are included. A D-style saddle, or a dual V/D saddle, is the connection the tube is set up for.

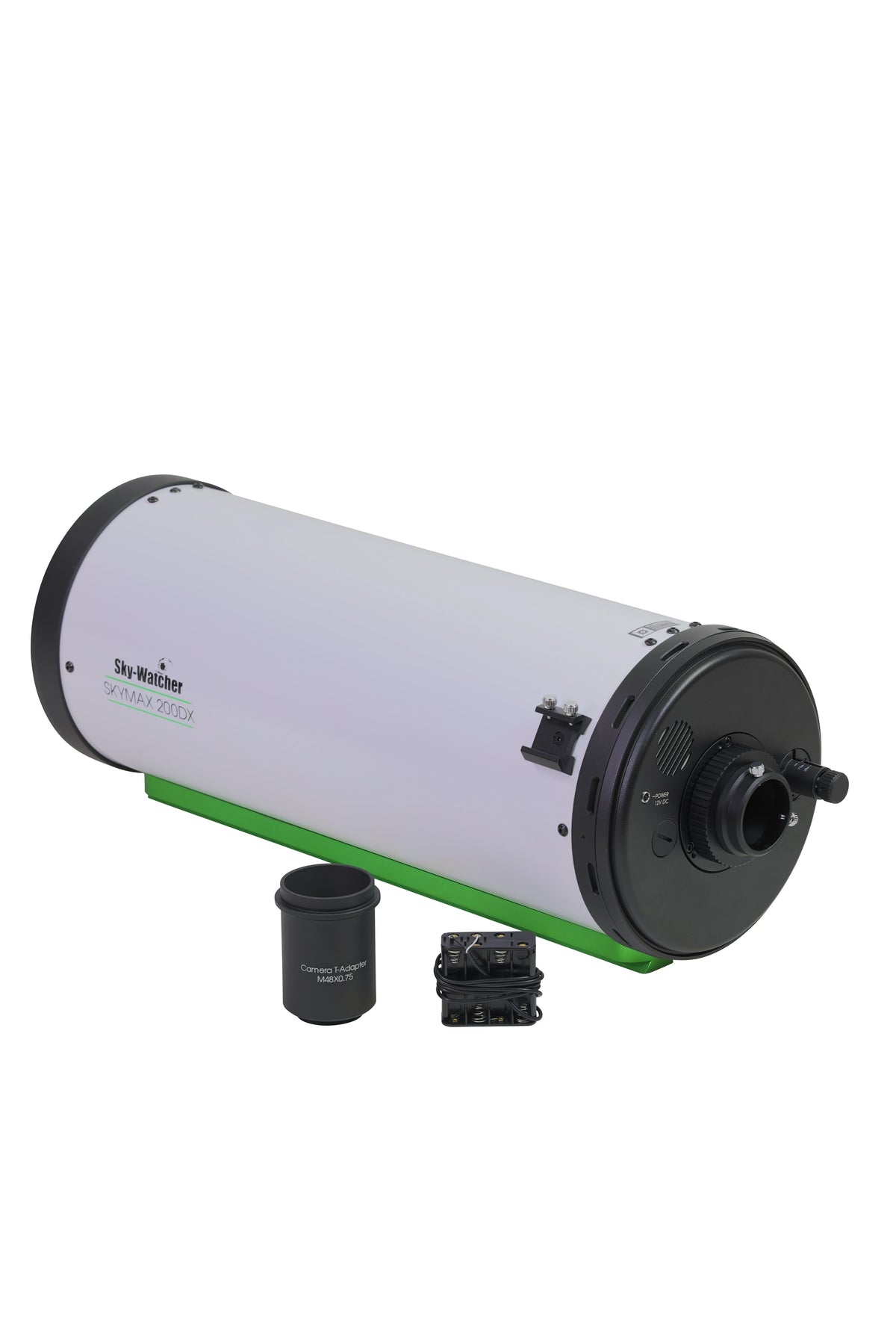

• Sky-Watcher's inclusions list names no eyepiece, diagonal or finder. The box contents Sky-Watcher lists are the camera adapter and the battery pack for the cooling fan, along with the fitted focuser, visual back and dovetail. We are happy to match a diagonal, eyepieces and a finder to the tube.
• Sky-Watcher has not yet published a tube weight or tube dimensions for the 200DX. We will add them to this page once they are released, and once stock arrives we can weigh a unit for you if you are sizing a mount.
• Focal ratio is f/10 at 2000 mm. That is a narrow field by design - ideal for the Moon, planets and small targets. Wider deep-sky framing comes from the matched 0.7x reducer/corrector.
• Cooldown is part of using any 200 mm Maksutov. The built-in fan is there to shorten it; running it from the start of your setup gets the steadiest high-power views sooner.

Frequently Asked Questions

Is it difficult to set up?

No. The optics are sealed in the tube, so there is no open-tube cleaning or routine mirror alignment before a session. Setup is sliding the D-style dovetail into your mount's saddle, balancing the tube, fitting a diagonal and eyepiece to the 2-inch visual back, and switching on the cooling fan while you align the mount. The main thing to plan for is the mount itself - a 200 mm tube wants a mount with a D-style or dual saddle and payload to spare.

What is it best used for?

High-resolution views and images of the Moon, planets and double stars. With the matched 0.7x reducer/corrector it also covers smaller deep-sky objects at f/7.

What mount does it need?

One with a D-style (Losmandy-format) saddle or a dual V/D saddle, rated for a 200 mm tube plus your eyepiece or camera. Sky-Watcher has not yet published the tube weight; tell us which mount you own or are considering and we will confirm whether it is a good fit.

Can I photograph with it?

Yes. A camera adapter is included, and the 2000 mm native focal length gives a large image scale for lunar and planetary imaging. For deep-sky imaging, the Skymax 200DX 0.7x Reducer/Corrector brings it to f/7 and 1400 mm with 55 mm of back focus.

Why a Maksutov instead of a Schmidt-Cassegrain of similar size?

Sky-Watcher's position is that Maksutovs generally produce a sharper image than Schmidt-Cassegrains. The thick meniscus corrector and the absence of a spider vane give clean star images without diffraction spikes and strong contrast on planetary detail. The 200DX adds a Zero Shift belt-drive focuser, a 2-inch visual back, a cooling fan and a matched reducer/corrector to that optical layout.

Does it need any additional accessories?

A mount, a diagonal, eyepieces and a finder for visual use; a camera for imaging. We can assemble any of these around the tube.

Bottom Line

A 200 mm f/10 Maksutov-Cassegrain optical tube with 2000 mm of focal length, a Zero Shift belt-drive focuser, a 2-inch visual back, a D-style dovetail, a built-in cooling fan and a camera adapter - set up for both high-power planetary observing and imaging. Pair it with a mount that takes a D-style plate, and add the matched 0.7x reducer/corrector when you want f/7 for the deep sky.
