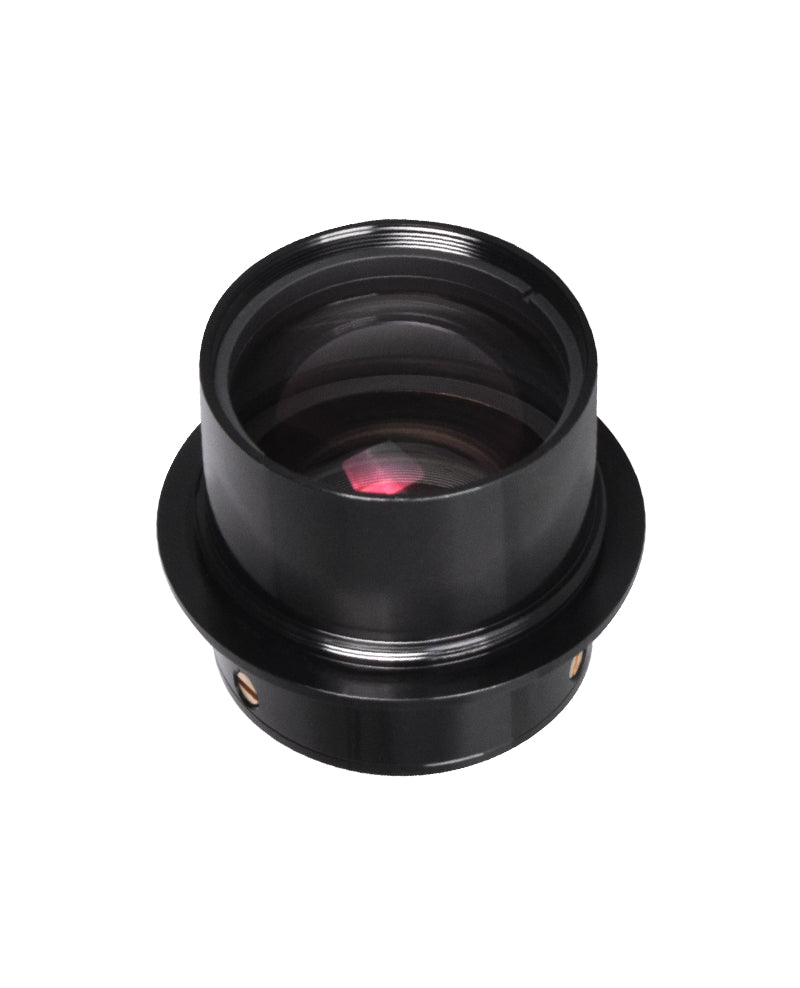

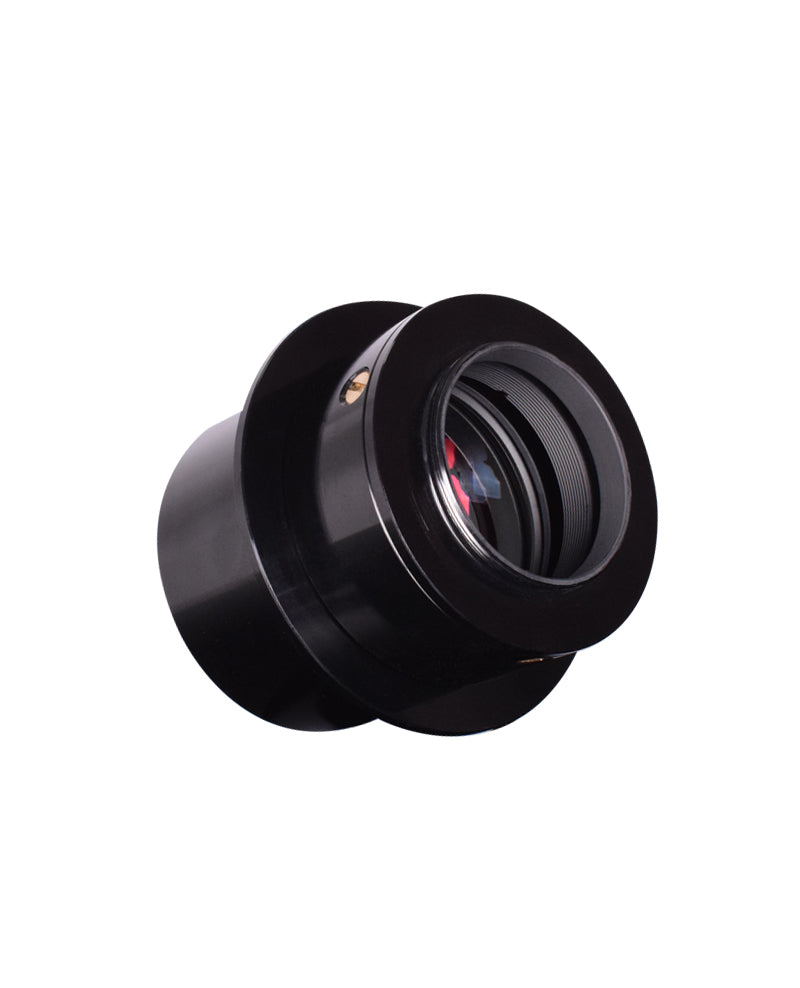

SHARPSTAR 76EDPH F4.5 Reducer
SHARPSTAR 76EDPH F4.5 Reducer
Roll over image to zoom in Click on image to zoom
SHARPSTAR 76EDPH F4.5 ReducerSHARPSTAR 76EDPH F4.5 Reducer

SHARPSTAR 76EDPH F4.5 Reducer

SharpstarSKU: 76EDPH-0.8
Price:
$384.00 CAD
Stock:
On Backorder — ships when available
  • Description
  • Specifications
SHARPSTAR 76EDPH F4.5 is the latest development in dedicated full-frame reducer, which meets the need of full-frame photography.

The reducer is equipped with a 2.5" lens specs, one end of which adopts a M74×1 thread and connects to the pinion focuser of the primary mirror. The other end adopts a M48×0.75 thread, the focal plane is 55mm from the end interface. The reducer features a triplet air-spaced structure, and full-frame photography is supported, which achieve excellent perimeter dimmer control. The reducer is specifically designed for deep-space widefield astro photography with a focal length of 342mm and a focal ratio of f/4.5.

In addition, the 360-degree rotator allows you to easily rotate the camera to achieve the best image framing. The M48 interface contains 2 "filter thread for easy connection
Suitable model: 76EDPH
Reducing focal ratio: F4.5
Image circle: 44mm
The lens number: Triplet
The largest diameter: 88mm
Back focus: 55mm
Total length: 77mm (including M48 thread)
Surface coating: Full surface Multi-Coated
Weight: 0.5kg
