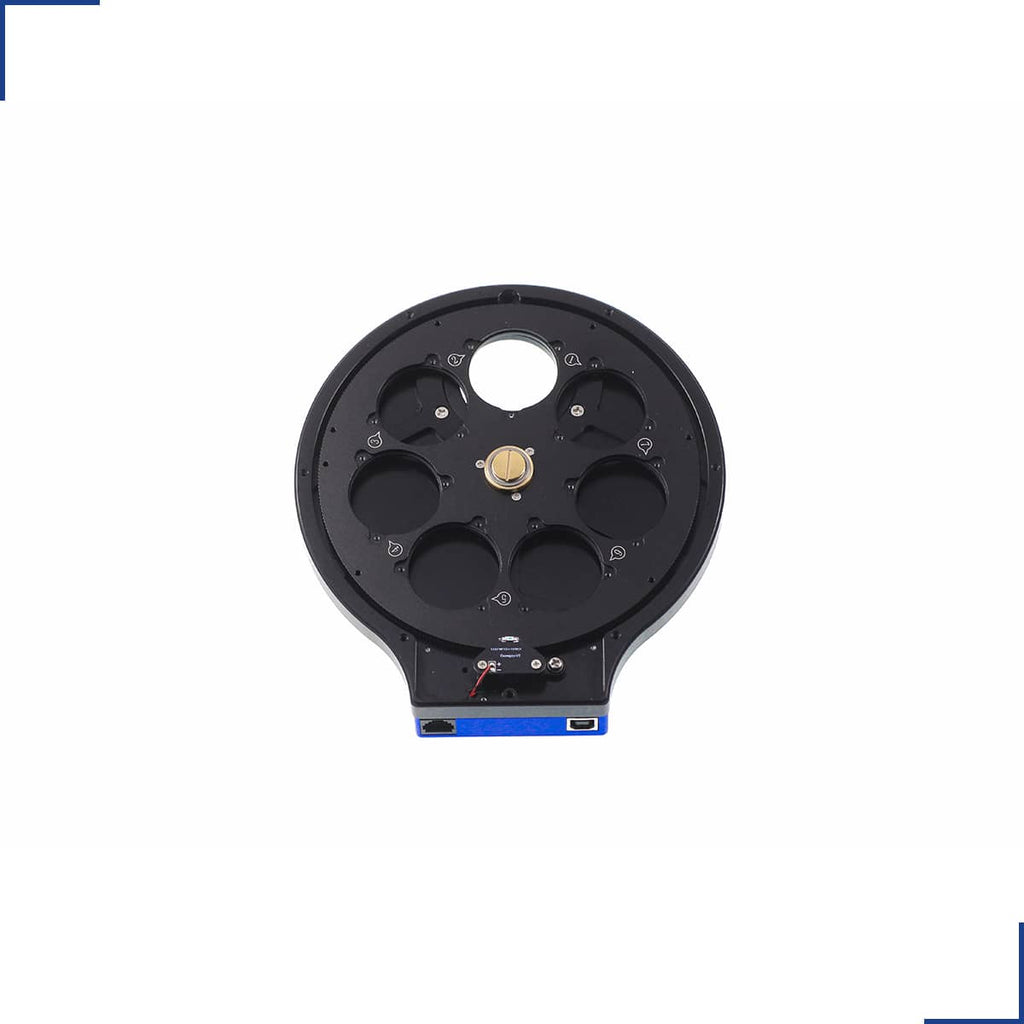

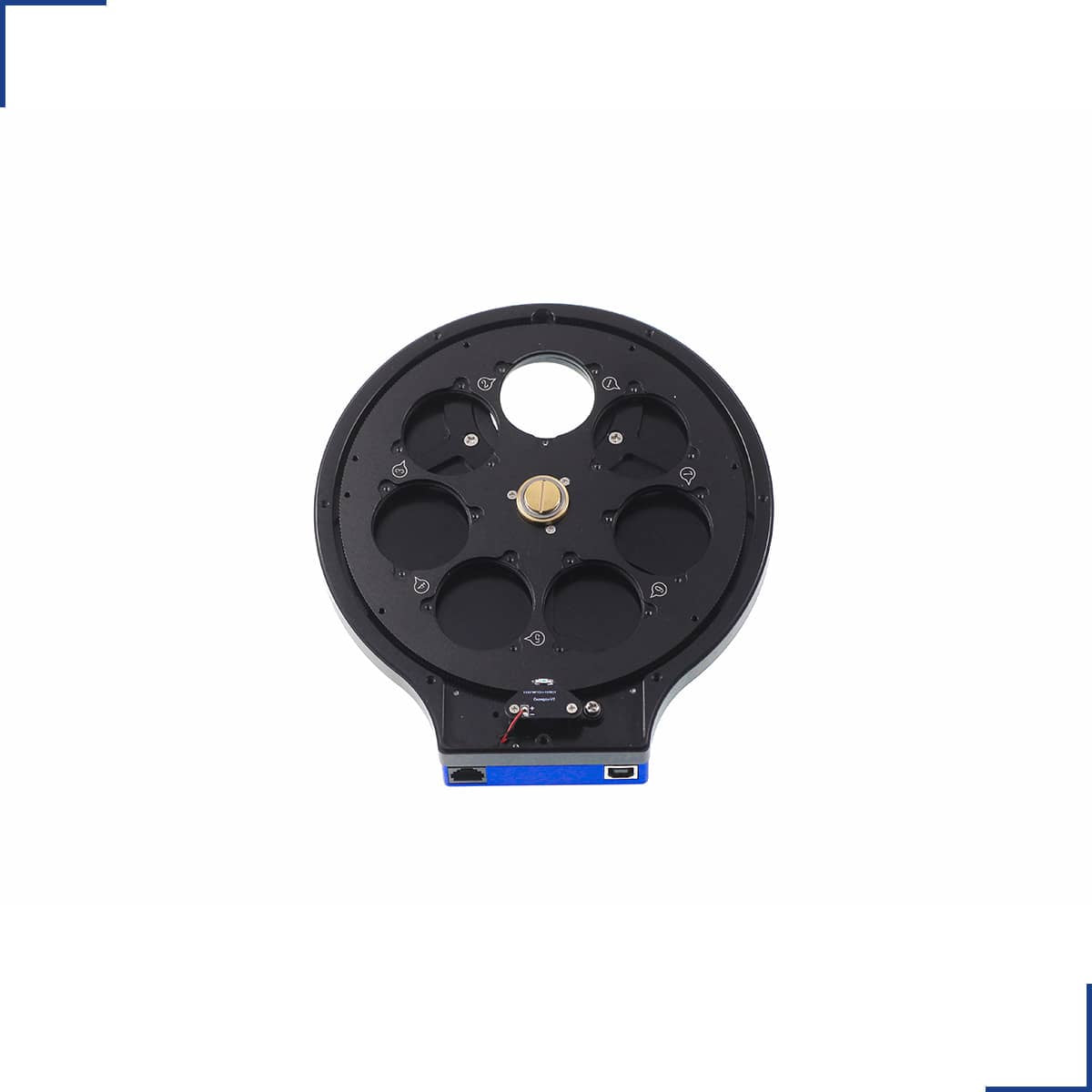

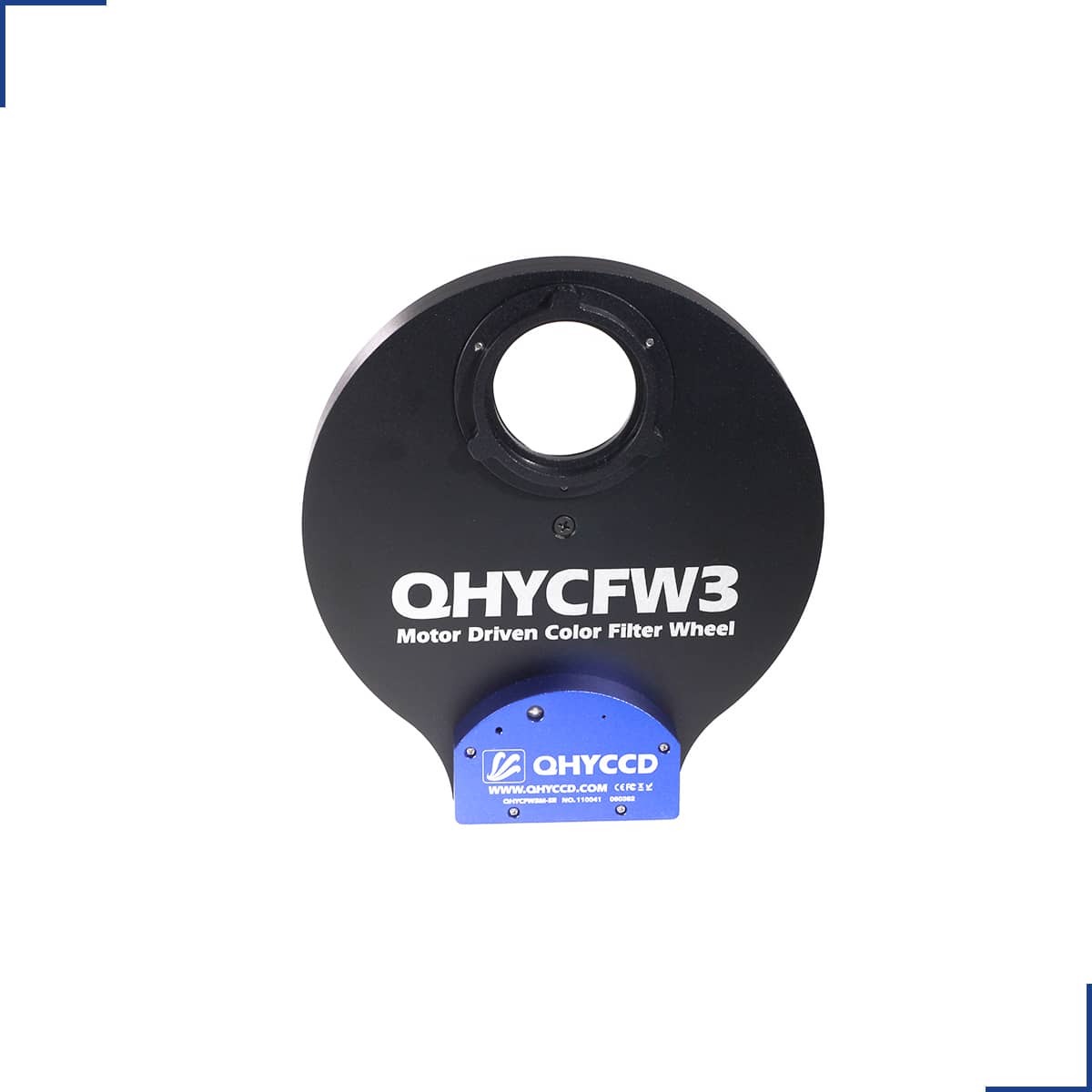

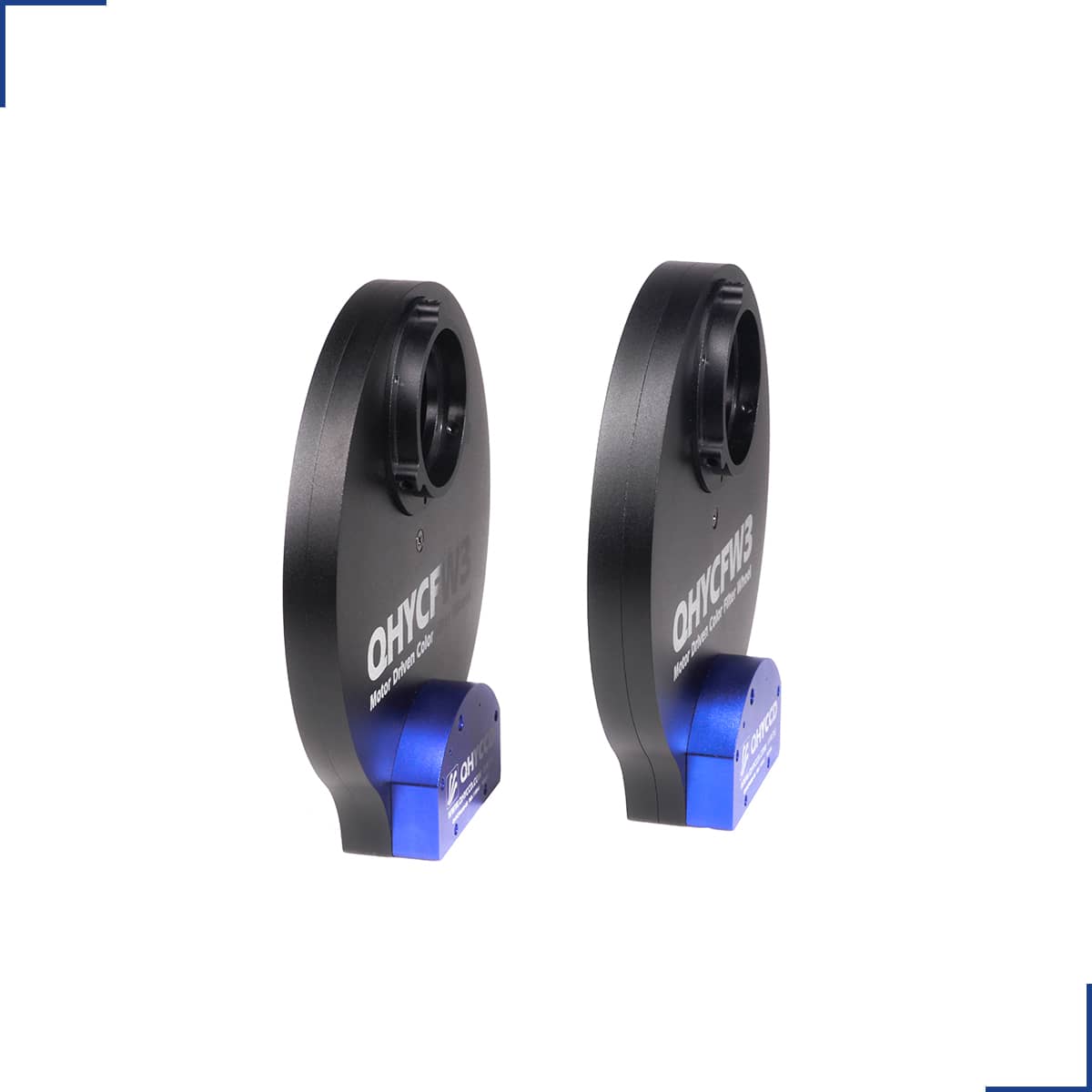

QHY CFW3 Motor Driven Electronic Filter Wheel

Product Overview

The QHY CFW3 Motor Driven Electronic Filter Wheel is a family of automated filter wheels designed for monochrome astrophotography camera systems. It allows imagers to automate LRGB, narrowband, photometric, and specialty filter changes during an imaging session, reducing manual handling and helping keep the imaging train consistent from frame to frame.

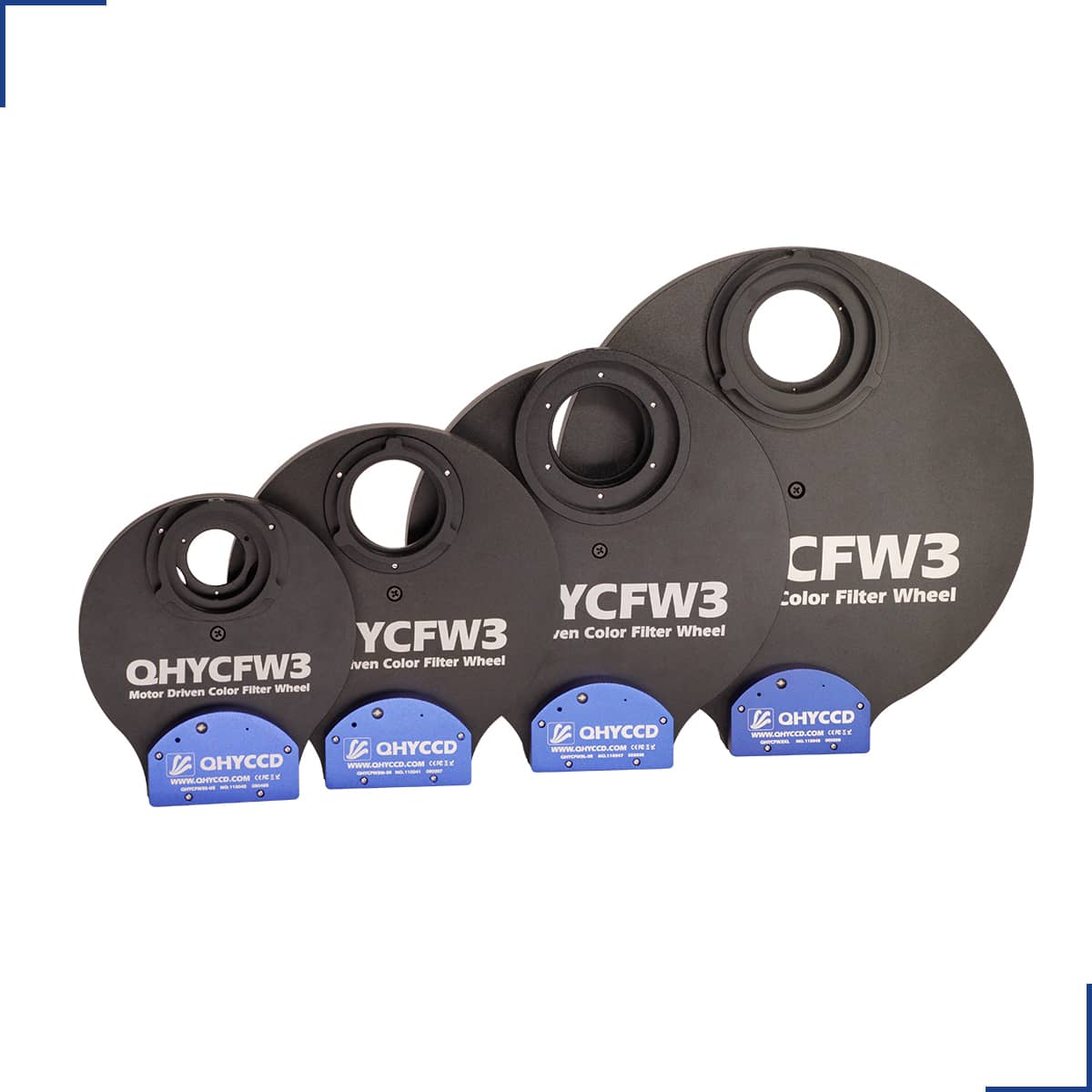

The QHY CFW3 series is available in four Shopify variants: QHYCFW3S-SR/US, QHYCFW3M-SR/US, QHYCFW3L, and QHYCFW3XL. Each model supports different filter sizes and camera formats, so the correct choice depends on your camera sensor size, filter format, available back focus, and the adapters required for your imaging train.

Who Is This Product Best For?

This product is best for deep-sky astrophotographers using monochrome astronomy cameras who want reliable, repeatable, automated filter changes. It is especially useful for imagers building LRGB, SHO, HOO, narrowband, or multi-filter imaging workflows with QHY cameras, cooled mono cameras, refractors, astrographs, RC telescopes, SCTs, and other imaging telescopes.

The QHY CFW3 is most appropriate for intermediate and advanced astrophotographers, or for beginners who are already moving into monochrome camera imaging and understand filter size, back focus, and adapter requirements.

Why Choose This Product?

• Four model options: Choose from S, M, L, and XL configurations to match 1.25-inch, 31mm, 36mm, 2-inch, 50mm round, or 50mm square filters.
• Automated filter changes: Ideal for unattended LRGB and narrowband imaging sequences.
• QHY camera integration: Compatible QHY cameras can control the filter wheel through the QHY 4-pin filter wheel port.
• USB control option: The filter wheel can also be controlled independently through USB when used with compatible software.
• Efficient rotation: The CFW3 can reverse rotation direction to reach the next filter position efficiently.
• Compact imaging train design: The thin body helps manage back focus in demanding astrophotography setups.

Recommended Uses

• LRGB imaging: Automate luminance, red, green, and blue filter changes with monochrome cameras.
• Narrowband imaging: Use SHO, HOO, or other narrowband filter sets for emission nebulae and deep-sky work.
• Remote or unattended imaging: Reduce manual interaction during automated capture sequences.
• QHY mono camera systems: Build a cleaner QHY imaging train with compatible camera-side control.
• Large-format imaging: Use the L or XL versions for larger filters and larger camera sensors.

Compatibility and Accessory Notes

Select the QHY CFW3 model by matching the filter size and wheel capacity to your camera sensor. Smaller sensors may work well with 1.25-inch, 31mm, or 36mm filters, while larger sensors usually require 2-inch, 50mm round, or 50mm square filters to reduce vignetting.

The CFW3 can be controlled through USB or through the QHY 4-pin filter wheel port on compatible QHY cameras. When using the QHY camera control port, power and control may be handled through the camera-side connection. When using USB control, follow QHY’s recommended power and cable configuration for reliable operation.

QHY CFW3 Model Compatibility Table

Important Limitations

• Filter size must match the camera: Choosing a wheel that is too small for the sensor can cause vignetting.
• Back focus must be checked: Each model consumes a different amount of optical spacing and may require adapters.
• Filters are not included: LRGB, narrowband, photometric, and specialty filters are purchased separately.
• Not intended for visual observing: This is an astrophotography accessory for camera-based imaging systems.
• Not usually needed for one-shot colour cameras: The main use case is monochrome imaging, although some specialty OSC workflows may use filters differently.
• Camera and adapter compatibility matters: Some QHY camera and filter wheel combinations require specific mechanical adapters.

Frequently Asked Questions

Which QHY CFW3 model should I choose?

Choose the model based on your camera sensor size, filter size, wheel capacity, and available back focus. The S and M versions suit smaller and mid-size imaging systems, while the L and XL versions are better suited to larger sensors and larger filters.

Can the QHY CFW3 be used without a QHY camera?

Yes. The filter wheel can be controlled through USB when used with compatible capture software, even if it is not connected through a QHY camera control port.

Can it be controlled directly by a QHY camera?

Yes. Compatible QHY cameras with the QHY 4-pin filter wheel port can control the CFW3 through that connection, helping simplify the imaging train.

Does the QHY CFW3 include filters?

No. The filter wheel does not include filters. Choose filters separately based on size, thread type, imaging target, and camera sensor coverage.

Is this product for visual observing?

No. This is an imaging accessory for astrophotography systems, especially monochrome camera setups.

When should this product not be recommended?

Do not recommend this filter wheel if the customer only uses a visual telescope, does not use a camera-based imaging system, or has not confirmed the correct filter size and back-focus requirements for their camera.

Our Recommendation

Ontario Telescope recommends the QHY CFW3 filter wheel family for astrophotographers building a monochrome imaging system and needing reliable automated filter changes. It is a strong choice for QHY camera users and for imagers who want a clean, software-controlled filter wheel for LRGB, narrowband, and specialty-filter workflows. Before ordering, confirm the exact filter size, camera sensor size, required adapters, and available back focus so the selected variant fits the imaging train correctly.
