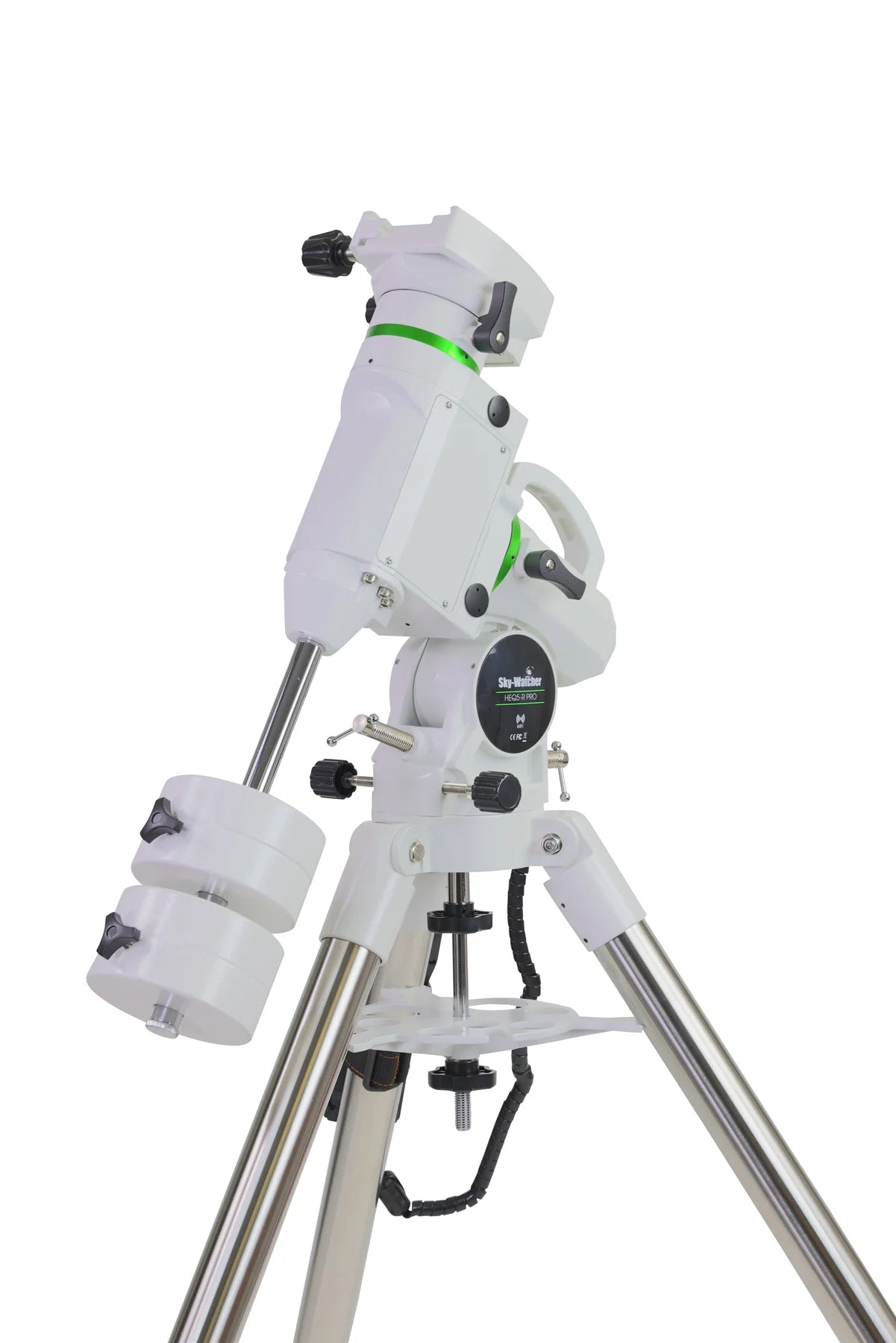

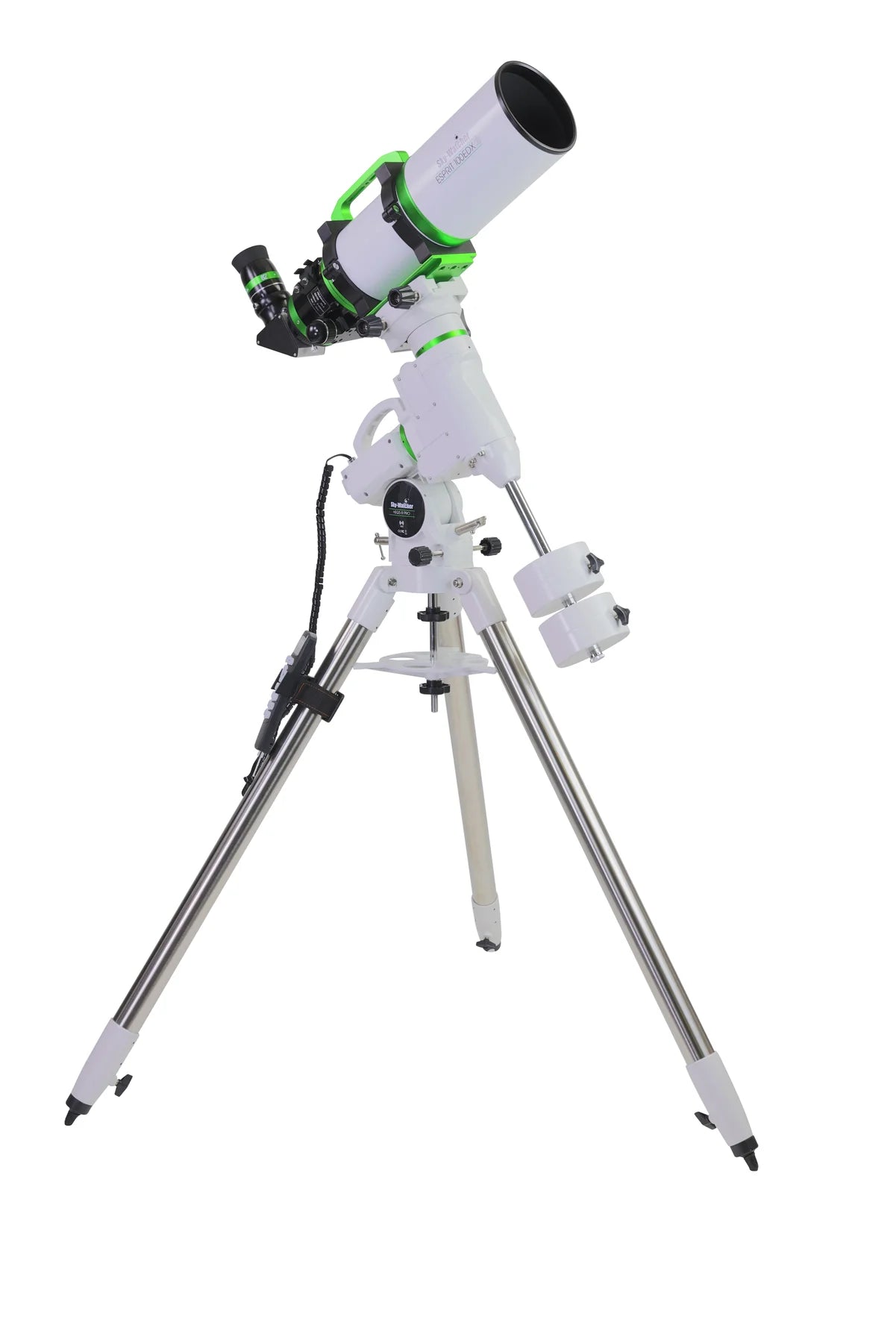

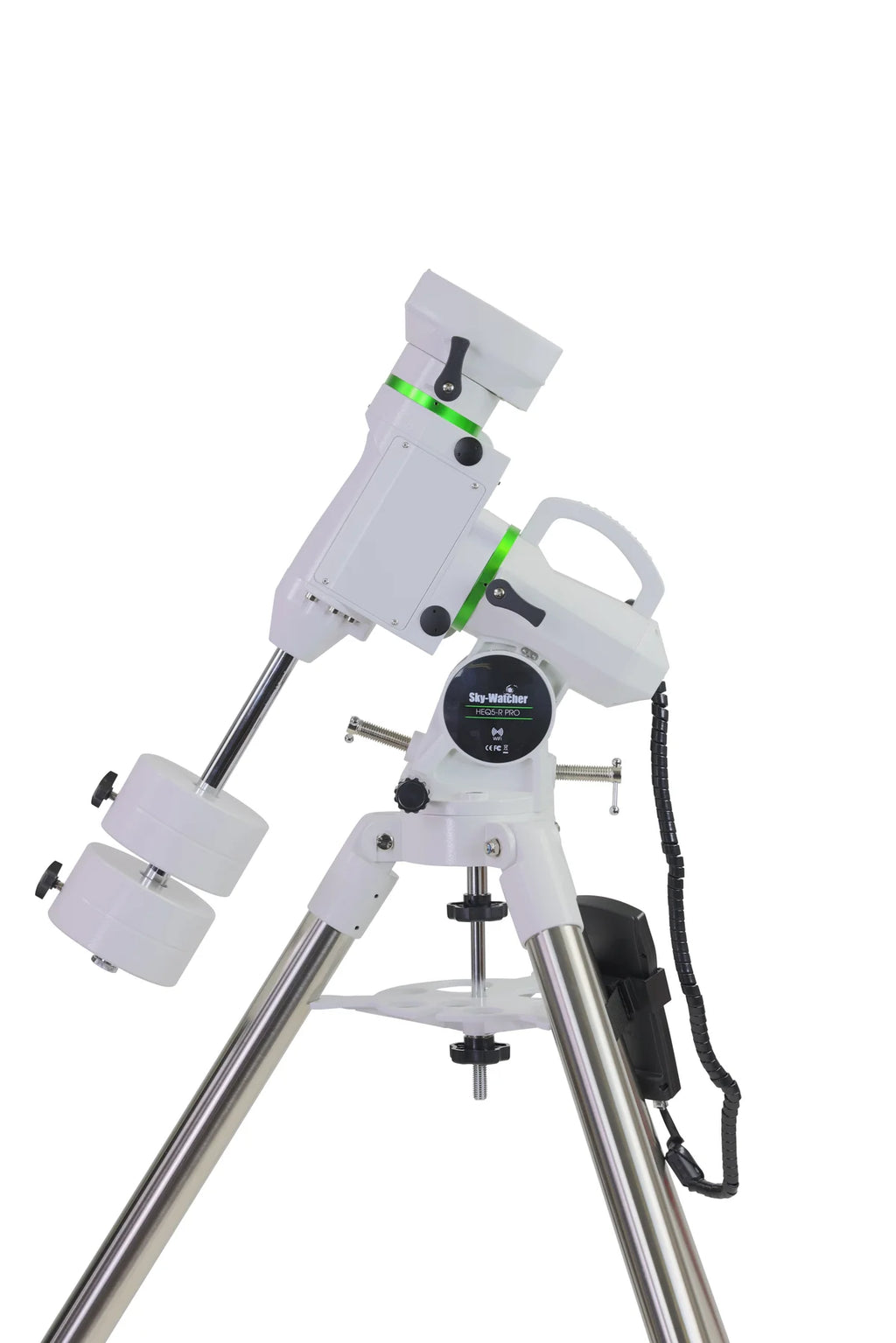

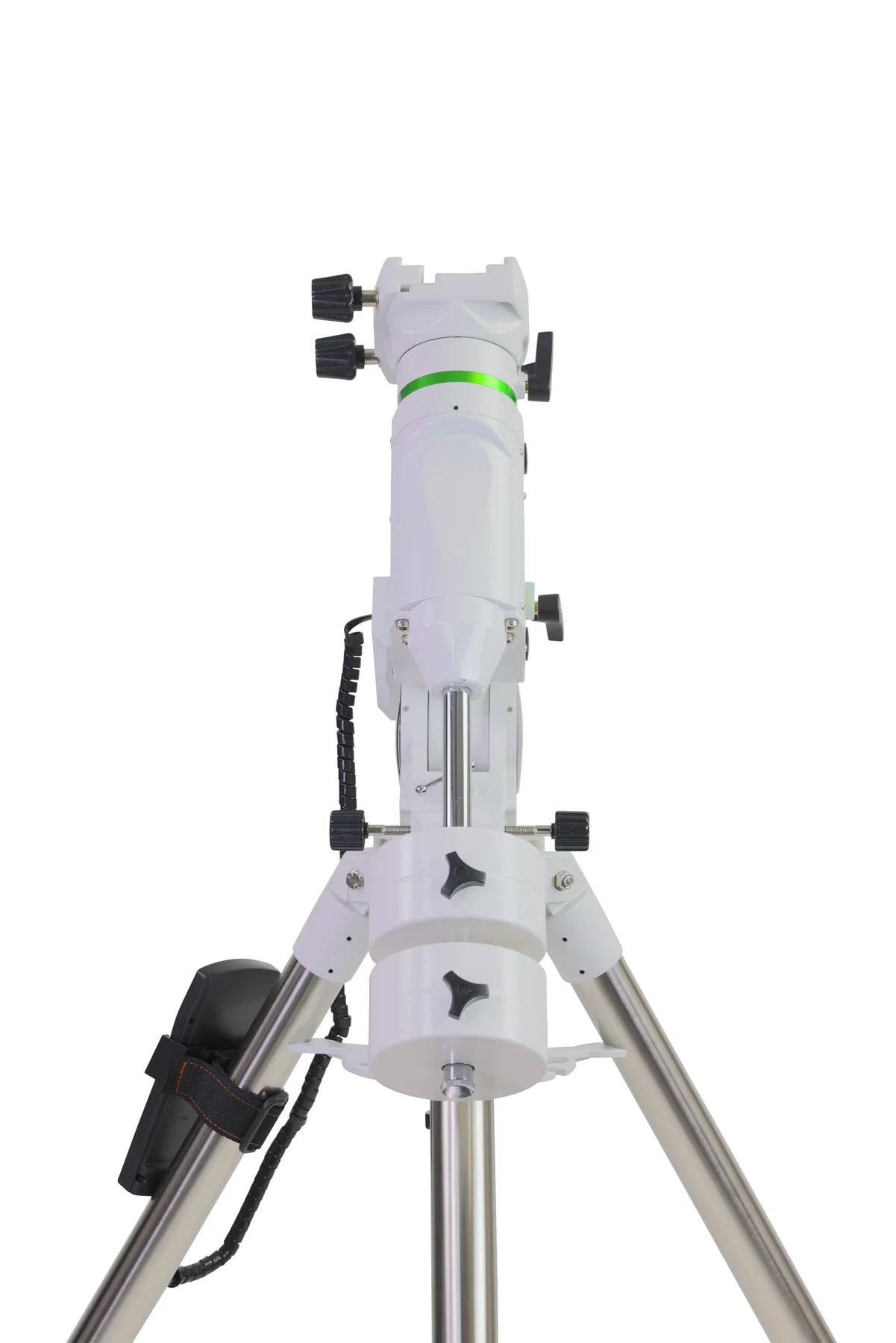

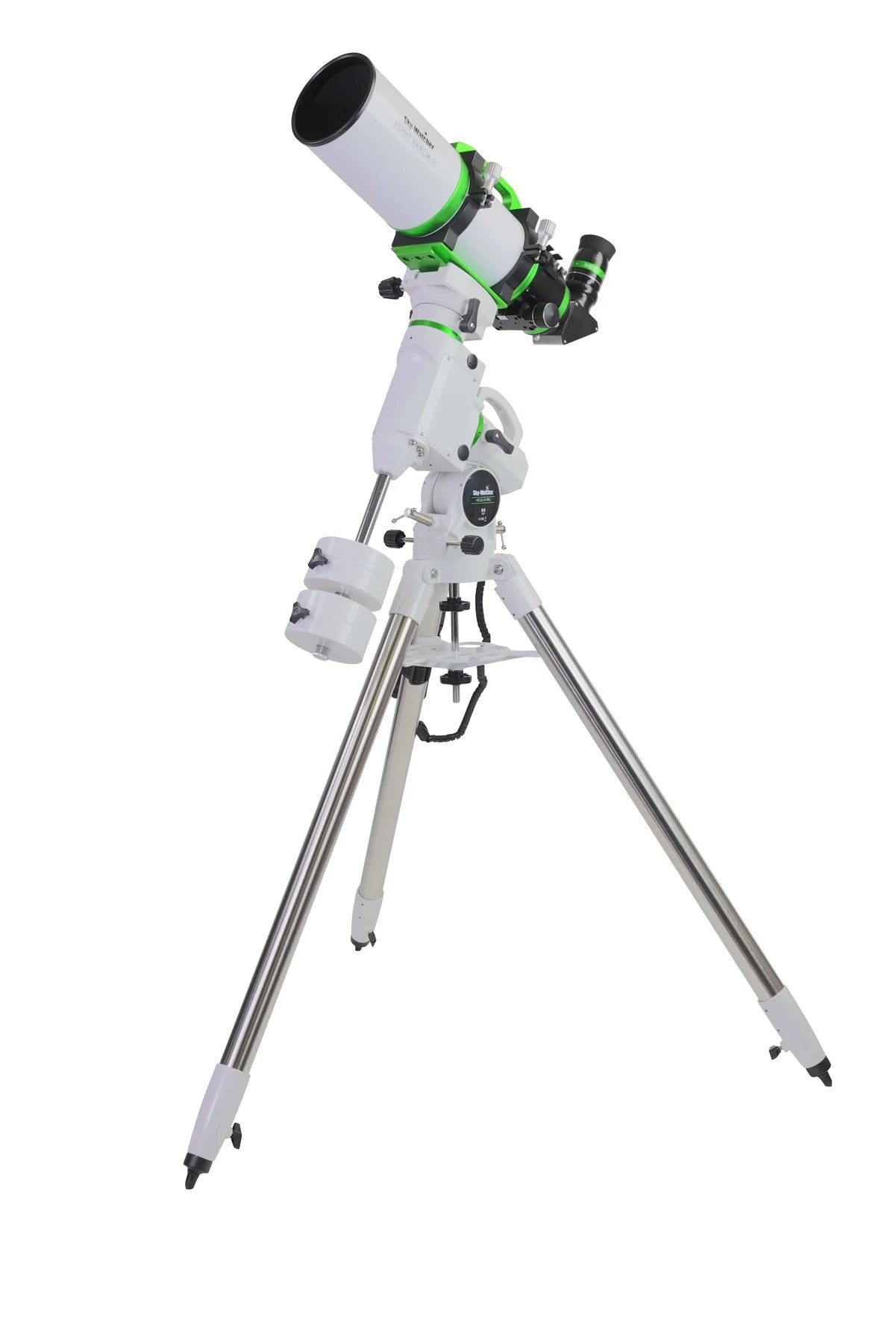

Sky-Watcher HEQ5-R Pro GoTo Equatorial Mount

Product Overview

The Sky-Watcher HEQ5-R Pro is a mid-range GoTo equatorial mount and tripod kit designed for visual astronomy and astrophotography. It provides a 33 lb payload capacity, dual-axis belt drives, built-in Wi-Fi, a SynScan V5 hand controller, a D/V-style dovetail saddle, two 11 lb counterweights, and an adjustable 1.75-inch rolled steel tripod.

Positioned below the larger EQ6-R Pro, the HEQ5-R Pro is designed for observers and imagers who want solid tracking performance and a more manageable mount size for portable or semi-permanent astronomy setups.

Who Is This Product Best For?

This mount is best for intermediate astronomers, serious beginners building their first capable GoTo imaging rig, and astrophotographers who want a compact but sturdy equatorial platform for refractors, small reflectors, imaging Newtonians, and other moderate-weight optical tube assemblies.

Why Choose This Mount?

• 33 lb payload capacity: Supports a wide range of visual and imaging telescope setups when properly balanced.
• Dual-axis belt drives: Provides quieter and smoother movement on both axes.
• Built-in Wi-Fi: Allows wireless control with the SynScan Pro app.
• SynScan GoTo system: Includes access to a large object database for automated slewing and tracking.
• D/V-style saddle: Compatible with both D-style and V-style dovetail plates.
• Included counterweights: Two 11 lb counterweights are included for balancing typical telescope setups.

Recommended Uses

• Deep-sky astrophotography with moderate telescope payloads
• Visual observing with GoTo object location and tracking
• Lunar and planetary observing or imaging
• Portable field astronomy setups
• Intermediate imaging rigs using refractors or compact reflectors

Compatibility and Accessory Notes

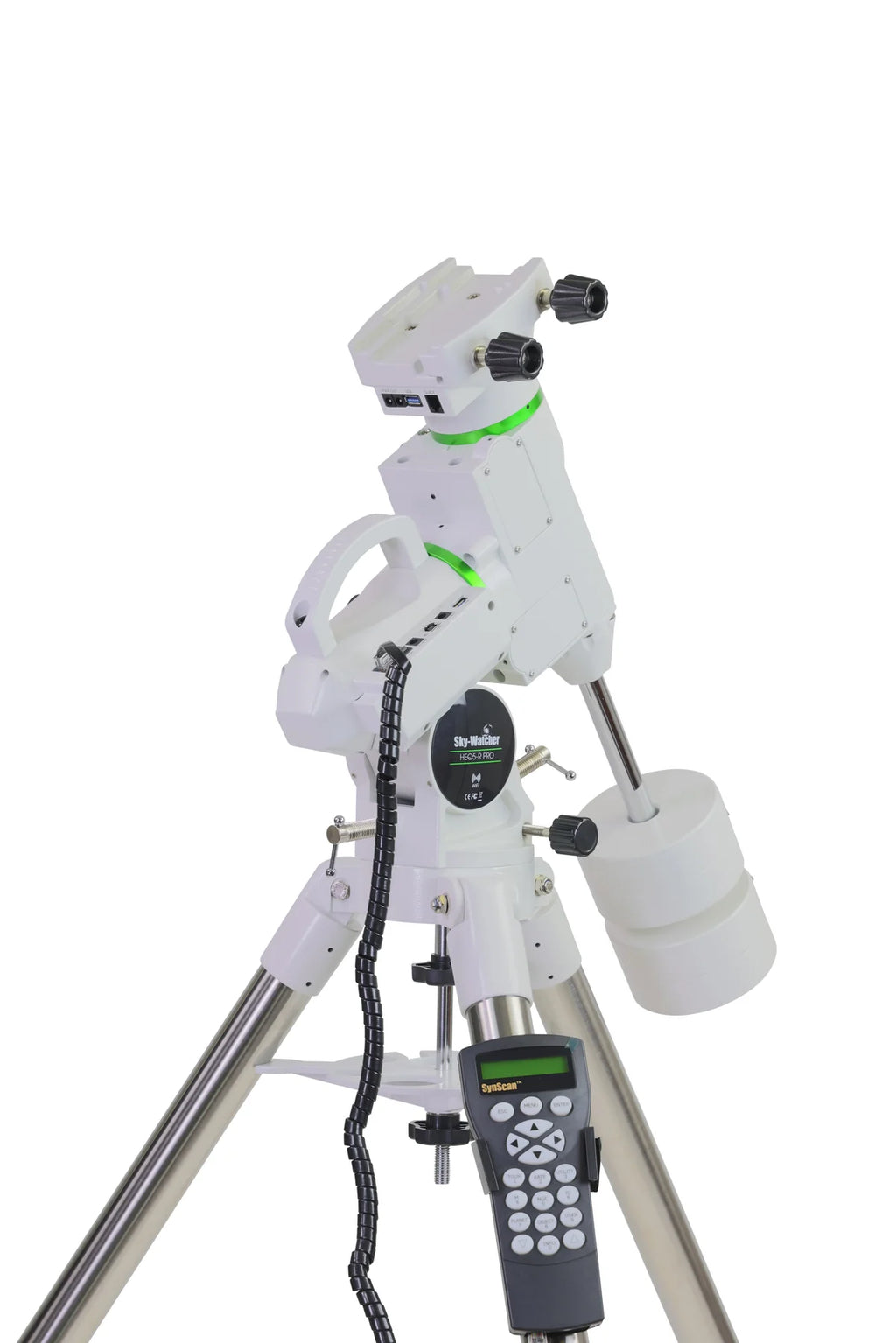

The HEQ5-R Pro includes the equatorial mount head, adjustable 1.75-inch rolled steel tripod, SynScan V5 hand controller, two 11 lb counterweights, metal accessory tray, D/V-style dovetail saddle, built-in Wi-Fi, USB-A guide port, ST-4 autoguider support, and DC power cord. It requires a suitable 12V power source and should be paired with an optical tube and accessories that remain within the practical payload limits for your intended use.

For astrophotography, leave extra capacity for the camera, guide scope, guide camera, filter wheel, dew equipment, focuser, cables, and mounting hardware. Imaging payload should generally be more conservative than visual payload.

Important Limitations

• Mount-only kit: Telescope, camera, eyepieces, guiding equipment, and imaging accessories are sold separately unless bundled.
• Payload planning matters: The 33 lb payload rating should not be treated as the ideal imaging load for every setup.
• Power required: A suitable field or observatory power source is required.
• Equatorial setup required: Accurate polar alignment and balancing are important for best performance.
• Not the lightest travel option: At 66 lb fully assembled, it is portable but more substantial than lightweight tracker-style mounts.

Frequently Asked Questions

Is the HEQ5-R Pro good for astrophotography?

Yes. The HEQ5-R Pro is a strong mid-range equatorial mount for astrophotography when used with a properly balanced telescope and realistic imaging payload.

What payload can the HEQ5-R Pro carry?

Sky-Watcher lists the HEQ5-R Pro with a 33 lb payload capacity. For imaging, it is wise to leave extra capacity for cameras, guiding equipment, and accessories.

Does the HEQ5-R Pro include Wi-Fi?

Yes. This version includes built-in Wi-Fi for wireless control through the SynScan Pro app.

What dovetails does it accept?

The included saddle supports both D-style and V-style dovetail plates.

Does this include counterweights?

Yes. The kit includes two 11 lb counterweights.

Our Recommendation

Ontario Telescope recommends the Sky-Watcher HEQ5-R Pro for astronomers who want a capable mid-range GoTo equatorial mount for visual observing and astrophotography without moving up to the larger EQ6-R Pro class. It is an excellent choice for balanced refractor and compact imaging setups where portability and tracking performance both matter.
