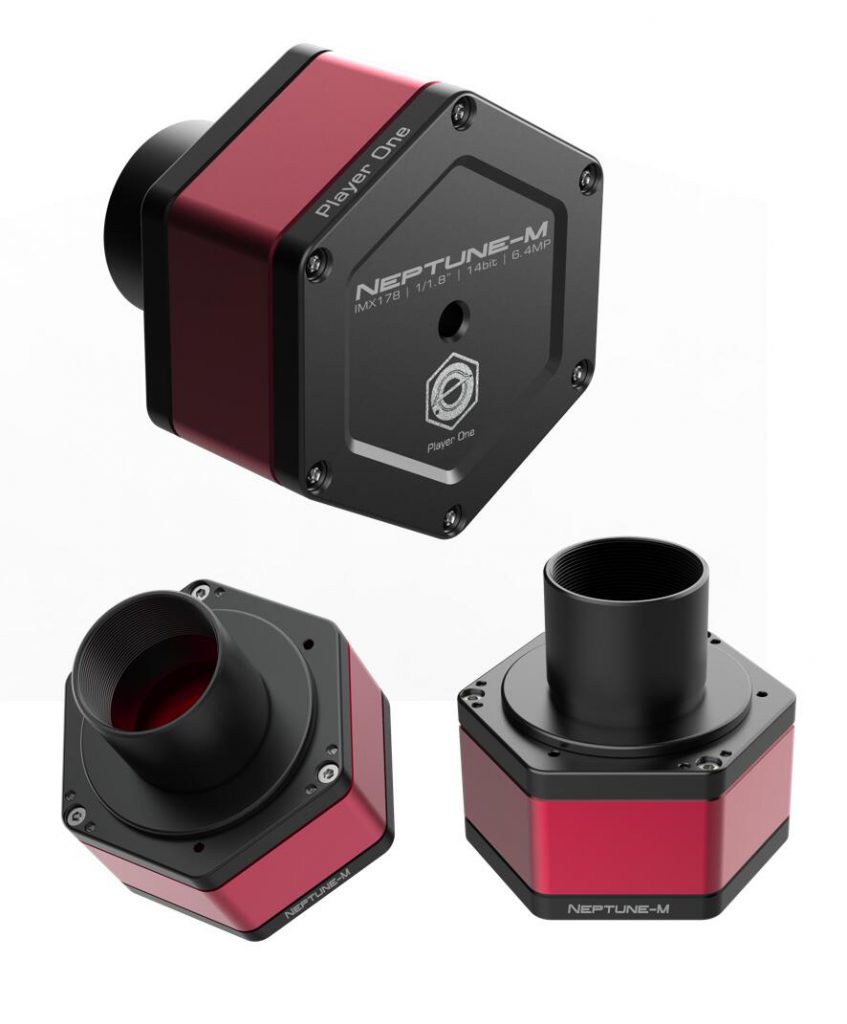

Neptune-M USB3.0 Mono Camera (IMX178)

The Player One Neptune-M is a USB3.0 monochrome camera built around the 1/1.8" Sony IMX178 back-illuminated CMOS sensor. It pairs the high 6.4-megapixel resolution of the IMX178 with a full-resolution monochrome readout, making it a detailed planetary, lunar and solar imager for those who capture through filters.

Product Overview

The sensor provides a 3096×2078 array of fine 2.4µm pixels across a 9 mm diagonal. A 14-bit ADC delivers smooth tonal gradation, read noise sits between about 2.2 and 1.3 e⁻, and peak QE is near 80%. Because it is monochrome with no Bayer filter, it resolves finer detail and captures more light than a colour sensor of the same size. Over USB3.0 it reaches up to 60 FPS in Raw8 and 30 FPS in Raw16 at full resolution.

Who It's For

This is a good match if you image the Moon, planets and Sun at high resolution and are set up to shoot through filters — LRGB for planets, or narrowband for solar detail. It also serves as a sensitive autoguider through its ST4 port.

Key Features & Design

• Sony IMX178 monochrome sensor: 1/1.8" back-illuminated CMOS, 6.4 MP, full-resolution mono readout.
• Fine 2.4µm pixels: sample fine detail well at long focal lengths.
• 14-bit ADC: smooth tonal range for lunar and solar gradients.
• Protective window: D21×1.1 mm with AR Plus multi-layer anti-reflection coating.
• 256MB DDR3 buffer: keeps high-speed transfer stable.
• ST4 autoguide port: doubles as a guide camera.

Optical / Mechanical Design

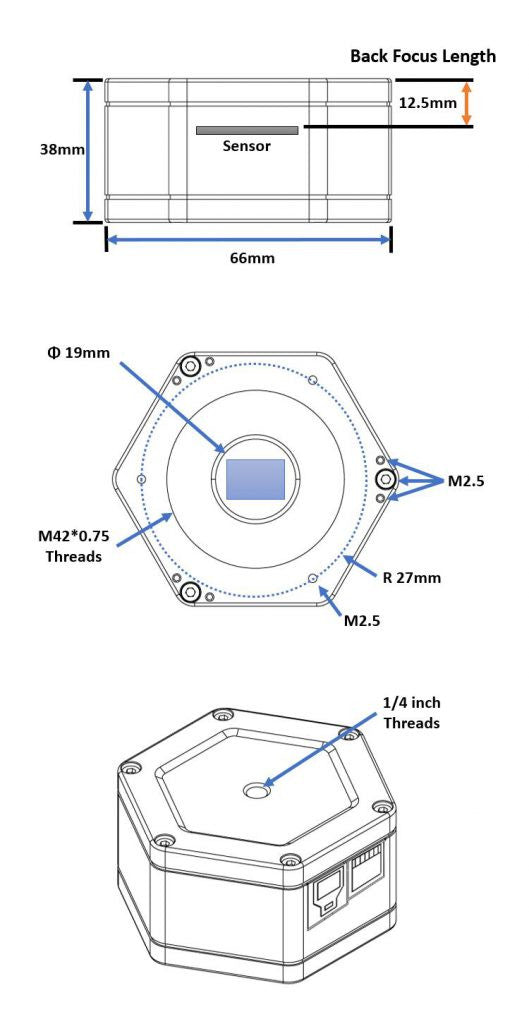

The Neptune-M uses a rolling-shutter monochrome CMOS. With no colour filter array, each pixel records the full light passed by whatever filter is in the train, which is why mono sensors resolve finer planetary detail than colour equivalents. Its 15k e⁻ full-well and 14-bit ADC handle bright lunar and solar surfaces smoothly. The sensor sits at a 12.5 mm back focal distance, and the 66 mm body threads accept 1.25" and M42×0.75 (T-thread) adapters. Exposures run 32µs to 2000 s. The published weight is 180 g.

Recommended Uses

• High-resolution LRGB planetary imaging through a filter wheel.
• Monochrome lunar imaging behind a Barlow or long-focal-length scope.
• Solar imaging with suitable solar filtration or a dedicated solar scope.
• Autoguiding through the ST4 port.

Compatibility & Accessory Notes

The camera connects through 1.25" nosepiece or M42×0.75 threads and works with any telescope providing those interfaces. For colour planetary results you add R, G, B (and often IR-pass) filters, typically via a filter wheel. Planetary imaging usually adds a Barlow or telecentric to reach f/15–f/25. Capture is over USB3.0, and the ST4 port accepts a standard autoguide cable.

Good to Know Before You Order

• Monochrome output: colour planetary results come from imaging through separate filters and combining them; the camera records greyscale.
• Built for speed, not long exposures: this uncooled camera is optimized for bright solar-system targets rather than faint deep-sky imaging.
• USB3.0 for full frame rates: USB2.0 works but caps throughput.

Frequently Asked Questions

Is it difficult to set up?

No. It threads onto a 1.25" or M42 connection, installs its driver, and appears in your capture software. Working in mono adds filters to the train, a straightforward step.

What is it best used for?

High-resolution monochrome and filtered planetary, lunar and solar imaging, plus autoguiding.

Why choose mono over the colour Neptune-C?

A monochrome sensor resolves finer detail and is more sensitive because it has no Bayer filter; colour work is done through separate filters.

Can I use it for deep-sky astrophotography?

It is not intended for long-exposure deep-sky imaging; it is built for bright solar-system targets.

Does it autoguide?

Yes, through its ST4 port with a suitable guide scope.

Bottom Line

In short: a high-resolution 6.4 MP, 1/1.8" monochrome planetary camera with fine 2.4µm pixels and a 14-bit ADC, well suited to detailed lunar, planetary and solar imaging through filters and usable as an autoguider on standard 1.25" and M42 threads.
