Mars-M II USB3.0 Mono Camera (IMX462)

The Player One Mars-M II is a compact USB3.0 monochrome camera built around the Sony IMX462 back-illuminated CMOS sensor. As a mono camera it reads every pixel at full resolution with no Bayer filter, giving sharper, more sensitive results than a colour sensor of the same size — the standard approach for serious planetary imagers who capture through separate red, green, blue and IR filters.

Product Overview

The 1/2.8" sensor provides 2.1 megapixels (1944×1096) with 2.9µm pixels across a 6.5 mm diagonal. Read noise drops to about 0.7 e⁻ at higher gain, the ADC is 12-bit, and peak QE reaches roughly 91%. The IMX462's strong near-infrared response makes it particularly effective for IR planetary imaging and, with the right solar filtration, for high-contrast solar detail. Over USB3.0 it captures up to 136 FPS in Raw8 and 62.5 FPS in Raw16 at full resolution.

Who It's For

This is a good match if you image the Moon, planets and Sun and want the extra resolution and sensitivity of a monochrome sensor, and are set up to shoot through filters. It also makes a sensitive autoguider through its ST4 port.

Key Features & Design

• Sony IMX462 monochrome sensor: full-resolution mono readout with strong near-IR response.
• High frame rates: up to 136 FPS (Raw8) and 62.5 FPS (Raw16) at full 1944×1096 resolution.

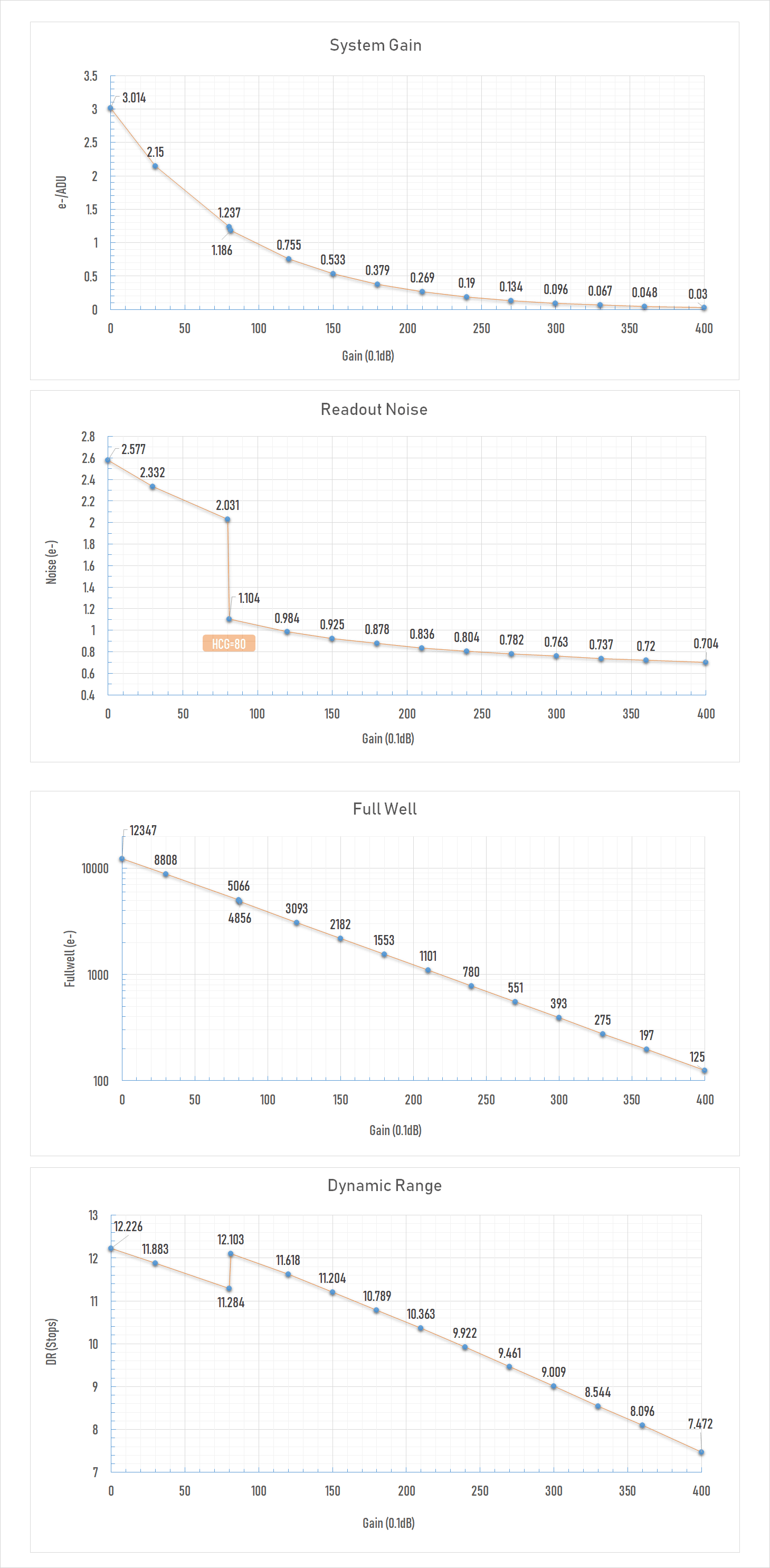

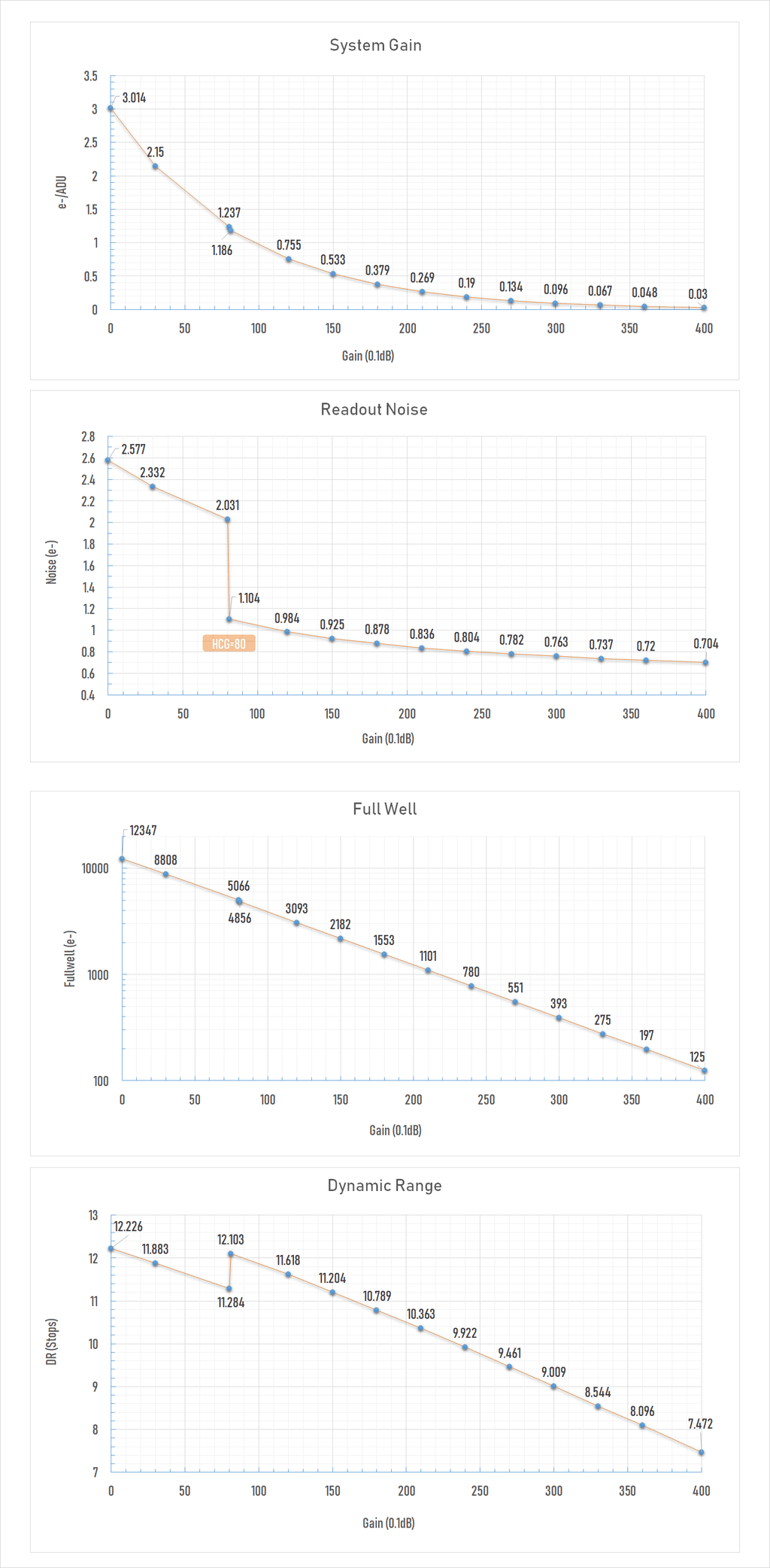

• Low read noise: down to about 0.7 e⁻ at higher gain, with an HCG mode engaging at gain ≥80.
• 256MB DDR3 buffer: keeps high-speed data transfer stable.
• ST4 autoguide port: lets it double as a guide camera.
• Protective window: D21×1.1 mm with Super AR Plus multi-layer anti-reflection coating.

Optical / Mechanical Design

The Mars-M II uses a rolling-shutter monochrome CMOS with 2.9µm pixels. Because there is no colour filter array, each pixel captures the full light passed by whatever filter is in the train, which is why mono cameras resolve finer planetary detail than colour equivalents. The sensor sits at a 12.5 mm back focal distance, and the 66 mm body threads accept 1.25" and M42×0.75 (T-thread) adapters. Exposures run 32µs to 2000 s. The published weight is 180 g.

Recommended Uses

• High-resolution LRGB and IR planetary imaging through a filter wheel or manual filters.
• Monochrome lunar imaging behind a Barlow or long-focal-length scope.
• Solar imaging with suitable solar filtration or a dedicated solar scope.
• Autoguiding through the ST4 port.

Compatibility & Accessory Notes

The camera connects through 1.25" nosepiece or M42×0.75 threads and works with any telescope providing those interfaces. To use its mono resolution for colour planetary work you add filters — typically a filter wheel with R, G, B and IR-pass filters. Planetary imaging usually adds a Barlow or telecentric to reach f/15–f/25. Capture is over USB3.0, and the ST4 port accepts a standard autoguide cable.

Good to Know Before You Order

• Monochrome output: for colour planetary results you image through separate filters and combine them; the camera itself records greyscale.
• Built for speed: this uncooled small-sensor camera is optimized for the Moon, planets and Sun, not long-exposure deep-sky imaging.
• USB3.0 for full frame rates: USB2.0 works but caps throughput.

Frequently Asked Questions

Is it difficult to set up?

No. It threads onto a 1.25" or M42 connection, installs its driver, and appears in your capture software. Working in mono adds filters to the train, which is a straightforward addition.

What is it best used for?

High-resolution monochrome and filtered planetary, lunar and solar imaging, plus autoguiding.

Why choose mono over the colour Mars-C II?

A monochrome sensor resolves finer detail and is more sensitive because it has no Bayer filter; the trade is that colour work requires imaging through separate filters.

Can I use it for deep-sky astrophotography?

It is not intended for long-exposure deep-sky imaging; it is built for bright solar-system targets.

Does it autoguide?

Yes, through its ST4 port with a suitable guide scope.

Bottom Line

In short: a sensitive, near-IR-capable 1/2.8" monochrome planetary camera that delivers full-resolution detail on the Moon, planets and Sun through filters, and doubles as an autoguider on standard 1.25" and M42 threads.
