Mars-C USB3.0 Color Camera (IMX462)

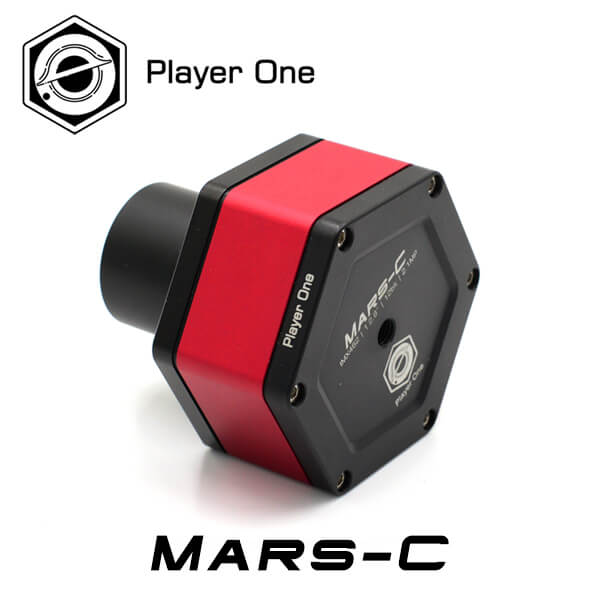

The Player One Mars-C is a compact USB3.0 colour camera built around the Sony IMX462 back-illuminated CMOS sensor, a 1/2.8" chip prized for its high near-infrared sensitivity. It is designed for high-frame-rate imaging of the Moon, planets and the Sun (with appropriate filtration), where capturing thousands of frames quickly is what freezes the atmosphere and yields a sharp final stack.

Product Overview

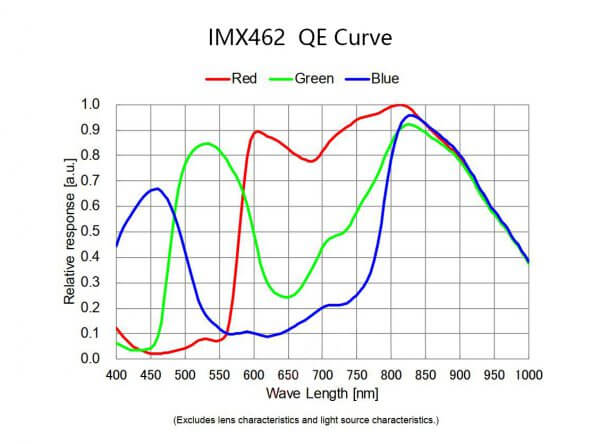

At its heart is a 2.1-megapixel sensor (1944×1096) with 2.9µm pixels across a 6.5 mm diagonal. The IMX462's standout trait is its response deep into the near-IR, which makes it a strong performer for IR-pass planetary work and methane-band imaging where other sensors fall away. With a 12k e⁻ full-well, read noise that drops to about 0.7 e⁻, a 12-bit ADC and a peak QE near 90%, it captures clean, high-cadence video that stacks into detailed lunar and planetary images.

Who It's For

This is a good match if you image the Moon, planets or the Sun and want a sensitive, fast, affordable colour camera. It also suits all-sky and meteor monitoring thanks to the sensor's low-light performance, and it doubles as an autoguider through its ST4 port.

Key Features & Design

• Sony IMX462 colour sensor: 1/2.8" back-illuminated CMOS with strong near-IR response for planetary and IR imaging.
• High frame rates: up to 136 FPS in Raw8 and 62.5 FPS in Raw16 at the full 1944×1096 resolution over USB3.0, so you can collect long capture runs quickly.
• Low read noise: falls to roughly 0.7 e⁻ at higher gain, preserving faint detail in short sub-frames.
• 256MB DDR3 buffer: smooths data transfer to prevent dropped frames during high-speed capture.
• ST4 autoguide port: lets the camera pull double duty as a guide camera.
• Protective window: D21×1.1 mm with AR Plus multi-layer anti-reflection coating.

Optical / Mechanical Design

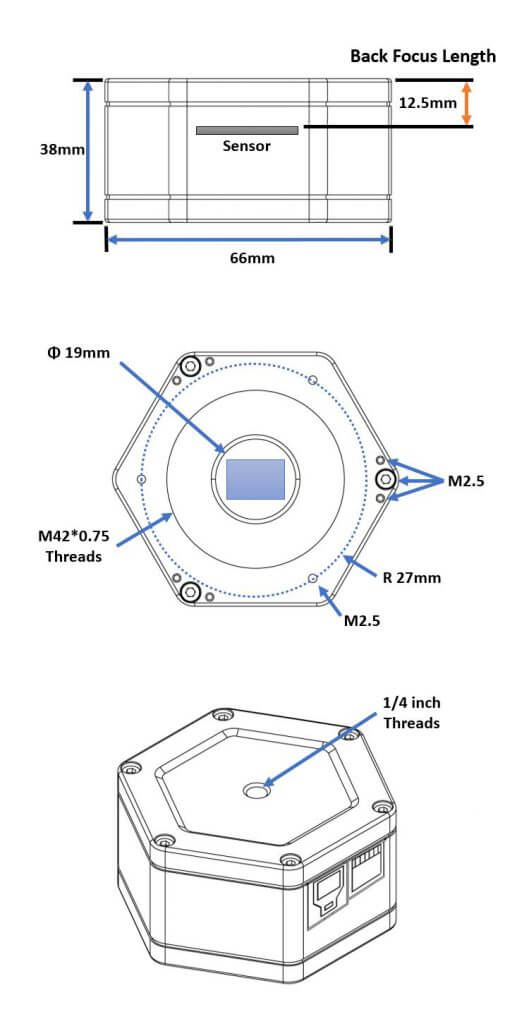

The Mars-C uses a rolling-shutter colour CMOS with an RGGB Bayer matrix and 2.9µm pixels, a pitch well suited to the long focal lengths used for planetary work. The sensor sits at a 12.5 mm back focal distance from the camera's face, and the body threads accept both 1.25" and M42×0.75 (T-thread) adapters, so it drops into a standard planetary imaging train or Barlow with no special hardware. The 66 mm diameter body keeps it light on a focuser. Exposures range from 32µs to 2000 s. The published weight is 180 g.

Recommended Uses

• High-resolution lunar and planetary imaging behind a Barlow or long-focal-length scope.
• Near-IR and methane-band planetary imaging where the IMX462 excels.
• Solar imaging with a suitable solar filter or dedicated solar scope.
• All-sky and meteor monitoring.
• Autoguiding through the ST4 port.

Compatibility & Accessory Notes

The camera connects through 1.25" nosepiece or M42×0.75 threads and works with any telescope that provides those interfaces. For planetary work you will typically add a Barlow or telecentric amplifier to reach a focal ratio around f/15–f/25. The 12.5 mm back focus is generous for a nosepiece connection. It pairs with common capture software over USB3.0, and the ST4 port accepts a standard autoguide cable to your mount.

Good to Know Before You Order

• Built for speed, not long exposures: this is an uncooled, small-sensor high-frame-rate camera. It is at its best on the Moon, planets and Sun rather than faint deep-sky targets that need cooled long exposures.
• USB3.0 for full frame rates: a USB3.0 port and cable are what deliver the headline capture speeds; USB2.0 works but caps throughput.
• A Barlow helps on planets: reaching a suitable image scale on the planets usually means adding a Barlow or telecentric to your existing scope.

Frequently Asked Questions

Is it difficult to set up?

No. It threads onto a 1.25" or M42 connection, installs its driver, and appears in your capture software. Most of the setup time is on framing and focus, not the camera itself.

What is it best used for?

High-frame-rate imaging of the Moon, planets and Sun, plus all-sky monitoring and autoguiding.

Can I use it for deep-sky astrophotography?

It is not the right tool for long-exposure deep-sky imaging. The small uncooled sensor is optimized for bright, fast solar-system targets.

Does it autoguide?

Yes. The ST4 port lets it act as a guide camera with a suitable guide scope.

What makes the IMX462 special?

Its high near-infrared sensitivity, which opens up IR-pass and methane-band planetary imaging alongside standard colour capture.

Bottom Line

In short: a sensitive, fast, near-IR-capable 1/2.8" colour planetary camera that captures the Moon, planets and Sun at high frame rates and doubles as an autoguider, connecting through standard 1.25" and M42 threads.
