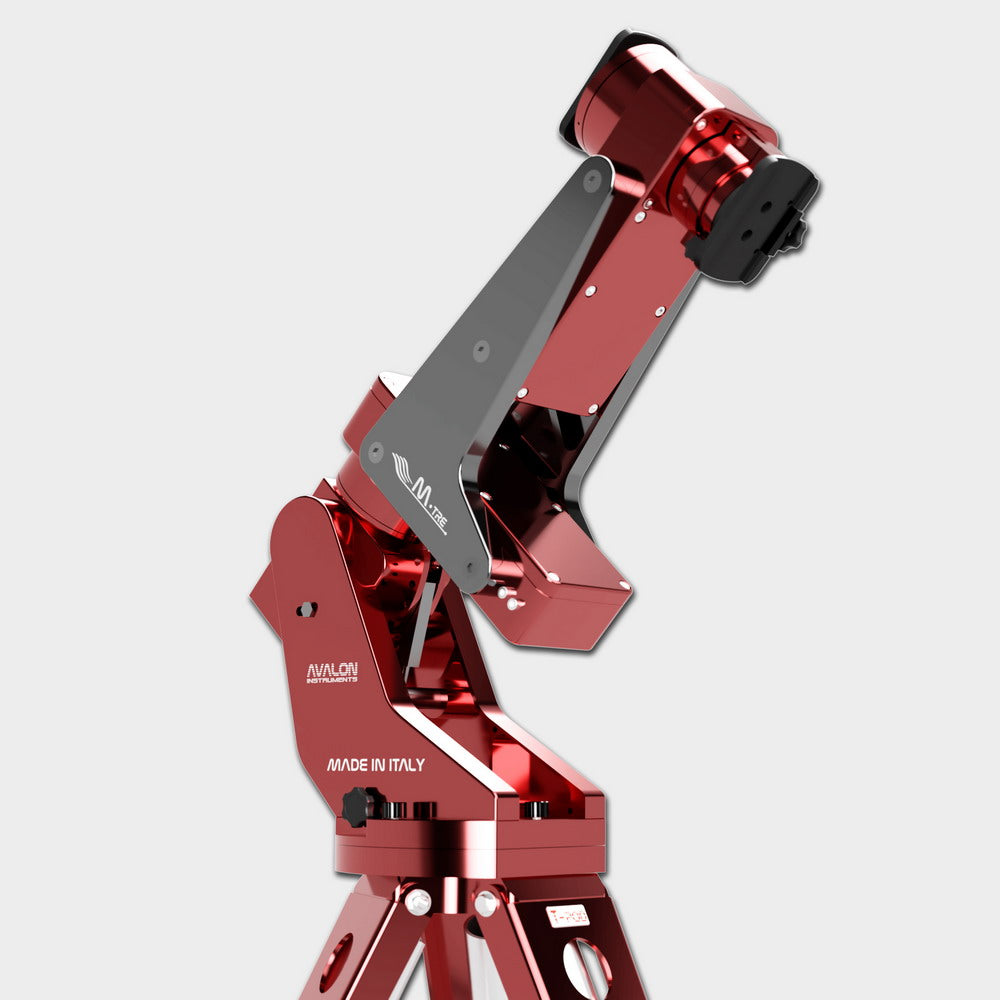

M-tre - StarGo2 Pro

HIGH-RESOLUTION ABSOLUTE ENCODER ON BOTH RA/DEC AXIS

With the High-Resolution ABSOLUTE ENCODER on both RA/DEC axis, is possible to have accurate pointing and keep the mount orientation also after a shutdown.

DUAL DEC

Thanks to the Dual Dec option, it is possible to use the second telescope as a counterweight itself, allowing a significant reduction of the use of the counterweights.

The possibilities to move the DEC arm towards the RA axis (with the same mechanism and concept of the M-zero, M-uno, and M-due mounts), facilitate the balancing procedure allowing to use as less as counterweight possible or even without any counterweight at all.

Slew Speed: up to 10° / sec

StarGo2 Pro

The mount is controlled by the StarGo2 Pro, a real in one astrophotographic setup management system for Mount, CCD cameras, Focuser and comes with the following features:

Raspberry pi 4 based

Compatible with all the Linux astronomical software (Kstar, Stellarium, Carte du Ciel, etc.)

4” Touch Screen Display on StarGo2 Pro case embedded

Connection mode:

• HARDWARE CONNECTION
• Mode 1: StarGo2 Pro as Hotspot
• Mode 2: StarGo2 Pro connected to your network, via LAN or Wi-Fi
• SOFTWARE CONNECTION
• Desktop remote connection to the StarGo2 Pro Operative System - Raspberry Pi4 - for a full setup control - mount, CCD cameras, focuser etc.
• Multiplatform Web App, for the system network connection and the mount function management

• 1 audio port, 2 USB 2.0 ports.
• 2 USB 3.0 ports, 1 Ethernet port
• 2 x 12-volt power out ports
• 1 x variable 6 – 12 volts power out port
• 1 x Keypad
• Aux 1 RJ port with ASCOM and INDI driver ready to be used SkySafari direct connection

Driver:

• INDI (Linux, Mac O.S.)
• ASCOM Alpaca (Windows O.S.)

Finally a real in one astrophotographic setup management system for:

Mount - CCD cameras - Focuser

Dual Dec fully rotating axis

The M-Due comes with a fully rotating declination axis, which allows the use of a second clamp to hold a second OTA
