JMI Wheeley Bar Tie-Down Bracket Kit

Product Overview

A tripod that simply stands in the receptacles of a Wheeley Bar has no positive lock holding it there. The JMI Wheeley Bar Tie-Down Bracket Kit adds that lock: steel brackets bolt to the bar using its existing hardware, and a heavy-duty ratchet strap with reinforced webbing draws the tripod down onto the frame. The kit ships in two bracket lengths — the standard full-length brackets for the Standard Medium, HD Medium, HD Large and AP Pier Mount bars, and half-brackets whose shorter geometry clears the compact frame of the HD Shorty. Each kit weighs 8 lb and is made in the USA by JMI.

Who It’s For

This is a good match if you…

• roll a loaded tripod, mount and optical tube across a driveway, lawn edge or uneven pavement on a Wheeley Bar
• run a tall mount or a long refractor where the centre of gravity sits well above the bar
• leave the scope standing on the bar between sessions and want it held down rather than balanced
• own an HD Shorty and need the shorter half-bracket geometry

Key Features & Design

• Steel brackets: corrosion-resistant finish for equipment that lives outdoors and gets dew on it.
• Industrial-grade ratchet: a cam-lock ratchet mechanism holds strap tension rather than relying on friction alone.
• Reinforced webbing: the strap is heavy-duty webbing sized for the load of a mount and optical tube.
• Existing hardware: the brackets bolt on with the fasteners already on the Wheeley Bar, so no drilling is involved.
• Two bracket lengths: the full-length kit covers the four larger Universal bars; the half-bracket kit is the geometry that fits the HD Shorty.
• Fast on and off: about 10 minutes for the first installation, then roughly 30 seconds to secure the tripod at the start of a session.

Mechanical Design

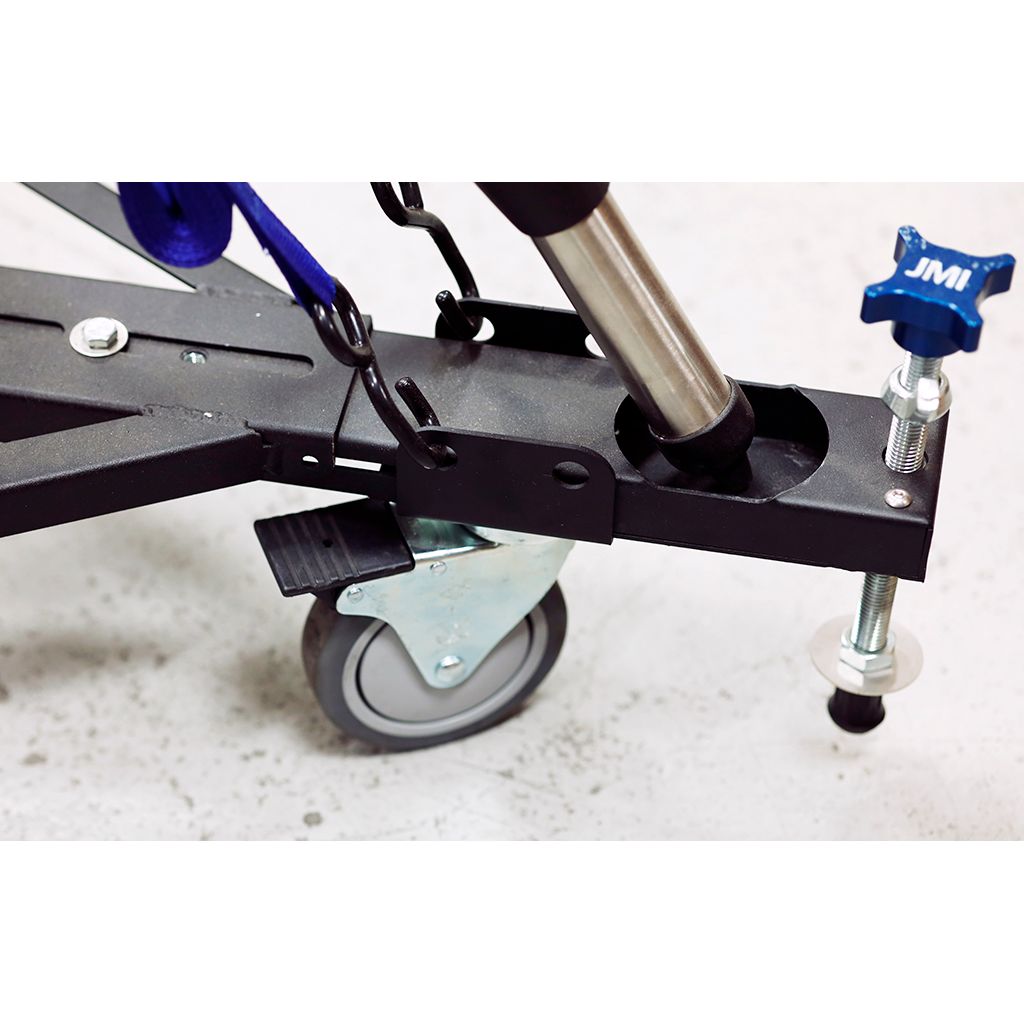

The brackets are the load path. Each one bolts to the bar frame at an existing hardware point and presents an anchor above the deck, so the strap pulls the tripod down along the frame rather than sideways across it. That geometry matters: a strap run only around the tripod legs can tighten without actually resisting a tip, whereas anchoring at the bracket converts strap tension into downward clamping force on the bar. The cam-lock ratchet then holds that tension through transport, where a buckle or hook would creep as the load shifts over bumps. The half-bracket version changes only the bracket length — the strap, the ratchet and the way the load is carried are identical between the two kits.

Recommended Uses

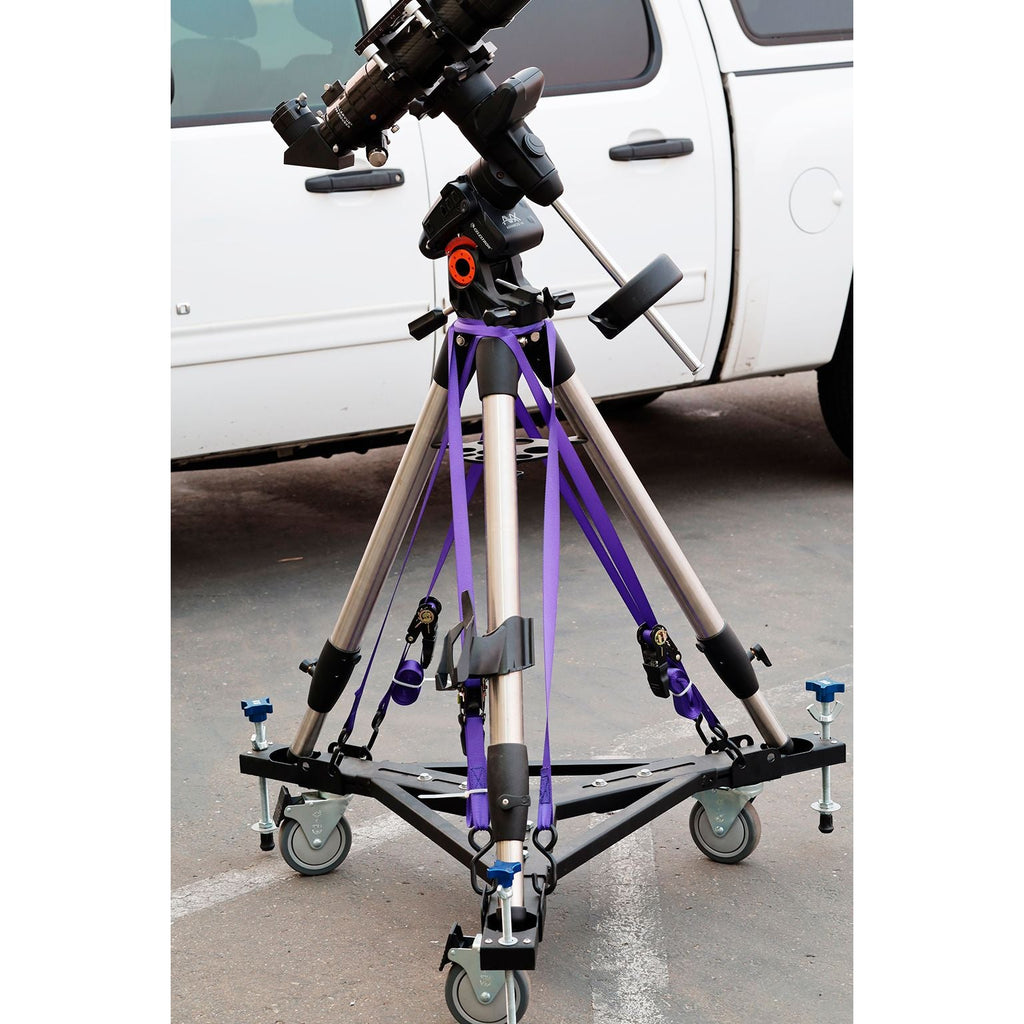

• Rolling an assembled mount and optical tube from a garage to a driveway or patio
• Crossing a threshold, a lawn edge or a gap in pavement with the scope still standing
• Leaving a tall equatorial mount parked on the bar overnight under a cover
• Outreach nights where the scope is moved between viewing positions with people around it
• Securing an HD Shorty setup where the compact frame rules out full-length brackets

Compatibility and Accessory Notes

The standard full-bracket kit fits the Standard Medium, HD Medium, HD Large and AP Pier Mount Wheeley Bars. The HD Shorty’s compact frame does not take the full-bracket geometry, and the half-bracket kit is the version made for it; the half-brackets also fit the four larger bars, though the full-length brackets are the usual choice there. On the tripod side, the kit is sized for standard astronomy mount footprints — Celestron, Sky-Watcher, iOptron, Losmandy, Astro-Physics and Meade tripods all fall inside that range. The Triangle Style and Sky Trekker Dobsonian platforms use a different frame entirely. If you would like to know which bracket length suits your bar, send us the Wheeley Bar model and we will check it for you.

Good to Know Before You Order

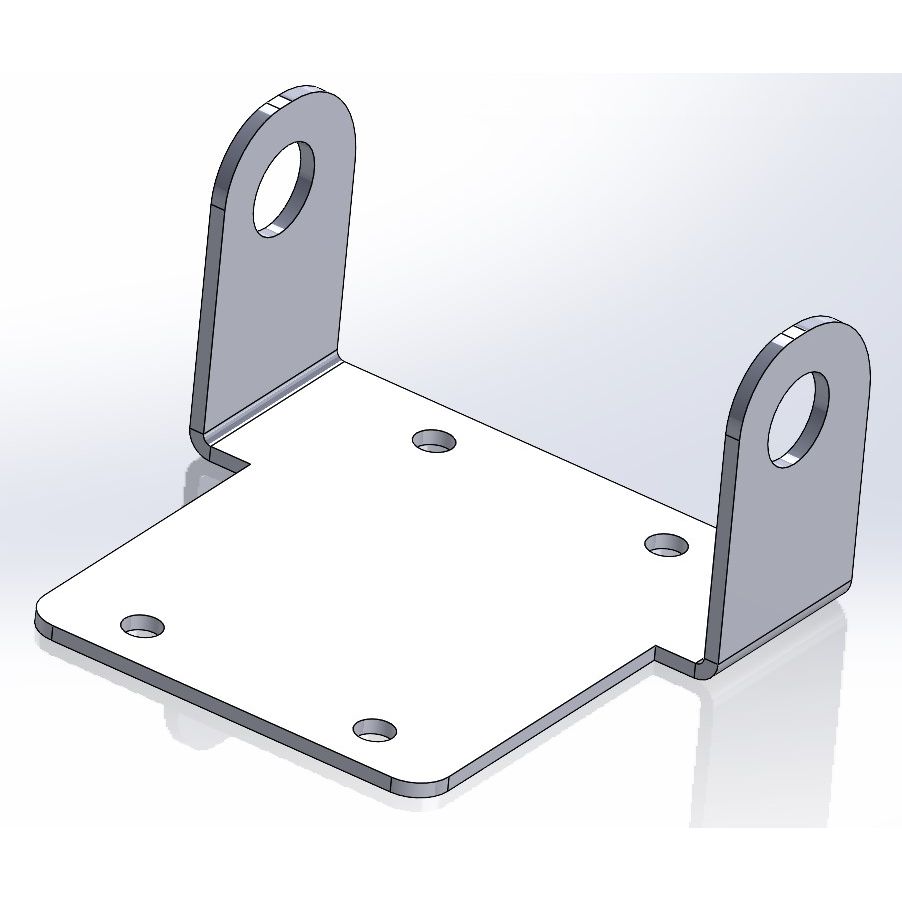

• The bracket length is variant-specific. HD Shorty owners need the half-bracket kit; the full-length brackets will not clear that frame.
• Both kits are the same price and the same weight. Each ships at 8 lb, and the difference between them is bracket length alone.
• No drilling is involved. The brackets use hardware points already on the bar.
• The kit secures the tripod to the bar, not the mount to the tripod. The mount head stays attached by its own hardware as usual.
• First installation runs about 10 minutes. After that the brackets stay on the bar and only the strap is worked each session.

Frequently Asked Questions

Is it difficult to install?

No. The brackets bolt to the Wheeley Bar at hardware points that already exist, so there is no drilling and no extra fasteners to source. Most owners finish the first installation in about 10 minutes, and securing the tripod afterwards takes roughly 30 seconds.

Why would a tripod need tying down at all?

A tripod standing in the bar’s receptacles is located but not locked. With a tall mount and a heavy optical tube the centre of gravity sits high, and a wheel dropping into a seam or an edge is enough to start a tip. The strap removes that possibility by holding the tripod against the frame.

Which kit fits the HD Shorty?

The half-bracket kit. Its shorter brackets clear the Shorty’s compact frame, which the full-length brackets do not.

Can the half-bracket kit be used on a larger bar?

Yes. The half-brackets fit the Standard Medium, HD Medium, HD Large and AP Pier Mount bars as well. The full-length brackets remain the standard choice for those bars.

Is the strap included?

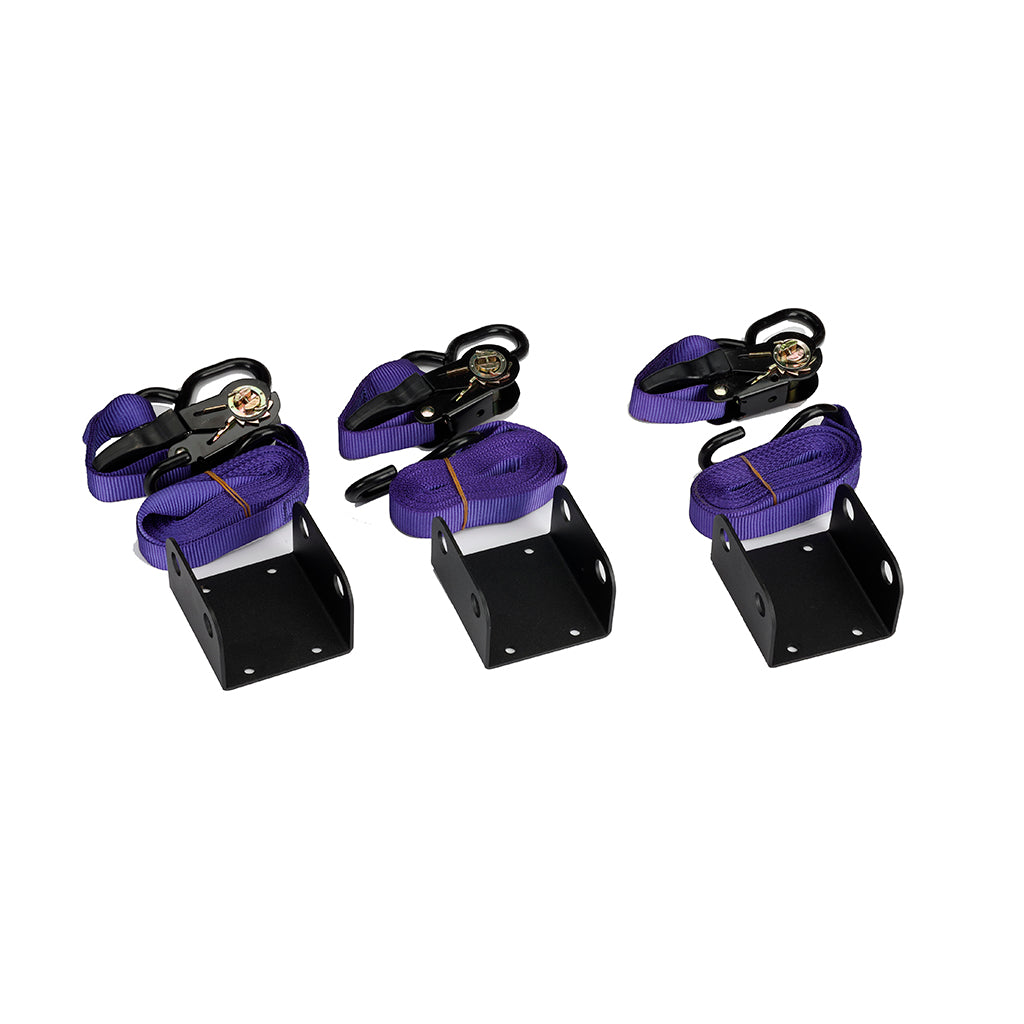

Yes. Each kit includes the heavy-duty ratchet strap with reinforced webbing along with the brackets and uses the bar’s existing hardware for mounting.

Does it fit my tripod?

The kit is sized for standard astronomy mount footprints, which covers Celestron, Sky-Watcher, iOptron, Losmandy, Astro-Physics and Meade tripods. Send us your tripod and bar models and we will check the combination for you.

Bottom Line

In short: steel brackets and a cam-lock ratchet strap that hold a tripod down onto a JMI Wheeley Bar, supplied in full-length form for the Standard Medium, HD Medium, HD Large and AP Pier Mount bars and in a half-bracket form for the HD Shorty, at 8 lb and about 10 minutes to fit.
