Farpoint Dovetail Radius Block - Meade 14 Inch SCT

FarpointAstroSKU: FDM14R

Price:
Sale price$83.00 USD
Stock:
On Backorder — ships when available
  • Description
  • Specifications

Product Overview

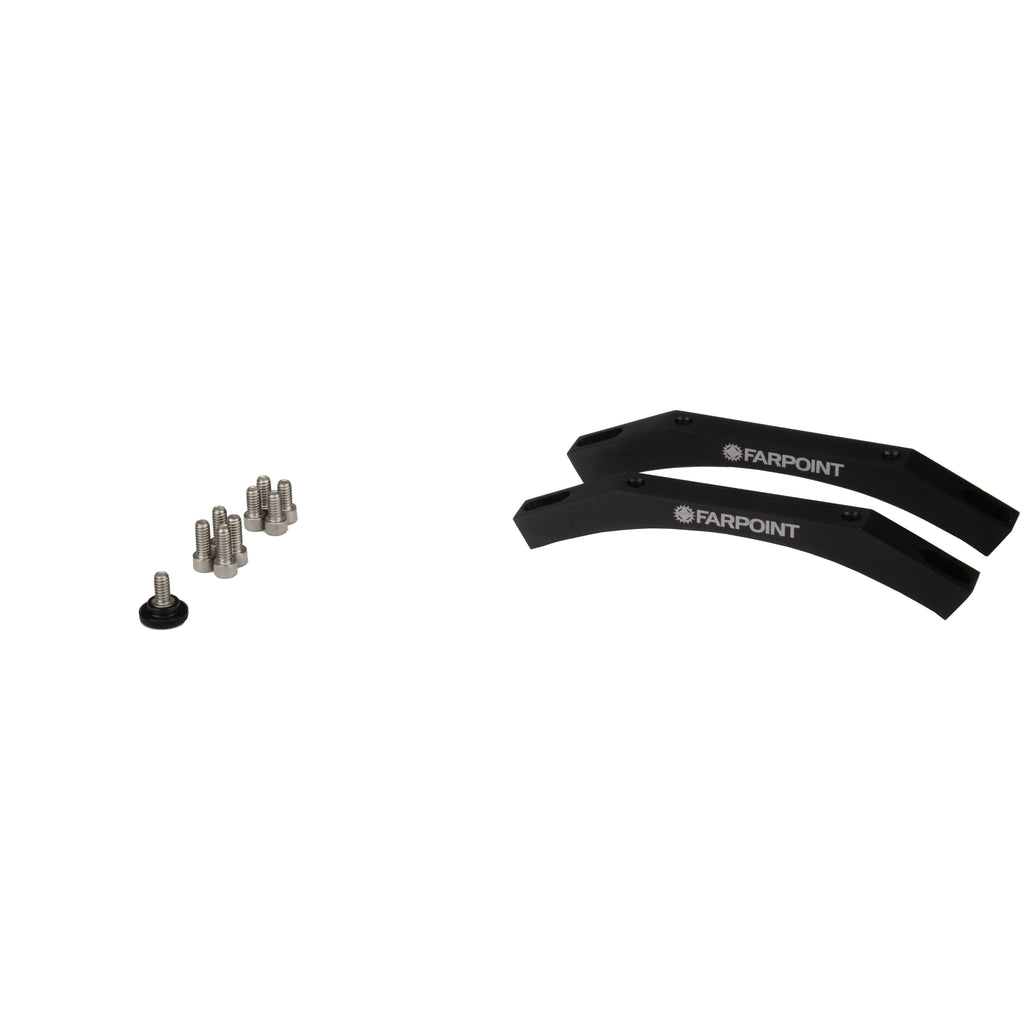

The Farpoint FDM14R radius blocks are the interface between a Meade 14″ SCT and a D-size (Losmandy-style) dovetail bar. The blocks are CNC-machined from aluminum, black anodized, and cut to the radius of the 14″ tube so they sit flush against it rather than bridging it on two edges. They are part of Farpoint's dovetail system and are sold here as blocks on their own, for use with a dovetail bar you already have. Published weight is 1.125 lb, and they are machined in the United States.

Who It's For

This is a good match if you…

  • own a Meade 14″ SCT and want to carry it on a D-size Losmandy saddle.
  • already have a Losmandy-style bar and need only the tube-side hardware.
  • are carrying a long imaging train on a heavy SCT and want the widest dovetail standard under it.
  • want the bar to bear on a machined radius rather than on standoffs or spacers.

Key Features & Design

  • Cut for the Meade 14″ SCT: the seating radius matches that tube, and Farpoint lists it for that tube alone.
  • D-size interface: the blocks carry a Losmandy-style dovetail bar, the wider of the two common profiles and the one normally used at this aperture.
  • Black anodized aluminum: anodizing over machined aluminum keeps the surface hard and non-reflective next to the optics.
  • CNC-machined in the USA: produced by Farpoint in the United States.
  • Blocks only: the dovetail bar is a separate item, so an existing bar can be reused.
  • 1.125 lb published weight: the tube-side hardware adds a little over a pound to the load on the mount.

Mechanical Design

A flat dovetail bar laid against a round SCT tube touches it along two lines, and everything above that joint pivots on those lines — a real concern on a 14″ tube, where the moment arm from the rear cell to the camera is long. A radius block puts a curved seat between the tube and the bar: the underside is machined to the radius of the Meade 14″ tube, the top is flat and drilled for the bar. Load travels from the bar into a broad curved footprint on the tube rather than into two edges, and the joint stays stiff as the mount slews through the meridian. Because the blocks sit at the existing mounting points on the tube, the bar ends up parallel to the optical axis without shimming, which keeps the balance point predictable.

Recommended Uses

  • Fitting a Meade 14″ SCT to a Losmandy G-11 or Titan, a Celestron CGX-L, or another D-size saddle.
  • Carrying a 14″ SCT with a camera, filter wheel and off-axis guider on the back.
  • Rebuilding a mounting setup where a bar exists and only the tube interface is missing.
  • Adding a top bar for a piggybacked guide scope, using a second bar of the buyer's choosing.
  • Restoring a used 14″ SCT that arrived without its original dovetail hardware.

Compatibility and Accessory Notes

Farpoint lists these blocks for the Meade 14″ SCT and for that tube only — the seating radius is specific to it, so the 12″ version (FDM12R) is the part for the smaller tube. The bar side is the D-size Losmandy standard, which fits Losmandy G-11 and Titan saddles, Celestron CGE, CGEM and CGX-L saddles, the dual-format saddles on many iOptron and Sky-Watcher mounts, and any other clamp cut for the wide profile. The dovetail bar itself is not included; Farpoint also sells a complete Meade 14″ SCT kit that bundles bar, blocks and screws. Farpoint does not publish a piece count or a screw list for the blocks-only item. If you would like us to work out which bar length and hardware suits your tube and mount, tell us the mount model and what you are hanging off the back, and we will put a list together for you.

Good to Know Before You Order

  • The dovetail bar is a separate purchase. This listing covers the radius blocks that the bar bolts to.
  • The radius is specific to the Meade 14″ SCT. A 12″ tube has a different curve and takes the FDM12R block.
  • The interface is D-size, not Vixen. A mount with a Vixen-only saddle takes an adapter or a different bar.
  • Farpoint publishes no piece count or fastener list for this item. We are glad to check what ships in the box before you order.
  • Published weight is 1.125 lb. Our shipping weight is rounded up to the next whole pound.

Frequently Asked Questions

Is it difficult to install?

No. The blocks bolt to the existing threaded points on the tube, and the dovetail bar then bolts to the flat tops of the blocks. It is hand-tool work and takes a few minutes once the tube is off the mount.

Does a dovetail bar come with it?

No. This is the blocks only, intended to work with a D-size bar you already own. Farpoint offers a complete Meade 14″ SCT kit with the bar included as a separate item.

Will it fit a Meade 12″ SCT?

No. The seat is machined to the 14″ tube radius; the 12″ tube takes the FDM12R.

Why use blocks instead of bolting the bar straight to the tube?

A flat bar meets a round tube on two edges. The curved seat on the block spreads that contact across the tube's radius, which keeps the bar parallel to the optical axis and the joint stiffer under the loads a 14″ SCT puts on it.

What material are they?

Black anodized aluminum, CNC-machined in the USA.

Bottom Line

In short: a 1.125 lb set of US-made black anodized radius blocks that let a Meade 14″ SCT carry a D-size Losmandy dovetail bar on a curved, full-contact seat.

Fits telescopeMeade 14″ SCT only
Use withYour existing D-size (Losmandy-style) dovetail bar
Dovetail standardD-size (Losmandy)
MaterialBlack anodized aluminum
Weight1.125 lb
ConstructionCNC-machined in the USA
Country of originUnited States
