Explore Scientific Half-Inch Extension Tube for 2-inch Rack and Pinion Focusers

Product Overview

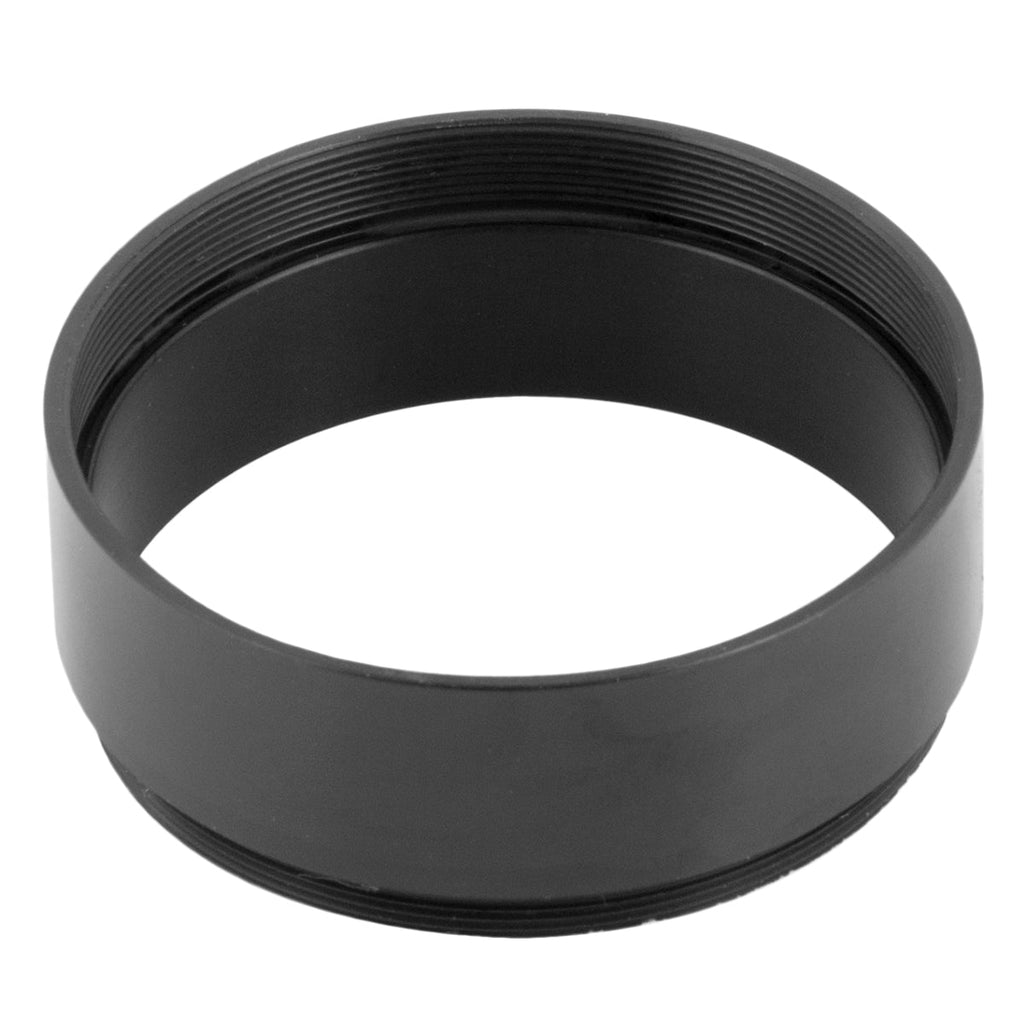

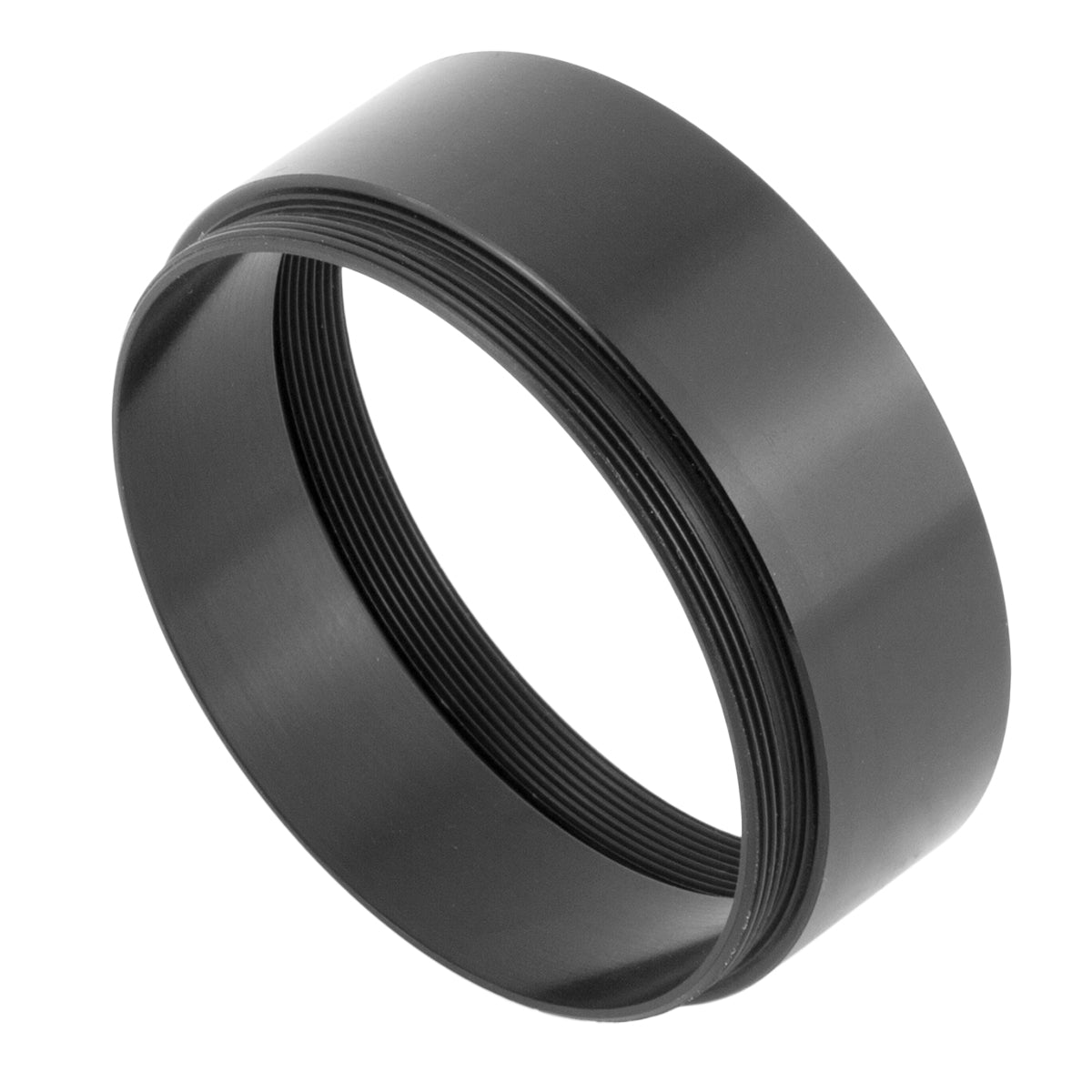

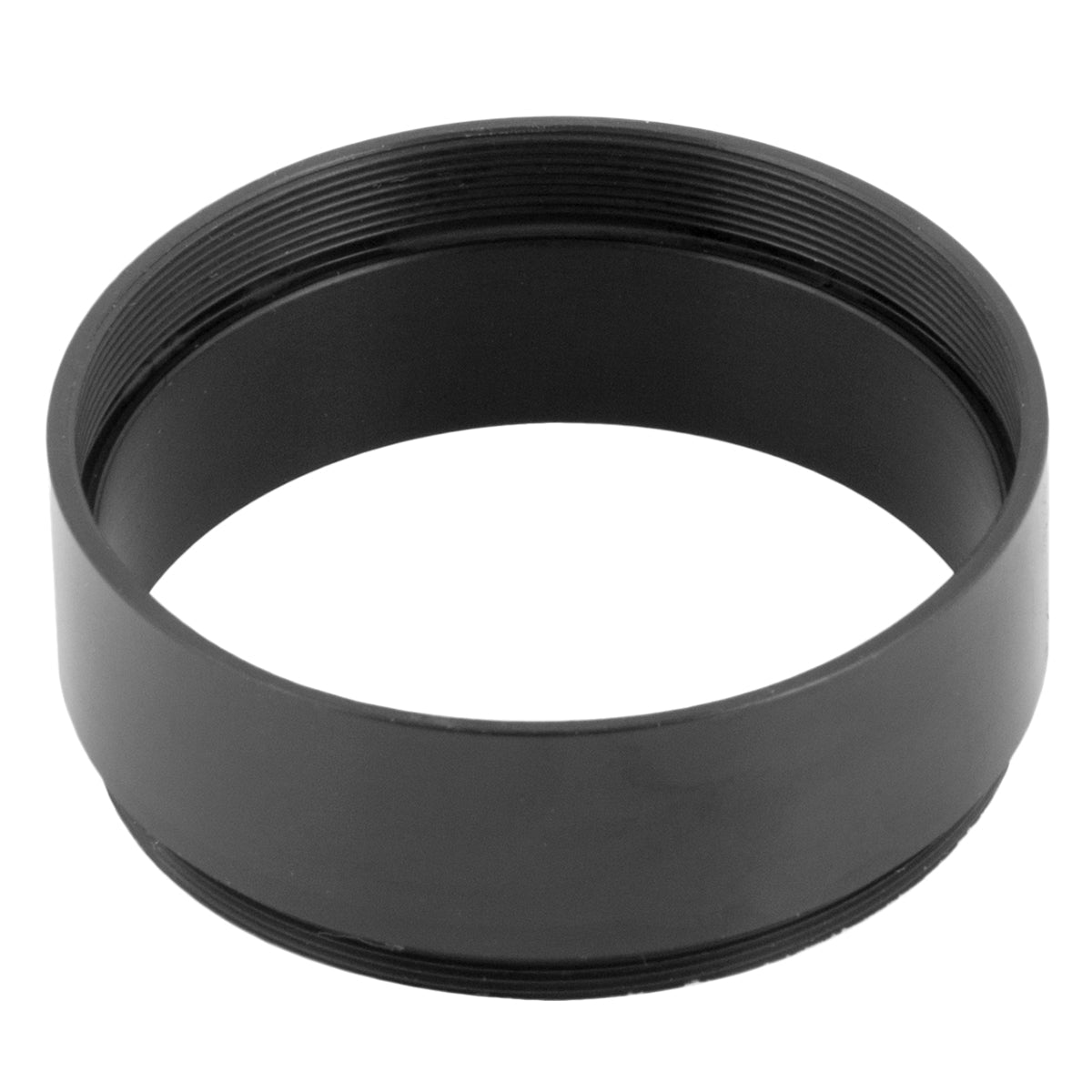

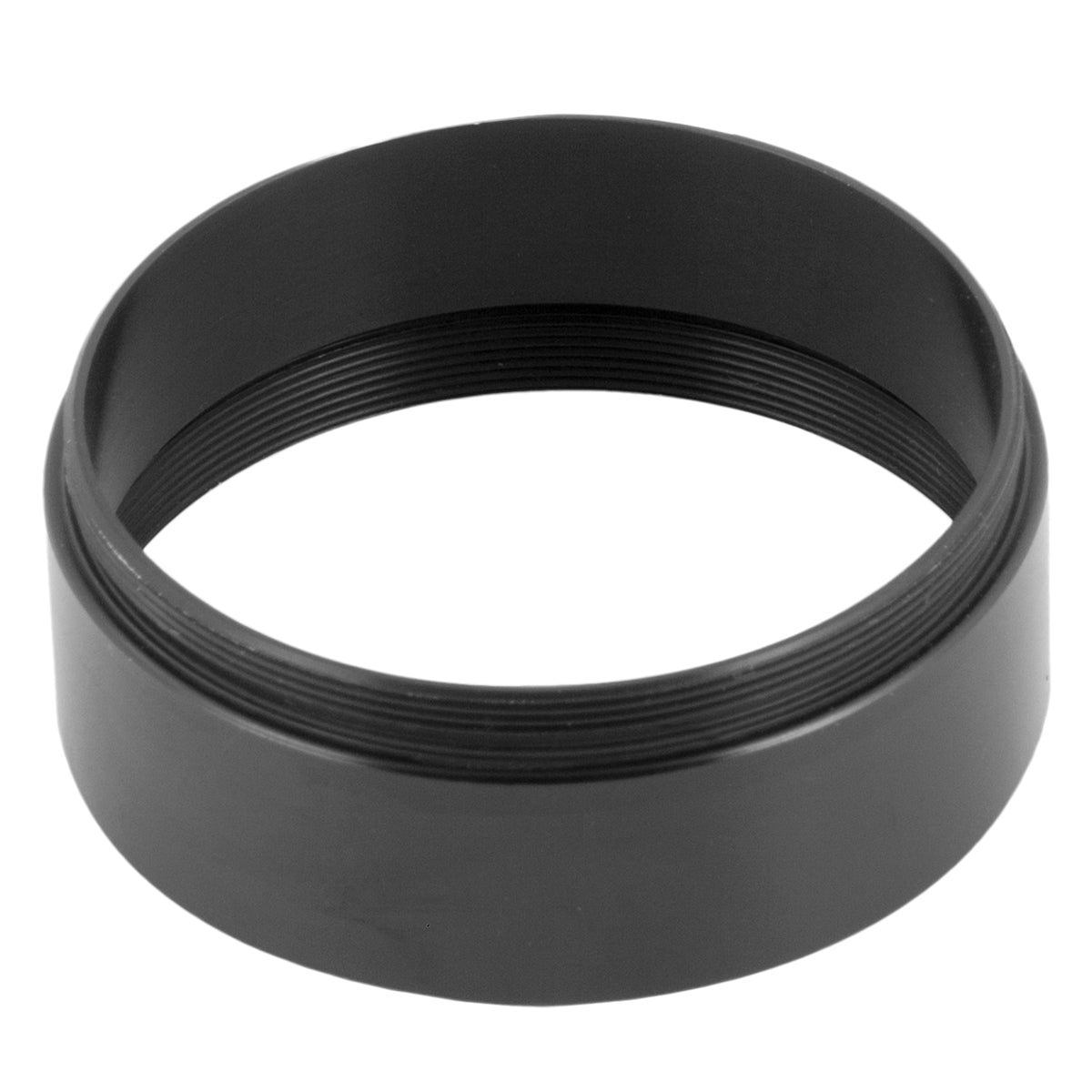

This is Explore Scientific's extension tube for their 2-inch rack and pinion focusers, catalogued as item ESRPEXT1. Explore Scientific describe it in a single line on their own product page: it adds half an inch to the 2-inch rack and pinion focusers fitted to their ED APO telescopes. It is a short, fixed-length spacer that sits in the focuser's optical train and moves the focal plane outwards, and it is the standard remedy when an accessory stack cannot quite reach focus on one of those refractors.

Who It's For

Every telescope has a fixed amount of back focus, and every accessory you put behind the focuser spends some of it. A star diagonal, a camera with a long flange distance, a filter wheel, an off-axis guider, a binoviewer, or a field flattener each add optical path, and at some point you run the focuser all the way in and the star image is still not sharp. The opposite problem happens too: you rack the drawtube almost fully out to reach focus, which is exactly where a rack and pinion focuser is least rigid and most prone to sag with a heavy camera hanging off it.

A short extension tube solves both. Adding half an inch of fixed spacing shifts the whole focus range outwards so the drawtube can sit closer to the middle of its travel, where it is well supported and the pinion has good engagement. That is a small change on paper and a large one at the eyepiece: better mechanical stiffness, less differential flexure across a long exposure sequence, and a focuser that is not fighting its own end stops. If you have ever found that a particular diagonal and eyepiece combination will not come to focus on your ED APO while a shorter one will, this is the part you were missing.

Key Features & Design

• Adds half an inch of fixed spacing to the optical train, per Explore Scientific's published description.
• Designed by Explore Scientific specifically for their own 2-inch rack and pinion focusers.
• Intended for the ED APO refractor range that ships with those focusers.
• Fixed length, with no moving parts, threads to work loose, or clamping mechanism to introduce slop.
• Short enough to shift the focus range without meaningfully increasing the cantilevered load on the drawtube.
• Explore Scientific item number ESRPEXT1.

Mechanical Design

An extension tube does nothing optically. It has no glass in it and it does not change focal length, focal ratio, or image scale. What it changes is geometry. The focal plane of a refractor sits a fixed distance behind the objective, and the focuser's job is to place your eyepiece or sensor at that plane. The drawtube can only travel so far in each direction, so the set of accessory stacks that can reach focus is bounded at both ends. Inserting a rigid half-inch spacer between the focuser and the accessory adds a constant to the optical path, which translates the entire usable focus window outwards by that same half inch. Anything that previously needed the drawtube racked further in than it could go now falls inside the range. The trade-off is symmetric and worth knowing: the same half inch comes off the other end, so a short-path accessory that used to focus with the drawtube nearly fully out may no longer reach focus with the extension fitted. This is why extensions are treated as a per-configuration part rather than something you leave in permanently.

Recommended Uses

• Recovering focus with a long-path accessory stack such as a binoviewer, filter wheel, or off-axis guider.
• Moving the drawtube back towards the middle of its travel for better rigidity under an imaging load.
• Fine-tuning spacing when a diagonal and eyepiece combination will not quite come to focus.
• Building out a repeatable imaging train where a fixed spacer is preferable to a variable one.

Compatibility and Accessory Notes

Explore Scientific state that this extension is for their 2-inch rack and pinion focusers on their ED APO telescopes. They do not publish a list of specific telescope or focuser model numbers on the product page, nor do they publish the fitting's thread or barrel dimensions, so we cannot promise a fit on a third-party focuser or on an Explore Scientific focuser of a different type such as their dual-speed Crayford units. If you tell our team in Bolton which telescope and which focuser you have, we will confirm compatibility with you before it ships rather than have you guess. It is also worth working out how much extra spacing you actually need first, because extensions are only useful in the right length and stacking two short ones is rarely as rigid as fitting one of the correct size.

Good to Know Before You Order

One point of honesty about the naming. This item is listed in some catalogues, including the vendor price sheet we work from, as a 1-inch extension tube, but Explore Scientific's own live product page for item ESRPEXT1 describes it as adding half an inch and titles it as a half-inch extension. We have written this listing to the figure the manufacturer currently publishes. If the exact optical length is critical to your imaging train, contact us before ordering and we will measure the part in hand and confirm it for you. Beyond that, this is the extension tube alone with no adapters, compression rings, or spacers included, and it is a spacer rather than a focuser upgrade, so it will not add travel or improve the feel of an existing focuser. Explore Scientific publishes no shipping weight for this item, so we are confirming it on our own scales before the listing goes live. That is why it is currently unpublished. Contact us and we will give you a shipping figure for your address.

Frequently Asked Questions

Will this let my camera reach focus? It will if the reason you cannot focus is that your accessory stack is too short and the drawtube is already racked fully out, or if you need to shift the focus window outwards. If you are running out of inward travel instead, an extension makes the problem worse rather than better. Tell us your imaging train and we will work out which direction you need to go.

Does it fit a Crayford or a third-party focuser? Explore Scientific specify it for their own 2-inch rack and pinion focusers only, and they do not publish the fitting dimensions, so we cannot confirm a fit on anything else. Ask us with your focuser model and we will check.

Will it degrade the image? No. There is no glass in an extension tube, so it introduces no aberration of its own. The only optical consideration is that it changes where the focal plane sits relative to your focuser travel.

Can I stack two of them? Mechanically you can, but each additional joint is another place for tilt and flexure to creep in, which matters for imaging. If you need more than half an inch, we would rather find you a single spacer of the right length.

Bottom Line

A half-inch spacer is a small part that quietly fixes a frustrating problem, letting a stubborn accessory stack come to focus and keeping the drawtube in the stiffer part of its travel. Explore Scientific publish very little about it beyond its purpose, so if the exact length or the fit on your particular focuser matters, contact us and we will confirm both before you order.
