Explore Scientific 3-inch Self-Centering Focuser for 152mm and 165mm Refractors

Product Overview

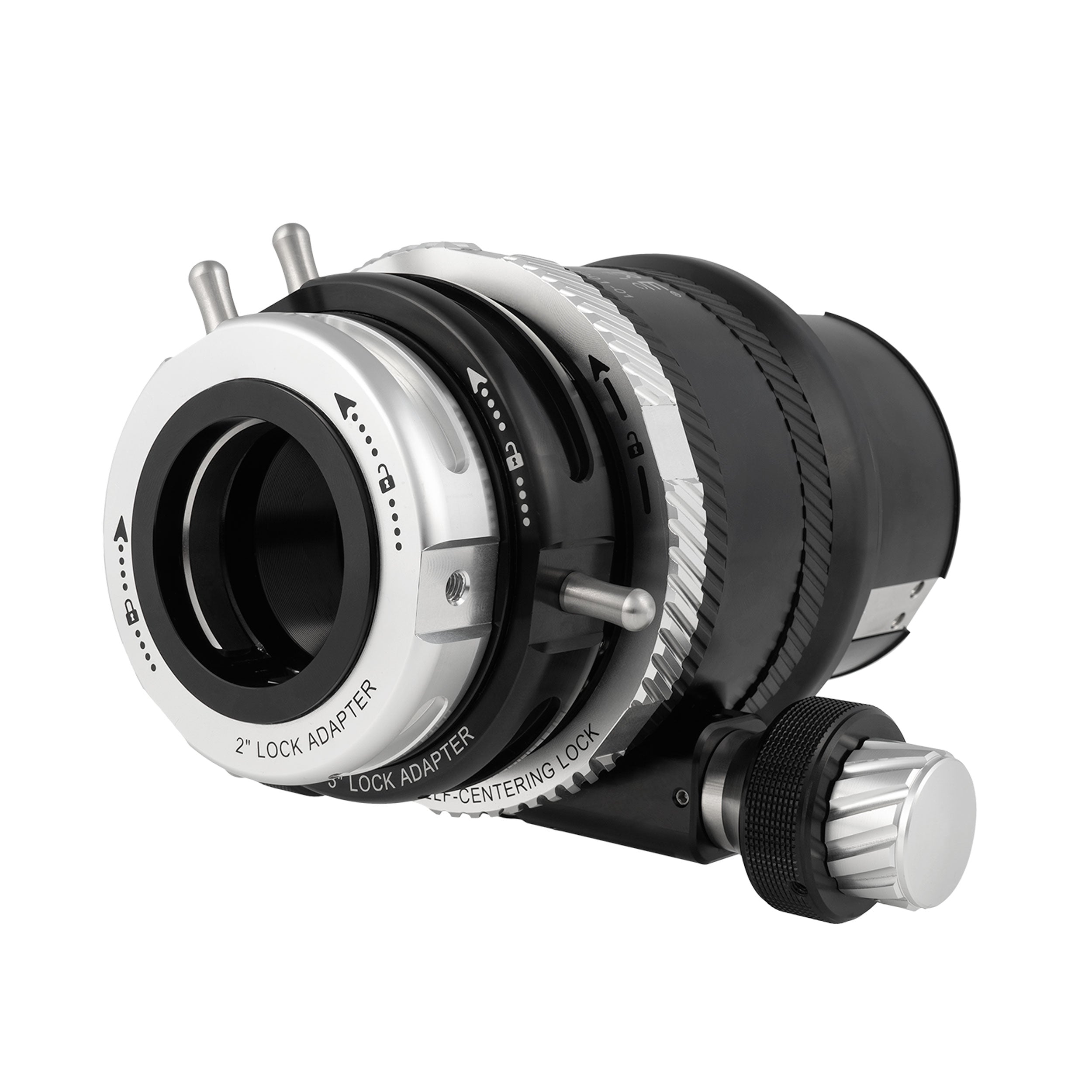

The Explore Scientific 3-inch Self-Centering Focuser is a heavy-duty replacement focuser for large refractors, rated to lift 17 lb of imaging equipment. It uses a helical rack-and-pinion mechanism with a 9:1 reduction running on stainless steel ball bearings, gives 84.5 mm (3.32 inches) of draw tube travel, and passes a full 3-inch clear aperture through a 14-baffle draw tube. It weighs 5.7 lb including the 3-inch to 2-inch twist-lock adapter.

Who It's For

This is an upgrade part for someone running a large refractor whose original focuser flexes or slips under a loaded imaging train — camera, filter wheel, off-axis guider and flattener together can easily pass 10 lb. It suits imagers chasing round stars in the corners, and visual observers using heavy 2-inch and 3-inch eyepieces where sag shifts the focal plane.

Key Features & Design

• 17 lb lifting capacity for heavy imaging trains
• Self-centering compression attachment that grips without pulling the optical axis off centre

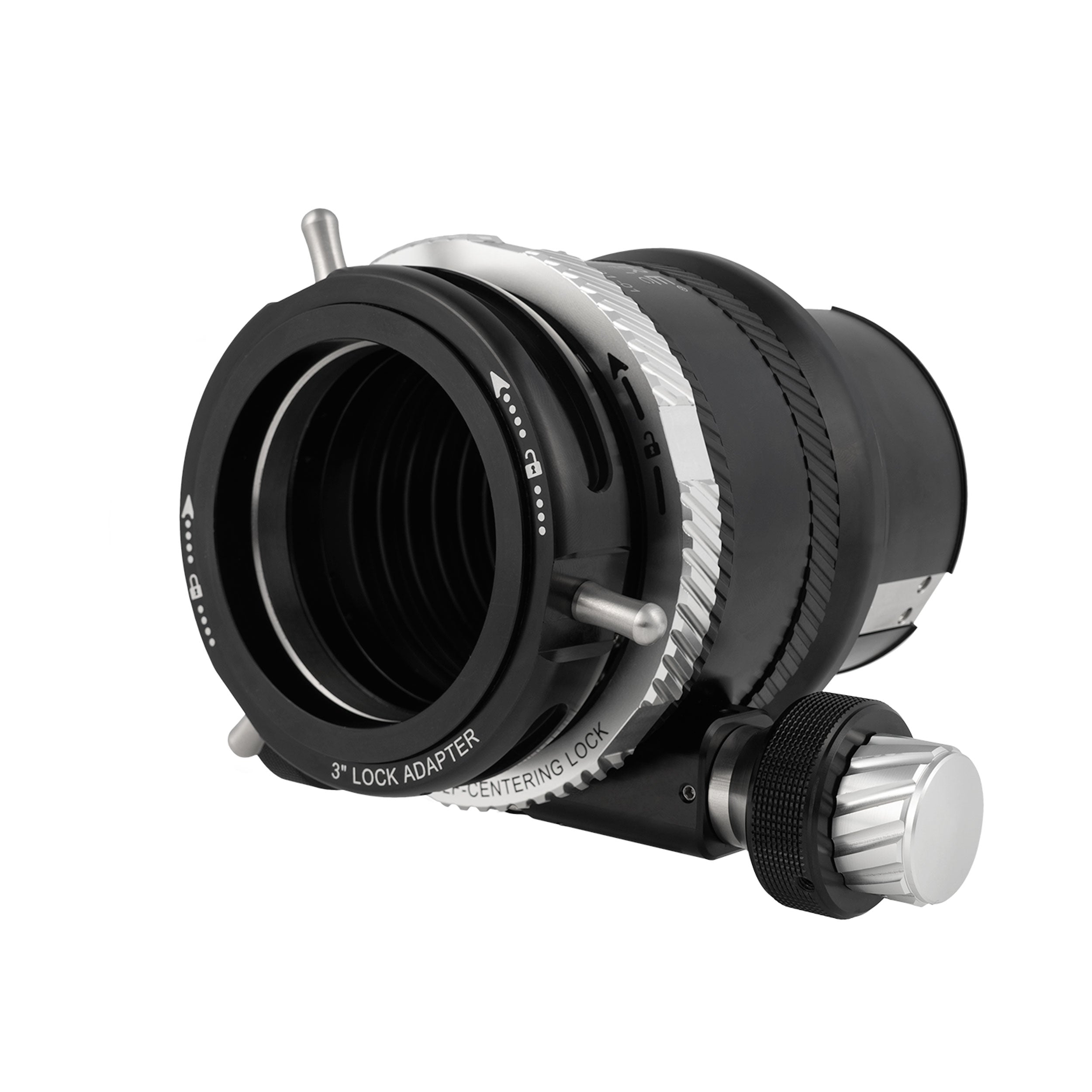

• 9:1 reduction ratio on stainless steel ball bearings and shaft for fine focus control
• 84.5 mm of draw tube travel with a 76.2 mm (3-inch) clear interior diameter

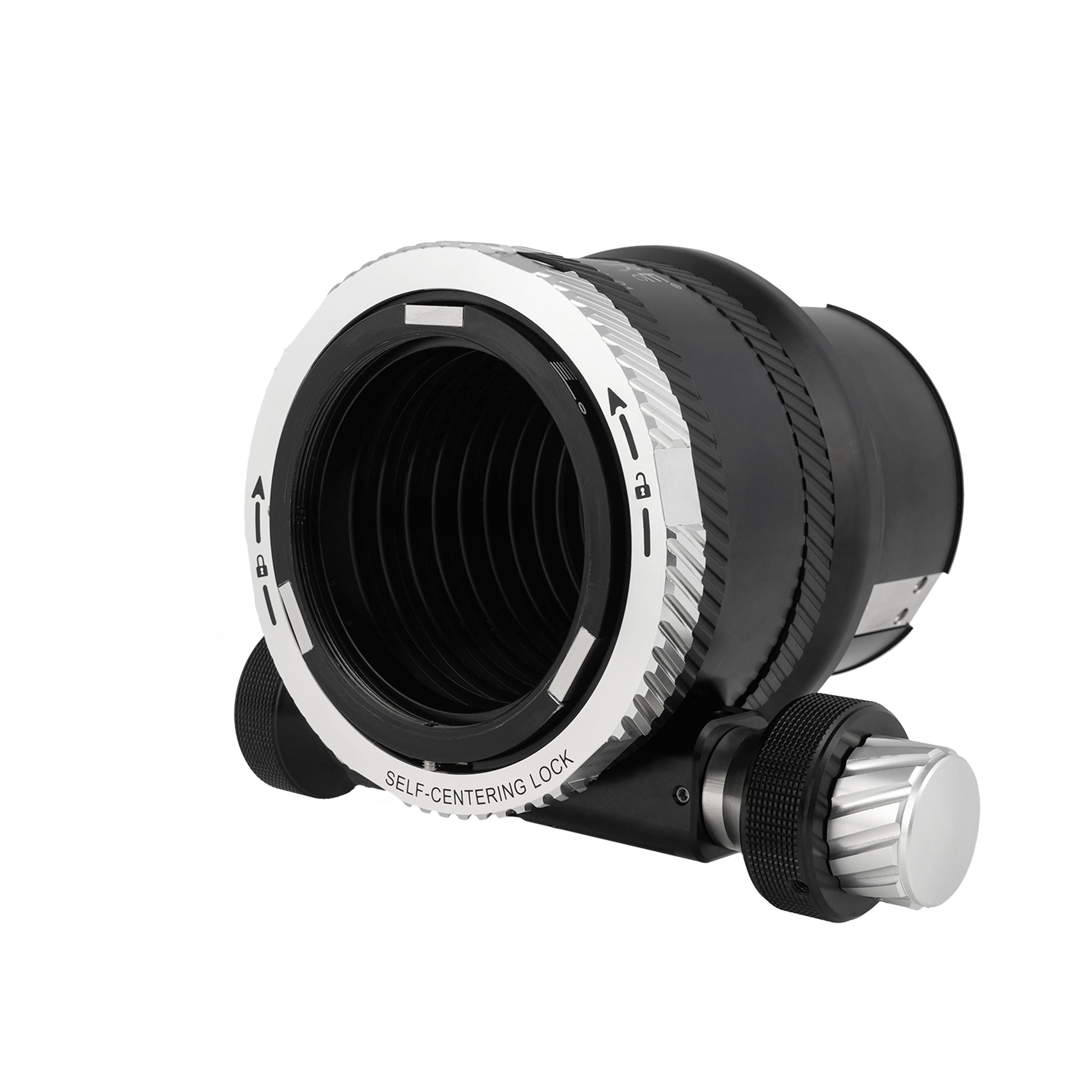

• 14 internal baffles to suppress stray light across a large image circle
• M82 x 1.25 draw tube thread
• Compatible with electric focusers for automated and remote focusing

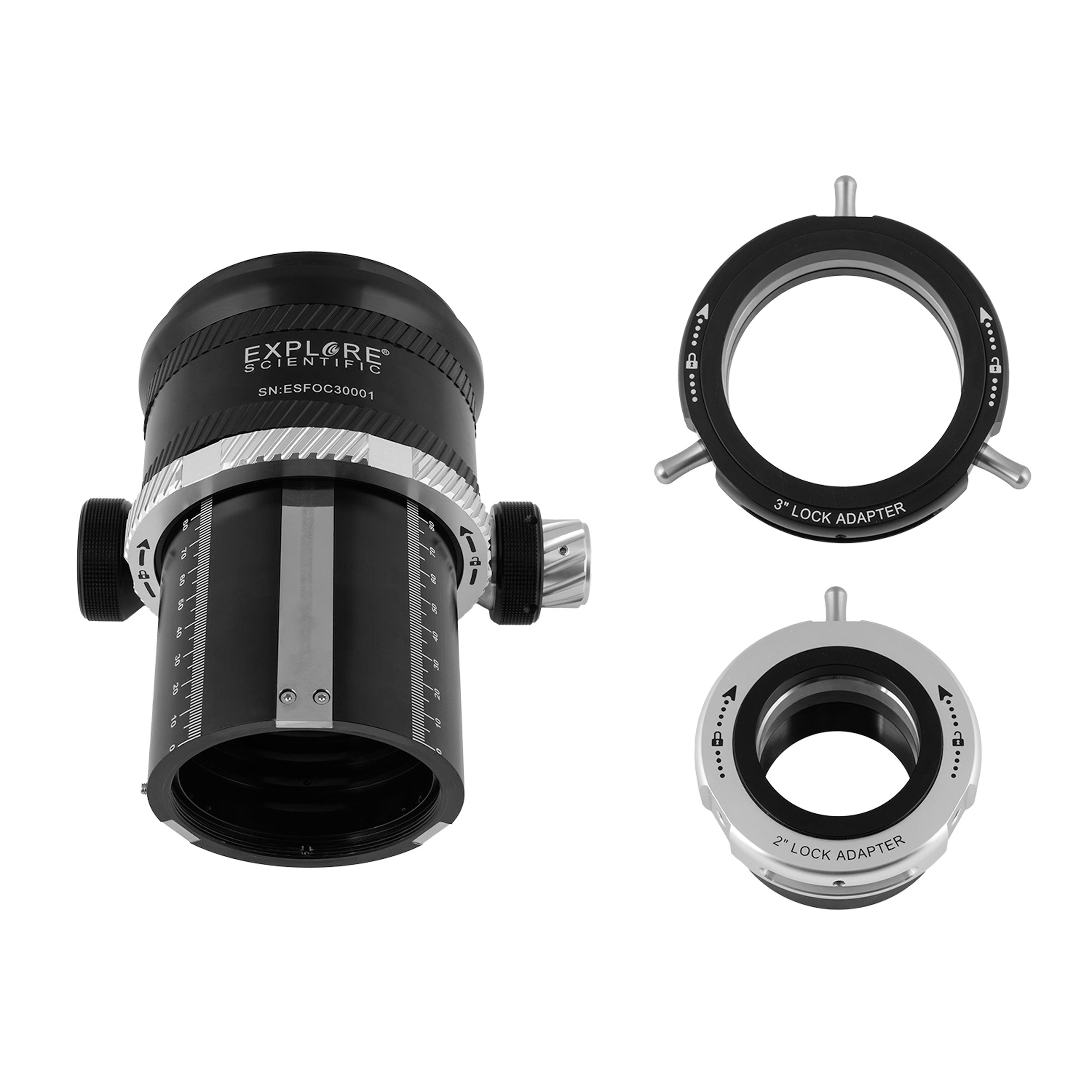

• 3-inch to 2-inch twist-lock adapter included

Optical and Mechanical Design

A self-centering compression mechanism spreads its grip evenly around the accessory barrel rather than pushing from one side, which keeps a camera square to the optical axis — the difference shows as consistent star shapes across the frame instead of one soft corner. The 3-inch clear aperture matters for large sensors: a narrower draw tube vignettes the corners of a full-frame chip regardless of how good the objective is. Fourteen baffles line that clear path to keep scattered light out of the image.

Recommended Uses

• Replacing the stock focuser on a 120 mm or larger refractor carrying a full imaging train
• Full-frame and large-format astrophotography where a 3-inch clear path prevents corner vignetting
• Remote and automated imaging with an electric focuser fitted
• Visual observing with heavy 2-inch eyepieces

Compatibility and Accessory Notes

Explore Scientific specifies this focuser for their refractors 120 mm and larger, and offers custom back cells on request for other brands of refractor 120 mm and larger. Two notes from the manufacturer worth reading before ordering: the FPL53-165CF telescopes require a new back cell adapter, and the TED15208CF does not — the focuser fits its back cell directly. If your telescope is another brand, contact us with the model and we will confirm what back cell you need before anything ships.

Good to Know Before You Order

Back cell fit is the thing to settle first, and it is a one-line question we are glad to answer — tell us your telescope model and we will tell you exactly what is required. Explore Scientific lists two dedicated back-cell versions of this focuser for the FCD100-127-CF and the white-tube ED127; those are separate part numbers and we are confirming their details with the manufacturer. The published weight of 5.7 lb includes the supplied 3-inch to 2-inch adapter.

Frequently Asked Questions

Is it difficult to fit? On a telescope with a matching back cell it is a straightforward swap with hand tools. The work is in confirming the back cell beforehand, not in the installation.

Will it hold my camera and filter wheel? A 17 lb rating covers essentially any amateur imaging train, including a large cooled camera with a filter wheel and off-axis guider.

Can I motorise it? Yes — Explore Scientific lists it as compatible with electric focusers, so it suits automated focus routines and remote operation.

Does it work with 2-inch accessories? Yes. The 3-inch to 2-inch twist-lock adapter is included in the box.

Bottom Line

A 3-inch focuser with a 17 lb capacity, 9:1 fine focus and a fully baffled clear aperture — the part that stops a good large refractor being limited by its focuser. Send us your telescope model and we will confirm the back cell you need.
