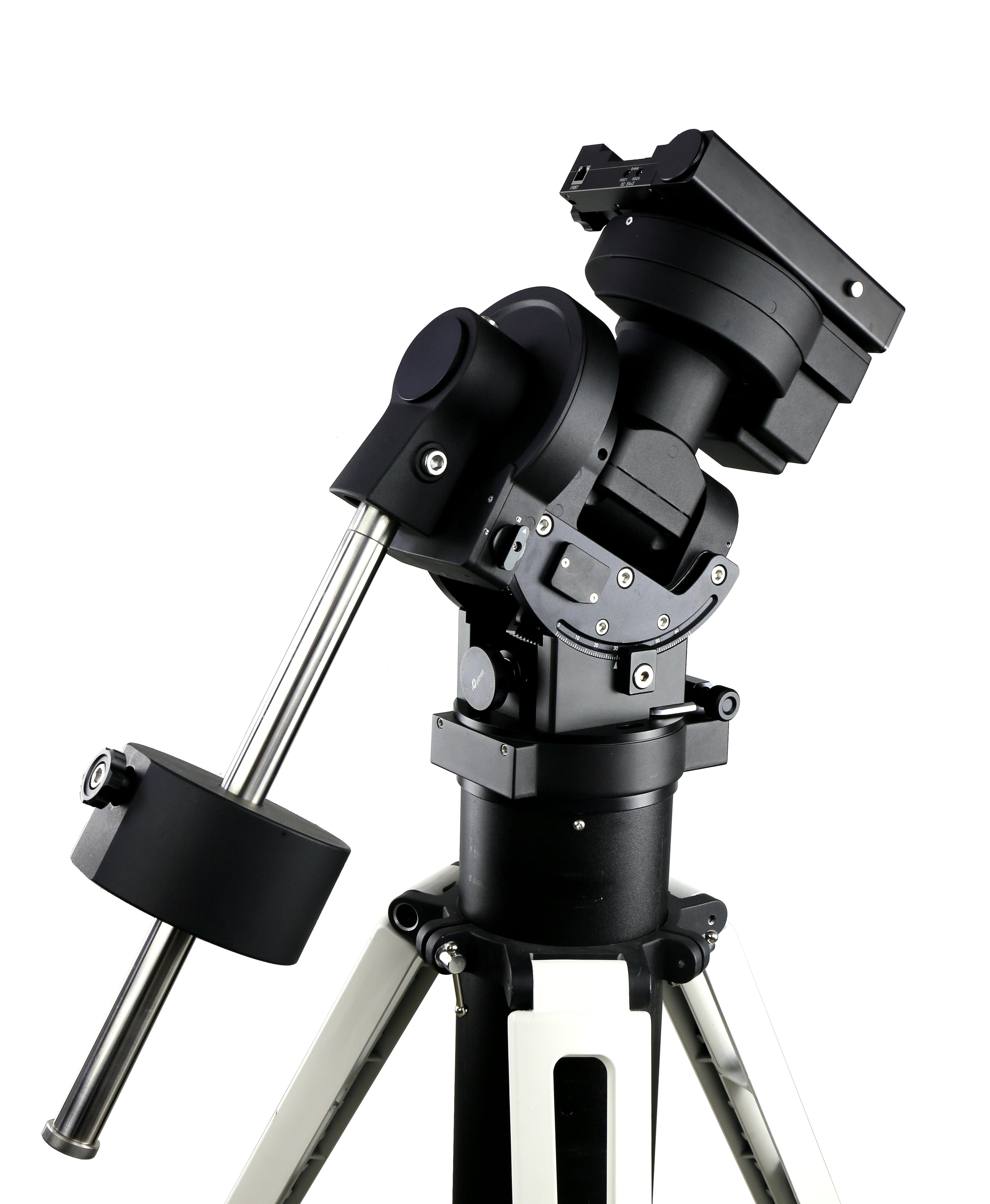

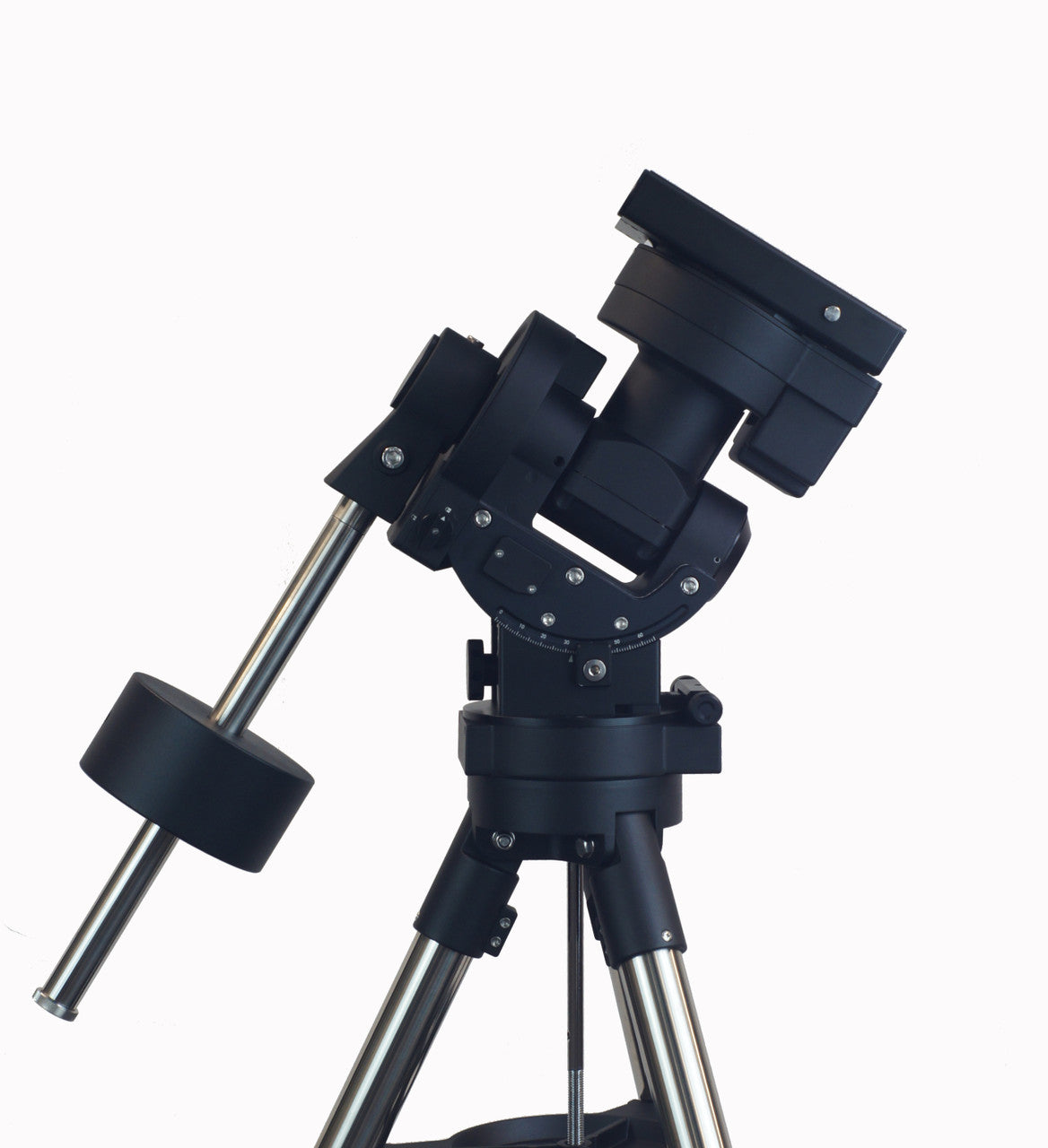

Name: CEM70EC iPolar and iGuider
Brand: iOptron
SKU: C704A0
Price: 6932.99 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Description
Specifications

Following the success of the iOptron CEM60 centre balanced equatorial mount, iOptron introduces two medium payload centre balanced mounts. The CEM70 and the revolutionary CEM70G, the new standard bearers for EQ mounts in the 70lbs payload segment. Both models are packed with advanced featurs howedver is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting an a more portable imaging setup.

Retaining the inherent properties of the centre balanced design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. Precise GOTO point and accurate tracking indicatd the CEM70 is a solid performer for observers and imagers alike.

Innovative features such as the internal iPolar electronic polar scope, easy lock drive gear engagement, that can be used with gloves, and advanced cable management system, iPolar, guider camera. assure users the CEM70 and 70G are designed with their needs in mind. On top of the built-in guiding system, the CEM70G also comes standard with WiFi, and USB 3.0 support. (CEM70 is USB2.0 only and optional wifi) A hard case is included with each mount.

Features

A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
Ideal for both visual observation and astrophotography
Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
Easy to use and reliable gear clutches
Precision altitude and azimuth adjustment.
Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
iPolar^TM electronic polar scope
Go2Nova® 8407+ V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
High precision tracking with low periodic error (PE <0.3 arcsec rms)
realtime periodic error correction (RPEC)
32-channel Global Positioning System (GPS)
USB connection
Integrated ST-4 autoguiding port
Advanced cable management system with more choices
Spring loaded 8" Vixen/Losmandy dual saddle
NEW iOptron subsidized TheSky Imaging Edition

Mount	Center-balanced Equatorial Mount (CEM)
Payload*	31.8kg (70 lbs), exclude counterweight
Mount weight	13.6kg (30 lbs)
Payload/Mount weight ratio	2.33
Material	All metal
Latitude adjustment range	0°~ 65°
Azimuth adjustment range	± 4°
PE (by encoder)**	< 0.3 arcsec rms**
Worm period	348 sec
PEC	Real-time PEC(RPEC)
Right Ascension worm wheel	F151mm, 248 teeth
Declination worm wheel	F151mm, 248 teeth
Worm	F21.2mm
Right Ascension axle	F55mm, steel
Declination axle	F55mm, steel
Right Ascension bearings	F80mm
Declination bearings	F80mm
Counterweight shaft	F28x 415 mm (SS, 1.9kg)
Counterweight	9.5 kg (20 lbs) x1
Mount base size	F152mm
Motor drive	Precision stepper motor w/128 micro-step
Resolution	0.07 arc seconds
Slew speed	3.75°/sec (900x) max.
Hand Controller	Go2Nova® 8407+, 8 line 21 character LCD
Power requirement	DC 12V, 5A (5.5mm/2.5mm plug)
Power consumption	0.6A(Tracking),0.8A(GOTO)
Polar Scope	Internal electronic polar scope, iPolar
Meridian treatment	Stop (0-10° pass), auto flip
Zero position	Automatic zero search
Park position	Horizontal, vertical, current, alt/azi input
Level indicator	YES
Dovetail saddle	8" Losmandy D & Vixen
GPS	YES
Guiding port	ST-4
Communication port	USB2.0

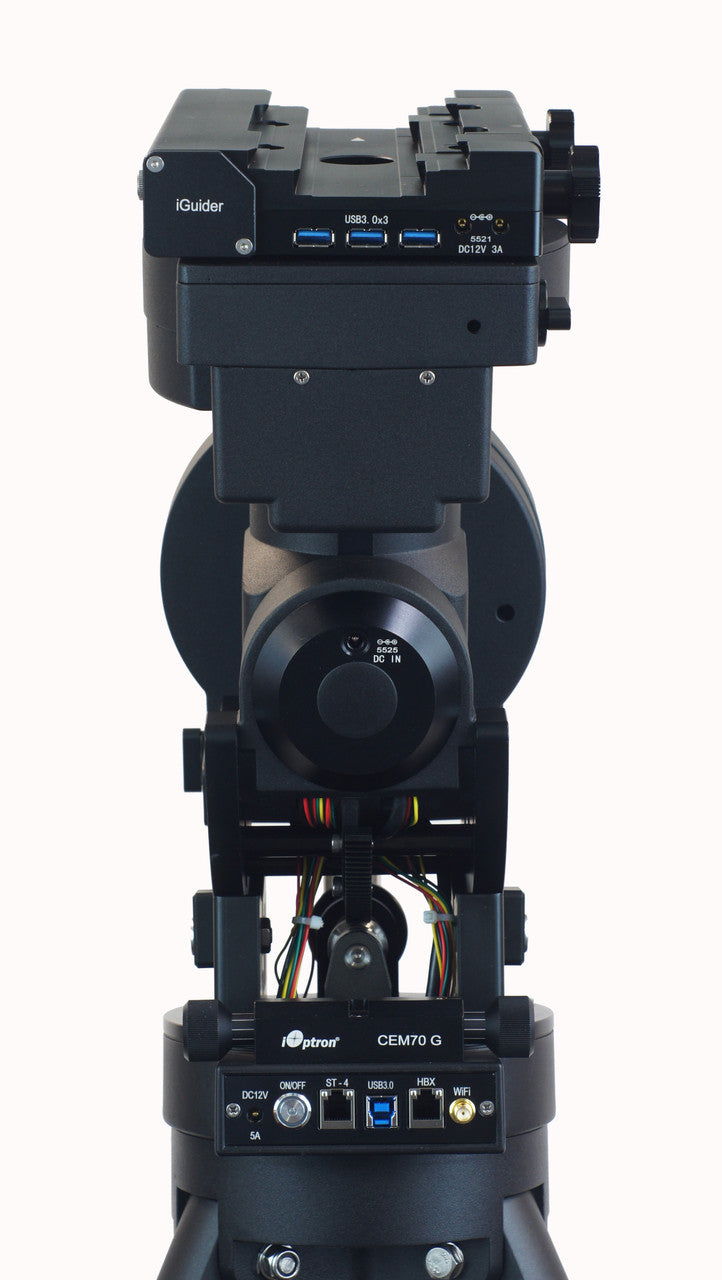

Cable management	2xDC12V (3A), 3xUSB2.0, 1xDC in/1xDC out, iPort. 1X USB input for mount and USB hub
Operation temperature range	-10°C ~ +40°C
Hard case	Yes

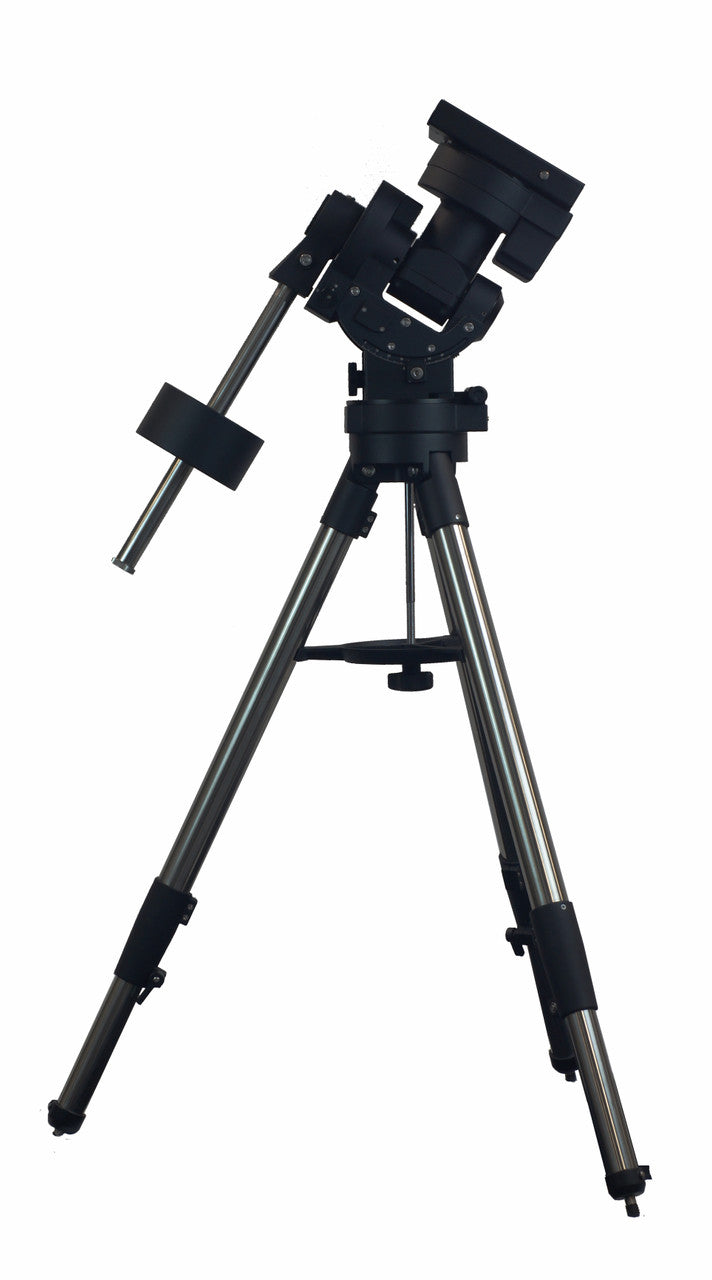

Pier/Tripod	Optional LiteRoc tripod or pier
Warranty	Two year limited

* OTA size and length dependent.
** Measured with encoder on the bench, 348 seconds

CEM70EC iPolar and iGuider
