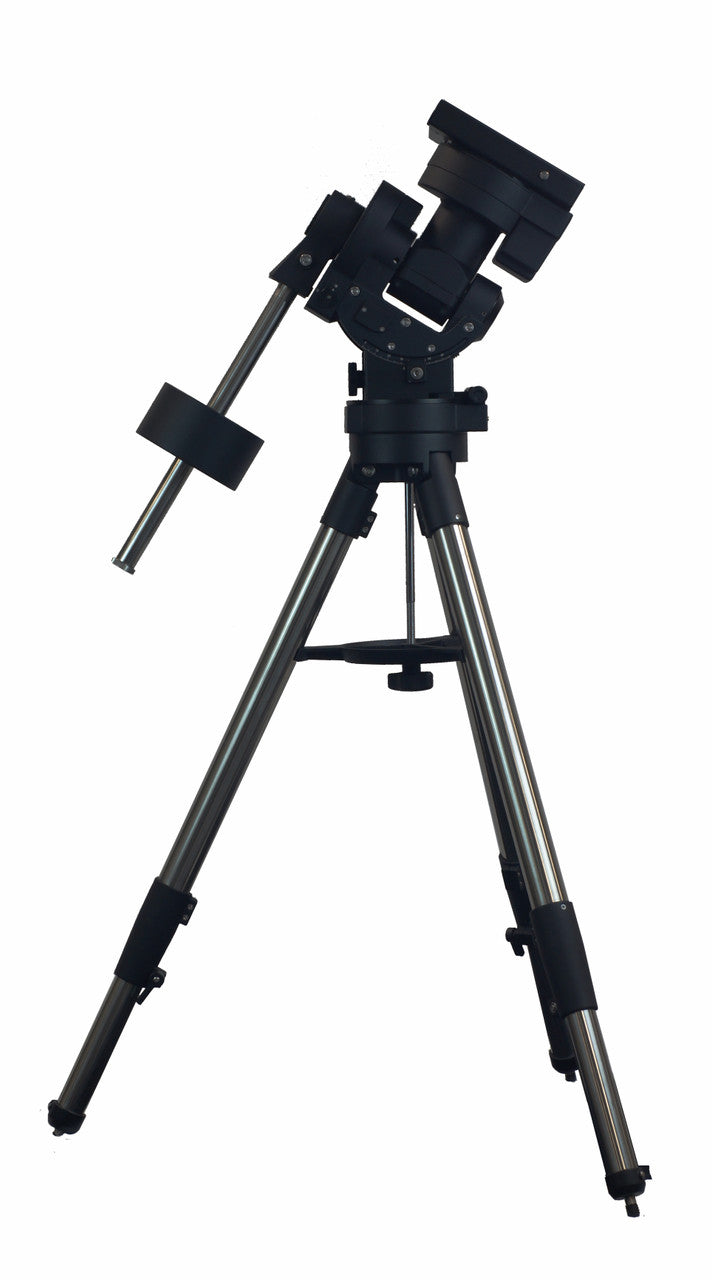

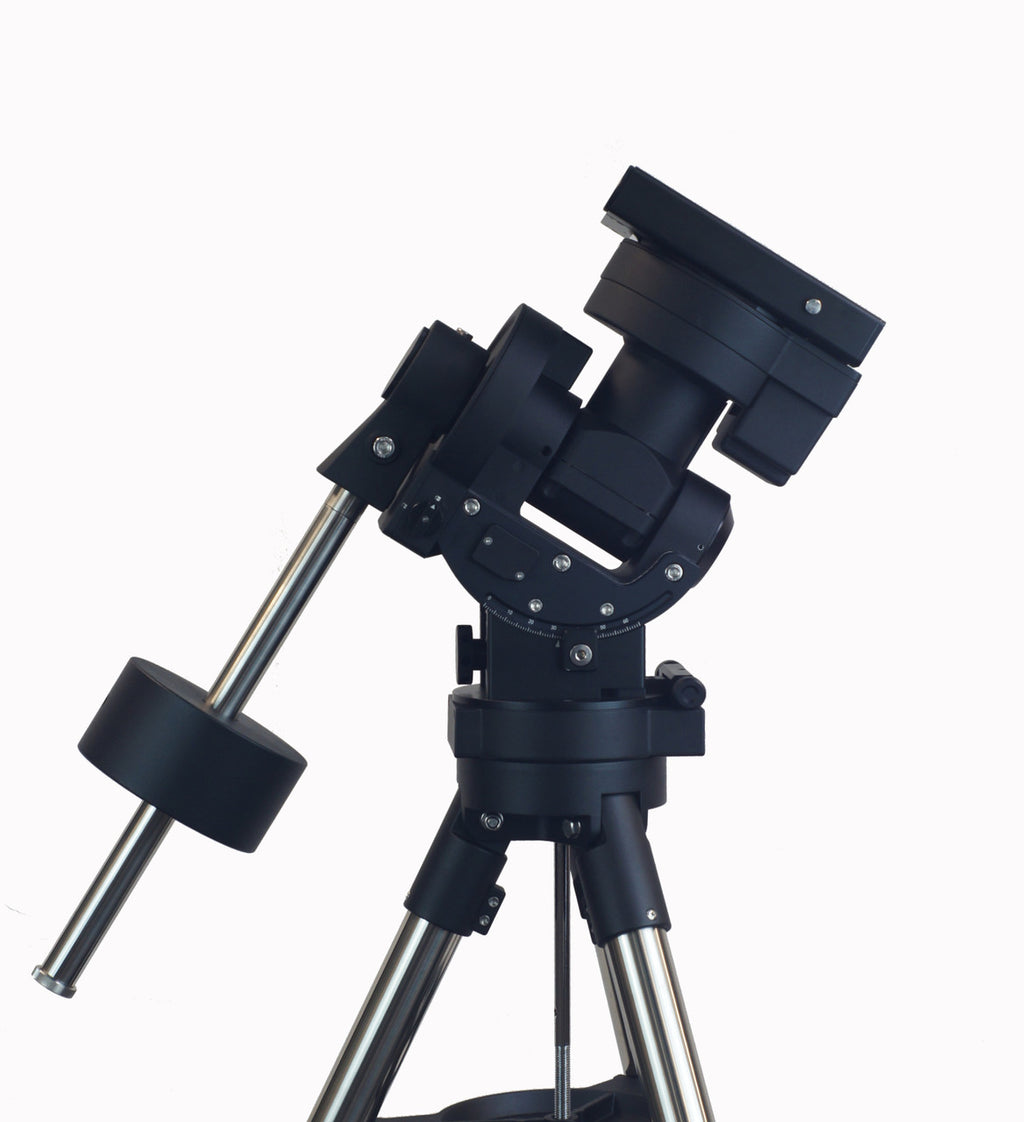

Following up on the success of the iOptron CEM60 center balance equatorial mount, we at iOptron are excited to introduce two new medium payload center balance mounts. The CEM70 and CEM70G are new standard bearers for equatorial mounts in the 70lb payload segment. Both models are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.
Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking (PE <±3.5 arcsec) the CEM70 is a solid performer for observers and imagers alike.

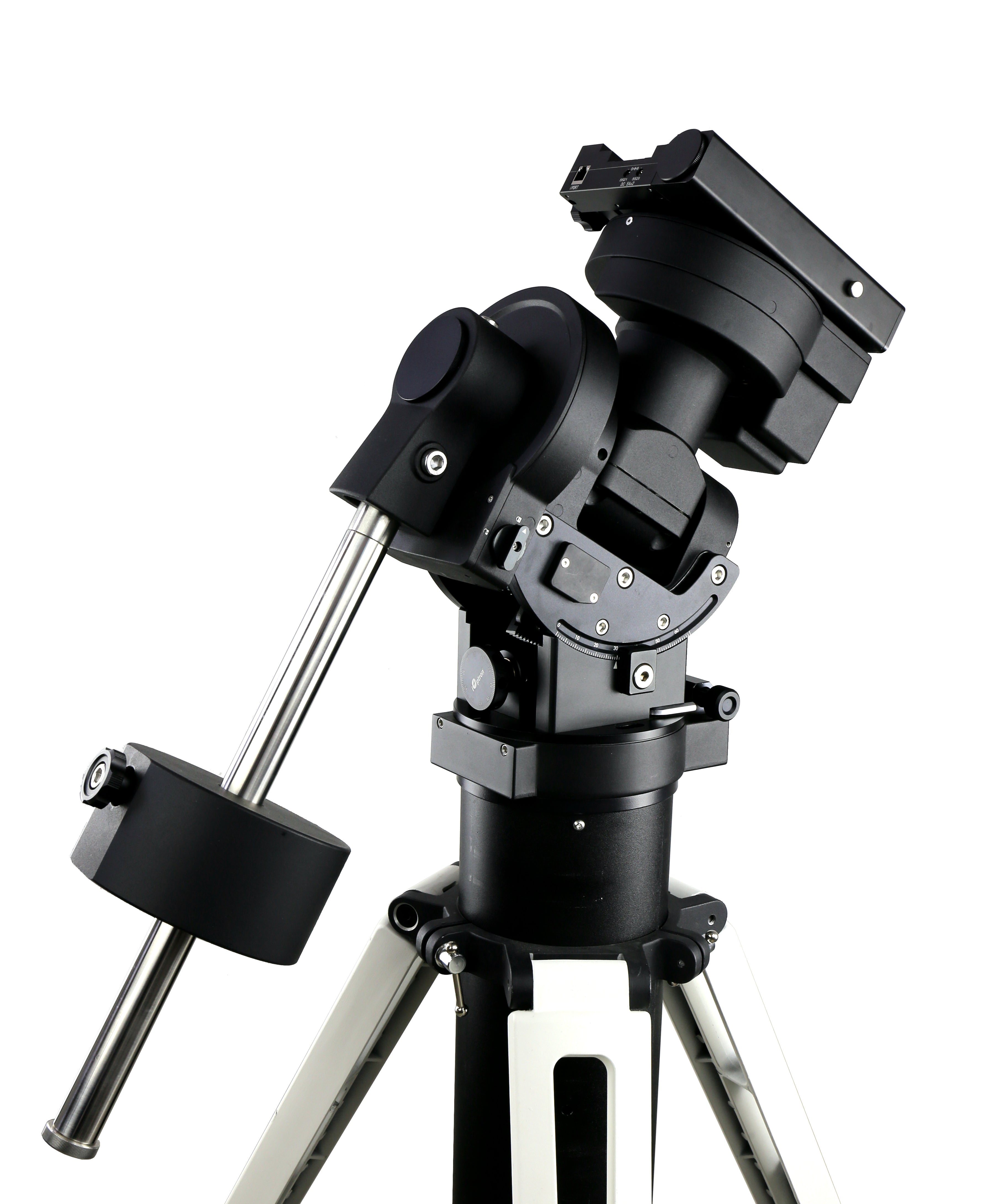

Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera, and cumulatively assure users the CEM70 and 70G designed with their needs in mind.
| Mount | Center-balanced Equatorial Mount (CEM) |
| Payload* | 31.8kg (70 lbs), exclude counterweight |
| Mount weight | 13.6kg (30 lbs) |
| Payload/Mount weight ratio | 2.33 |
| Material | All metal |
| Latitude adjustment range | 0°~ 65° |
| Azimuth adjustment range | ± 4° |
| PE (by encoder)** | < ±3.5 arcsec |
| Worm period | 348 sec |
| PEC | PPEC |
| Right Ascension worm wheel | F151mm, 248 teeth |
| Declination worm wheel | F151mm, 248 teeth |
| Worm | F21.2mm |
| Right Ascension axle | F55mm, steel |
| Declination axle | F55mm, steel |
| Right Ascension bearings | F80mm |
| Declination bearings | F80mm |
| Counterweight shaft | F28x 415 mm (SS, 1.9kg) |
| Counterweight | 9.5 kg (20 lbs) x1 |
| Mount base size | F152mm |
| Motor drive | Precision stepper motor w/128 micro-step |
| Resolution | 0.07 arc seconds |
| Slew speed | 3.75°/sec (900x) max. |
| Hand Controller | Go2Nova® 8407+, 8 line 21 character LCD |
| Power requirement*** | DC 12V, 5A (5.5mm/2.5mm plug) |
| Power consumption | 0.6A(Tracking),0.8A(GOTO) |
| Polar Scope | Internal electronic polar scope, iPolar |
| Meridian treatment | Stop (0-10° pass), auto flip |
| Zero position | Automatic zero search |
| Park position | Horizontal, vertical, current, alt/azi input |
| Level indicator | YES |
| Dovetail saddle | 8" Losmandy D & Vixen |
| GPS | YES |
| Guiding port | ST-4 |
| Communication port | USB2.0 |
| Cable management | 2xDC12V (3A), 3xUSB2.0, 1xDC in/1xDC out, iPort. 1X USB input for mount and USB hub |
| Operation temperature range | -10°C ~ +40°C |
| Hard case | YES |
| Pier/Tripod | Optional LiteRoc tripod (8023ACC) or pier |
| Warranty | Two year limited |
** Measured with encoder on the bench, 348 seconds
*** Included AC adapter is for indoor use only
