Celestron StarSense Explorer DX 102AZ Smartphone App-enabled Refractor Telescope

Product Overview

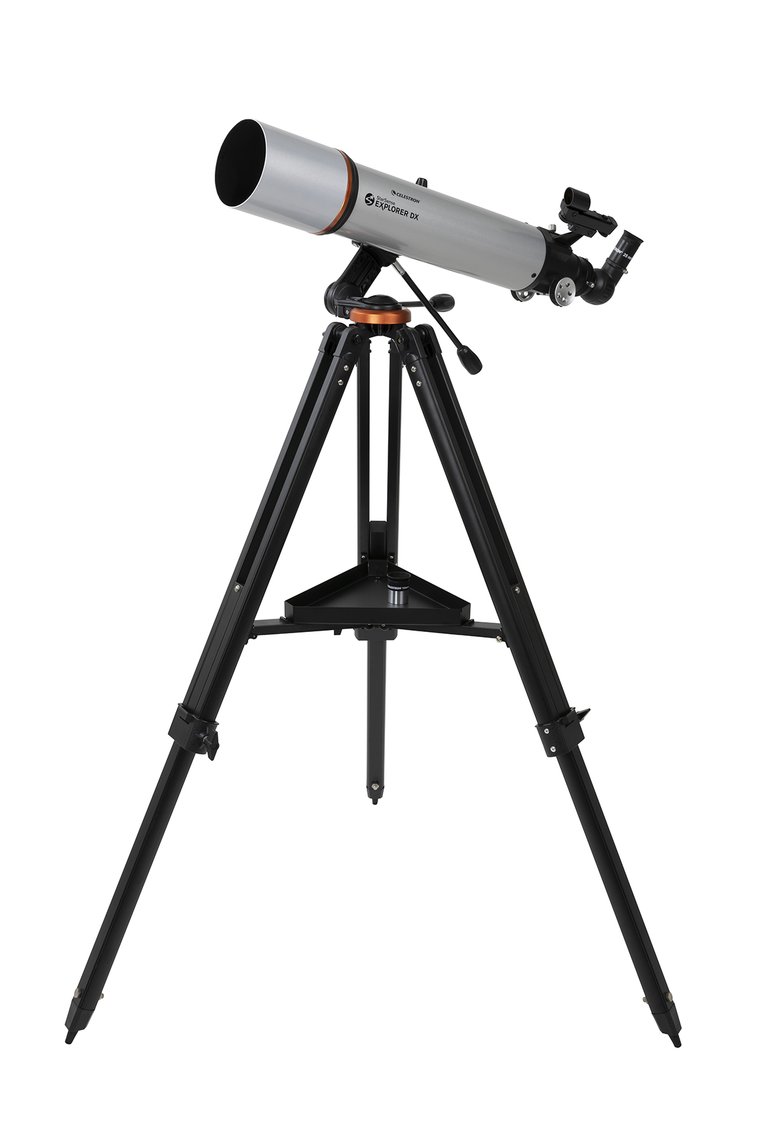

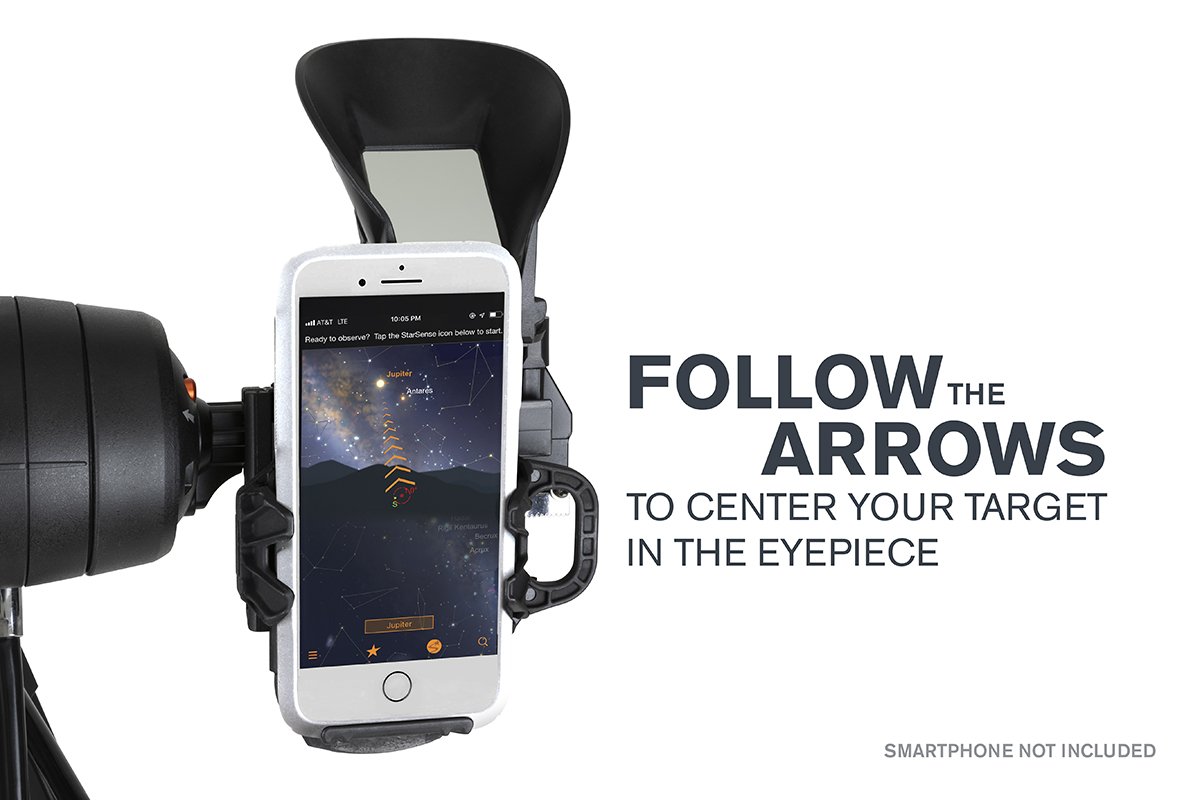

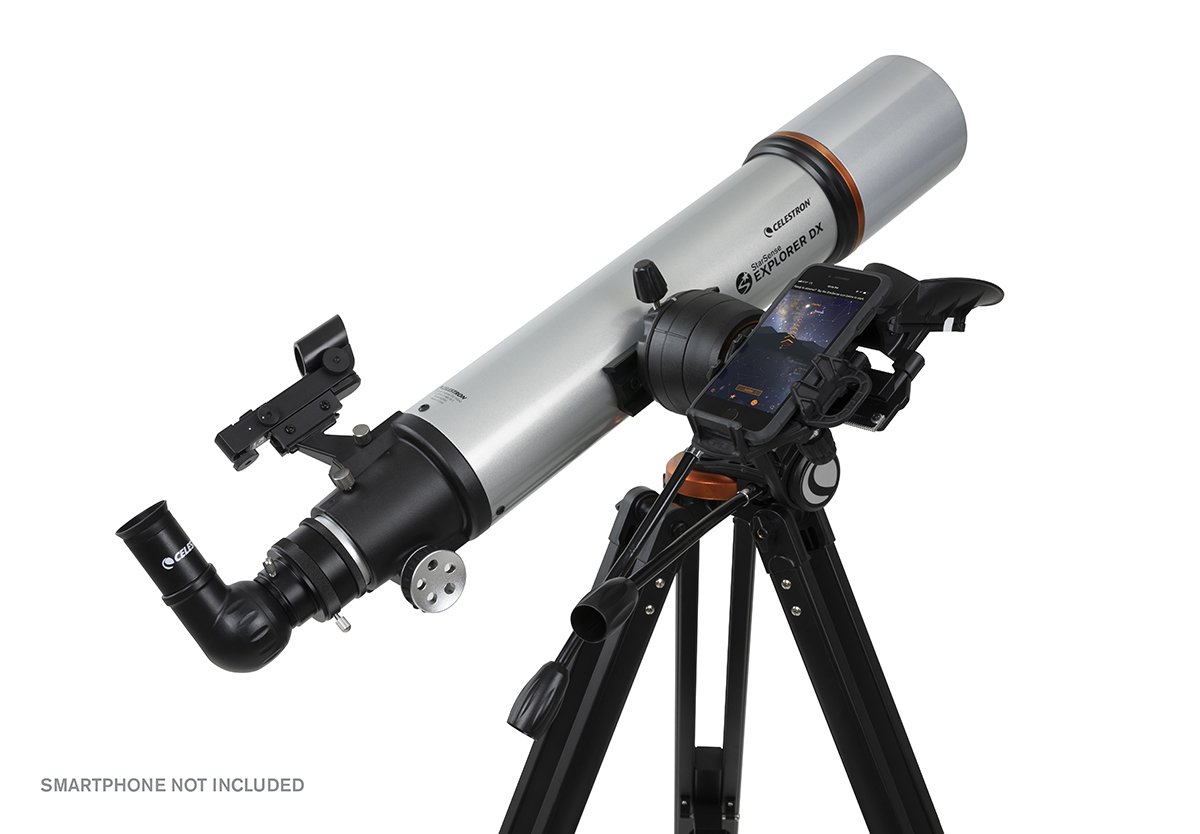

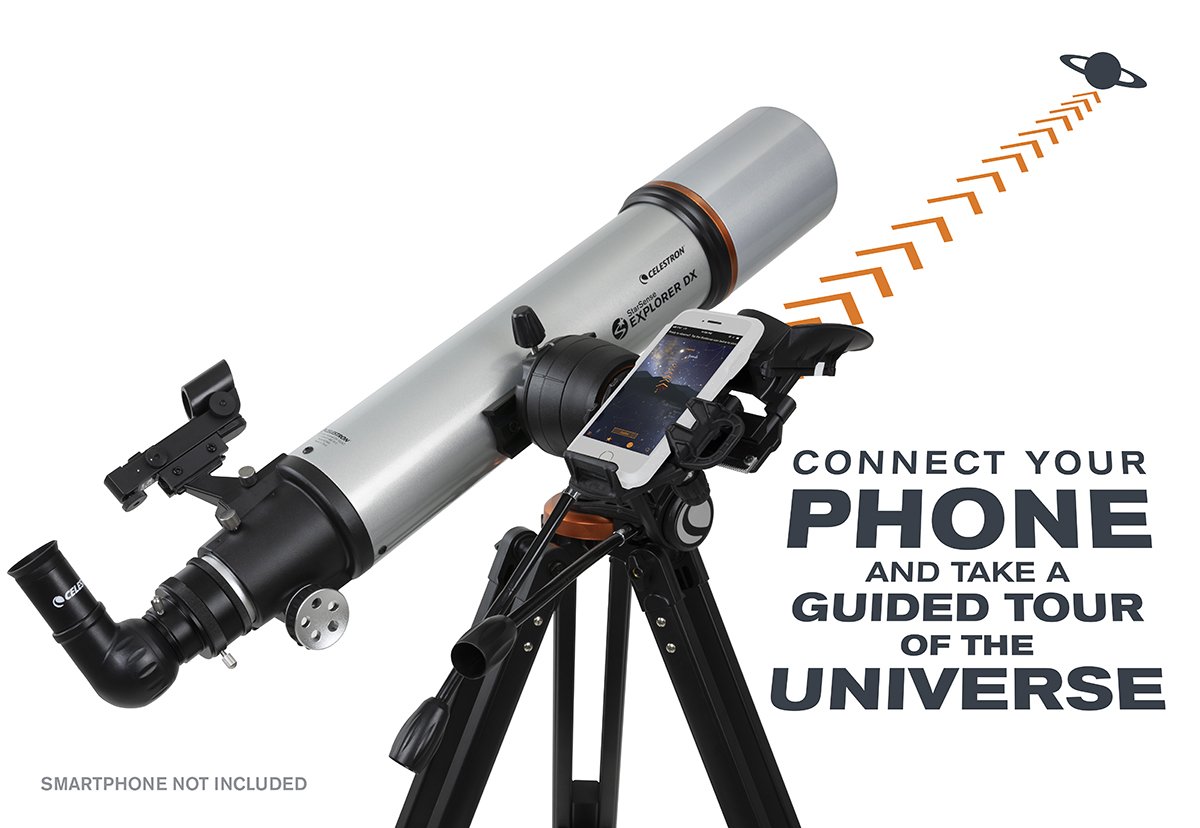

The Celestron StarSense Explorer DX 102AZ is a 102 mm f/6.5 refractor on a manual altazimuth mount and aluminium tripod, paired with a smartphone dock and Celestron's StarSense Explorer app. The app reads the actual star field through your phone's camera and matches it against its own catalogue to work out where the tube is pointed, then shows on-screen arrows that walk you to a target and turn the bullseye green once it is centred in the eyepiece. With 660 mm of focal length, fully XLT-coated optics and an erect-image diagonal, it is the refractor in the range — nothing to collimate, and a correctly-oriented view that works by day as well as at night.

Who It's For

This is a good match if you want a telescope that needs no optical maintenance and is ready the moment you carry it out, and you would rather spend the evening observing than learning to star-hop first. A refractor suits an observer who values crisp lunar and planetary views, double stars and the brighter deep-sky objects, and who would rather not think about mirror alignment. The erect-image diagonal makes it a genuinely dual-purpose instrument, so it earns its keep on landscapes and wildlife between clear nights.

Key Features & Design

• 102 mm aperture at f/6.5: 660 mm focal length, with a highest useful magnification of 240x, a lowest useful magnification of 15x and a limiting stellar magnitude of 12.5.
• Fully XLT-coated glass optics: Celestron's premium coating package applied throughout the light path.
• Two eyepieces supplied: a 25mm at 26x and a 10mm at 66x, so there is a wide finding view and a closer look in the box.
• Erect-image 90° diagonal (1.25"): gives a right-way-up, right-way-round view, which suits terrestrial daytime use as well as astronomy.

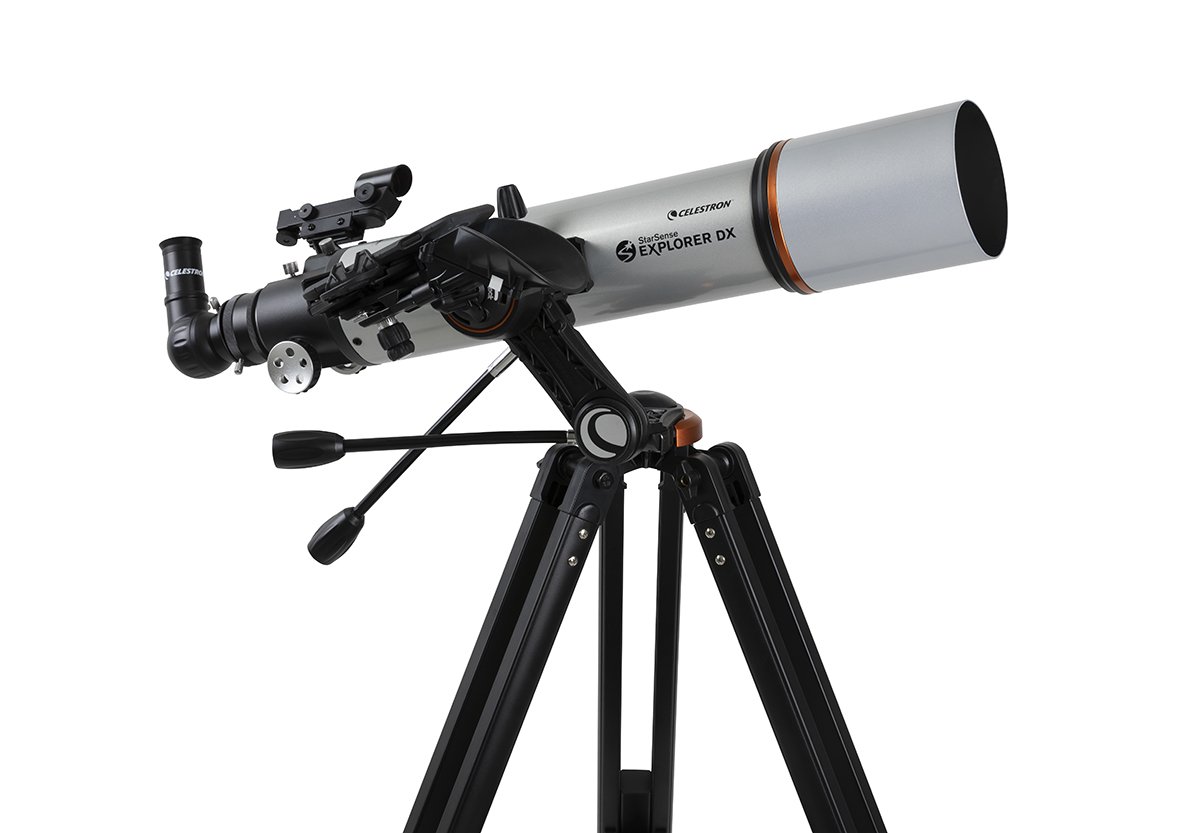

• Dual-axis geared slow-motion controls: fine adjustment on both axes, which is what makes following an object at 240x practical on a manual mount.
• Nothing to collimate: a refractor's objective is fixed at the factory, so there is no alignment routine before or during a session.
• Aluminium tripod to 1244.6 mm (49") with an accessory tray, supplied preassembled with the mount.
• 14.2 lb (6.44 kg) complete: a 5 lb optical tube on a light, full-height tripod.

Optical / Mechanical Design

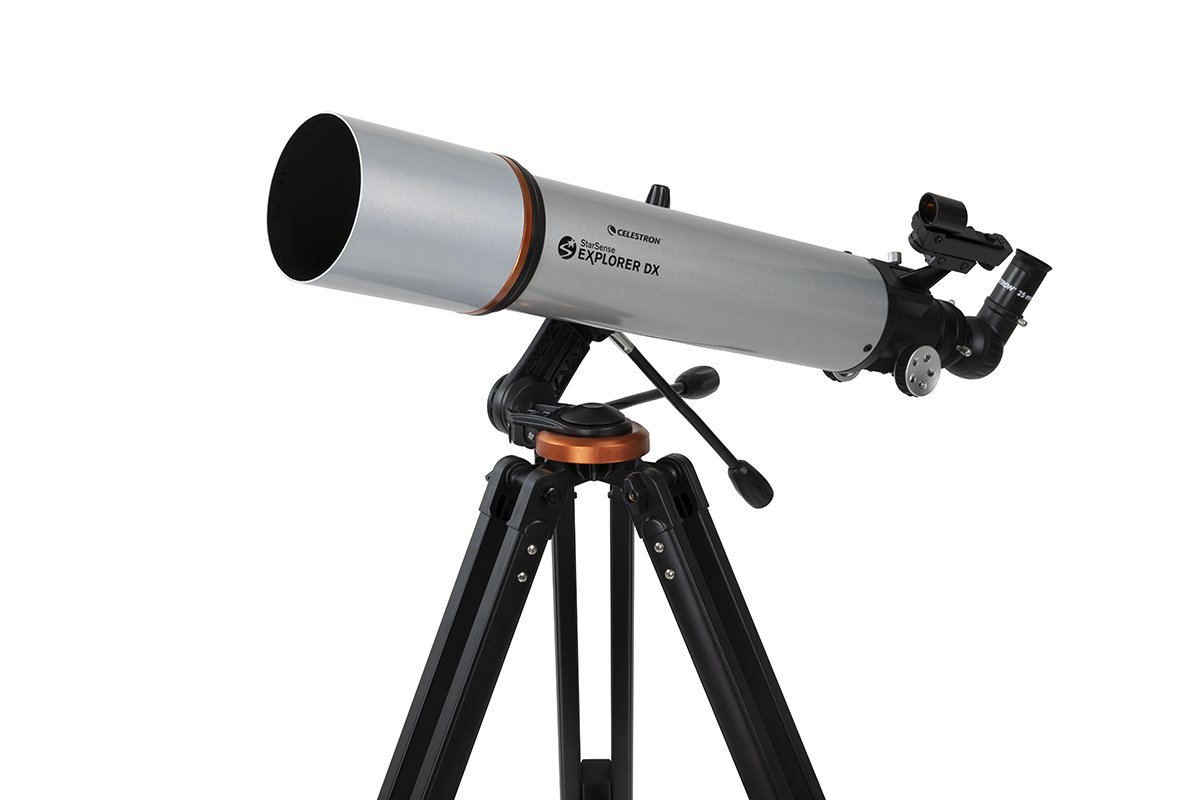

The optical tube is a 102 mm refractor at f/6.5 in an aluminium tube measuring 812.8 mm long by 118 mm in diameter (32" x 4.64"). Celestron publishes its resolving power as 1.37 arcseconds by the Rayleigh criterion and 1.14 arcseconds by the Dawes limit, with 212 times the light-gathering power of the unaided eye.

The practical difference between this and the reflectors in the range is maintenance and contrast character. A refractor has no secondary mirror and no central obstruction, which gives high-contrast lunar and planetary images for the aperture, and its optics stay aligned permanently. The trade is aperture for money — at 102 mm it gathers less light than the 130 mm reflector at a similar price. f/6.5 across 660 mm keeps the tube manageable at 32 inches while leaving room for useful magnification with a short eyepiece.

Recommended Uses

Lunar observing in detail and planetary observing at up to 240x, where a refractor's contrast shows. Double-star work near the 1.14 arcsecond Dawes limit. Open clusters, the brighter nebulae and the Andromeda Galaxy at a 12.5 limiting magnitude. Guided touring with the app's list of currently visible objects and its audio descriptions. Daytime terrestrial viewing — landscapes, wildlife, distant detail — using the supplied erect-image diagonal. Outreach and family observing, where the app lets anyone find something themselves.

Compatibility and Accessory Notes

Eyepieces: the supplied erect-image diagonal takes 1.25" eyepieces. The 25mm and 10mm cover 26x and 66x; a 6mm or a zoom is the usual next addition for planetary work, with a 240x ceiling above.

Solar: we stock the Celestron EclipSmart Solar Filter for the StarSense Explorer DX 102AZ, which is made for this aperture and fits over the front of the tube.

Smartphone: the StarSense Explorer app runs on Android 12 and later and on iOS 18 and newer, including iPhone XR and newer. Celestron maintains the full device list at starsenseexplorer.simcur.com.

Mount: the tube ships on its own manual altazimuth mount and tripod, preassembled. It is a visual mount with no tracking drive and no provision for adding one.

If you are unsure whether your phone will run the app, send us the model and we will check it against Celestron's list before you order.

Good to Know Before You Order

The app needs real starlight to work. It cannot orient itself in daylight and wants roughly an hour after sunset before there is enough star detail to match on. Cloud cover, haze, a bright Moon and heavy light pollution all reduce what it can lock onto. The telescope itself works by day; the app's sky-matching does not.

It shows tonight's sky only. There is no date or time control in the app, so it plans the session you are about to have rather than one next month.

Tracking is manual. Objects drift across the field as the Earth turns, and the dual-axis slow-motion controls are how you follow them — a turn of a knob rather than nudging the tube.

102 mm sets the deep-sky reach. At a 12.5 limiting magnitude, galaxies beyond the brightest few are faint. This aperture rewards the Moon, the planets, double stars and clusters. If deep-sky is your main interest, the DX 130AZ reflector gathers 345x the unaided eye against this telescope's 212x — tell us what you want to observe and we will tell you which fits.

Solar observing needs a purpose-made filter — the EclipSmart filter linked above is the matched one.

Two-year Celestron warranty.

Frequently Asked Questions

Is it difficult to set up?

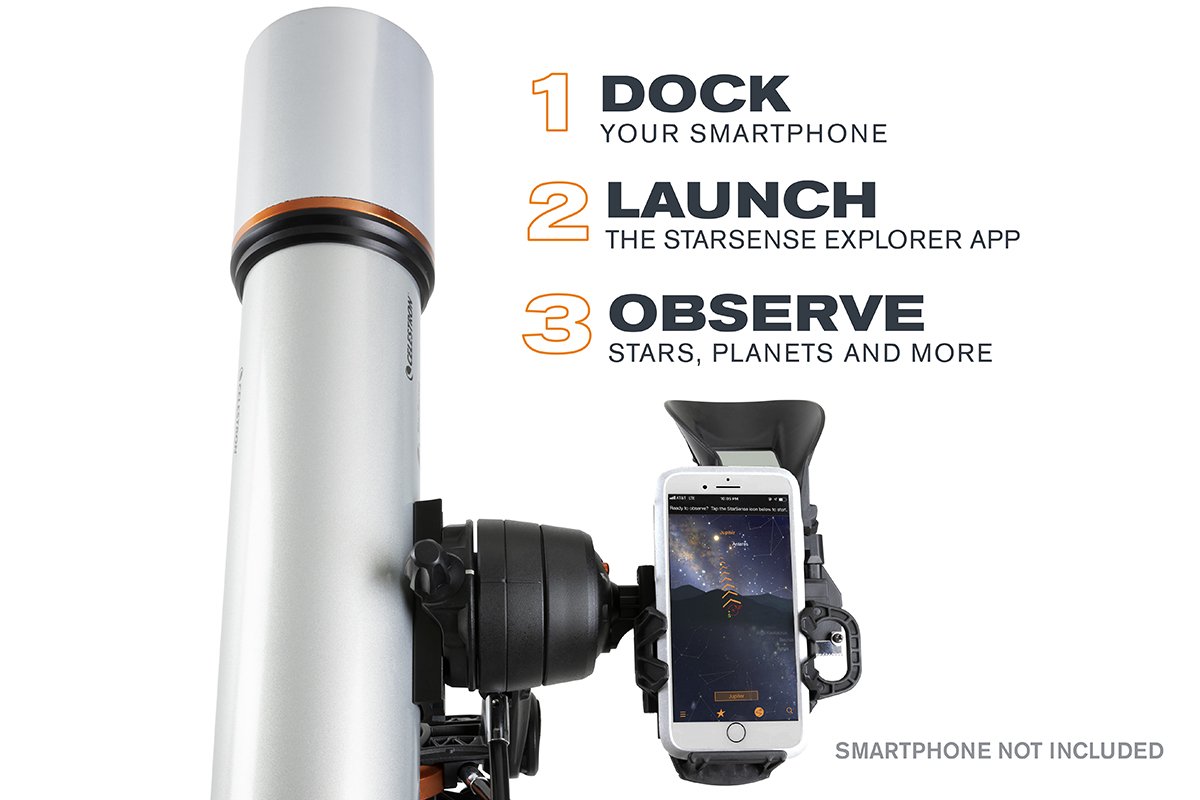

No, and less so than any reflector in this range. The mount and tripod arrive preassembled, the tube drops on, and there is no collimation to do — ever. Aligning the phone to the optics is a short procedure at the start of each session and the app's tutorials walk through it.

Can I use it during the day?

Yes. The supplied diagonal gives an erect, correctly-oriented image, which is what makes terrestrial viewing usable. The StarSense app's sky-matching only works at night, so daytime use is conventional aim-and-look.

Does the app need a subscription?

No. The app is unlocked for use with the telescope, with nothing further to pay.

Which phones does it work with?

Android 12 and later, and iOS 18 and newer including iPhone XR and newer.

Refractor or reflector — which should I pick?

The refractor gives sharper, higher-contrast views per inch of aperture, never needs collimating, and works by day. The reflector gives you more aperture for the same money, so it reaches fainter objects. At these two price points the DX 102AZ is the low-maintenance, high-contrast choice and the DX 130AZ is the light-gathering one.

Can I use it for astrophotography?

It is built as a visual instrument. The mount is manual with no tracking drive, so long-exposure imaging is outside what it does. Short-exposure lunar and planetary work held up to the eyepiece is practical.

Bottom Line

A 102 mm f/6.5 XLT-coated refractor with app-guided pointing, dual-axis slow-motion controls and an erect-image diagonal: 660 mm of focal length, a 240x useful ceiling, 14.2 lb complete, nothing to collimate, and a view that works by day as well as at night.
