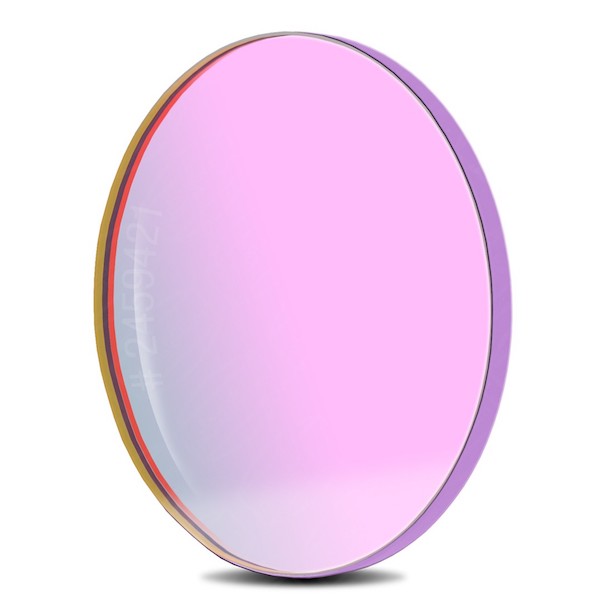

Baader UV-IR Cut L Filter - 2" Mounted
The Baader UV-IR Cut/L Filter is a must for all digital imaging with DSLR cameras, CCD cameras, and modified webcams. It removes the unwanted UV and IR wavelengths from your images by blocking UV below 400 nm and IR above 680 nm. This UV-IR Cut filter is 36mm unmounted
Due to their extremely high optical quality, these filters may be stacked and used far in front of the focal plane (necessary for imaging uses). Like the Baader Planetarium Contrast-Booster, the UV / IR Cut filter uses the very latest coating technology to deliver the finest filtration quality, and lifetime durability.
Baader UV / IR Cut Filter Features:
- Unmatched 98% average transmission
- Freedom from ghost images; very low reflection multi-coating, striae-free, and plane-parallel substrate
- Extremely sharp cutoff at 690 nm but leaves all the visible red, including the important 656 nm H-alpha emission line
- Sharp cutoff below 400 nm
- Eliminates violet halos around bright stars, more effectively than simpler Minus Violet photographic filters
- True optical quality glass substrate and coatings; don't spend all your money on quality telescope optics, only to place a lower grade filter in the light path
- Combine with any of the Baader filters to deliver the sharpest images possible
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2459421 |
| WEIGHT (KG) | 0.026 |

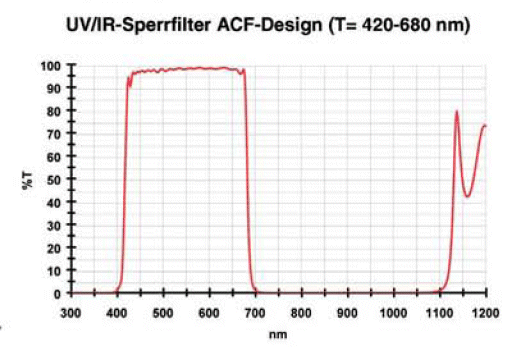

| TRANSMISSION RANGE | 420 – 680 nm |
| FILTER THICKNESS (WITHOUT CELL) | 2 mm |
| AR-COATING | dielectrically coated, planeoptically polished |
| FILTER SIZE | 36 mm |
| FILTER USAGE | IR-Cut, Luminance, UV-Cut |
| FILTER MOUNTED | Unmounted |
| TYPE OF FILTER | Bandpass |
| SINGLE OR SET? | Single Filter |
| FILTER SHAPE | round |
