Baader 2" OIII filter 8.5nm

Baader PlanetariumSKU: FOIIIN-2

Price:
Sale price$330.74 CAD
Stock:
On Backorder — ships when available
  • Description
  • Specifications

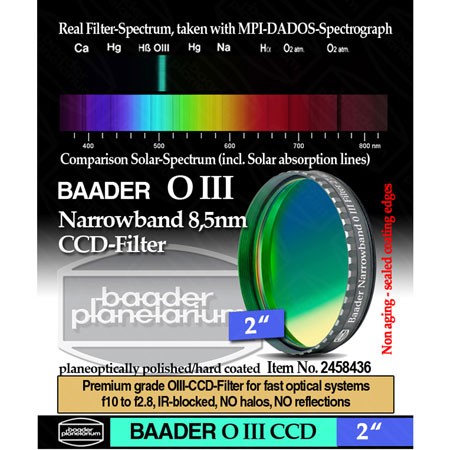

Baader 2" Narrowband 8.5 nm O-III CCD Filter

The Baader Planetarium Oxygen III Nebula Filter delivers the absolute highest contrast deep sky images of many diffuse and planetary nebula. Baader Planetarium's premium Narrowband CCD passfilters are a must-have when it comes to excellent photography with modern CCD cameras. Providing the shortest exposures possible, the ultra-narrow bandwidths have extremely high transmission while completely rejecting light pollution and blocking longer wavelengths.

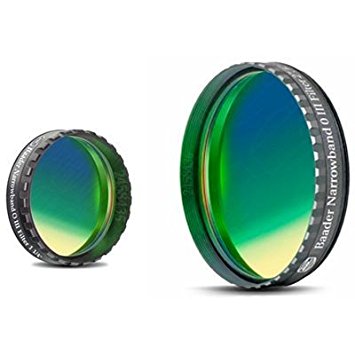

  • Baader Planetarium Narrowband O-III (8.5 nm) CCD-Filter, in a 2" threaded cell

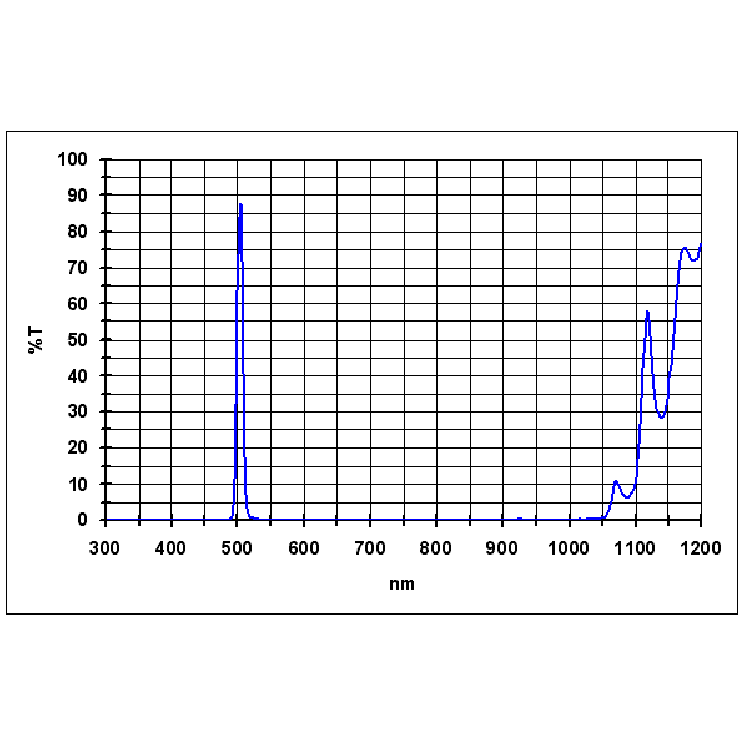

  • This filter transmits over 90% of light and at the same time completely rejects light pollution

  • Multi-layer dielectric coatings are plasma-assisted and ion beam-hardened using the latest technology

  • Baader Planetarium Narrowband O-III (8.5 nm) CCD Filters will never degrade from use or normal cleaning

Delivering a smooth and accurate 1/4 wave wavefront over the entire surface, each substrate is fine-optically-polished delivering exceptional performance. The special custom polishing operation Baader executes on all Narrowband passfilters makes the difference compared to standard commercially-made polished filter substrates. In the production process for Baader Narrowband CCD passfilters, consideration of eliminating annoying reflections present in other narrowband astro-filters was a key component. In order to succeed in assuring freedom from reflections, Baader's production process required careful design and testing of the coating stacks. This research work resulted in the fine, high-quality Narrowband 8.5 nm O-III CCD Filter offered here.

MANUFACTURERBaader Planetarium
SKU (#)2458436
WEIGHT (KG)0.0650
TRANSMISSION RANGEO-III
FILTER THICKNESS (WITHOUT CELL)2 mm
HBW (HALFBANDWIDTH)8.5nm
CWL (CENTRAL WAVELENGTH)502 nm
AR-COATINGdielectrically coated, planeoptically polished
FILTER SIZE2"
VISUAL OR IMAGING?imaging
FILTER USAGECCD, IR-Cut, O-III
FILTER MOUNTEDMounted (LPFC 6mm)
TYPE OF FILTERNarrowband
SINGLE OR SET?Single Filter
FILTER SHAPEround
