- Description
- Specifications
- 2 ", 23 ° Safety Herschel Prism, utilizing special Phantom Group® coatings for glare control. 2 ClickLock® eyepiece holder.
- Visual Version includes 2 filter ND 3.0, Solar-Continuum Filter 2 and Case #2452115
- There is no better and safer method for uncompromising sharp solar observation / photography in white light.
- A special heat absorbing ceramic element traps radiant heat similar to the space shuttle heat tiles - without heating the surrounding area too. The fully enclosed housing adds to the safety and prevents the risk of glare.

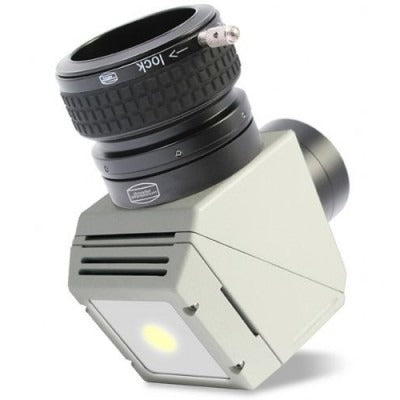

Baader 2" Cool-Ceramic Safety Herschel prism, Visual and photographic
There is no better way for uncompromising Solar Observation / Solar Photography in white light
ATTENTION
Every Solar Diagonal needs additional neutral density filters since the reflected energy of the first surface prism (4.6%) still is a factor of 1000 too large for the human eye. All Baader Solar Diagonals are delivered with a pre-mounted ND 3.0 Baader precision 2 light reduction filter. The photographic version includes other ND-Filters to achieve shorter exposure times. Use with care!

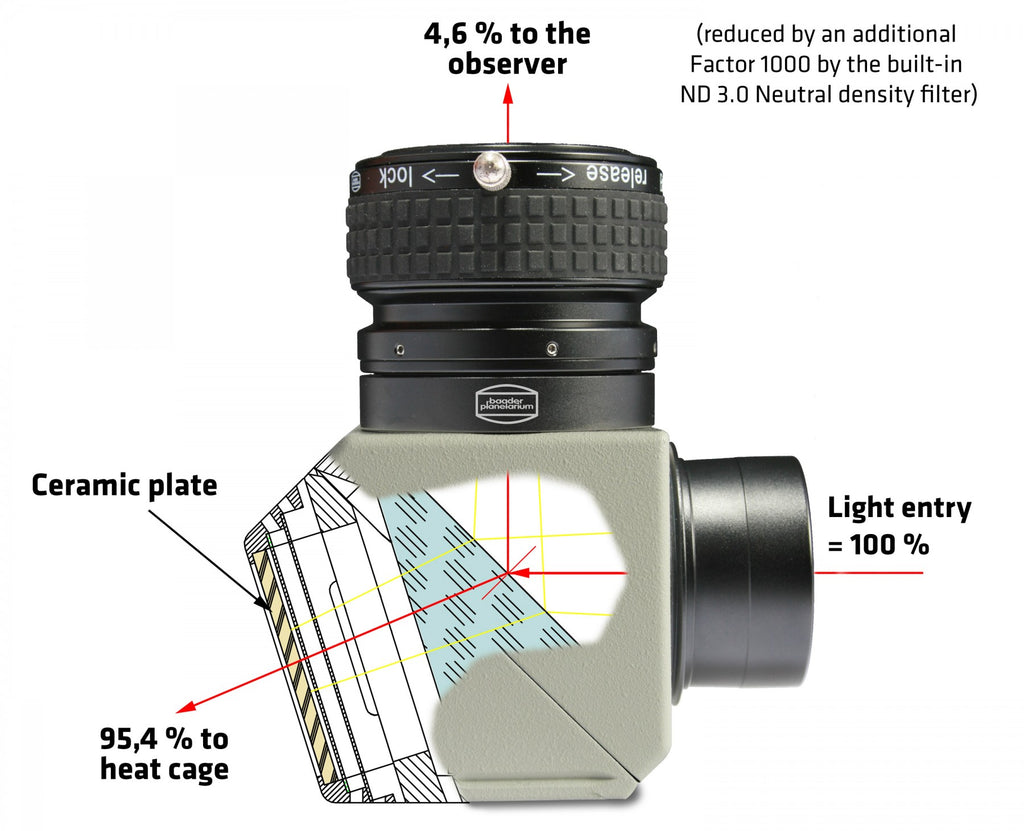

- Space-Technology: The exiting beam in the Baader Safety Herschel Wedge is fed into a heat cage separated from the prism body. Like on a Space Shuttle a ceramic tile forming the back end of the heat cage absorbs the radiant heat without overheating its surroundings. The closed prism body offers perfect safety for educational work.
- Solar Finder: The translucent ceramic tile acts as projection screen for the unfocused image of the Sun. Aiming the telescope at the Sun becomes very easy.
- ClickLock 2 Clamp: Securely clamp any eyepiece with only the push of a lever. Change eyepieces single handedly even in winter with heavy gloves.
- Filter Holder: A 2 /M48 threaded ring couples the 2 ClickLock-Clamp to the body of the Safety Herschel Wedge and acts as a filter holder for 2 filters.
- Solar Continuum Filter (10nm HBW/540nm CWL): Included as standard filter
- Optional recommended accessories:2 Baader Polarizer-Filter (# 2408342) mounts into any 2 eyepiece or 2 to 1.25 reducer for adjusting image brightness simply by rotating the eyepiece. Reducer ring 2 to T-2 (#1508035) allows to mount any DSLR-camera T-mount directly on top of the Solar Diagonal body
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2956500V |
| WEIGHT (KG) | 1.9500 |
| OPTICAL DESIGN | Herschel Prism |
| INNER CONNECTION (LENS SIDED) | Thread, M48, M55, 2" |
| OUTER CONNECTION (LENS SIDED) | Barrel, Dovetail ring, S58, 2" |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Clamp, 2" |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, Dovetail ring, M55, S58, 2" |
| REFLECTION SURFACE | First surface reflection |
| AR-COATING | Phantom Coating® Group |
| IMAGE ORIENTATION | Erect image, Mirror inverted |
| OPTICAL TUBE LENGTH (MM) | 114 |
| CLAMPING SYSTEM | ClickLock |
| DEFLECTION ANGLE | 23° |
| INNER DIAMETER / CLEAR APERTURE (MM) | 46,6 |
| SOLAR WAVELENGHT | Whitelight (integral light) |
