- Description
- Specifications

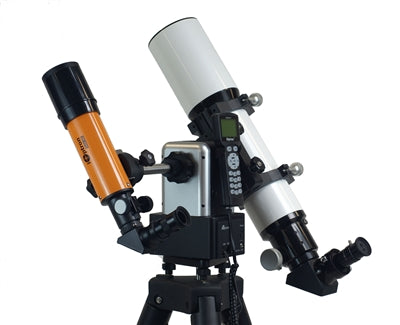

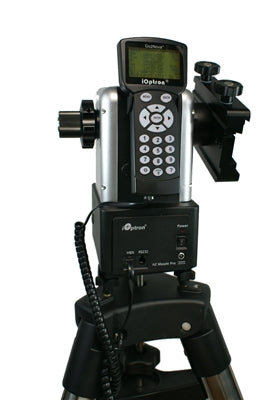

Introducing the AZ Mount Pro featuring "level and go" intuitive GOTO setup
We call it "level and go", the term used to describe iOptron new AZ Mount Pro's simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.
The new LiteRoc tripod resulting in a lighter tripod with stability similar to the old 2” one. It also has improved leg cuffs and sockets for further rigidity and redesigned leg lock levers securing the extensions position.
Features
- On board rechargeable lithium ion battery for up to 10 hours of use
- 33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
- Whisper quiet low-power consumption stepper motors
- Go2Nova® 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
- Zero backlash driver system
- Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
- Serial port for computer control and firmware upgrades
- Retractable counter weight shaft
- Position memorization at power interruption
- Die-cast aluminum body
- 3-Point easy level adjustment on tripod
- 6 inch dual dovetail saddle (Losmandy/Vixen styles)
- Stands a mere 10 inches tall (mount head only)
- Built-in 32-channel GPS receiver
- Automatic position and angular detection sensors
- Aluminum Hard Case
- 1X 10lb counterweight included
- 100 ~ 240V Battery Charger included
- LiteRoc 1.75 inch heavy duty stainless steel tripod included
- Two year limited warranty ( 90 day for battery)
- Optional pier/Tri-pier
- Mount AltAzimuth Mount
- Body Materials Die-cast Aluminum
- System GoToNova®
- Primary Payload 33 lb
- Secondary Payload 10 lb
- Mount Weight 13 lb (including CW shaft and battery)
- Gear Aluminum worm wheel/Brass worm gear
- Motor 128X microstep stepper motor
- Transmission Sychronous belt
- Resolution 0.1 arc second
- Tracking Automatic
- Tracking Rate celestial, solar, lunar and user defined
- Hand controller Go2Nova® 8407 with over 212,000 object database
- Slew Speed 1x, 2×,8×,16x, 64×,128x, 256×,512x and MAX(~10º/sec, 2400X)
- GPS 32-channel GPS
- Sensors Position and angular detection
- Level indicator Yes
- Dovetail Saddle 6" Losmandy/Vixen dual saddle
- Optional secondary Vixen saddle
- Counterweight 10 lb
- Battery Built-in rechargeable Li-ion battery (11.1V, 4.4AH)
- Battery Running Time 10 hour at 20ºC
- Battery Charger 100-240V AC input /12.6V DC 2000mA output (Included)
- Wireless Control Yes, full control via built-in WIFI adapter
- Firmware Upgrade Yes, via serial port
- Computer Control Yes. PC via ASCOM and Mac/Tablet/SmartPhone via WIFI
- Tripod LiteRoc 1.75" stainless steel tripod
- Warranty Two year limited warranty for mount
- 90 day limited for battery
