Askar SQA55 AF Kit

Askar SQA55 AF Kit — Electronic Focuser Adapter for the SQA55

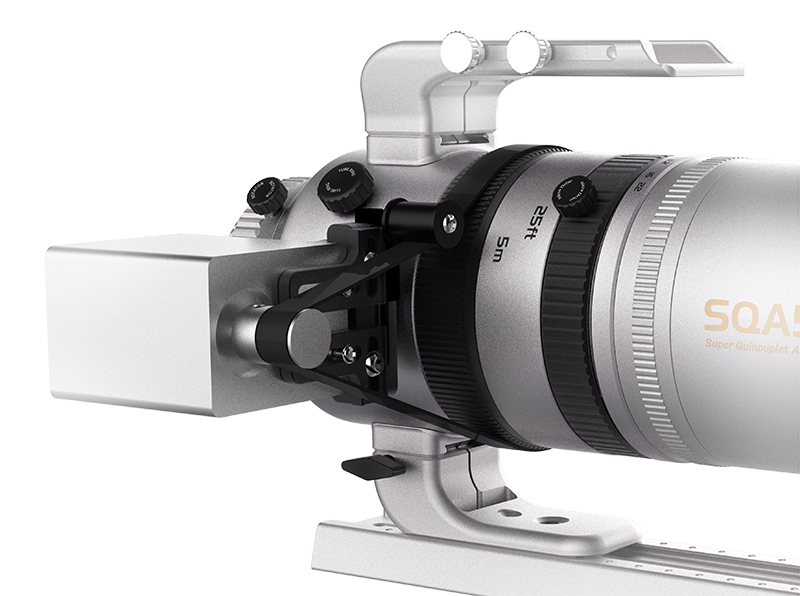

The Askar SQA55 AF Kit is a precision-engineered electronic auto-focus adapter kit designed exclusively for the Askar SQA55 astrograph. It enables motorized focusing by connecting virtually any brand of electronic focuser (EAF) to the SQA55’s manual focus ring via a belt-and-pulley drive system. The kit includes four MXL synchronous belts of different lengths, two MXL synchronous pulleys, an adapter bracket, two L-shaped hollow plates, and all required hardware.

Unlike most generic EAF installation methods, the SQA55 AF Kit is designed specifically to solve three common problems: adapters that are too long and block rear accessory ports, belt backlash from poorly tensioned drives, and cumbersome installation steps. The included tensioner pulley eliminates belt backlash, the custom-length adapter plate preserves rear port access, and the entire assembly can be installed or removed as a single unit. The L-shaped hollow plates use a slotted design to accommodate different EAF hole spacings, including larger-format focusers like those from Pegasus Astro.

The current version of the kit includes additional timing belts and pulleys pre-configured for ZWO EAF Pro and Touptek electronic focusers, in addition to supporting most other brands.

Who Is This Product Best For?

• SQA55 owners who want motorized auto-focus for use with NINA, SGP, EKOS, or any software that supports EAF devices.
• Narrowband and long-session imagers where thermal focus drift requires periodic automatic refocusing.
• Remote or unattended observatory setups where manual focus adjustments are not practical.
• Users of ZWO EAF Pro or Touptek EAF who want a purpose-built, well-tensioned drive solution.

Why Choose the Askar SQA55 AF Kit?

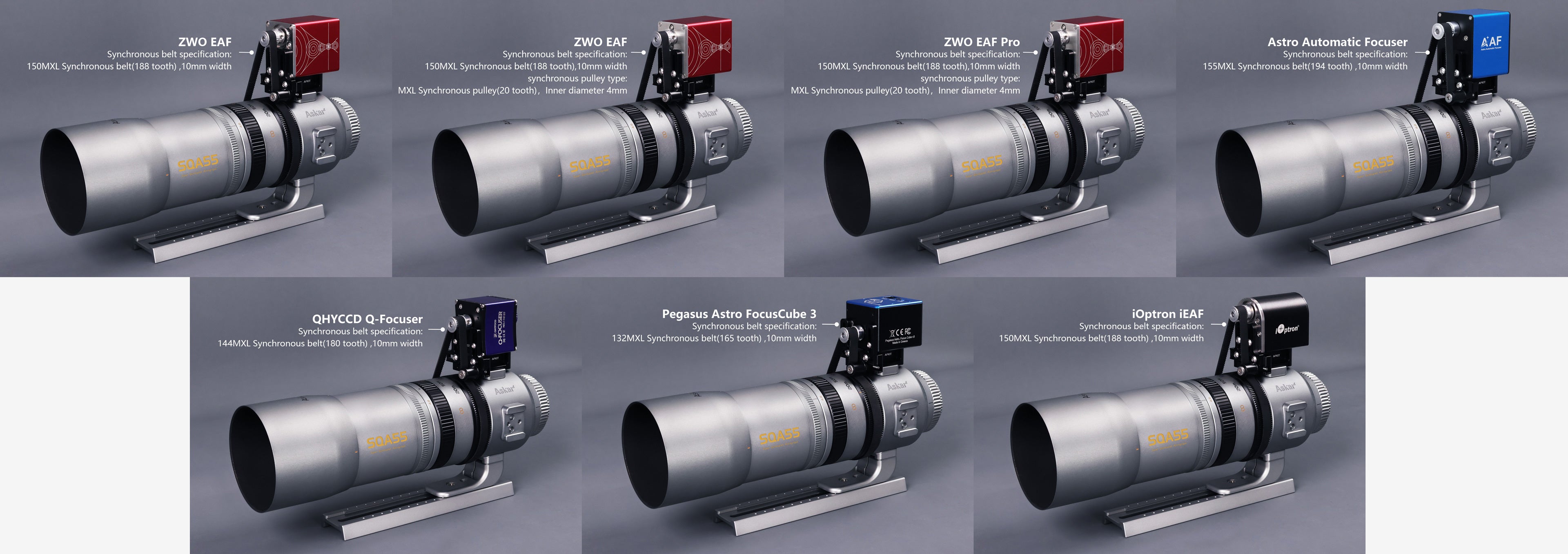

• Works with virtually any EAF brand — compatible with ZWO, Pegasus, Touptek, Primaluce, and most other electronic focuser motors.
• Tensioner pulley eliminates backlash — improves auto-focus accuracy compared to direct or loosely tensioned belt drives.

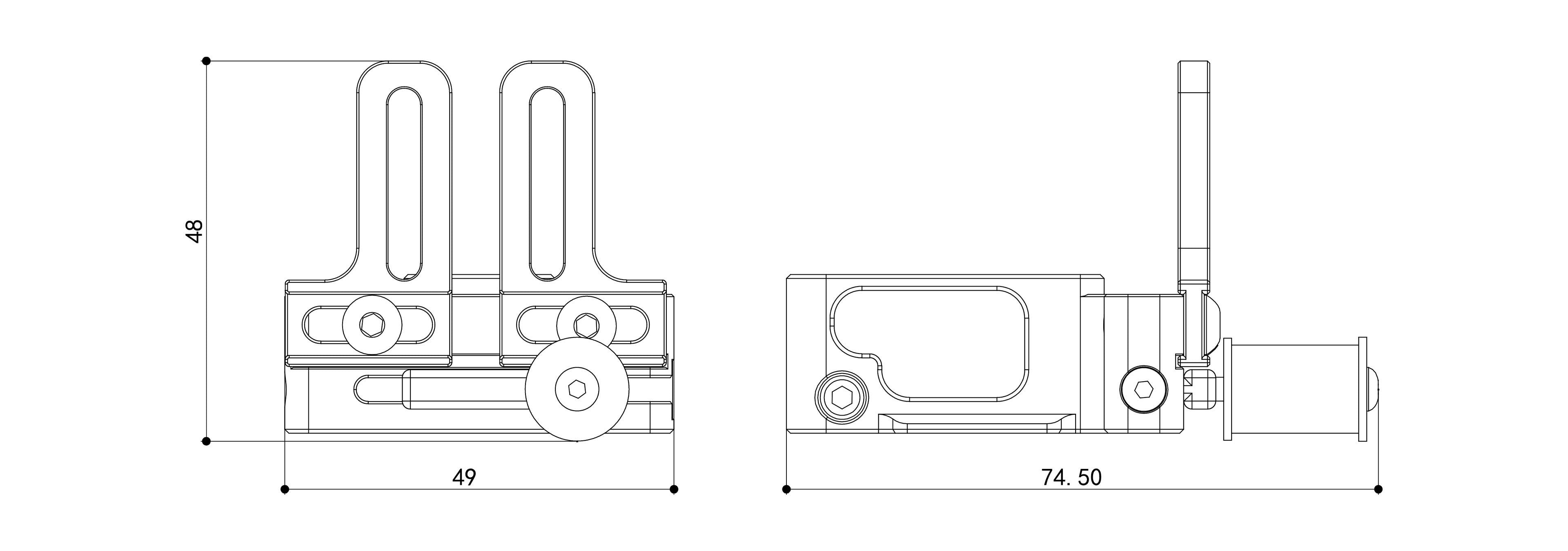

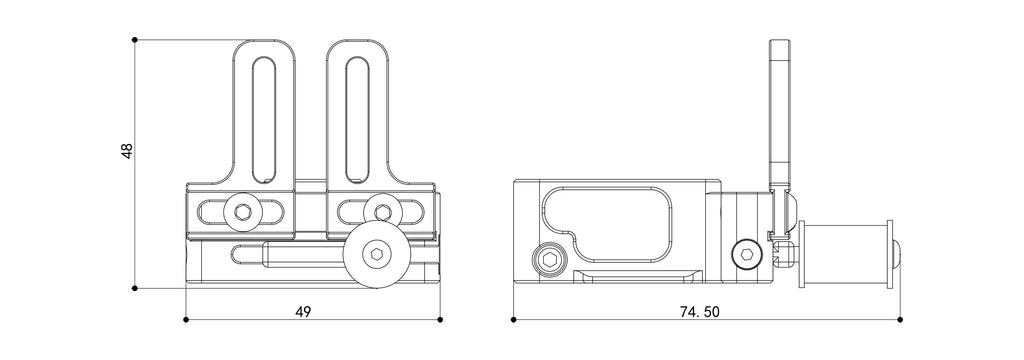

• Custom-length adapter plate — designed specifically for the SQA55 so rear camera and filter connections remain unobstructed.
• Installs and removes as a complete assembly — mount or unmount the entire kit in one step; no reassembly required.
• Slotted L-plates for variable EAF hole spacing — adjusts to fit focusers with different mounting hole patterns.
• ZWO EAF Pro + Touptek belts included — ready-to-use with these popular focuser models out of the box.

What’s in the Box?

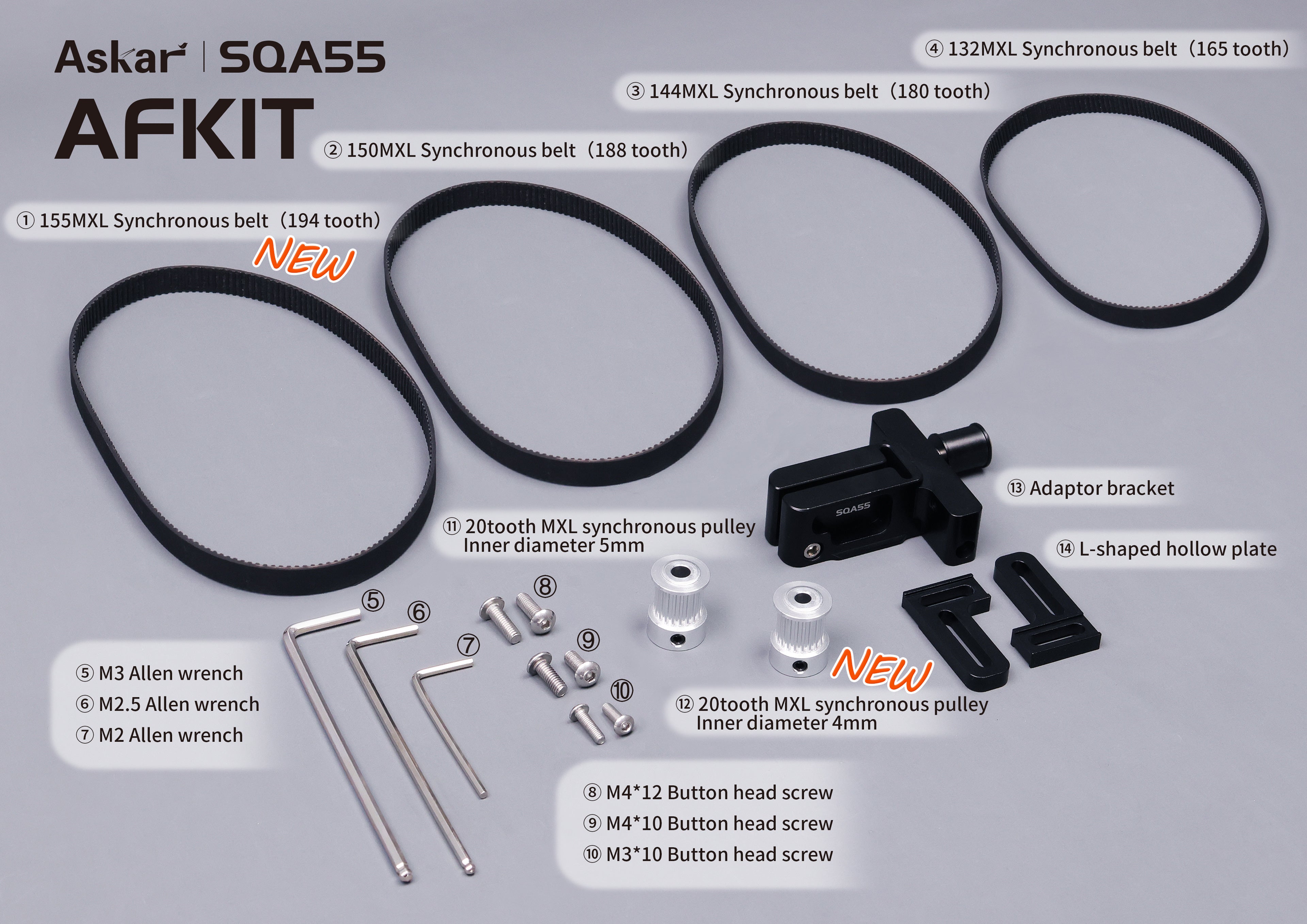

4 MXL synchronous belts (different lengths), 2 MXL synchronous pulleys, 1 adapter bracket, 2 L-shaped hollow plates, 3 Allen wrenches (different sizes), 2 M4×10mm screws, 2 M3×10mm screws, 2 M4×12mm screws.

Note: The SQA55 telescope and all electronic focusers shown in the product images are not included and are for illustration only.

Recommended Uses

• Adding electronic auto-focus to the Askar SQA55
• Automated focus runs in NINA, SGP, KStars/EKOS, or similar imaging software
• Remote and semi-remote observatory setups
• Sessions requiring periodic thermal refocusing during long integrations

Compatibility and Accessory Notes

Compatible telescope: Askar SQA55 only. Not compatible with any other SQA Series telescope or other brands.

EAF compatibility: Designed for most electronic focuser brands and models, with specific pre-configured belts/pulleys for ZWO EAF Pro and Touptek EAF. Works with Pegasus, Primaluce, and others using the adjustable L-plate spacing.

Electronic focuser not included — this kit provides the mechanical adapter; the EAF motor is purchased separately.

Important Limitations

• SQA55 only — this kit is designed and sized exclusively for the SQA55 focus ring.
• Electronic focuser motor not included — the AF Kit is a mechanical adapter kit only. You will need a compatible EAF motor (e.g., ZWO EAF Pro, Touptek EAF) purchased separately.

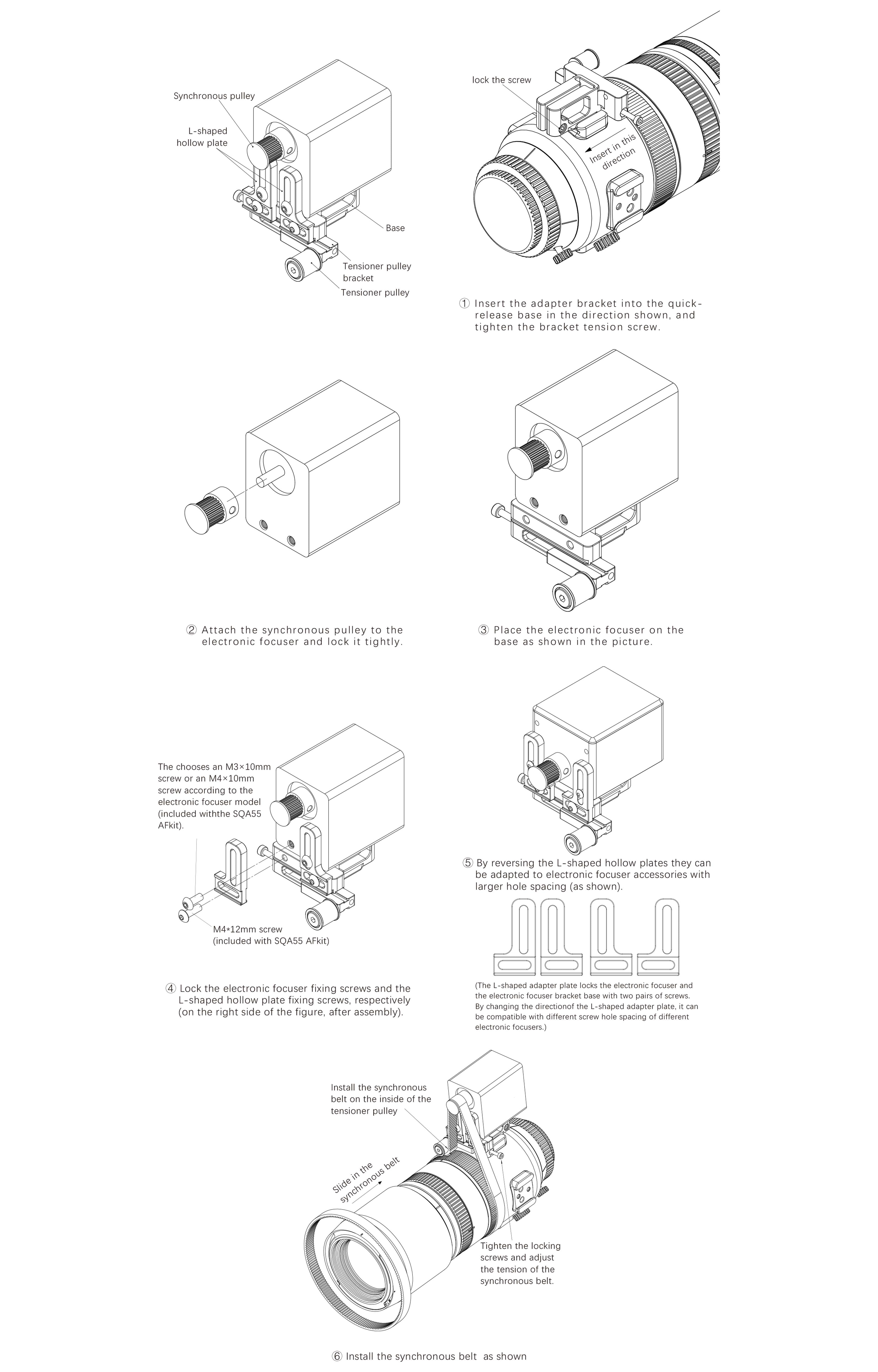

• Requires some mechanical assembly — while the kit is designed for straightforward installation, familiarity with belt-and-pulley focuser systems is helpful.

Frequently Asked Questions

Does it work with ZWO EAF?
Yes — the kit includes belts and pulleys specifically pre-configured for ZWO EAF Pro and Touptek EAF.

Does it work with Pegasus Astro focusers?
Yes. The L-shaped adapter plates are fully slotted. Loosen the M4×12 screws, flip or adjust the plates to the correct hole spacing for your Pegasus unit, and re-tighten.

Will it fit other SQA telescopes?
No. This kit is designed exclusively for the SQA55 focus ring geometry.

Is the SQA55 itself included?
No. The SQA55 and all EAF motors shown in the images are for illustration only.

Our Recommendation

At Ontario Telescope and Accessories, we recommend the Askar SQA55 AF Kit for any SQA55 owner who uses the telescope for long-session or remote astrophotography. The backlash-free tensioned belt drive and multi-brand EAF compatibility make it the cleanest and most reliable way to add auto-focus to the SQA55.
