Askar SQA Series Handle Bar

Askar SQA Series Handle Bar

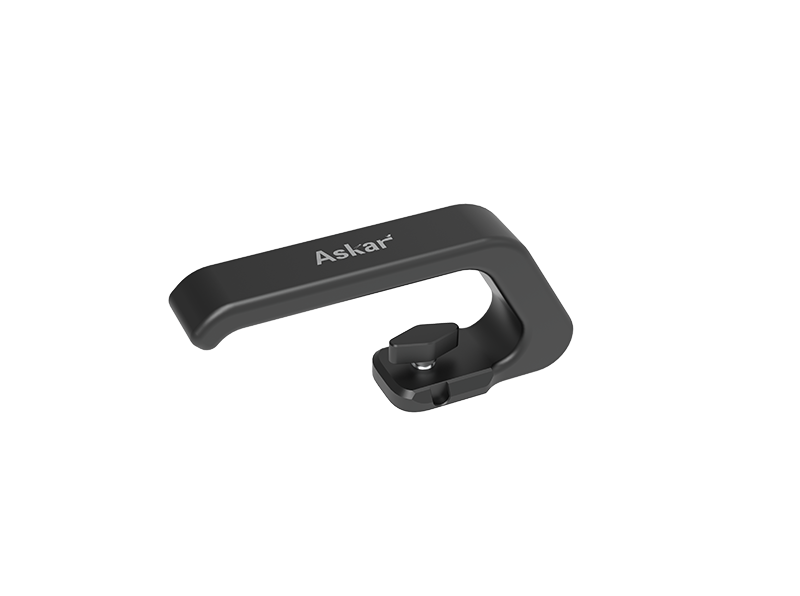

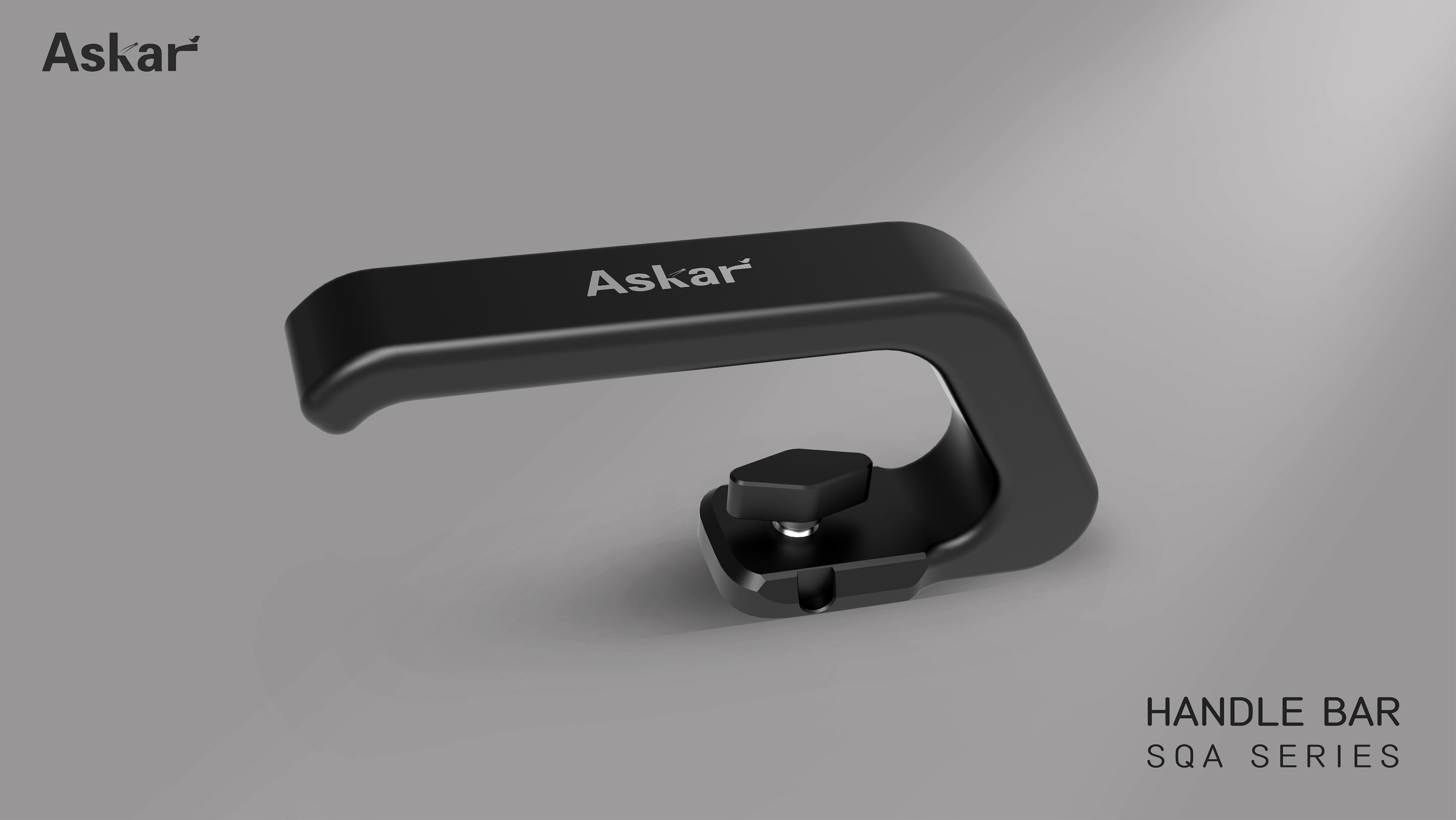

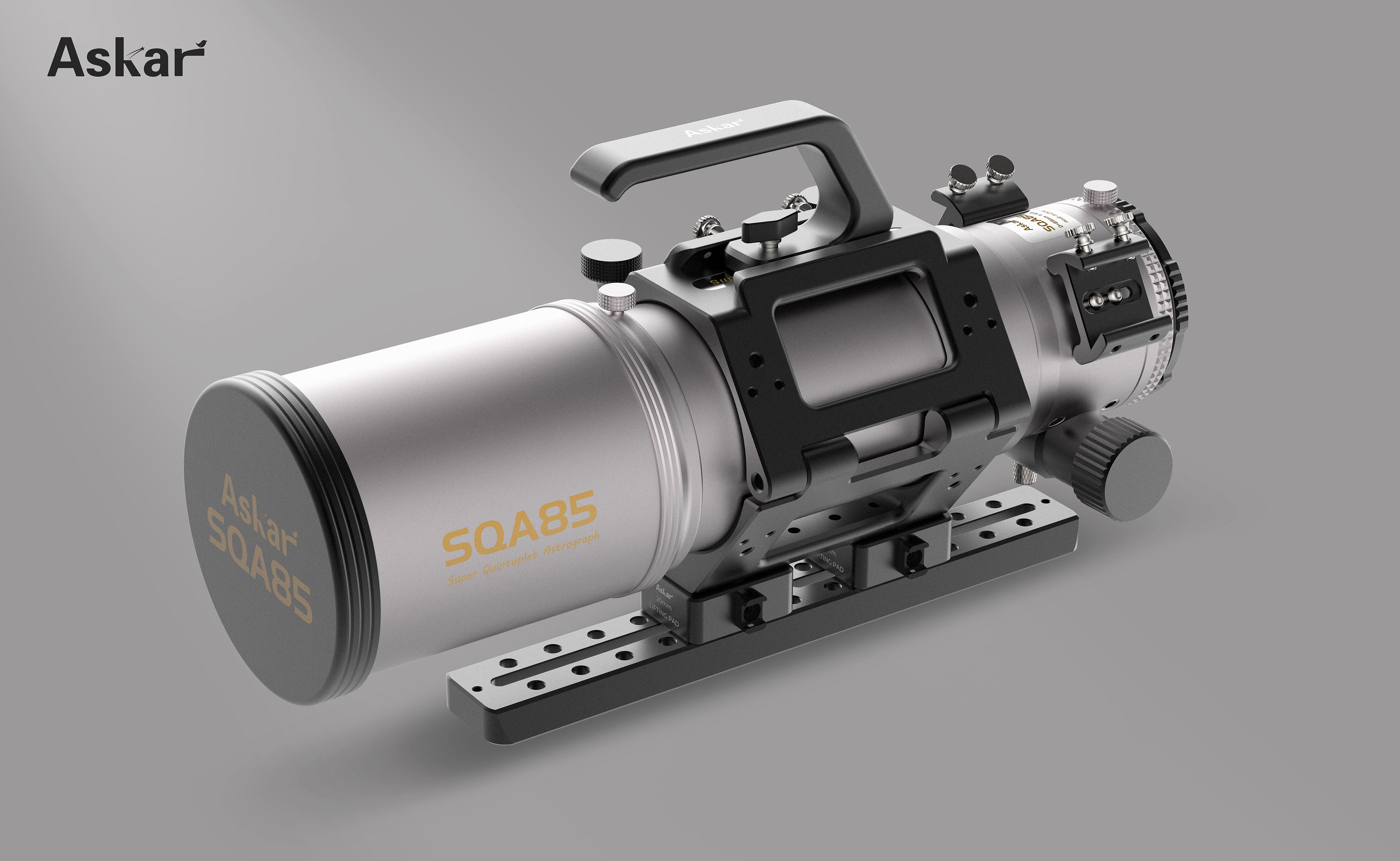

The Askar SQA Series Handle Bar is an optional all-metal carry handle and accessory mount compatible with the SQA70, SQA85, SQA106, and SQA130 astrographs. It attaches to the tube ring or body of SQA Series OTAs (except the SQA55, which uses its own dedicated quick-release handle), providing a secure 60mm elevated grip with anti-slip rubber pads on the base.

The handle is fully CNC-machined with a smooth surface-coated finish. A thumb-screw quick-release design allows tool-free installation and removal. The base includes a locking groove system for multiple stable locking positions, and a standard finder scope base slot on top accepts accessories.

Who Is This Product Best For?

• SQA70, SQA85, SQA106, or SQA130 owners who want a carry handle for safely moving the OTA between mount and case.
• Astrophotographers who want a convenient finder scope or guide scope mounting position on the top of the OTA.
• Users who frequently set up and break down who benefit from a secure grip when handling the telescope.

Why Choose the Askar SQA Series Handle Bar?

• All-metal CNC construction — durable, lightweight, and precisely machined.
• 60mm height clearance — raises the handle high enough above the tube body for a comfortable grip even with accessories attached.
• Anti-slip rubber base pads — prevents the handle from rotating or shifting once locked.
• Thumb-screw quick-release — tool-free installation and removal in seconds.
• Locking groove base — multiple locking positions for stable, secure attachment.
• Standard finder base slot — top of the handle accepts finder scopes and red dot finders.

Recommended Uses

• Carrying and repositioning SQA70, SQA85, SQA106, or SQA130 OTAs
• Mounting a finder scope or guide scope on top of the OTA
• Providing a stable grip when balancing the telescope on the mount

Compatibility and Accessory Notes

Compatible telescopes: Askar SQA70, SQA85, SQA106, and SQA130. Not compatible with the SQA55 — the SQA55 uses its own SQA55 Quick-Release Handle Bar with a different mounting interface.

Finder base: Standard finder scope base on top accepts most standard-mount finders and red dot sights.

Important Limitations

• Not for SQA55 — the SQA55 uses a different proprietary quick-release system. Use the SQA55 Quick-Release Handle Bar instead.
• Carry handle only — not a dovetail plate or mount adapter.

Frequently Asked Questions

Does it fit the SQA55?
No. The SQA55 uses a dedicated SQA55 Quick-Release Handle Bar with its own mounting system.

Can I put a guide scope on it?
Yes. The standard finder base slot on top accepts most small guide scopes and finder scopes.

Our Recommendation

At Ontario Telescope and Accessories, we recommend the SQA Series Handle Bar for any SQA70, SQA85, SQA106, or SQA130 owner. It is a simple, well-built accessory that makes handling heavier SQA OTAs significantly more convenient and adds a useful accessory mounting point at the same time.

Optical Diagram Reports

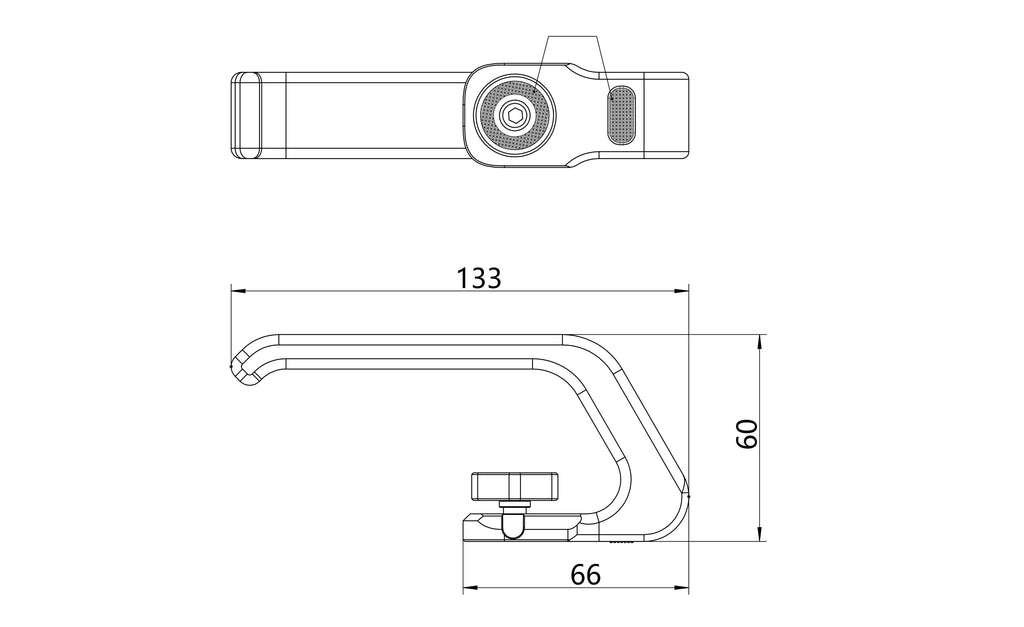

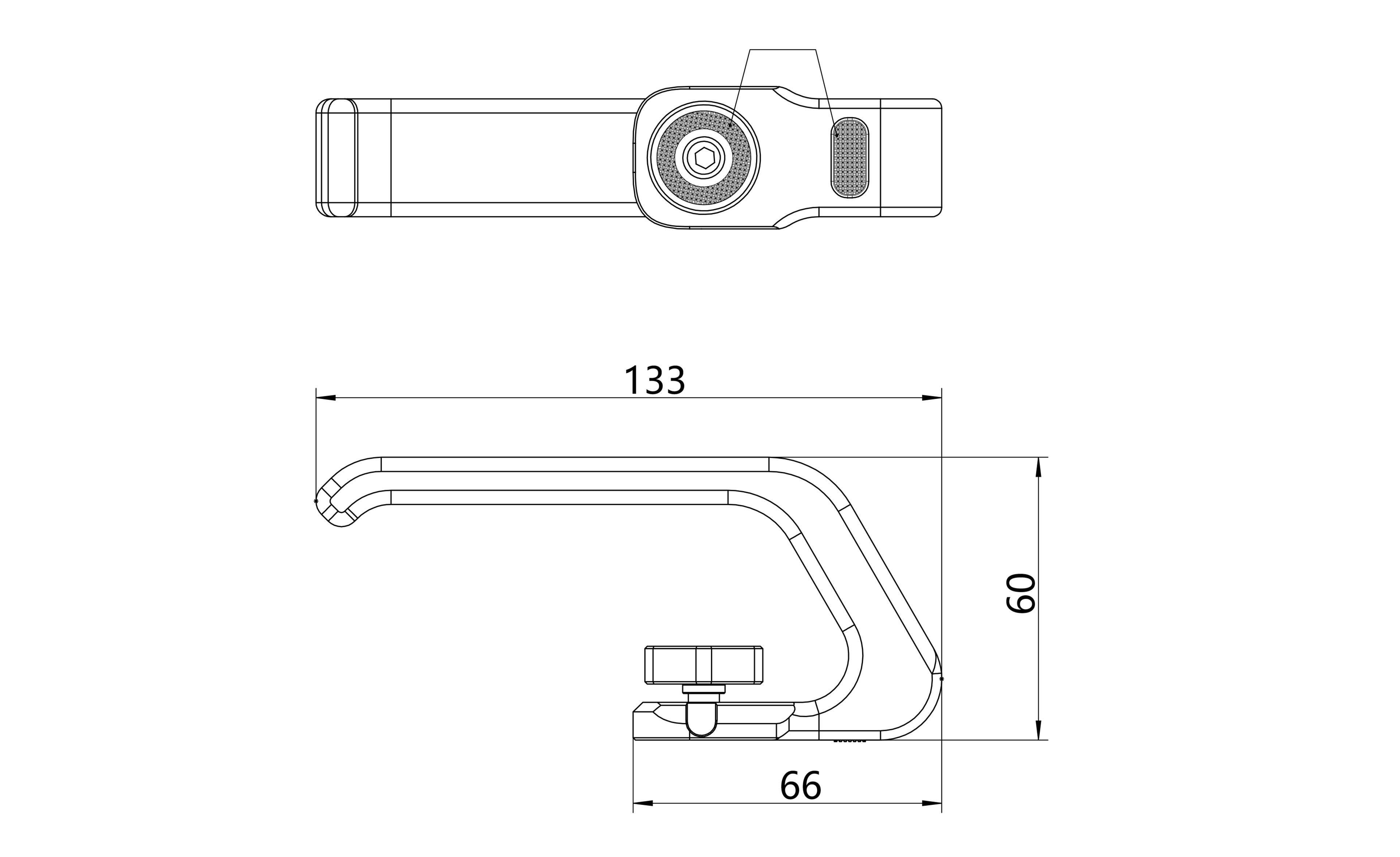

Size diagram for the SQA Series Handle Bar:
