Name: Askar FRA500 Astrograph
Brand: Askar Astronomical
SKU: FRA500
Price: 2899.00 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Description
Specifications

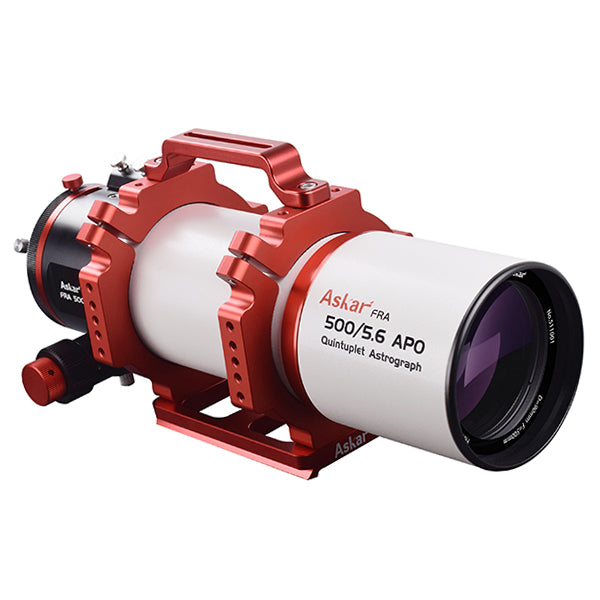

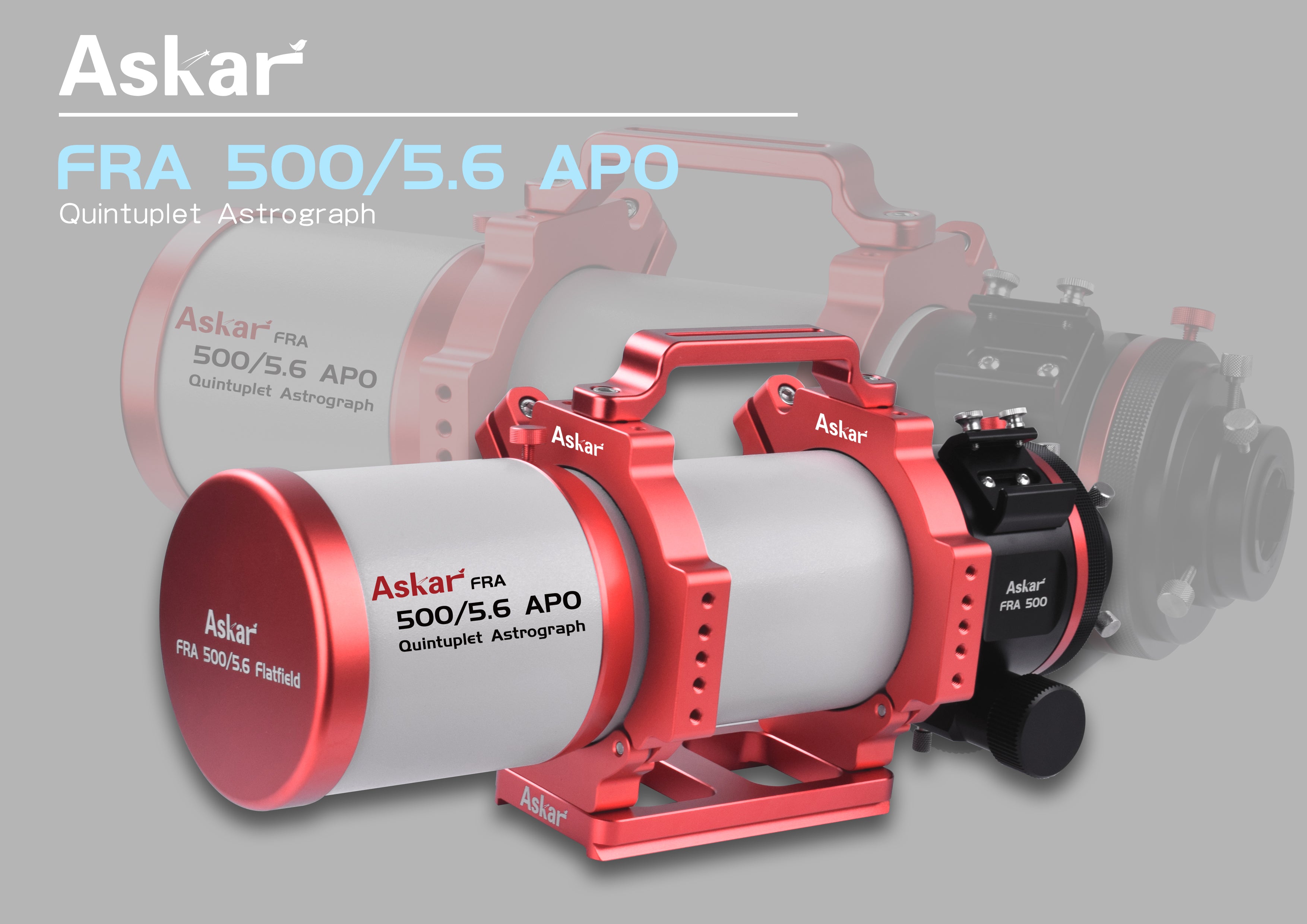

Askar FRA500 is typically a wonderful mix of pragmatism and aesthetics. The astrograph shows smooth lines and a sound layout of components. From the front, the Askar FRA500 has an impressive dew shield decorated with a classic bright-red bezel ring. The total length of FRA500 is 452mm when the dew shield is stretched out and 410mm when contracted back. At the tail end of the astrograph locates a 3.5" massively-built focuser with dual-speed hand knobs (twin knobs for coarse adjustment and one 1:10 fine adjustment knob), which is of great use in real observation or astrophotography.

The astrograph wears smooth coating and is evenly finished. The graduation inside of the focuser is quite clear and easily readable. The focuser is tough and solid, and on the left side of it, there is a standard finder base with a silver thumb screw. So the FRA500 can piggyback carry finders, guiders or other potential astronomy accessories.

Askar FRA500 comes also with a pair of sought-after tube rings. On the top of the tube rings attached a handle and at the bottom, there is an Askar Losmandy-style dovetail plate. The combination of milk-white main tube and dew shield together with a high-gloss piano-black focuser makes the optical tube assembly calm and deep which is offset by the bright red decorative ring and tube rings.

The Askar FRA500 is 410mm long and weighs about 4kg , so it’s quite convenient for users to carry around or mount on an EQ mount. It’s particularly suitable for astronomy enthusiasts who frequently engage in long-distance trips or out-door astrophotography.

Askar FRA500 together with the FRA- family is well received for large aperture, fast speed, delicate focusing system, unique optical design and the subsequently high-quality imaging results. Wish the Askar FRA500 be a loyal companion alongside your journey of astrophotography.

Aperture size:90mm
Focal length:500mm
Focal ratio:f/5.6
Objective lens:Quintuplet air-spaced APO (including two ED glass)
Image circle:55mm
Back focus:158mm(from base of M48×0.75 thread on the conical extender to focal plane)
85mm(from base of M86×1 thread on the rotator to focal plane)

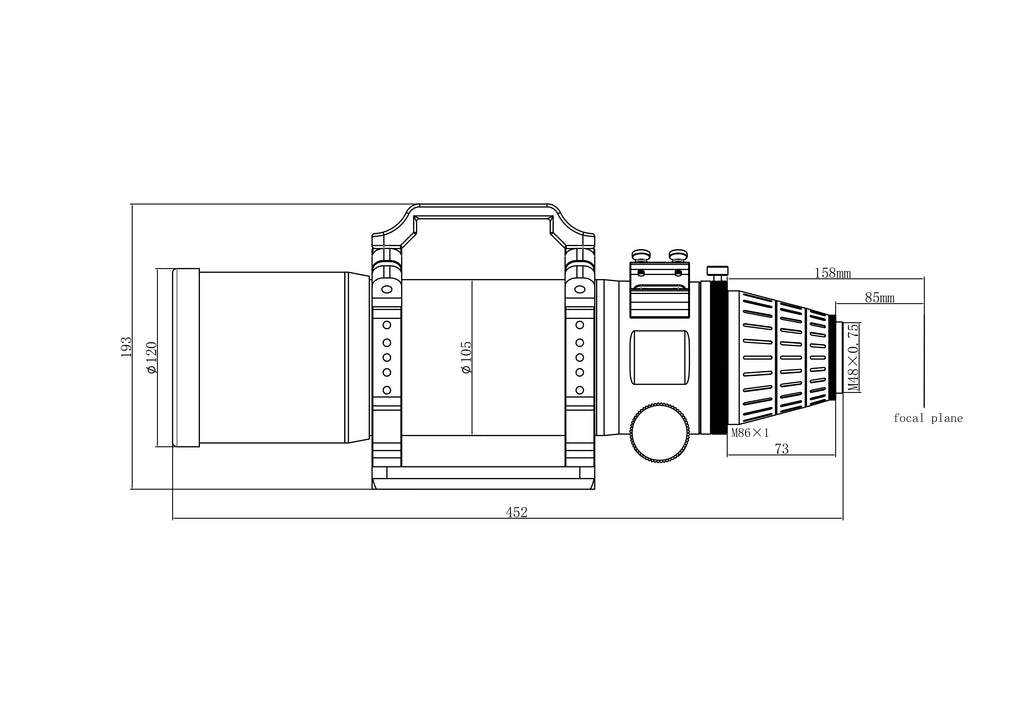

Total length:452mm(410mm when the dew shield is contracted)
Net weight:4.1kg
Gross weight:5.2kg
Rear-end thread type:M86×1
Conical adapter:M48×0.75
Package items:FRA500 OTA, a pair of tube rings, a handle, an Askar Losmandy dovetail plate, a conical extender, a manual

Askar FRA500 Astrograph
