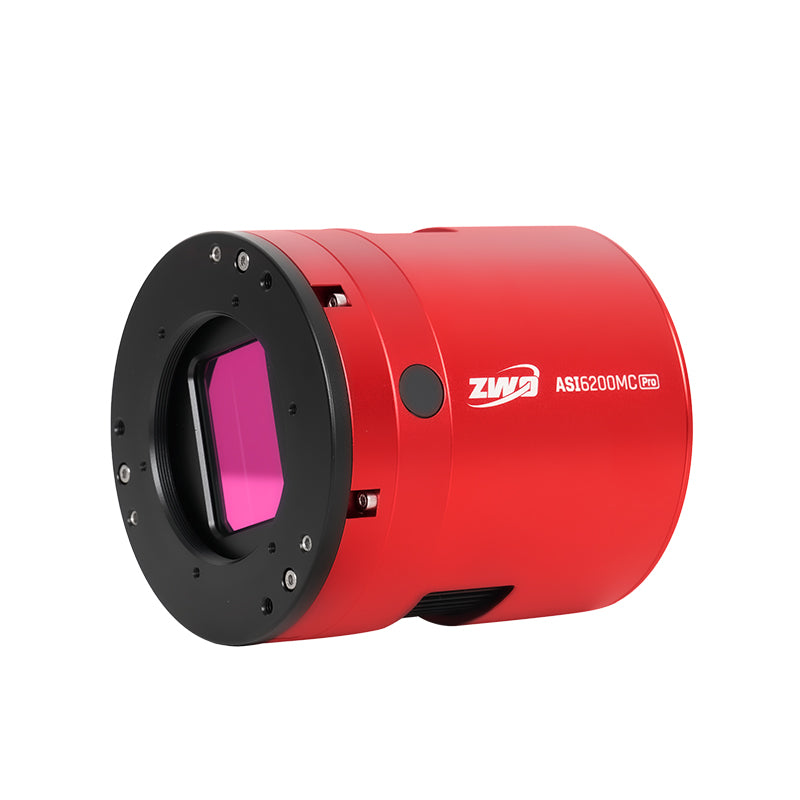

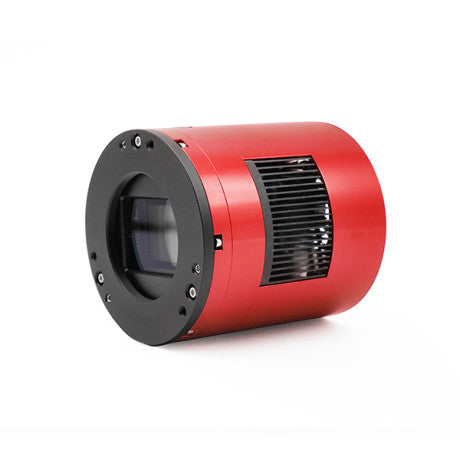

ZWO ASI6200MC Pro

Product Overview

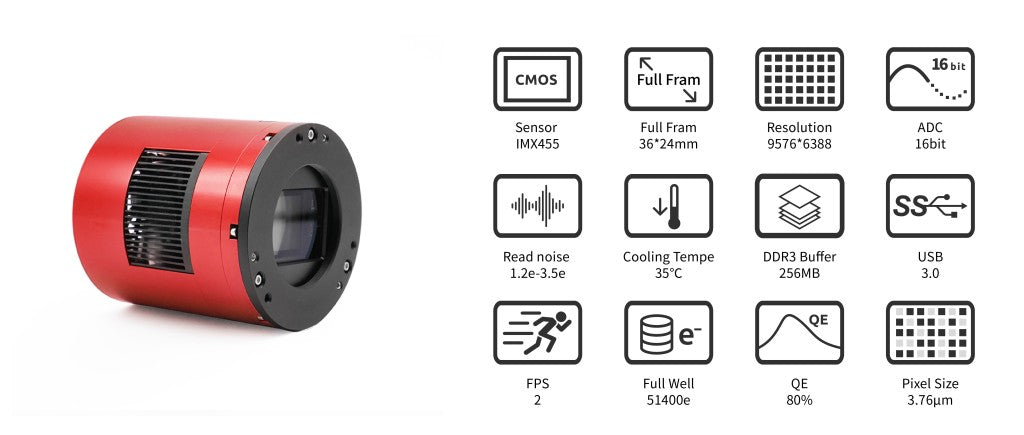

The ZWO ASI6200MC Pro is a cooled full-frame colour astronomy camera built around Sony’s IMX455 back-illuminated CMOS sensor. It uses a 36 mm × 24 mm full-frame sensor with 9576 × 6388 resolution, 3.76 µm pixels, native 16-bit ADC, and a 61.2-megapixel image size.

This camera is designed for deep-sky imaging with full-frame optics. It combines high resolution, low read noise, 512 MB DDR3 memory, two-stage TEC cooling, and a one-shot-colour workflow for wide-field nebulae, galaxies, and large imaging projects.

Who It’s For

This is a good match if your telescope or camera lens can support a full-frame image circle and you want a colour cooled camera without the extra filter-wheel complexity of monochrome imaging. It is best suited to intermediate and advanced deep-sky imaging setups with proper spacing, power, and calibration.

Key Features & Design

• Sony IMX455 full-frame sensor: 36 mm × 24 mm sensor with a 43.3 mm diagonal.
• 61.2 MP resolution: 9576 × 6388 pixels for large, detailed deep-sky images.
• Native 16-bit ADC: Supports smoother tonal transitions and high dynamic range capture.
• Two-stage TEC cooling: Reduces sensor temperature by about 30°C–35°C below ambient under ZWO test conditions.
• 512 MB DDR3 buffer: Supports stable USB 3.0 data transfer.
• Anti-dew heater: The protective-window heater helps reduce dew risk during long imaging sessions.

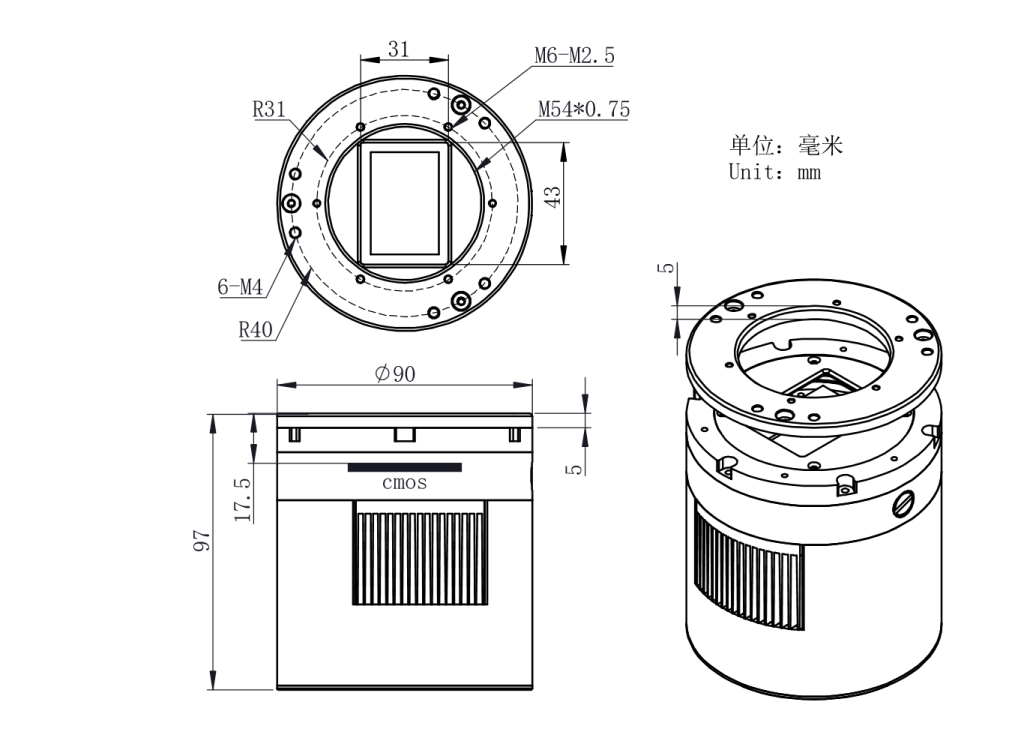

Optical / Mechanical Design

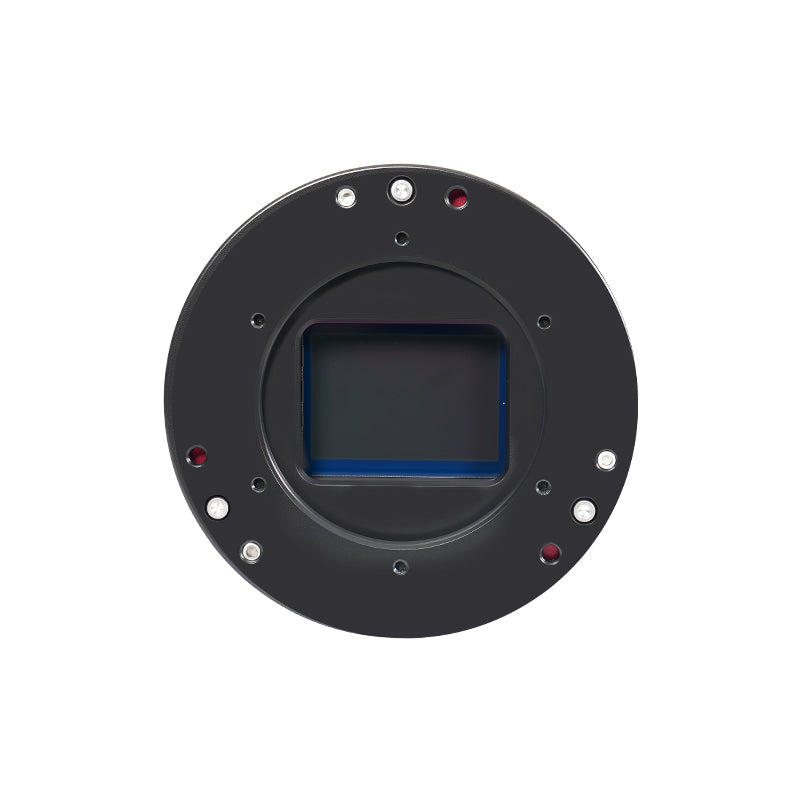

The ASI6200MC Pro uses the full-frame IMX455 sensor with 3.76 µm pixels and a 43.3 mm diagonal. That sensor size requires an optical system with a well-corrected full-frame field; telescopes or flatteners designed only for smaller sensors will show corner fall-off or star-shape issues.

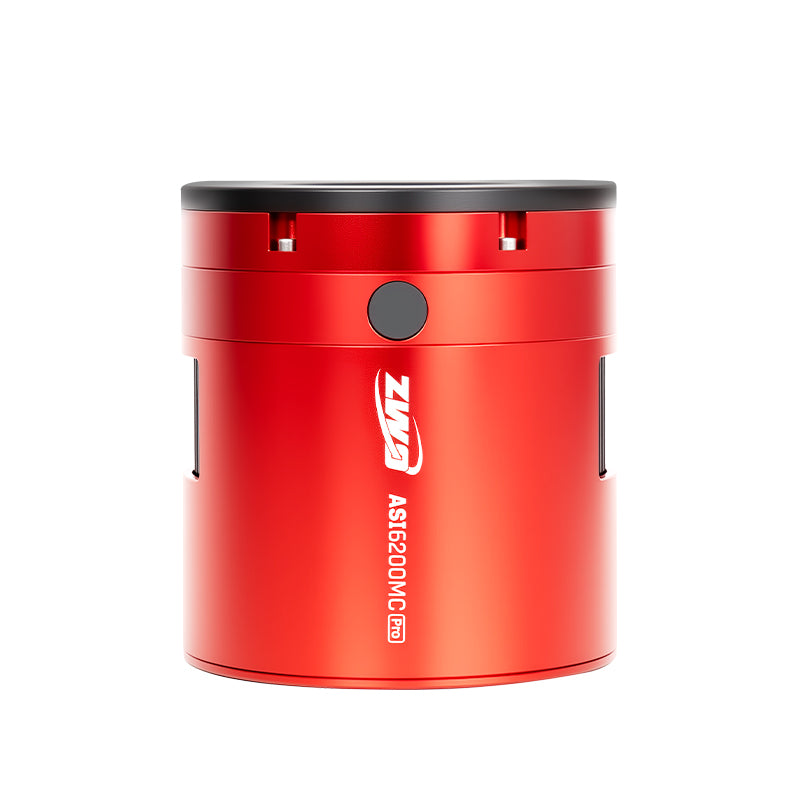

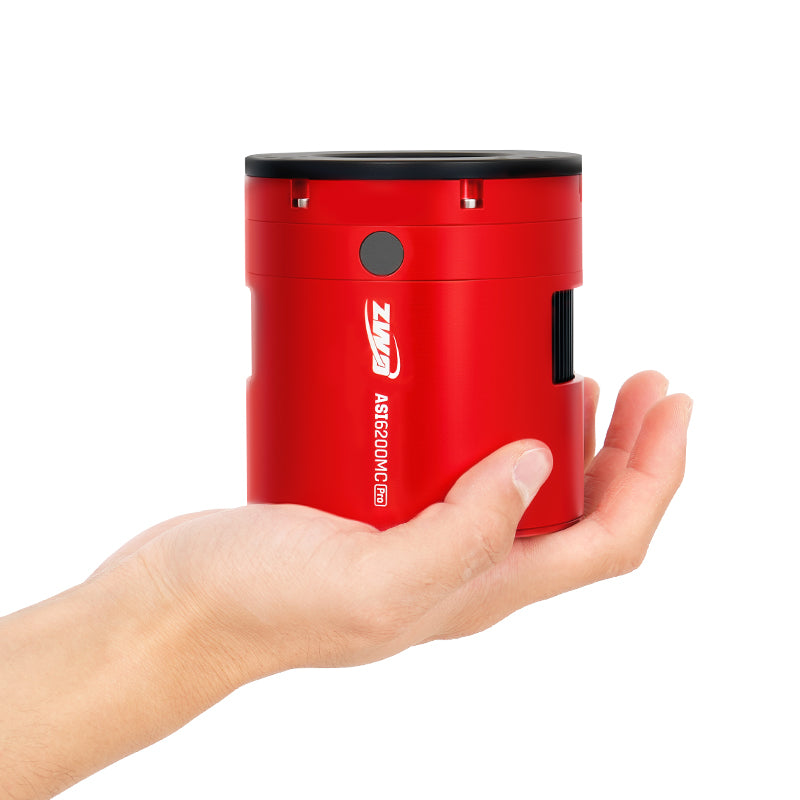

The camera body weighs about 0.7 kg. ZWO specifies a 55 mm back-focus solution for this camera family, and the sensor tilt adjustment system allows fine alignment when the imaging train requires it.

Recommended Uses

• Full-frame deep-sky imaging: Large nebulae, galaxies, mosaics, and wide corrected fields.
• One-shot-colour capture: A simpler workflow than monochrome imaging with LRGB filters.
• Remote and observatory systems: Suitable for permanent rigs with stable 12 V power and full-frame optics.
• High-resolution imaging: 61.2 MP files support detailed crops and large prints.

Compatibility and Accessory Notes

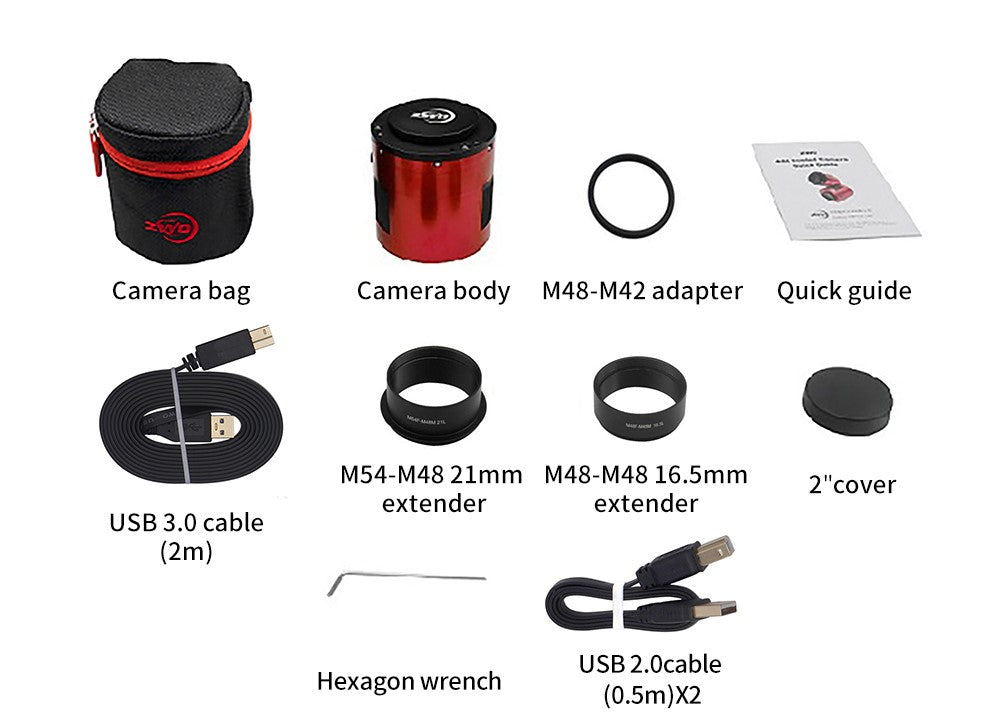

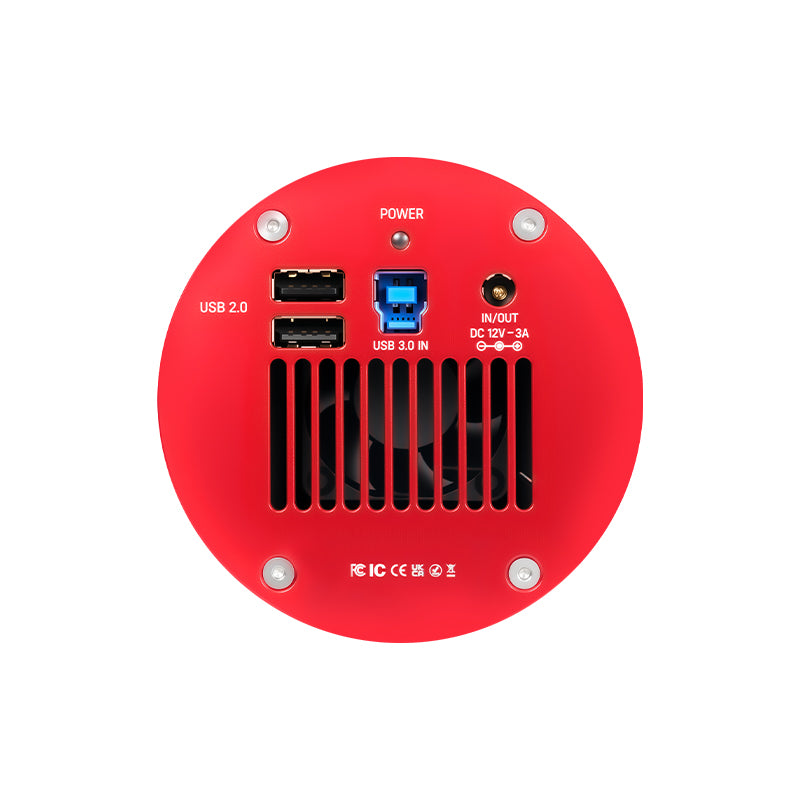

External power is required for all ZWO cooled cameras. ZWO recommends a 12 V, 3 A to 5 A DC adapter with a 5.5 × 2.1 mm centre-positive connector, or an 11–14 V lithium battery. The ASI6200 Pro family uses USB 3.0 for data and includes short USB cables for accessory connections.

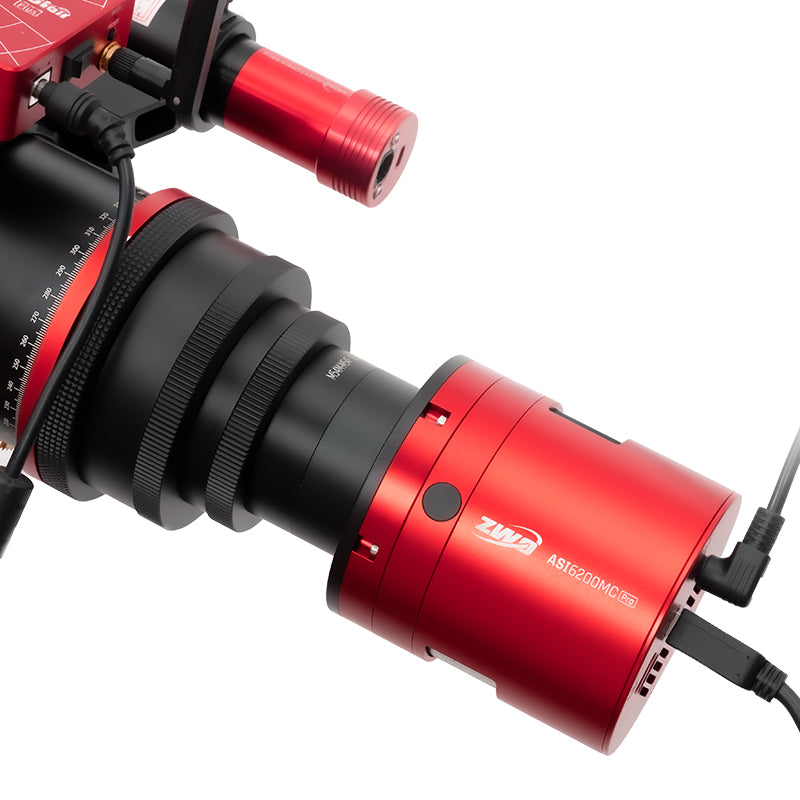

For best full-frame results, use a telescope, reducer, or flattener that explicitly supports a 43.3 mm image diagonal and follow the required 55 mm back-focus spacing.

Important Limitations

• Requires full-frame optics: Smaller corrected image circles will not fully support the sensor.
• Requires external 12 V power: USB alone does not power the cooled camera.
• Large files: 61.2 MP image data requires suitable computer storage and processing capacity.
• Colour sensor: Choose the ASI6200MM Pro if you need monochrome sensitivity or narrowband filter work.

Frequently Asked Questions

Is the ASI6200MC Pro a colour camera?

Yes. It is the one-shot-colour version of the ASI6200 Pro family.

Does it need a full-frame telescope?

For best results, yes. The 36 mm × 24 mm sensor needs optics that can illuminate and correct a full-frame field.

Does it require external power?

Yes. ZWO cooled cameras require a suitable 12 V external power supply.

How is this different from the ASI6200MM Pro?

The MC version is colour and simpler to use. The MM version is monochrome and better for filter-based LRGB and narrowband imaging.

Bottom Line

In short: the ASI6200MC Pro is a 61.2 MP full-frame cooled colour camera for deep-sky imaging, best used with full-frame-corrected optics, 55 mm backfocus, and stable 12 V power.
