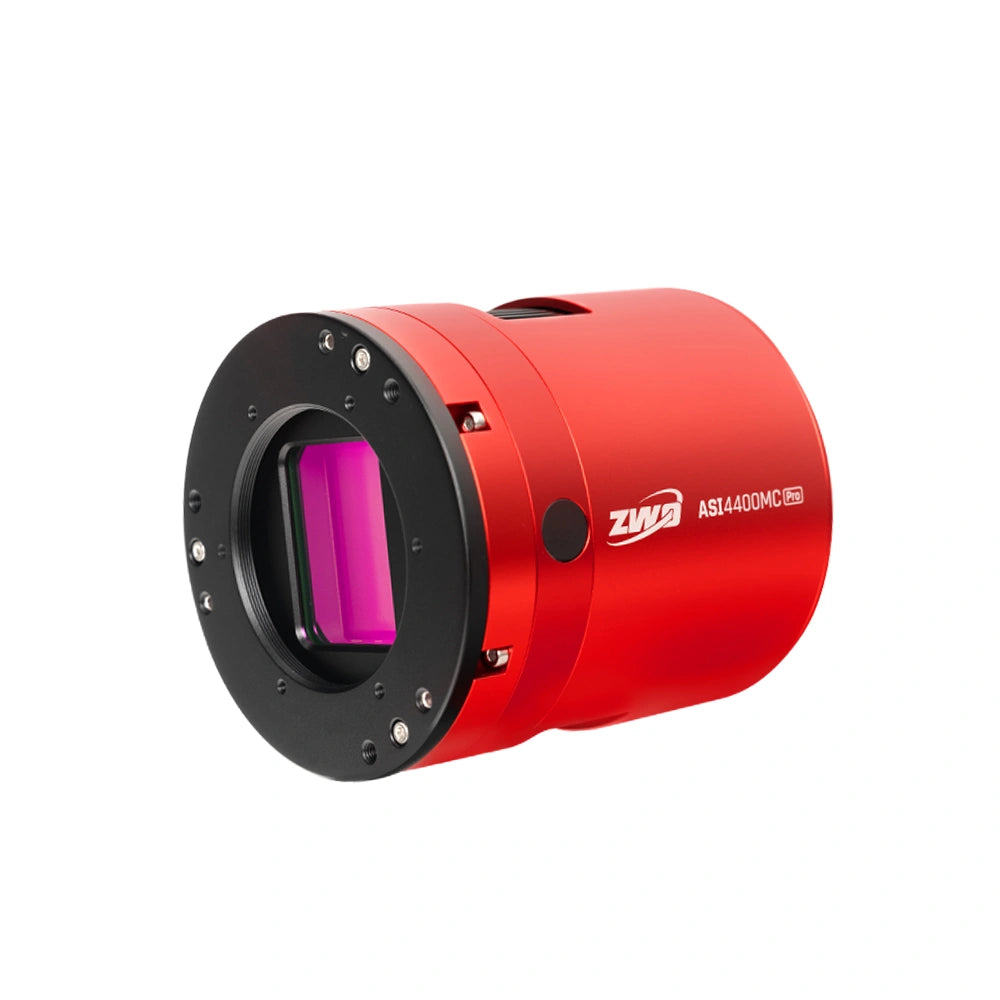

ZWO ASI4400MC Pro

Product Overview

The ZWO ASI4400MC Pro is a cooled full-frame colour astronomy camera positioned between ZWO’s ASI6200MC Pro and ASI2400MC Pro. It uses a 36 mm × 24 mm back-illuminated full-frame sensor with a 43.3 mm diagonal, 44-megapixel resolution, 4.4 µm pixels, and a 74,600-electron full-well capacity.

This camera is designed for full-frame deep-sky imaging where a balance of resolution, sensitivity, file size, and dynamic range matters. It includes two-stage TEC cooling, glow suppression, USB 3.0, 512 MB DDR3 memory, sensor tilt adjustment, and a built-in UV-IR cut protective filter.

Who It’s For

This is a good match if you want a full-frame one-shot-colour cooled camera for wide-field nebulae, galaxies, large targets, and observatory or serious portable imaging setups. The 4.4 µm pixels and 44 MP resolution sit between the smaller-pixel ASI6200MC Pro and the larger-pixel ASI2400MC Pro.

Key Features & Design

• Full-frame colour sensor: 36 mm × 24 mm format with a 43.3 mm diagonal.
• 44 MP resolution: Large enough for detailed images while reducing file size compared with 61 MP cameras.
• 4.4 µm pixels: A practical pixel size for many refractors, astrographs, and larger corrected optics.
• 74,600e full well: Supports bright-star handling and tonal depth.
• 14-bit ADC: Provides more than 13 stops of dynamic range.
• Two-stage TEC cooling: Lowers sensor temperature by about 30°C–35°C below ambient under ZWO test conditions.
• 512 MB DDR3 buffer: Supports stable USB 3.0 image transfer.

Optical / Mechanical Design

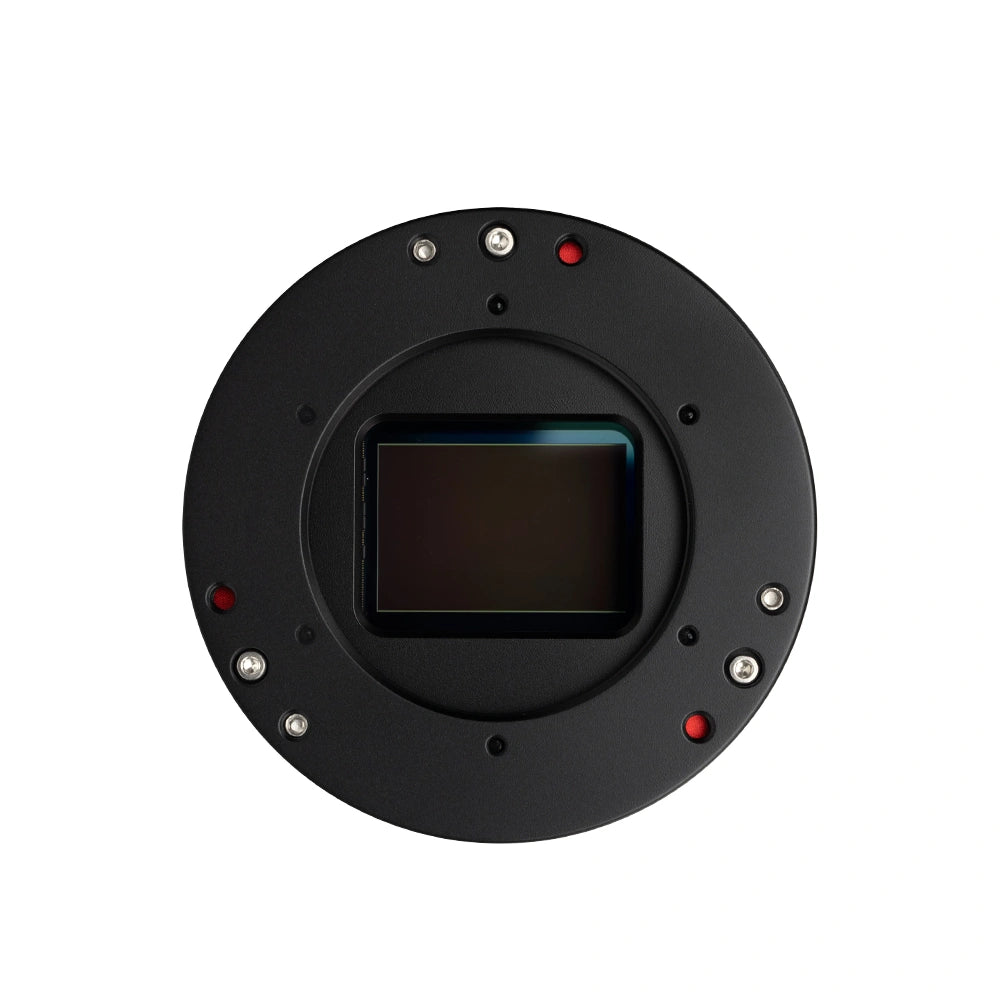

The ASI4400MC Pro uses a full-frame back-illuminated sensor with a 36 mm × 24 mm active area and 43.3 mm diagonal. For best results, use an optical system that is corrected for a full-frame image circle. Smaller corrected fields will show edge fall-off or star-shape issues.

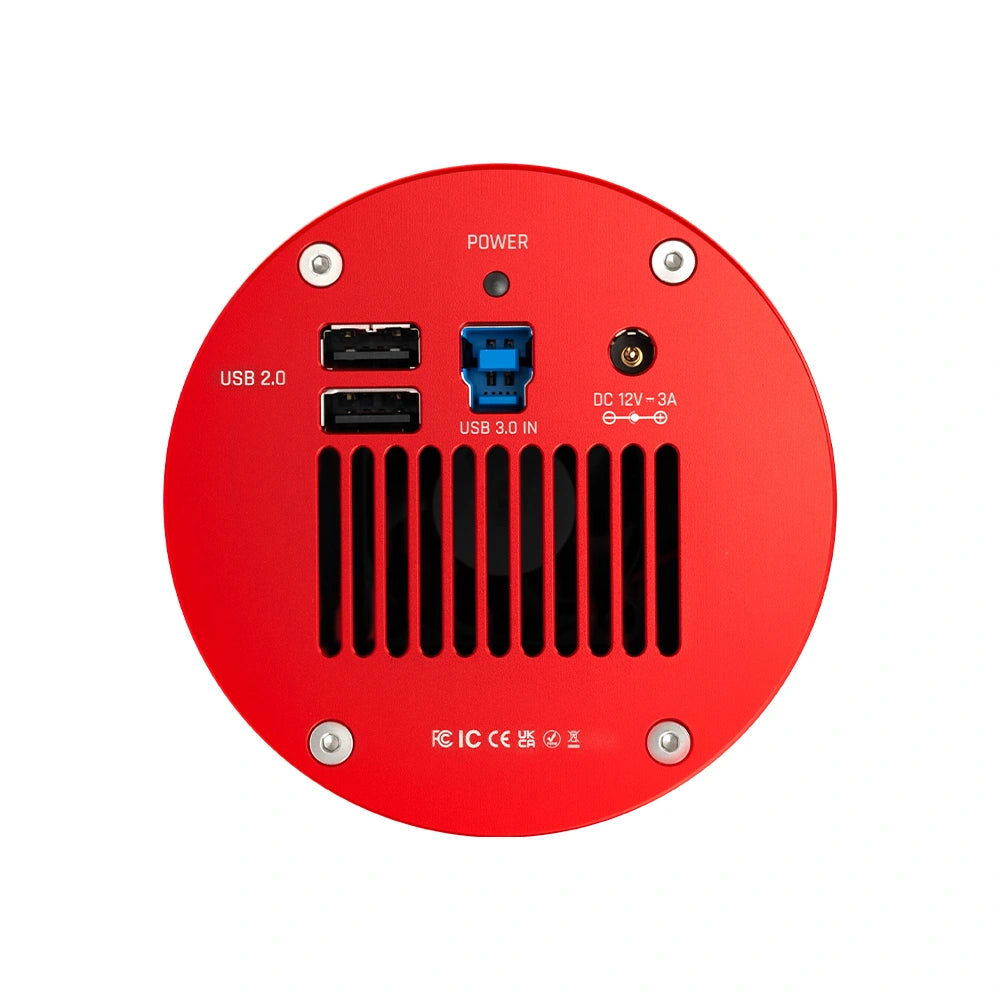

The camera body weighs about 700 g and includes USB 2.0, USB 3.0, and DC power connections. ZWO also includes sensor tilt adjustment screws to help fine-tune the sensor plane in demanding full-frame imaging systems.

Recommended Uses

• Full-frame deep-sky imaging: Wide nebulae, galaxies, mosaics, and large corrected fields.
• One-shot-colour capture: A simpler colour workflow than monochrome cameras with filter wheels.
• Portable or observatory rigs: Suitable for serious imaging systems with stable 12 V power and full-frame optics.
• High dynamic range targets: Useful for scenes with bright stars, nebula cores, and faint outer structures.

Compatibility and Accessory Notes

The ASI4400MC Pro uses USB 3.0 for high-speed data transfer and includes USB 2.0 accessory connectivity, DC power input, cooling, and a built-in anti-dew heater. The heater draws about 5 W and can be disabled in software when conditions allow.

Use this camera with optics that can support a full-frame 43.3 mm diagonal. ZWO’s vendor page also notes a connection method and mechanical diagram for setup planning.

Important Limitations

• Requires full-frame optics: The camera should be paired with a telescope or corrector that supports a full-frame image circle.
• Requires external power: Cooling and camera operation require proper power planning.
• Colour sensor: Choose a monochrome camera if you need LRGB or narrowband filter control.
• Cooling limits: ZWO notes that cooling differential varies with ambient temperature and operation below -20°C is not recommended.

Frequently Asked Questions

Is the ASI4400MC Pro a colour camera?

Yes. It is a one-shot-colour cooled deep-sky camera.

Is it full frame?

Yes. The sensor is 36 mm × 24 mm with a 43.3 mm diagonal.

How does it compare with ASI6200MC Pro?

The ASI4400MC Pro has 44 MP resolution and 4.4 µm pixels, while the ASI6200MC Pro has 61.2 MP resolution and smaller 3.76 µm pixels. The ASI4400MC Pro is positioned between the ASI6200MC Pro and ASI2400MC Pro.

Does it need a UV-IR cut filter?

ZWO states the ASI4400MC Pro is equipped with a UV-IR cut filter in front of the sensor.

Bottom Line

In short: the ASI4400MC Pro is a 44 MP full-frame cooled colour camera for deep-sky imaging, with 4.4 µm pixels, high full-well capacity, two-stage cooling, glow suppression, USB 3.0, and a practical balance between resolution and sensitivity.
