- Description
- Specifications
- Full field sharpness: The sharp flat 76° field is unsurpassed by any other modern wide field eyepiece. On-axis sharpness and contrast rivals our best planetary eyepieces, while delivering nearly equivalent performance over the full field.
- Long Eye Relief and optimized for bino-viewing: Morpheus pushes the envelope of comfortable wide field viewing further than ever before, delivering close to 20mm of eye relief
- Low Distortion: The Morpheus optical design delivers exceedingly low distortion (angular magnification distortion)
- Photo-Video Adaption: Like their Hyperion siblings, all Morpheus eyepieces make superb imaging projection optics with the M43 thread
-

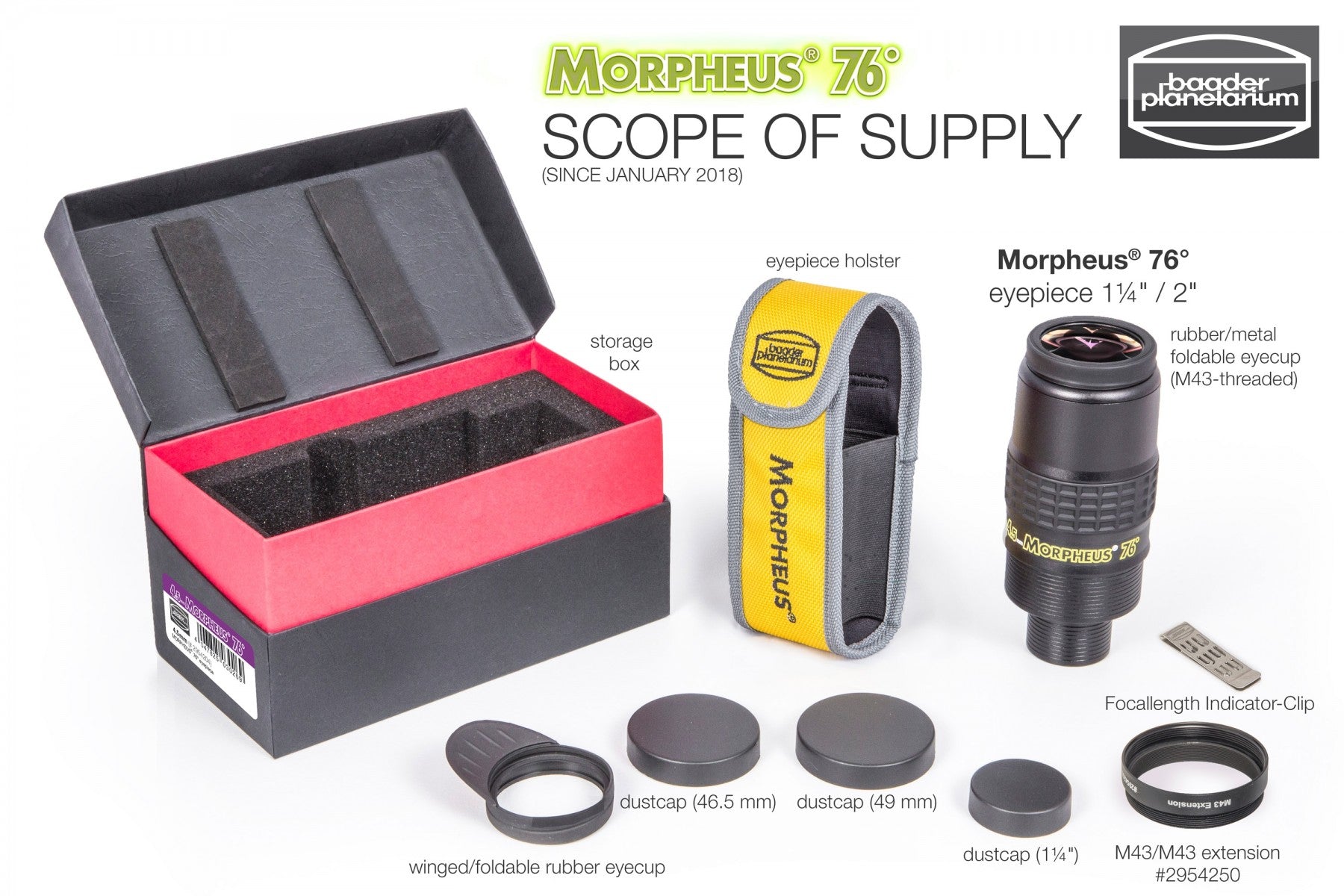

NEW FEATURES SINCE JANUARY 2018:
-

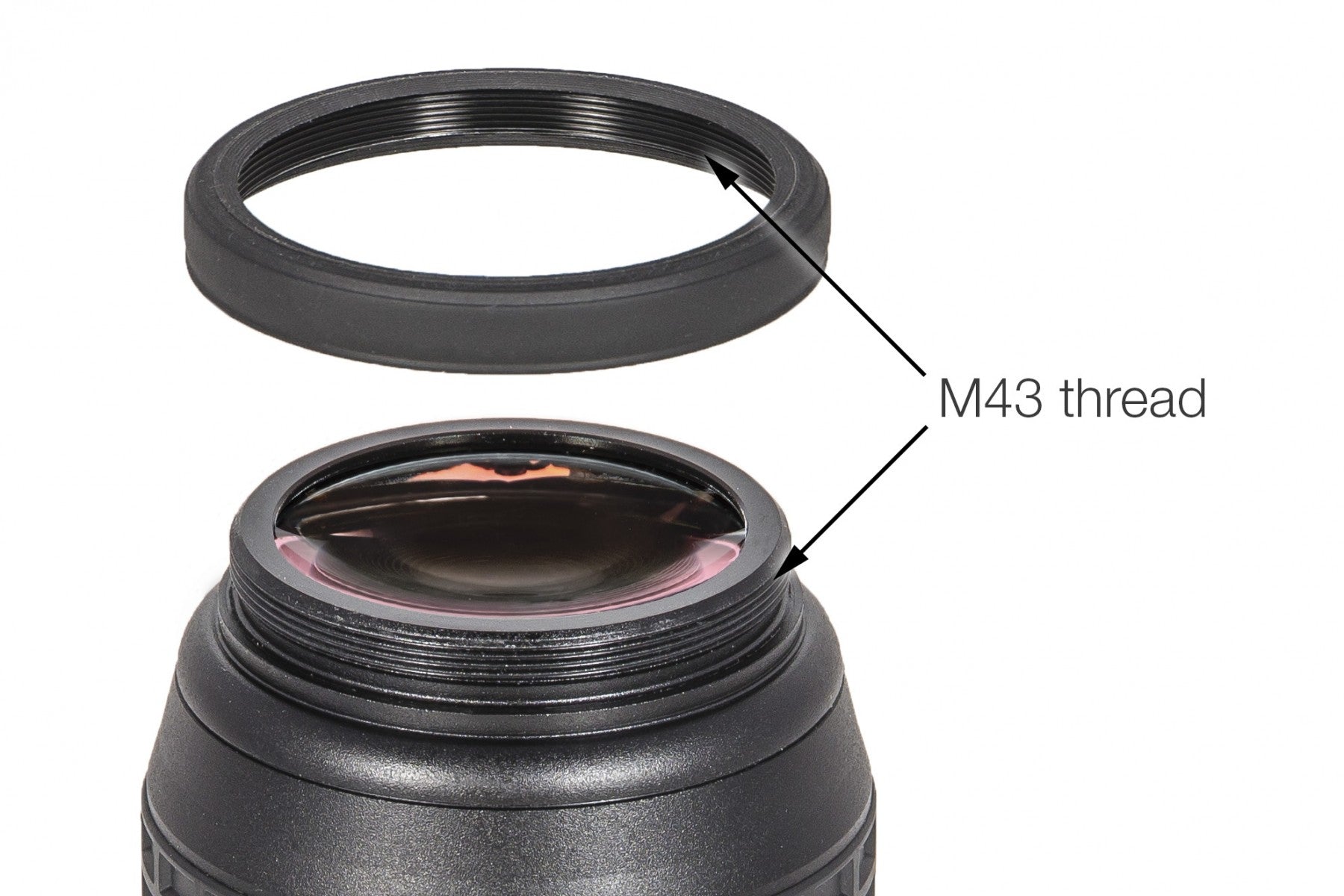

Metal / Rubber eyecup: The folding rubber eyecup now comes with an integral M43 threaded metal ring (this accounts for the complete line of Morpheus-eyepieces). The threaded attachment enables the eyecup to stay soft and compliant, while keeping the eyecup securely attached to the eyepiece while folding it up or down.
-
M43/M43 extension: all Morpheus eyepieces now include the M43 extension #2954250. It is used for optimizing the position of the eyecup in setting the personal viewing position as well as for adapting a camera with M43-thread (eg. Sony / Panasonic). In addition this extension serves also as clamping surface for smartphone holders
-
10-page manual: a manual with many application examples and a list of optional accessories (similar to the Hyperion manual) is included (also under Tab "Downloads")
-
Focal-Length Indicator-Clips: these stainless steel clips can be attached e.g. to the eyepiece holster and one or more of the little indicator fingers is bent upward - according to the focal length used. In this way the user experiences a taktile ("braille"-equivalent) sensation, being able to identify each eyepiece without looking and without using a flashlight
-
| GENERAL | |
|---|---|
| MANUFACTURER | Baader Planetarium |
| SKU (#) | 2954217 |
| WEIGHT (KG) | 0.415 |
| EYEPIECE SERIES | Morpheus |
| SPECIFICATIONS | |
| FOCAL LENGTH | 17,5 mm |
| APPARENT FIELD OF VIEW | 76° |
| EYE RELIEF (MM) | 23 mm |
| AR-COATING | Phantom Coating® Group |
| PARFOCAL EYEPIECES | Yes |
| SPECIAL FEATURES | Photo-luminescent engraving: lets you find the correct eyepiece at all times |
| BARREL SIZE (IN) | 1¼", 2" |
| OPTICAL DESIGN | Wide Angle |
| SPECIALITY | Eyepiece projection: classical |
| EYEPIECE DESIGN | |
| FIELD STOP DIAMETER | 23,55 mm |
| FIELD STOP DISPLACEMENT TO REFERENCE PLANE | + 2,5 mm |
| NUMBER OF LENS ELEMENTS | 8 |
| NUMBER OF GROUPS | 5 |
| BACKFOCUS GAIN W. 2“ BARREL (MM) | 21 mm |
| SLIP PROTECT SAFETY | Safety Kerfs |
| EYEPIECE BODY ABOVE REFERENCE PLANE (MM) | 77,5 mm |
| LENGTH OF 1¼" BARREL (MM) | 24 mm |
| LENGTH OF 2" BARREL (MM) | 21 mm |
| OUTER DIAMETER | 55 mm |
| CONNECTIONS | |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, M43 |
| INNER CONNECTION (LENS SIDED) | Thread, M28,5 |
| OUTER CONNECTION (LENS SIDED) | Barrel, 1¼", 2" (50,8mm) |
| CAMERA THREAD | M43 |
| THREADED FOR FILTERS | Yes |
