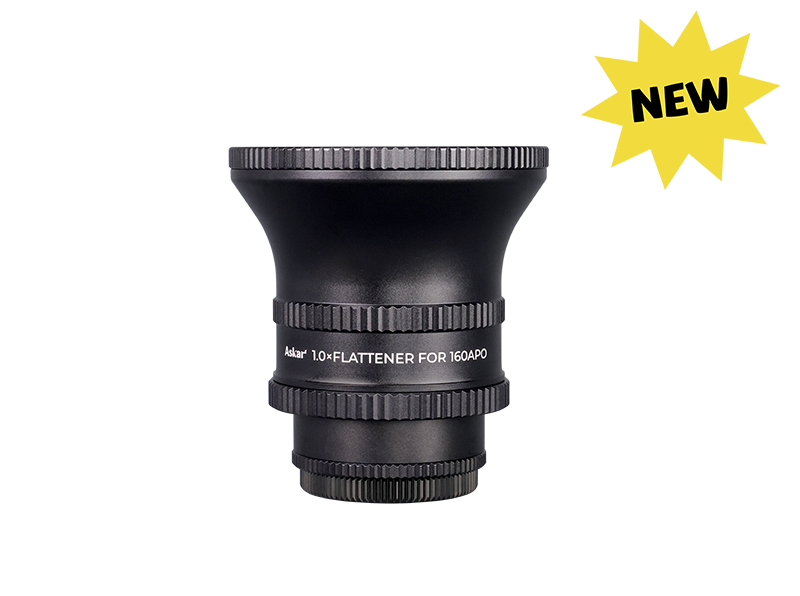

Name: 160APO 1x Full-frame Flattener
Brand: Askar
SKU: ASK-Flat-APO-160
Price: 477.00 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Description
Specifications

The Askar 160 APO comes with three optional premium accessories, a 1.0x flattener and a 0.8x reducer. Introduced here is the 1.0x flattener, which is optimized for the Askar 160APO, and can provide more possibilities for telescope use.

The 1.0x flattener does not change the telescope's focal ratio itself. After connecting with the Askar 160APO, it still maintained a focal ratio of 7. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

The 1.0x flattener adopts a triplet design and supports a 44mm full-frame image circle. The back focus from the M48 thread is a standard 55mm. The front thread is M92*1. At the camera end, it is equipped with M68*1, M54*0.75, and M48*0.75 three sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.

1x Flattener Size Diagram

长友气体

1x Flattener Installation

长友气体

Spot Diagram

长友气体

（After attaching）160APO Focal length	1120mm
（After attaching）160APO Focal ratio	f/7
Lens Number	Triplet design
Back Focus	55mm（from the base of M48 male thread）
Weight	0.56kg
Rear-end thread type	M68×1 M54×0.75 M54×0.75-M48×0.75(M48×0.75 filter thread inside)
