Explore Scientific FCD-100 Series 102mm Carbon Fiber Air-Spaced Triplet ED Apo Refractor

Product Overview

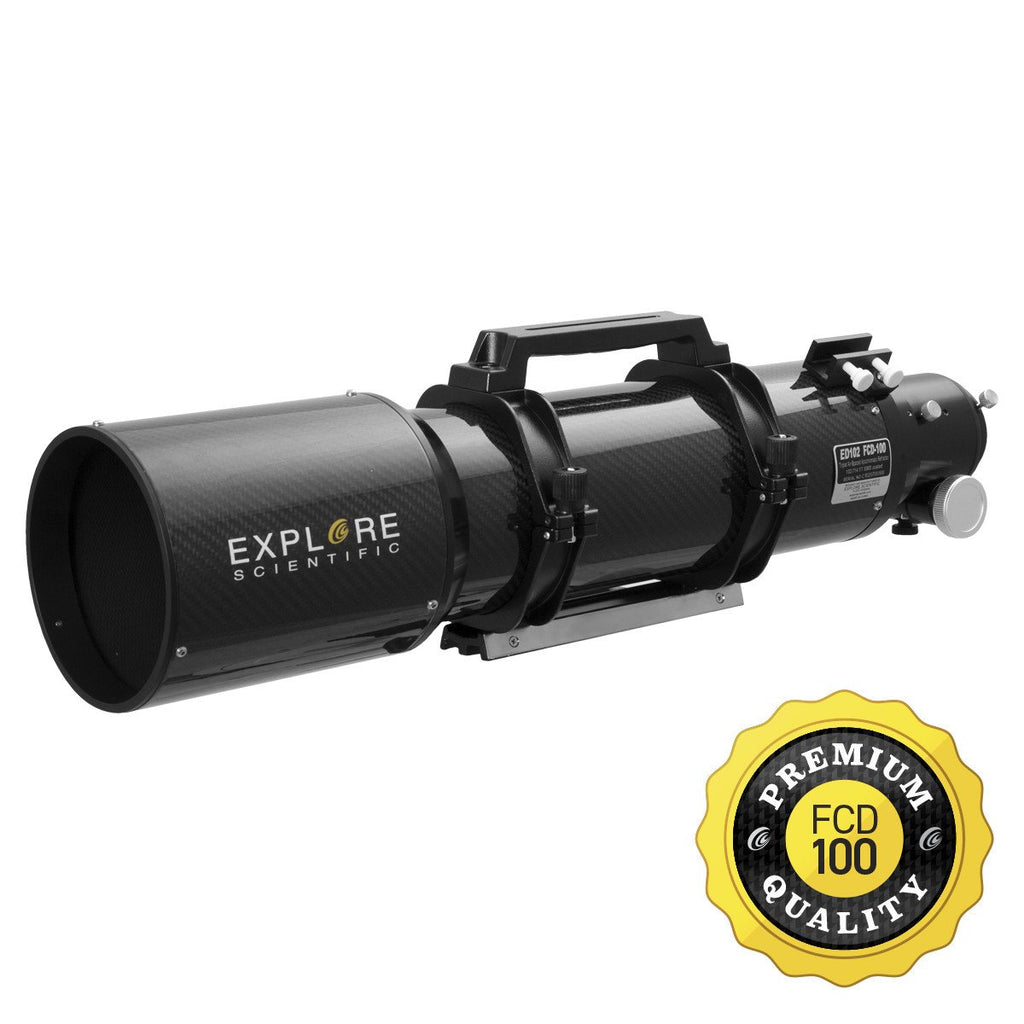

The Explore Scientific FCD-100 Series 102mm carbon fiber apochromat is a four-inch refractor built around an air-spaced triplet objective made with FCD-100 extra-low-dispersion glass, carried in a carbon fiber optical tube. It is catalogued as item FCD100-10207-CF-01 — the carbon fiber version of the 102mm FCD-100 apochromat, distinct from the aluminium-tube 102mm which carries its own separate item number.

Explore Scientific does not currently publish a specification table for this carbon fiber configuration. Focal length, focal ratio, tube length, focuser travel, dovetail pattern, backfocus and weight are therefore absent from the specifications below rather than estimated. The figures belonging to the aluminium-tube 102mm are not carried across to this listing, because that is a different model and its numbers are not ours to lend. What the model designation itself establishes is the part that governs the optics: 102mm of clear aperture, three elements in an air-spaced triplet, FCD-100 ED glass, and a carbon fiber tube.

Aperture on its own settles a good deal. A 102mm objective gathers roughly 212 times the light of a fully dark-adapted 7mm eye pupil, and Dawes' criterion for a 102mm aperture works out to about 1.14 arcseconds — the separation at which a tight double star begins to resolve into two points. Both are calculations from the aperture figure rather than published specifications.

Who It's For

• Observers who want colour-free high power in a four-inch tube: a triplet apochromat is designed to bring three wavelengths to a common focus, which is what removes the violet halo that a two-element achromat leaves around Venus, Jupiter and the lunar limb.
• Deep-sky imagers: the combination of a triplet objective and a carbon fiber tube targets the two things that spoil a long exposure — colour spread across the star field, and focus drifting as the night cools.
• People who already own a capable equatorial or alt-az mount. This is a good match if you have a mount with capacity to spare and want a four-inch apochromat to put on it.

Key Features & Design

• 102mm clear aperture: four inches of light grasp, with a theoretical resolution near 1.14 arcseconds by Dawes' criterion.
• Air-spaced triplet objective: three elements with air gaps between them rather than cement, giving the designer six optical surfaces to shape instead of the four a cemented pair offers.
• FCD-100 extra-low-dispersion glass: an ED glass type chosen for its low dispersion, which is the property that lets a triplet close the secondary spectrum rather than merely reduce it.
• Carbon fiber optical tube: carbon composite has a far lower coefficient of thermal expansion than aluminium, so the distance between objective and focal plane changes less as the ambient temperature falls through the night.
• Published data is limited: the model designation is the whole of what Explore Scientific states publicly for this configuration, so the rest of the table reads "Not published by vendor" instead of carrying a borrowed figure.

Optical Design

An apochromatic triplet works on the same principle as an achromatic doublet, taken a step further. A doublet pairs a crown element with a flint element so that two wavelengths — typically in the red and the blue — land on the same focal plane, leaving a residual violet focus error known as the secondary spectrum. A triplet adds a third element, usually with an extra-low-dispersion glass such as FCD-100 in the middle of the stack, and brings a third wavelength onto that plane as well. The residual colour error drops by roughly an order of magnitude, which is why bright stars in an apochromat show as clean points rather than as points wearing a purple ring.

Air-spacing the elements rather than cementing them serves two ends. It gives the optical designer additional free surfaces to shape and additional degrees of freedom in balancing spherical aberration against colour correction. It also removes the cement layer as a thermal variable: in a four-inch objective, a bonded interface between glasses of differing expansion rates is one more thing that has to settle as the lens cools toward ambient.

The carbon fiber tube is doing thermal work of its own. Every refractor has a fixed distance from the objective to the focal plane, and every tube material changes length as it cools. Aluminium moves enough over a twenty-degree evening drop to be visible in a critically focused image at high magnification or on a small imaging pixel scale. Carbon composite moves far less, so a focus position set at the start of an imaging run holds closer to true through the session. The same stiffness-to-weight advantage also keeps flexure between the objective cell and the focuser lower for a given tube mass. What the design cannot settle without a published focal length is the focal ratio, the field any eyepiece will deliver, or the illuminated image circle at the camera — and those we would rather leave blank than guess at.

Recommended Uses

• High-power visual observing of the Moon, planets and double stars, where colour correction is the limiting factor rather than aperture.
• Deep-sky imaging, where a triplet objective keeps star colour tight across the frame.
• Long imaging sessions through a falling temperature, where a low-expansion tube reduces the number of refocus stops.

Compatibility and Accessory Notes

• Mount: the tube weight is not published for this configuration, so a mount recommendation from us would be a guess. We can obtain the figure from Explore Scientific and match it against the mount you own before you order.
• Dovetail: the pattern supplied with the carbon fiber version is not stated on the vendor page. Vixen-style and Losmandy-style saddles are the two common standards, and we can tell you which one applies once we have it in writing.
• Eyepieces and magnification: magnification is telescope focal length divided by eyepiece focal length, so without a published focal length for this tube we are not going to quote example magnifications.
• Field flatteners and reducers: a triplet apochromat corrects colour, not field curvature, so imaging across an APS-C or full-frame sensor generally calls for a flattener matched to the focal length. That match depends on figures the vendor has not published here, so we would sort the spacing out with you rather than sell a flattener blind.

Good to Know Before You Order

• Explore Scientific publishes no specification table for the carbon fiber 102mm. Focal length, focal ratio, focuser type, tube length, dovetail and weight are all absent from their page for this item number. Rather than lift them from the aluminium-tube model, we have left those rows blank — and if any one of them is the deciding factor for you, we will put the question to our Explore Scientific rep and come back with an answer in writing.
• The in-the-box list is also unpublished. Whether a diagonal, finder or rings ship with this configuration is not stated, so we will confirm exactly what is in the carton with the distributor before anything leaves here.
• Carbon fiber reduces focus drift rather than eliminating it. Long imaging runs still benefit from periodic refocusing or an autofocus routine, and we stock motorised focusers that handle that automatically.

Frequently Asked Questions

Is it difficult to set up?

No. A refractor holds its collimation from the factory, so there is nothing to align before first light — the tube goes into the saddle, the diagonal and eyepiece go into the focuser, and it is ready. The only real work is balancing the mount once the tube is on it.

What magnification will it give?

That depends on the focal length, and Explore Scientific has not published one for this configuration. We would rather ask them than quote a number we cannot stand behind, so if the answer matters to your eyepiece plan, ask us and we will get it.

What does FCD-100 glass actually do?

It is an extra-low-dispersion optical glass. Dispersion is the tendency of glass to bend different wavelengths by different amounts, which is the root cause of chromatic aberration. A low-dispersion element in the middle of a triplet lets the design bring red, green and blue essentially to the same focus instead of leaving violet behind.

Why a carbon fiber tube instead of aluminium?

Thermal stability and stiffness for the mass. Carbon composite changes length far less than aluminium as the night cools, which keeps focus closer to where you set it, and it is rigid without being heavy.

Can I image with it?

It is built for it — a triplet apochromat on a low-expansion tube is a deep-sky imaging configuration. The accessories that go with it (flattener, spacers, filter drawer) depend on the focal length and backfocus, which is where we can help once those figures are in hand.

Bottom Line

In short: a 102mm air-spaced triplet apochromat using FCD-100 ED glass in a carbon fiber tube — four inches of three-colour correction on a low-expansion tube, with a specification table Explore Scientific has not yet published for this particular item number. If there is a figure you need before committing, send us the question and we will get it from Explore Scientific and pass on exactly what they tell us.
