ZWO M54-M48-21 Adapter

Product Overview

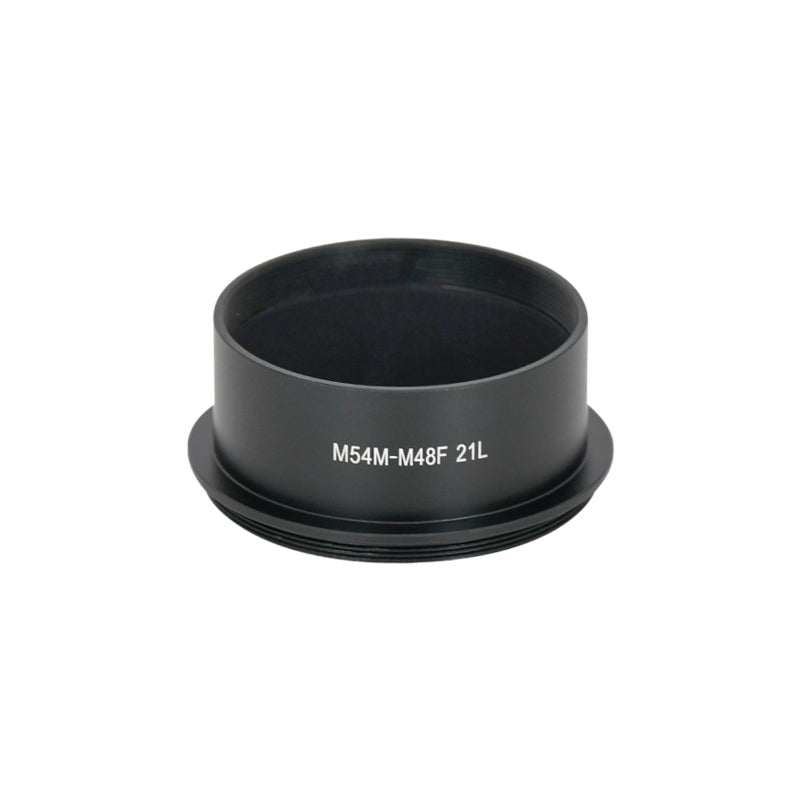

The ZWO M54-M48-21 Adapter is a 21 mm extender carrying an M54 male thread on one end and an M48 female thread on the other. Machined from black anodized aluminium, it converts the M54 rear thread found on ZWO's larger cooled cameras to the M48 (2") filter standard while contributing a known, fixed 21 mm to your imaging train.

Its purpose is arithmetic. Most ZWO cooled cameras are built around a 55 mm backfocus target, and this adapter exists to fill a 21 mm gap in that sum exactly.

Who It's For

This is a good match if you run a ZWO cooled camera with an M54 rear thread and need to reach 55 mm backfocus without stacking a pile of thin spacers, each with its own tolerance.

It is also useful if you want a 2" nosepiece on an M54-threaded camera — the M48 female end accepts a 2" filter directly, and the barrel drops into a 2" focuser.

Key Features & Design

• 21 mm optical length: a known, fixed contribution to the backfocus sum — not an adjustable part
• M54 × 0.75 male thread: mates to the M54 rear thread on ZWO's larger cooled bodies
• M48 × 0.75 female thread: the 2" filter standard — threads a 2" filter straight in
• Doubles as a 2" nosepiece: the M48 end is a 2" barrel, so it drops into a standard 2" focuser

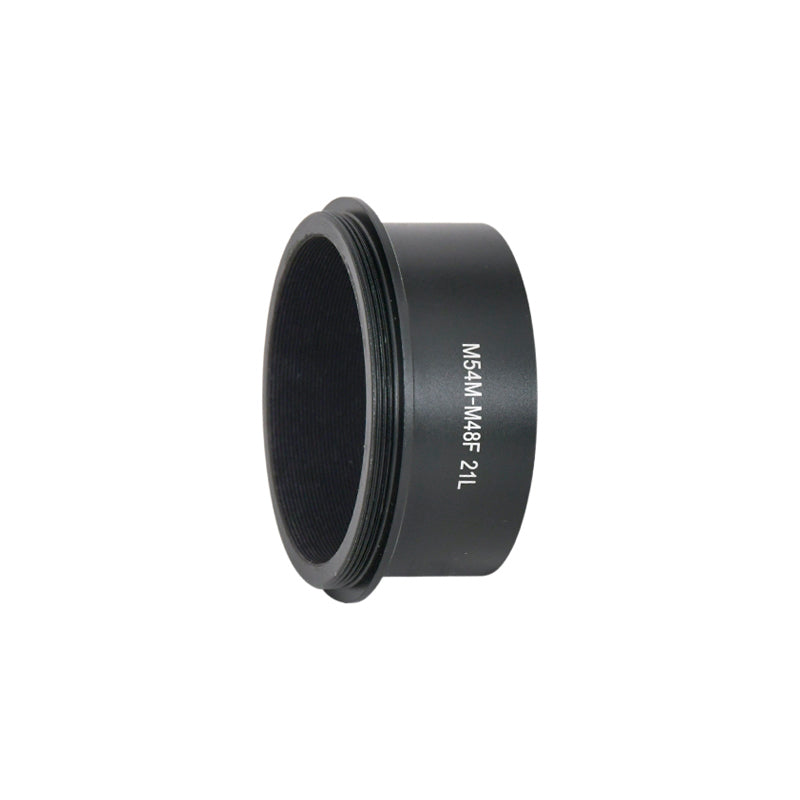

• Black anodized aluminium: the internal finish suppresses reflections inside the light path
• Mechanical only — no optics, no glass, no electrical connection

Recommended Uses

• Hitting 55 mm backfocus on an M54-threaded ZWO cooled camera where 21 mm is the gap you need to fill
• Threading a 2" filter directly to the camera when you are not running a filter wheel
• Using an M54 camera as a 2" nosepiece assembly in a standard focuser
• Replacing a spacer stack with one machined part, removing the accumulated tolerance of several thin rings

Compatibility and Accessory Notes

• Camera side: M54 × 0.75 male — fits ZWO cooled cameras with an M54 rear thread. Confirm your camera's rear thread before ordering; ZWO also uses M42 and M68 across the range
• Filter side: M48 × 0.75 female, the 2" filter thread
• Backfocus is a sum, not a single number. Your camera's own sensor-to-flange distance, plus this 21 mm, plus any filter wheel, OAG, or filter thickness, must total what your flattener or reducer specifies — usually 55 mm. Work the whole chain out before ordering
• Filters add optical path. A filter in the train shifts focus by roughly one third of its glass thickness. Account for it rather than discovering it at the corners
• Not adjustable. If you need a different length, ZWO makes M54 extenders in other sizes — including 16.5 mm and 21 mm M54-to-M54 versions
• Mechanical adapter only — no electronic communication with the camera

Important Limitations

• This is a spacer, not a corrector. It does not flatten a field, reduce a focal ratio, or fix star shapes. If your corners are poor, spacing is only one of the possible causes
• Wrong length means bad corners. Backfocus tolerance on a fast flattener is typically a millimetre or so. Being 21 mm out because you guessed the chain will show as elongated or misshapen corner stars
• Fixed 21 mm. It cannot be shortened, and shimming it longer defeats the point of a machined part
• M54 male only. It will not thread to an M42 or M68 camera without a further adapter
• No filter, no optics, and no camera included. This is a bare aluminium adapter

Frequently Asked Questions

What is this adapter actually for?

Reaching 55 mm backfocus on an M54-threaded ZWO cooled camera. It contributes a fixed, known 21 mm so the chain adds up, and converts M54 to the M48 2" filter thread on the way.

Can I thread a 2" filter into it?

Yes. The M48 × 0.75 female end is the 2" filter standard.

Can I use it as a 2" nosepiece?

Yes — the M48 end is a 2" barrel, so it drops into a standard 2" focuser. That makes it a practical way to put an M54 camera into a visual-style focuser.

Which cameras does this fit?

ZWO cooled cameras with an M54 rear thread. Check your specific model first — ZWO uses M42, M54, and M68 across the line, and the wrong one simply will not thread.

How do I work out whether I need 21 mm?

Add your camera's sensor-to-flange backfocus, this adapter's 21 mm, and anything else in the chain — filter wheel, OAG, filter glass. The total needs to match what your flattener or reducer calls for. If the sum is not 55 mm, this is not the right length.

Does the filter I put in it change my spacing?

Yes. Glass in a converging beam shifts focus by roughly a third of its thickness. Include it in the sum.

Is this good for beginners?

The part is simple to fit — it threads on. The hard bit is the arithmetic, not the assembly. If you are unsure of your chain, work the numbers out before ordering rather than buying spacers and hoping.

My corner stars are still bad after fitting this. Why?

Spacing is one cause of poor corners; sensor tilt and an optic that does not cover your sensor are the others. If your total backfocus is right and the corners are still wrong, look at tilt next.

Bottom Line

In short: a 21 mm M54 male to M48 female adapter in black anodized aluminium — the part that closes a 21 mm gap in a 55 mm backfocus chain and gives you a 2" filter thread and nosepiece at the same time. Work out your full chain before ordering; the length is fixed and the tolerance is tight.
