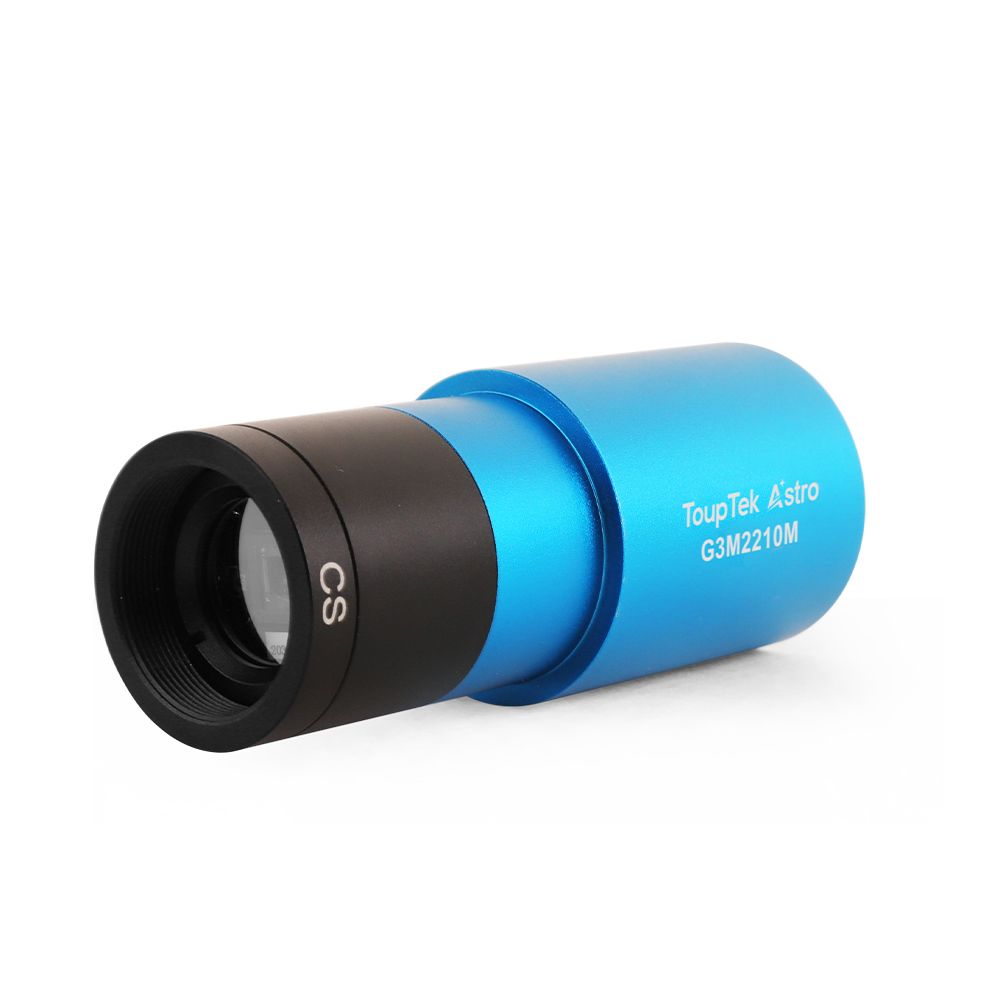

ToupTek G3M2210M Compact Planetary Camera – Sony IMX585 Monochrome

The ToupTek G3M2210M is the monochrome version of the G3M2210C — combining the large 1/1.2" Sony IMX585 sensor with a monochrome configuration for maximum per-pixel sensitivity and resolution. The large format delivers a significantly wider field of view than standard 1/2.8" planetary cameras, while the removal of the Bayer colour filter unlocks the sensor's full light-gathering potential. For LRGB planetary sequences, narrowband solar imaging, and high-resolution wide-field lunar work, the G3M2210M is a unique and powerful tool.

Product Overview

The G3M2210M uses Sony's IMX585 1/1.2" BSI sensor in a monochrome configuration with HCG and LCG gain modes, a 512MB DDR3 buffer, and hardware-level zero amp-glow. Hardware ROI supports higher frame rates at reduced field size when speed is the priority. The compact C-mount body is compatible with standard telescope accessories, OAGs, and guide scopes.

Who Is This Product Best For?

Advanced planetary imagers who want maximum field coverage combined with the full sensitivity and narrowband capability of a monochrome sensor. Particularly useful for wide-field LRGB planetary imaging, H-alpha solar disc imaging, and full-disc lunar captures that would require multiple frames with smaller cameras.

Why Choose This Product?

• Large 1/1.2" monochrome IMX585 sensor — widest field of view in the G3M compact series combined with monochrome sensitivity
• No Bayer filter — maximum per-pixel sensitivity for LRGB and narrowband workflows
• HCG / LCG mode switching — adapt from faint outer planets to the bright solar disc
• 512MB DDR3 buffer + zero amp-glow — reliable, clean data at any gain
• Hardware ROI — increase frame rate by restricting active sensor area
• Wide field coverage — reduces mosaic panels needed for lunar, solar disc, and planetary conjunction work

Recommended Uses

• Wide-field LRGB planetary imaging (separate R, G, B, L passes)
• H-alpha and Ca-K solar disc imaging with dedicated solar telescopes
• Full-disc and wide-field monochrome lunar imaging
• Infrared planetary imaging with IR-pass filters
• Lucky imaging on bright deep-sky targets and star clusters

Compatibility and Accessory Notes

• Connection: C-mount (Standard and Extended versions available)
• Filters: 1.25" mounted filters via included extension tube; LRGB, narrowband, and IR-pass filters all compatible
• Software: ToupSky, SharpCap, FireCapture, NINA, PHD2, ASCOM; INDI for Linux
• Power: USB 3.0 bus-powered

Important Limitations

• Monochrome output — requires filters for colour imaging
• Not for deep-sky imaging — uncooled sensor; not suited for faint extended objects
• Not for visual observing — requires computer and capture software
• Larger data files — fast storage and USB 3.0 host recommended for sustained capture

Frequently Asked Questions

How does the G3M2210M compare to the G3M678M?
Both are 8.3MP monochrome cameras but with different sensor formats. The G3M678M uses the IMX678 in a 1/1.8" format with 2.0 µm pixels; the G3M2210M uses the IMX585 in a larger 1/1.2" format with 2.9 µm pixels. The G3M2210M covers a wider sky area per frame; the G3M678M offers higher angular sampling at equivalent focal lengths.

Is this camera suitable for solar H-alpha imaging?
Yes — the large monochrome sensor captures a wide solar disc in a single frame, and the sensitivity is well-matched to H-alpha solar telescopes. Always use appropriate certified solar safety equipment.

Our Recommendation

The ToupTek G3M2210M is a unique offering — the widest-field monochrome camera in the G3M compact series. If your work involves wide-field LRGB planetary sequences, solar disc imaging, or full-disc lunar captures, the large 1/1.2" sensor makes a genuine difference. For deep-sky imaging, step up to the ToupTek ATR or SkyEye cooled series.
