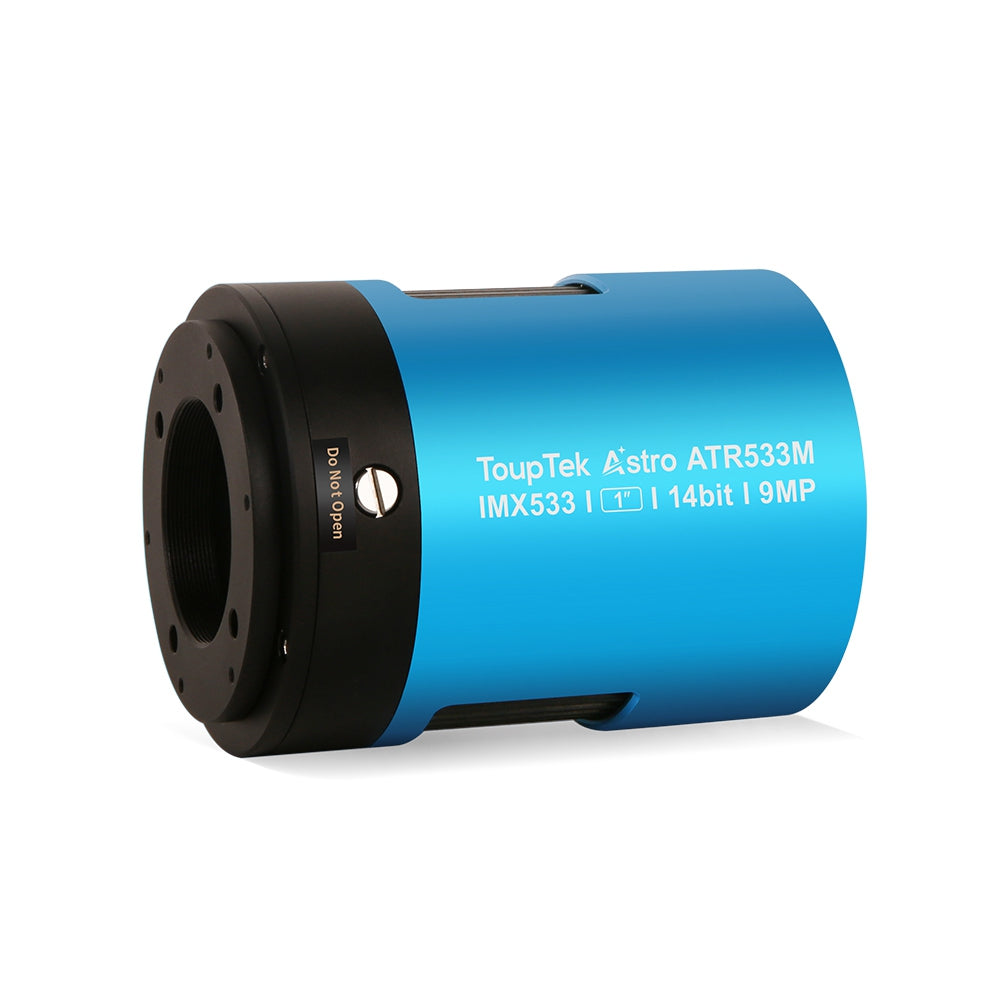

ToupTek ATR533M Deep Sky Cooled Camera – Sony IMX533 Monochrome

The ToupTek ATR533M is a professional monochrome deep sky cooled camera built around the Sony IMX533 square-format back-illuminated CMOS sensor. The IMX533's square aspect ratio makes it ideal for imaging round nebulae and planetary nebulae, while its exceptional sensitivity and low noise deliver outstanding results for narrowband and LRGB deep sky imaging.

Who Is This Product Best For?

The ATR533M is ideal for advanced astrophotographers who image with monochrome LRGB and narrowband filter sets. The square sensor format is especially well-suited for round or symmetrical deep sky objects such as planetary nebulae, globular clusters, and emission regions.

Why Choose This Product?

• Sony IMX533 Square Monochrome Sensor: Back-illuminated, high quantum efficiency, ideal for round deep sky targets and symmetric framing.
• Dual-Stage TEC Cooling: Up to 45°C below ambient with ±0.1°C precision temperature control.
• Anti-Dew Window Heater: Four-level adjustable heating keeps the optical window condensation-free.
• 512 MB DDR3 Buffer + USB 3.0 5 Gbps: Reliable high-speed data transfer for extended imaging runs.
• Up to 1-Hour Exposures: Captures faint nebular extensions and faint galaxy detail.
• HCG/LCG/HDR Multi-Mode Support: Adaptive gain modes for different imaging conditions.

Recommended Uses

• Narrowband (Ha, SII, OIII) and LRGB monochrome deep sky imaging
• Planetary nebulae and globular cluster imaging
• Long-exposure scientific and photometric imaging

Compatibility and Accessory Notes

• Requires external 12V 3A DC power supply or stable 11–14V lithium battery
• Compatible with ToupTek OAG-L, OAG-X, AFW-L filter wheel, and StellaVita controller
• M42 thread connection standard
• Compatible with INDI, ASCOM, SharpCap, NINA, and APT

Important Limitations

• External power supply required — not USB-powered
• Monochrome sensor — requires filter sets for colour imaging

Frequently Asked Questions

Why is a square sensor useful for astrophotography?
A square sensor like the IMX533 allows you to image round objects without wasted rectangular field of view, and is easier to frame symmetric targets like planetary nebulae and globular clusters.

What filter size is recommended?
1.25" filters cover the sensor adequately, though 36mm filters provide a vignette-free field and are the preferred choice for this sensor size.

Our Recommendation

The ToupTek ATR533M is an excellent monochrome deep sky camera for advanced astrophotographers who value the versatility of a square sensor format. It delivers professional narrowband performance at a competitive price point, particularly for imaging symmetric deep sky objects.
