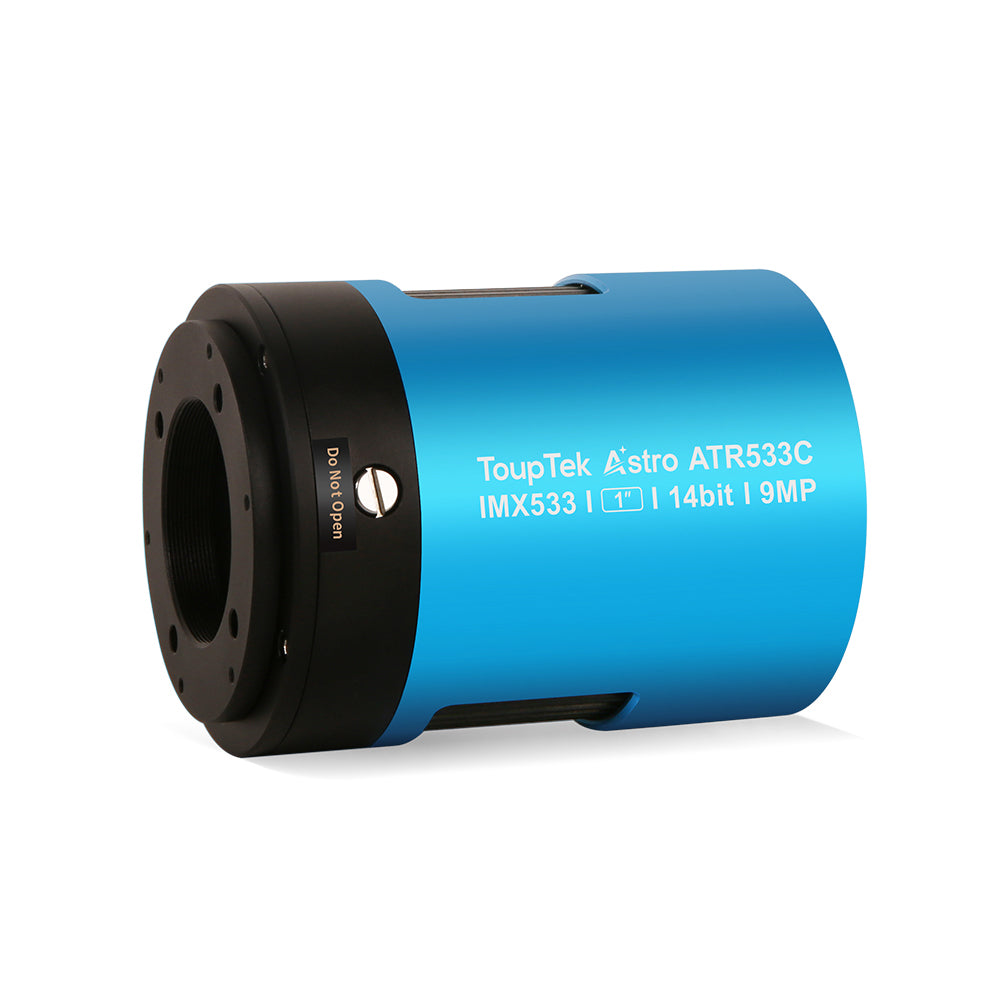

ToupTek ATR533C Deep Sky Cooled Camera – Sony IMX533 Colour

The ToupTek ATR533C is a professional one-shot colour deep sky cooled camera featuring the Sony IMX533 square-format back-illuminated CMOS sensor with Bayer colour filter array. The square sensor makes it ideal for imaging round and symmetric deep sky targets, while the colour Bayer filter delivers rich, natural one-shot colour results without the need for separate LRGB filter sets.

Who Is This Product Best For?

The ATR533C is ideal for intermediate to advanced astrophotographers who want a one-shot colour camera with a unique square format. It works particularly well for planetary nebulae, globular clusters, and compact emission regions where a square framing advantage is most pronounced.

Why Choose This Product?

• Sony IMX533 Colour Square Sensor: Back-illuminated, high quantum efficiency, delivers excellent natural colour without separate filter sets.
• Dual-Stage TEC Cooling: Up to 45°C below ambient with ±0.1°C precision.
• Anti-Dew Window Heater: Four-level adjustable heating for condensation-free operation.
• 512 MB DDR3 Buffer + USB 3.0 5 Gbps: Stable high-speed transmission for extended imaging sessions.
• Up to 1-Hour Exposures: Captures faint deep sky detail in long single-frame exposures.
• HCG/LCG/HDR Multi-Mode Support: Adaptive gain modes for varying sky conditions.

Recommended Uses

• One-shot colour imaging of planetary nebulae, globular clusters, and emission nebulae
• Deep sky imaging without the complexity of separate filter sets
• Light pollution filter use for imaging from suburban sites

Compatibility and Accessory Notes

• Requires external 12V 3A DC power supply or stable 11–14V lithium battery
• Compatible with ToupTek OAG-L, OAG-X, AFW-L filter wheel, and StellaVita controller
• M42 thread connection; adapters may be required for some telescopes
• Compatible with INDI, ASCOM, SharpCap, NINA, and APT

Important Limitations

• External power supply required — not USB-powered
• Colour Bayer sensor — not suitable for pure narrowband imaging without a duo-narrowband filter

Frequently Asked Questions

How does the ATR533C differ from the ATR533M?
The ATR533C is a one-shot colour (OSC) camera ideal for colour imaging without filters. The ATR533M is monochrome and requires separate filters, but delivers superior narrowband performance.

Is the square sensor a meaningful advantage?
Yes — for round targets like planetary nebulae or globular clusters, the square sensor maximises the useful imaging field without wasted corners.

Our Recommendation

The ToupTek ATR533C is an excellent one-shot colour cooled camera for astrophotographers who want deep-cooled performance and a uniquely square sensor format in a colour camera. It delivers excellent natural colour results with minimal workflow complexity.
